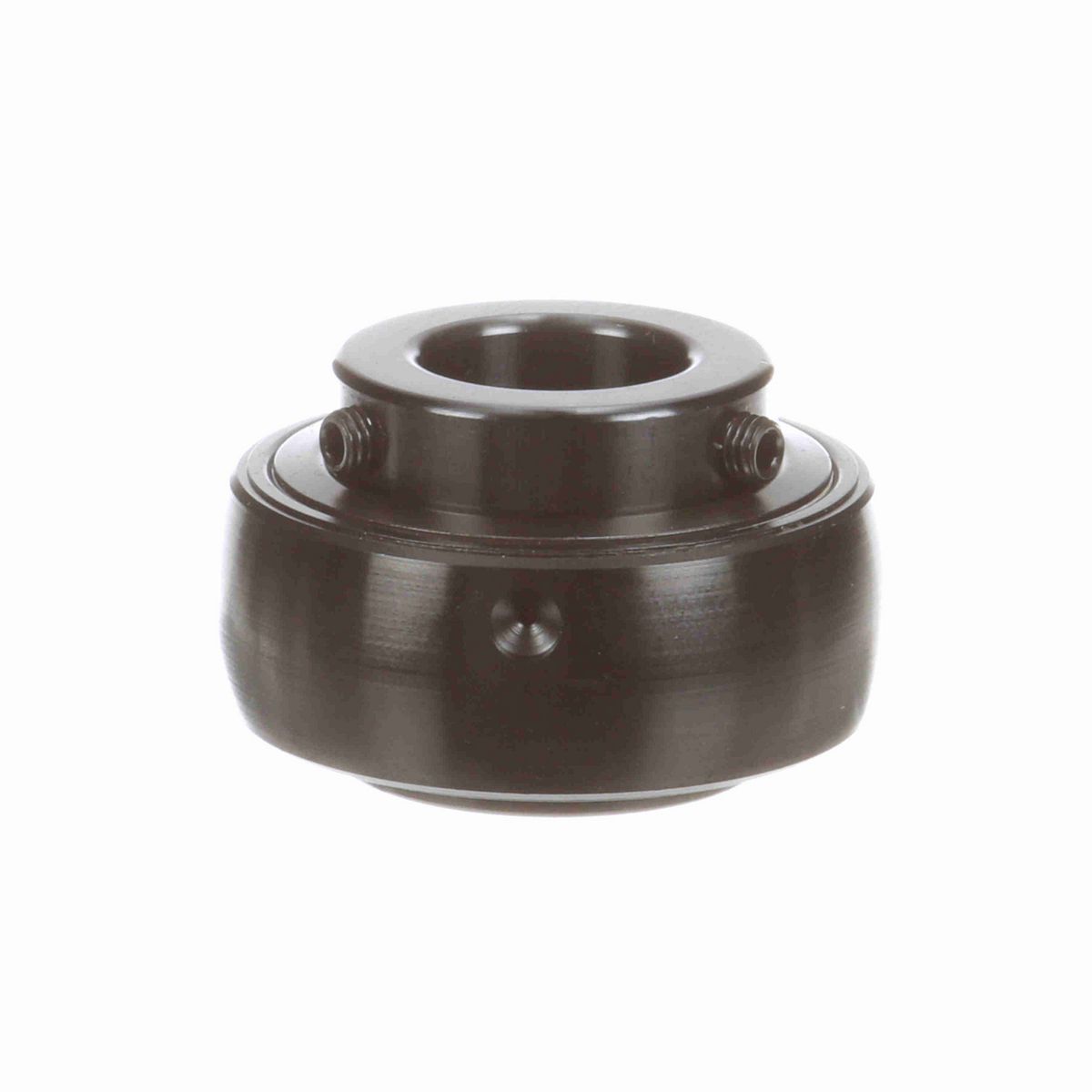

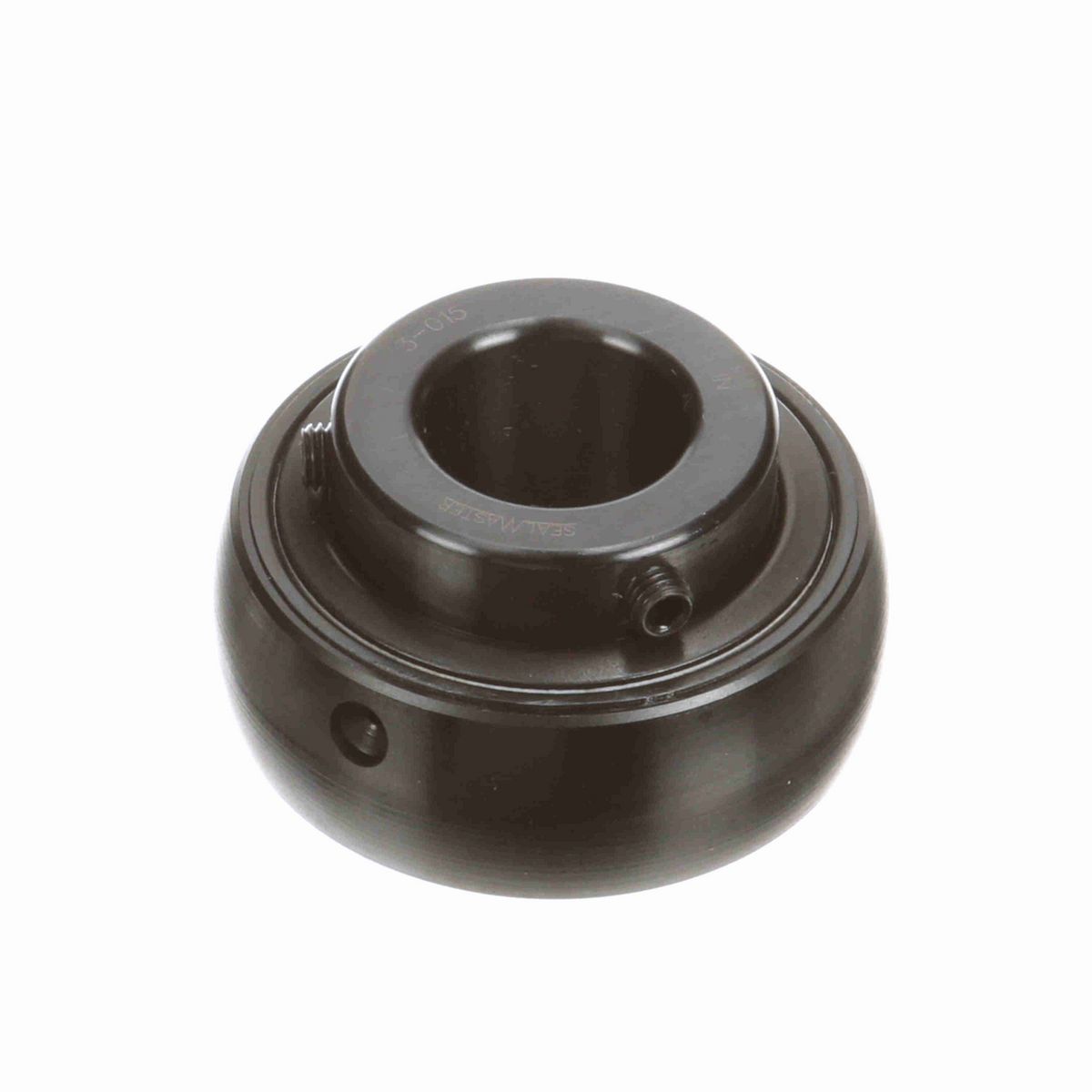

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	0.9375 in
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Outer Race OD (in)	2.441 in
Inner Race Length (in)	1.5 in

Technical Specifications

Radius	0.04
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28
Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Speed (Max) (RPM)	5450 rpm
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	4,381 lb
Misalignment	±2.0° Misalignment - Static Only
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Radial Static Load Capacity (lb)	2,567 lb
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Fixed vs. Expansion	No
Duty/Series	Medium
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461000588
Weight	1.00 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
