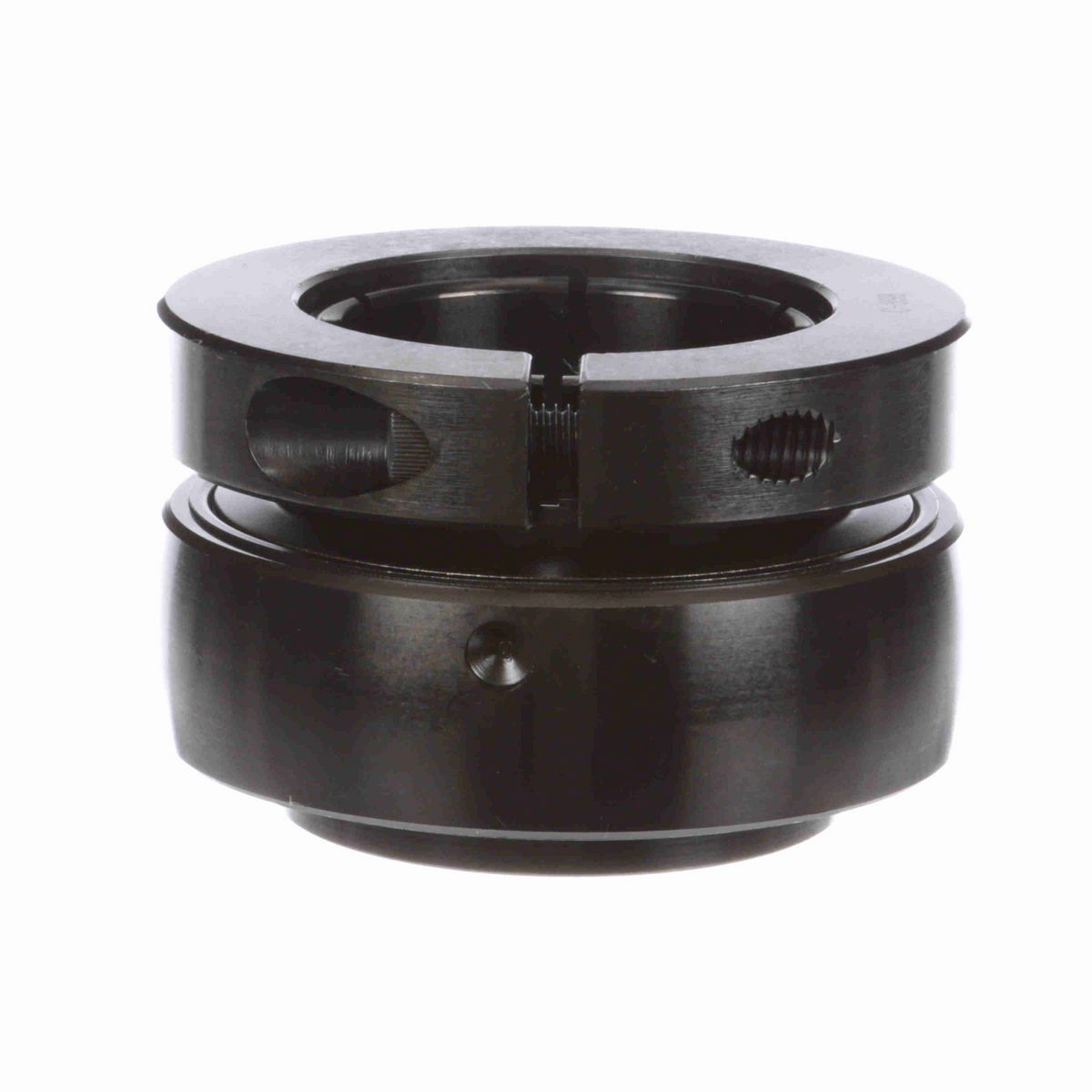

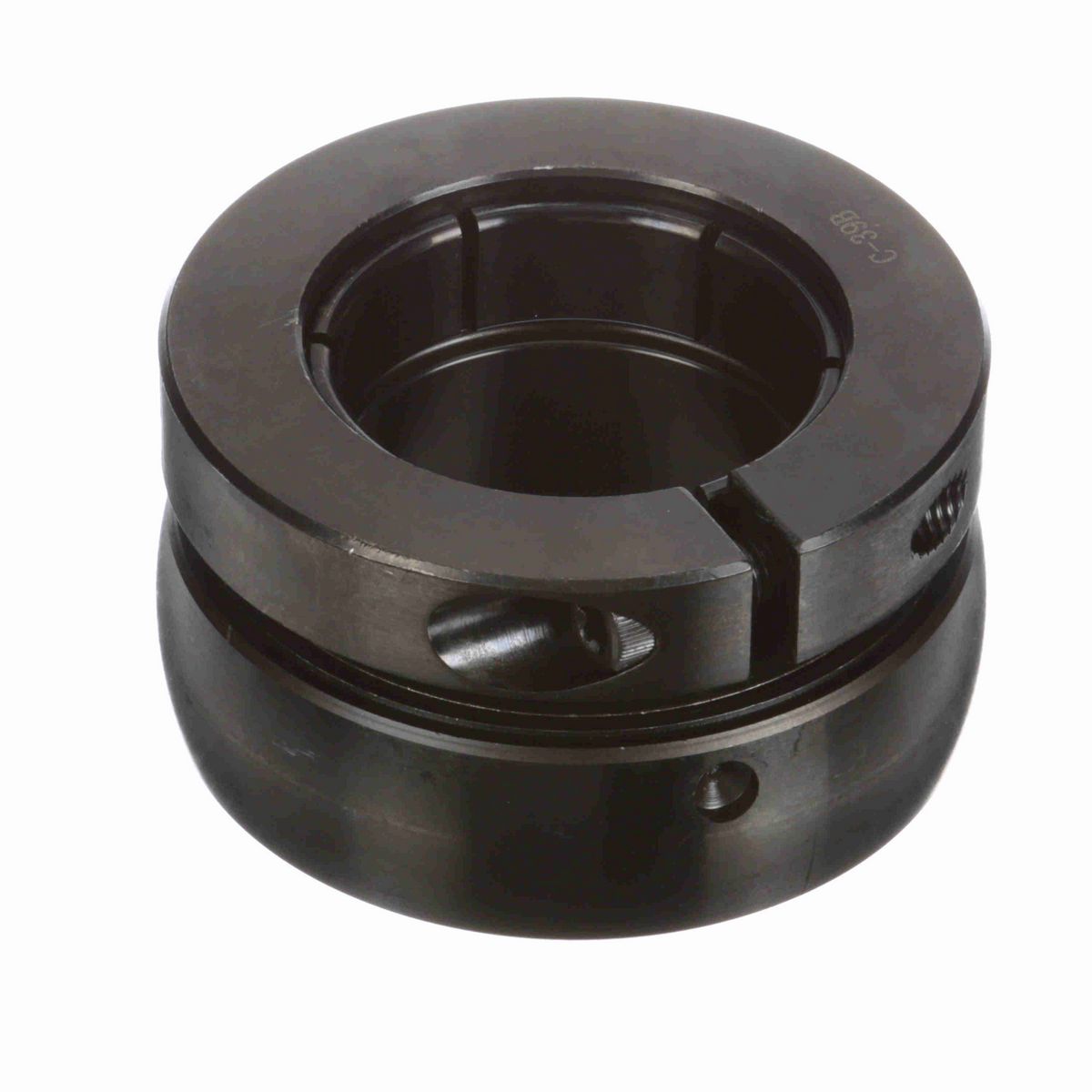

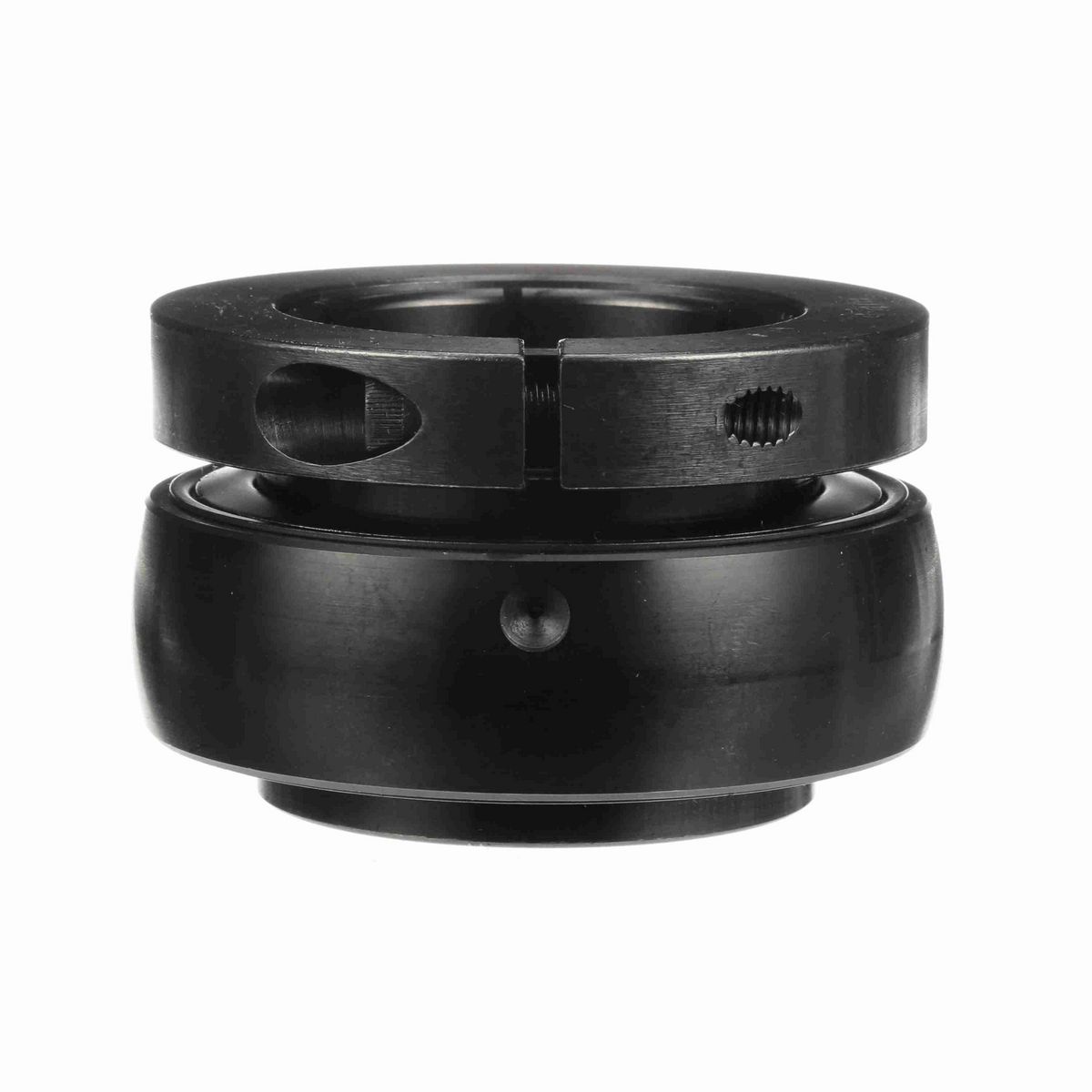

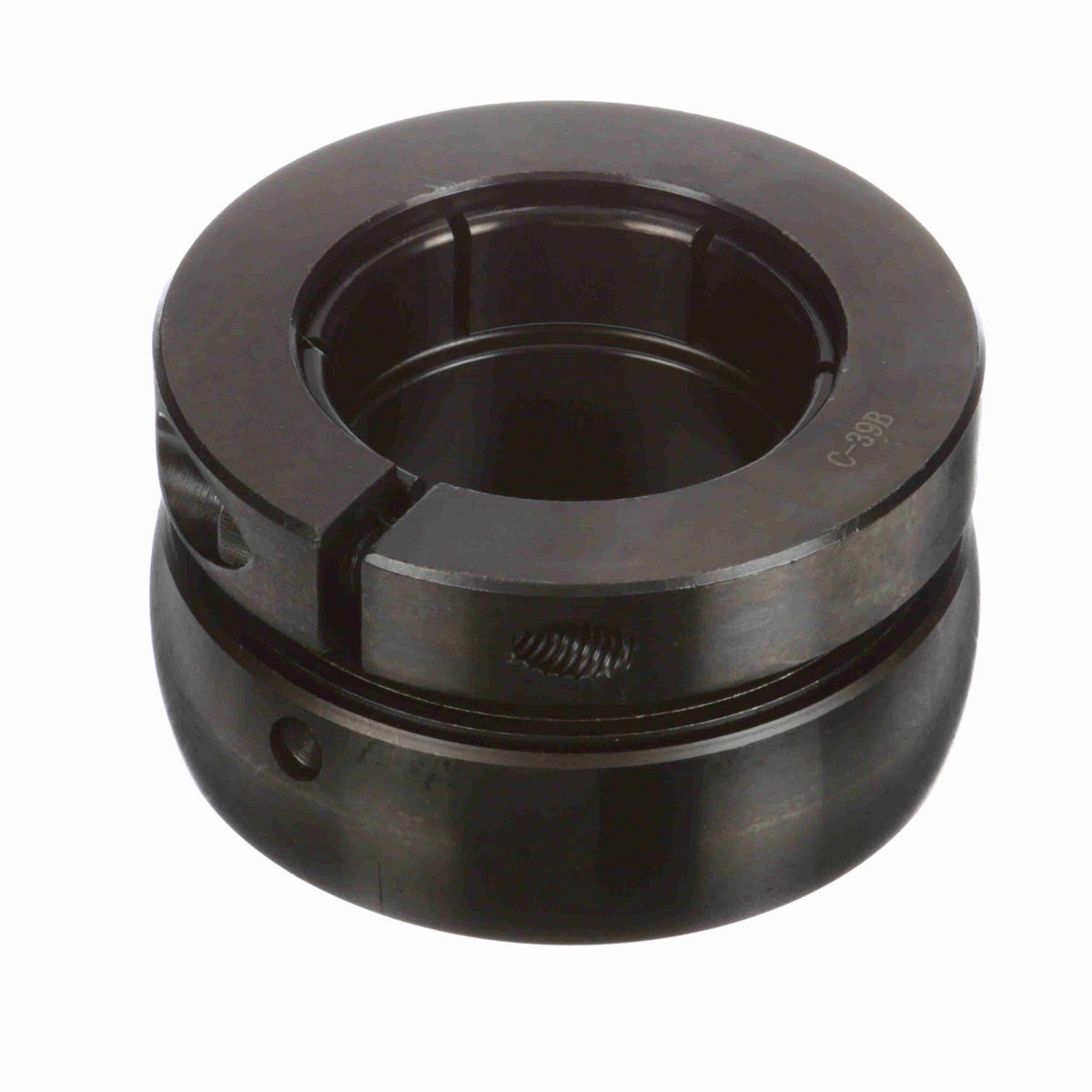

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.625 in
Bore Size (in)	2.4375 in
Inner Race Length (in)	2.625 in
Outer Race Width (in)	1.25 in
Outer Race OD (in)	4.331 in
Collar OD (in)	4.125 in
Centerline to Front Face (in)	1.563 in
Inner Ring OD (in)	4.125 in

Technical Specifications

Bore Shape	Straight
Housing Type	Insert Only
Rolling Element	Ball Bearing
Measure Units	Inch
Torx Cap Screw	5/16-18 X 1
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.08
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	11,789 lb
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	4100 rpm
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
End Cap	No
Radial Static Load Capacity (lb)	8,150 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Locking Type	Concentric
Ability to Relubricate	Yes
Duty/Series	Standard

General Specifications

UPC	662461029251
Weight	4.91 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
