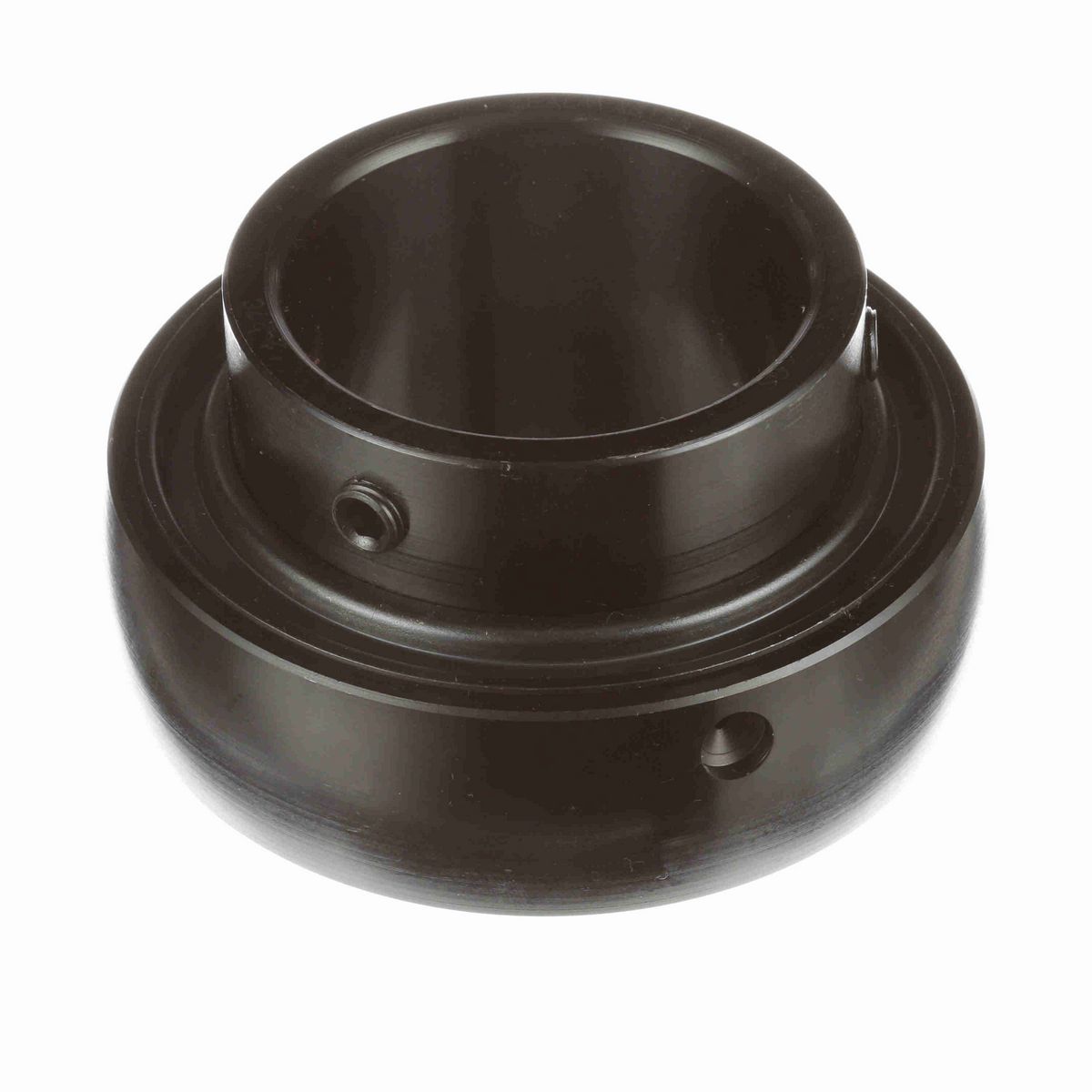

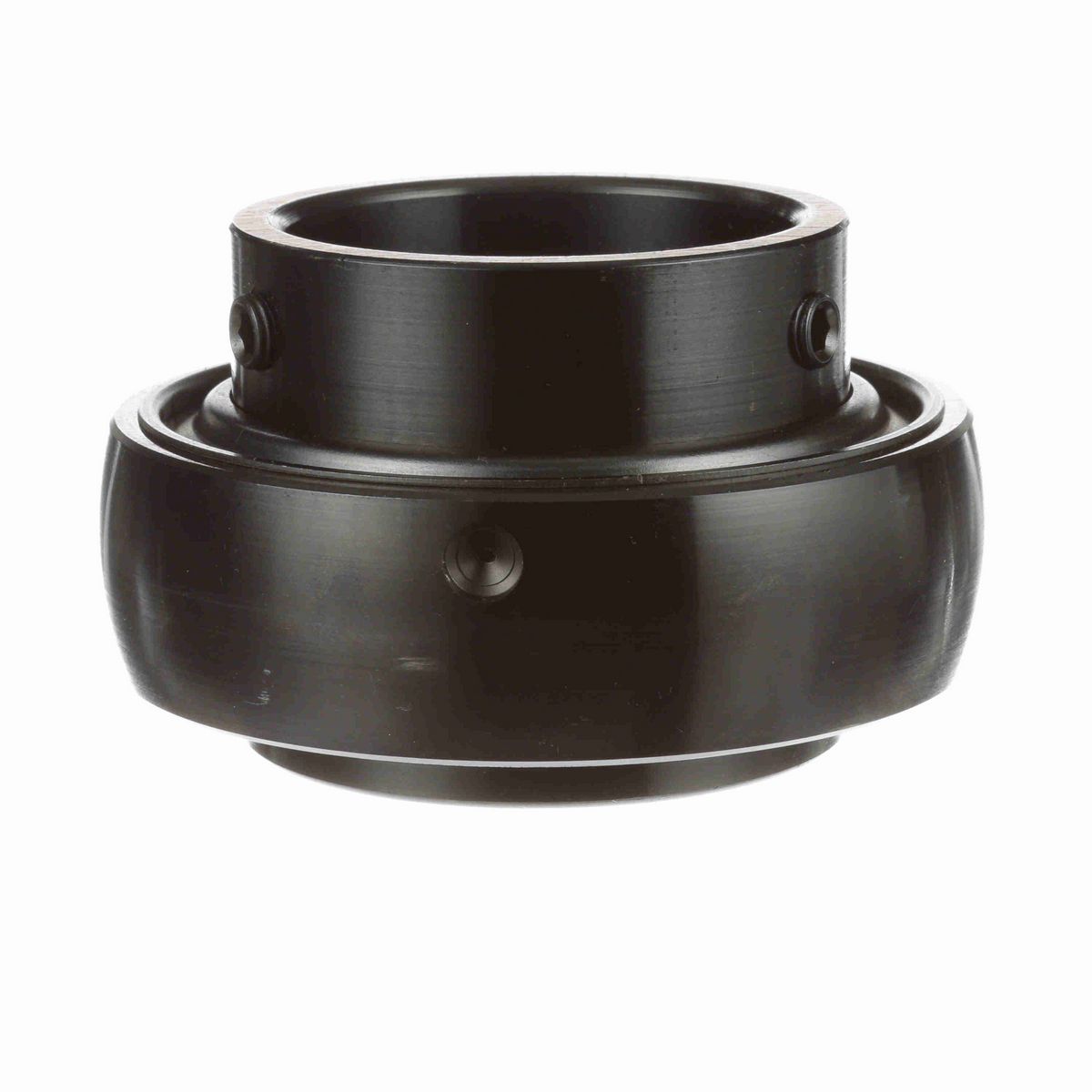

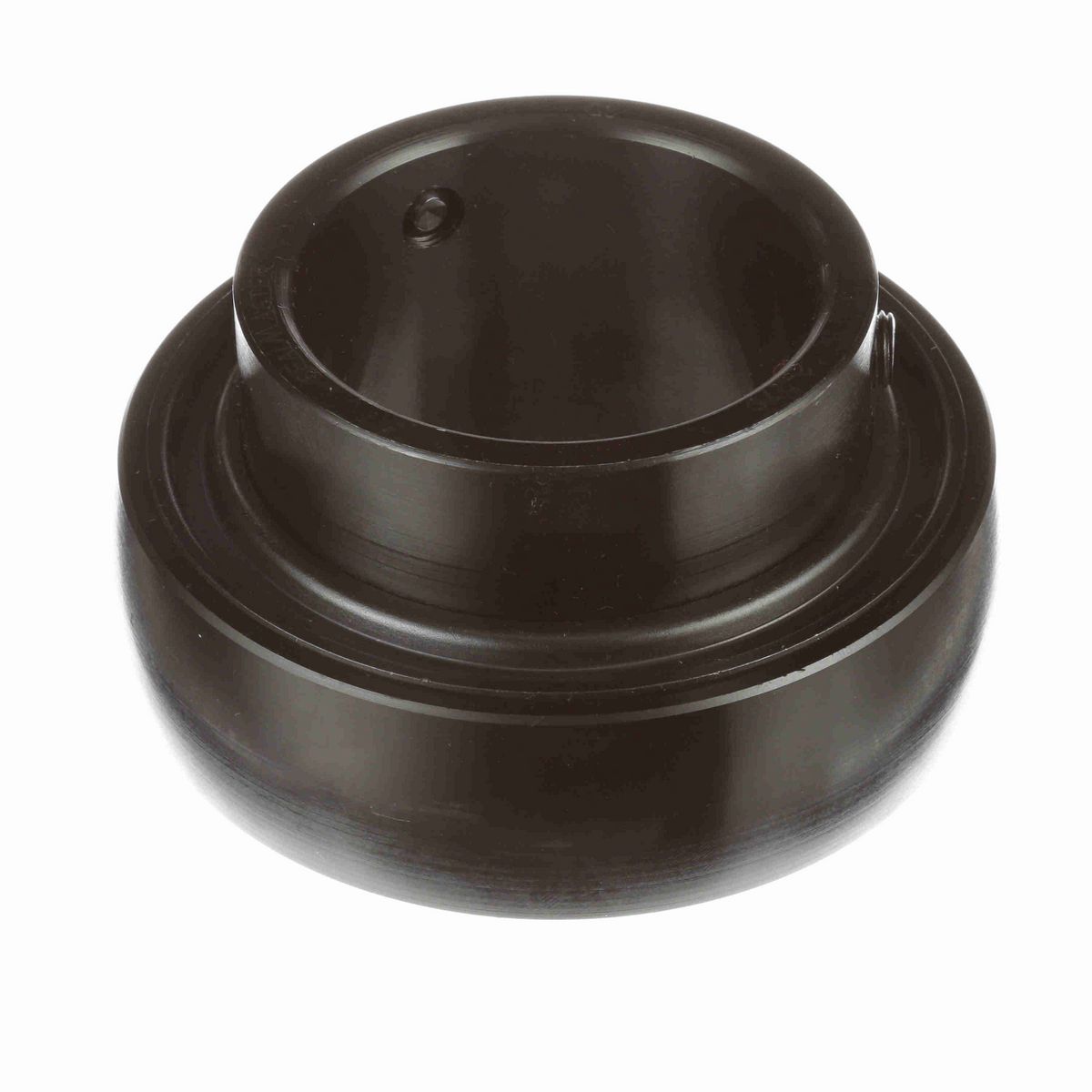

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.563 in
Bore Size (in)	2.4375 in
Inner Race Length (in)	2.563 in
Outer Race Width (in)	1.25 in
Outer Race OD (in)	4.331 in
Inner Ring OD (in)	2.984 in
Centerline to Front Face (in)	1.563 in

Technical Specifications

Measure Units	Inch
Set Screw Thread	3/8-24
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Rolling Element	Ball Bearing
Radius	0.08
Misalignment	±2.0° Misalignment - Static Only
Speed (Max) (RPM)	2550 rpm
Radial Dynamic Load Capacity (lb)	11,789 lb
Internal Clearance	Standard
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	8,150 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Lubrication Type	Lithium Complex NLGI 2 Grease
Type of Seal	Single Lip Contact Seal
Duty/Series	Standard
Fixed vs. Expansion	No
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw

General Specifications

UPC	662461019818
Weight	3.45 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
