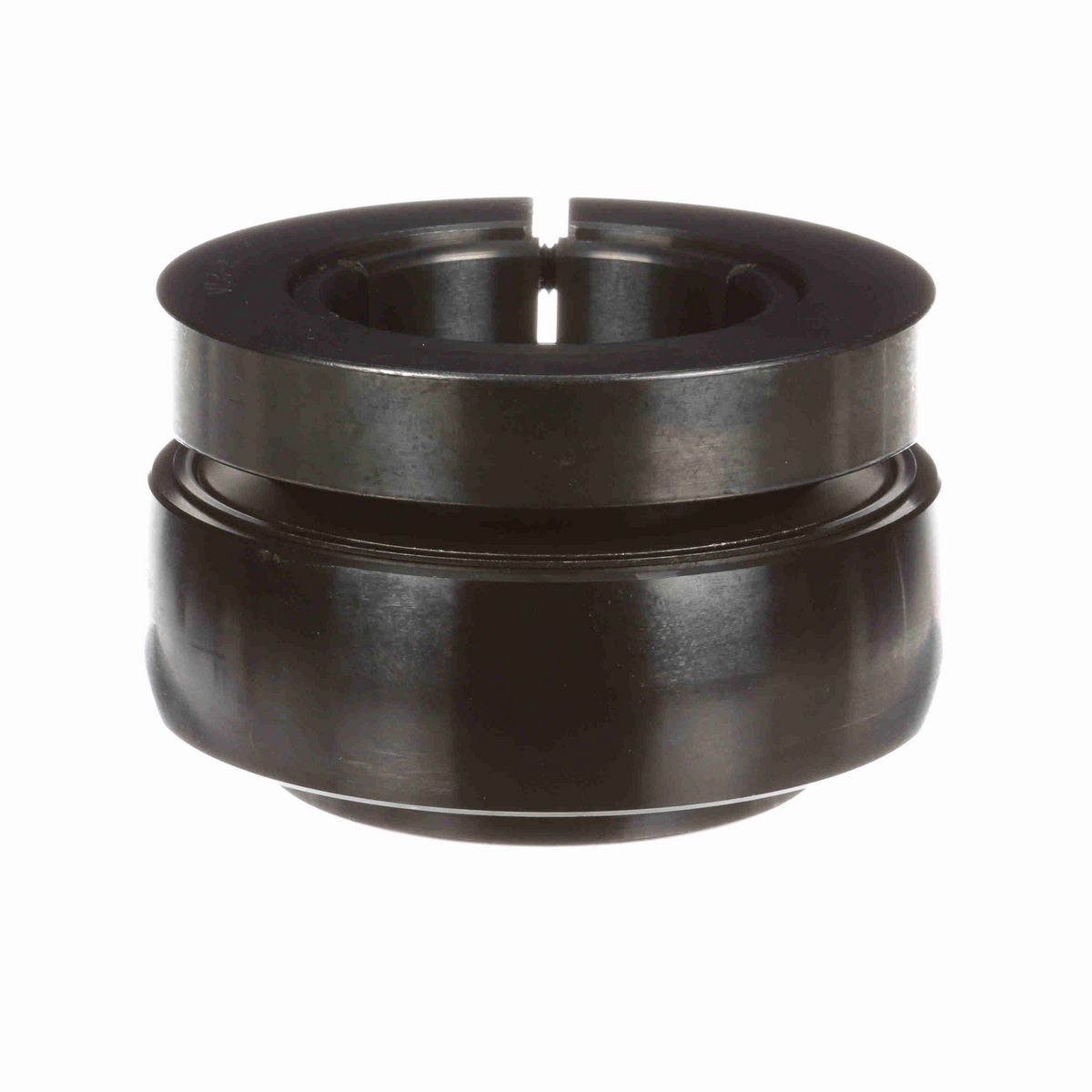

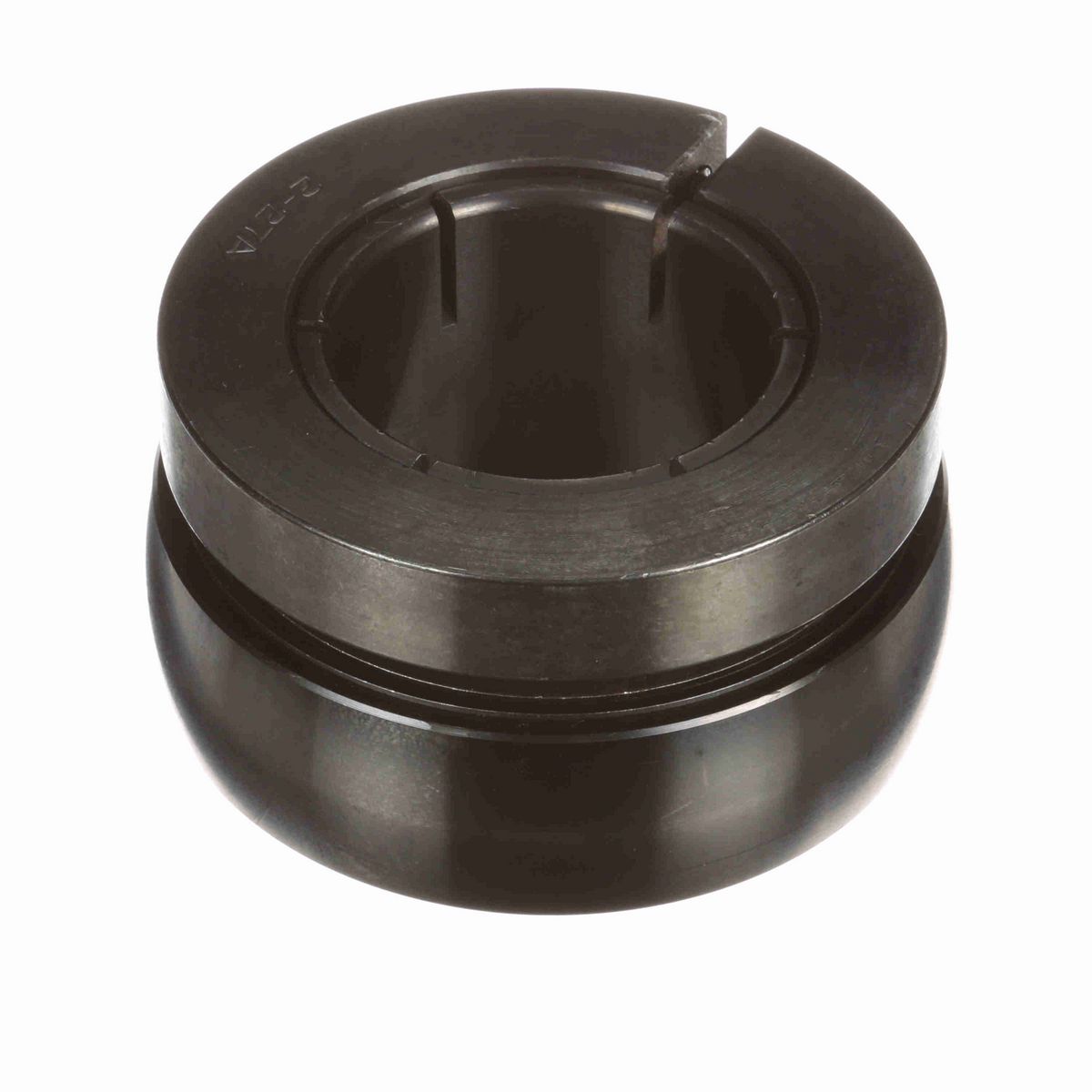

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.625 in
Bore Size (in)	2.2500 in
Outer Race OD (in)	4.331 in
Centerline to Front Face (in)	1.563 in
Inner Race Length (in)	2.625 in
Collar OD (in)	4.063 in
Outer Race Width (in)	1.25 in
Inner Ring OD (in)	4.063 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.08
Torx Cap Screw	5/16-18 X 1
Housing Type	Insert Only
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Speed (Max) (RPM)	4100 rpm
Radial Dynamic Load Capacity (lb)	11,789 lb
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	8,150 lb
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461029237
Weight	5.15 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
