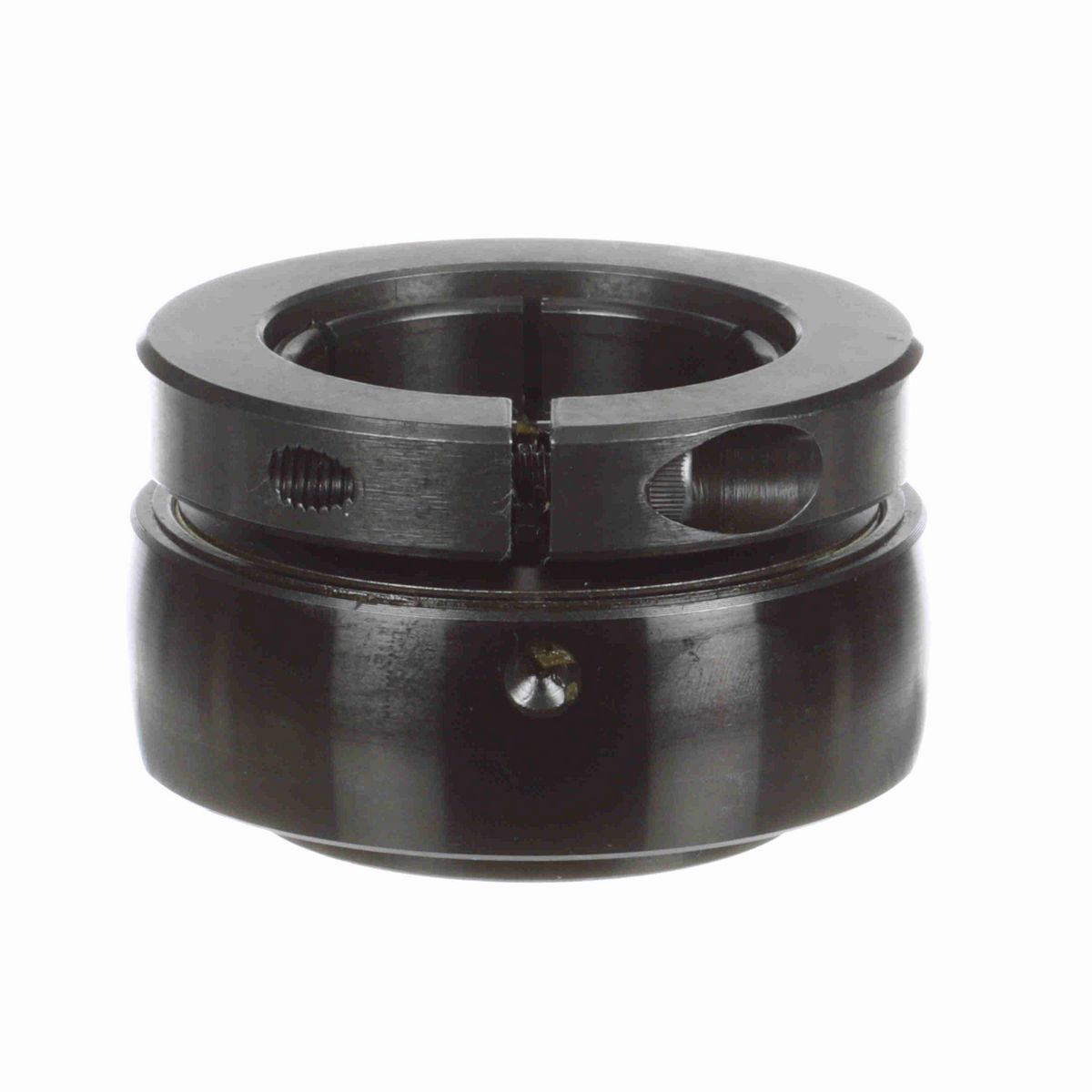

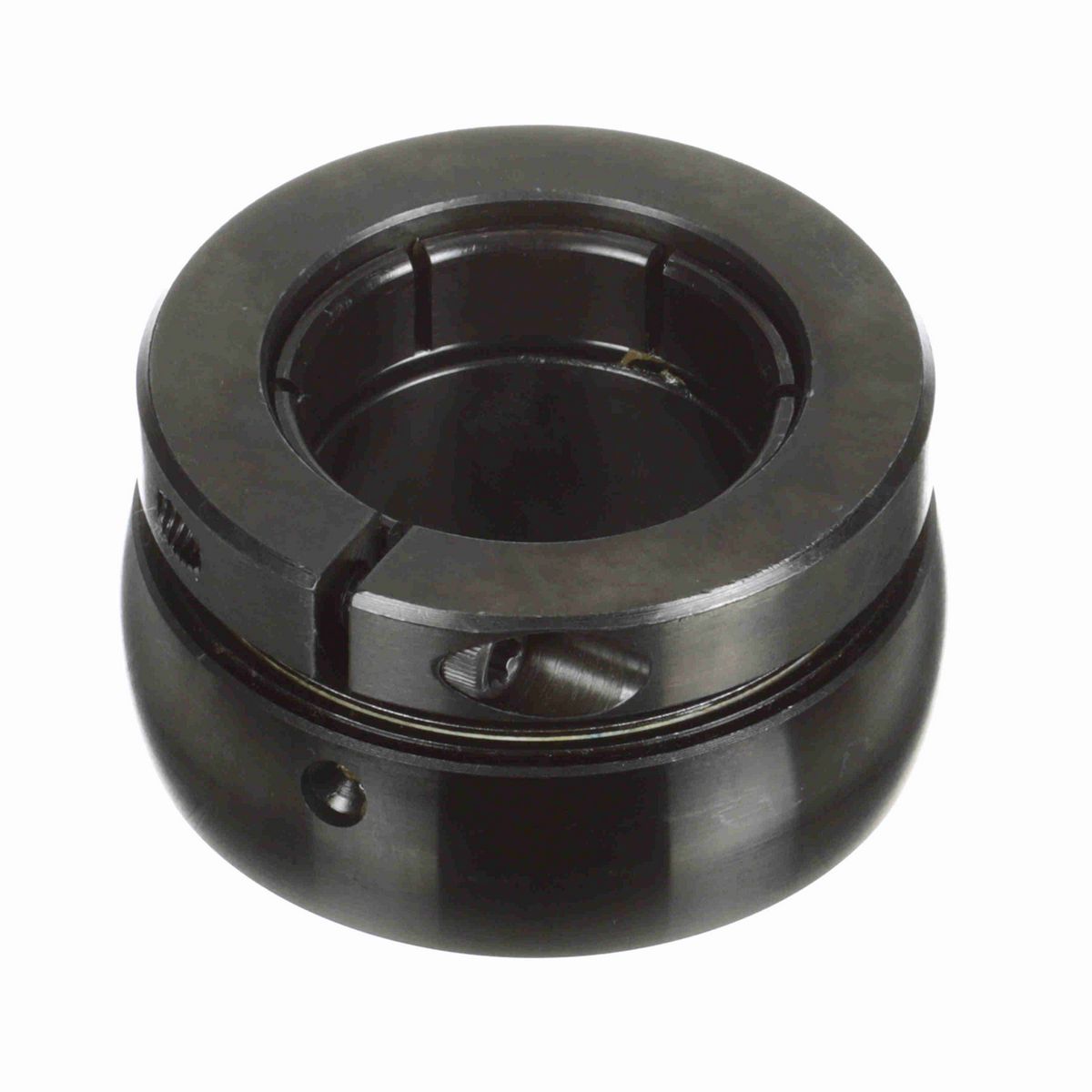

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.25 in
Bore Size (in)	2.1875 in
Collar OD (in)	3.625 in
Inner Race Length (in)	2.25 in
Centerline to Front Face (in)	1.313 in
Outer Race Width (in)	1.188 in
Inner Ring OD (in)	3.625 in
Outer Race OD (in)	3.937 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Torx Cap Screw	1/4-20 X 1
Measure Units	Inch
Housing Type	Insert Only
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.08
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	9,752 lb
Speed (Max) (RPM)	4500 rpm
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	6,601 lb
Precision Rating	ABEC 1
Cage Material	PPS
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No
Locking Type	Concentric

General Specifications

UPC	662461029220
Weight	3.73 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
