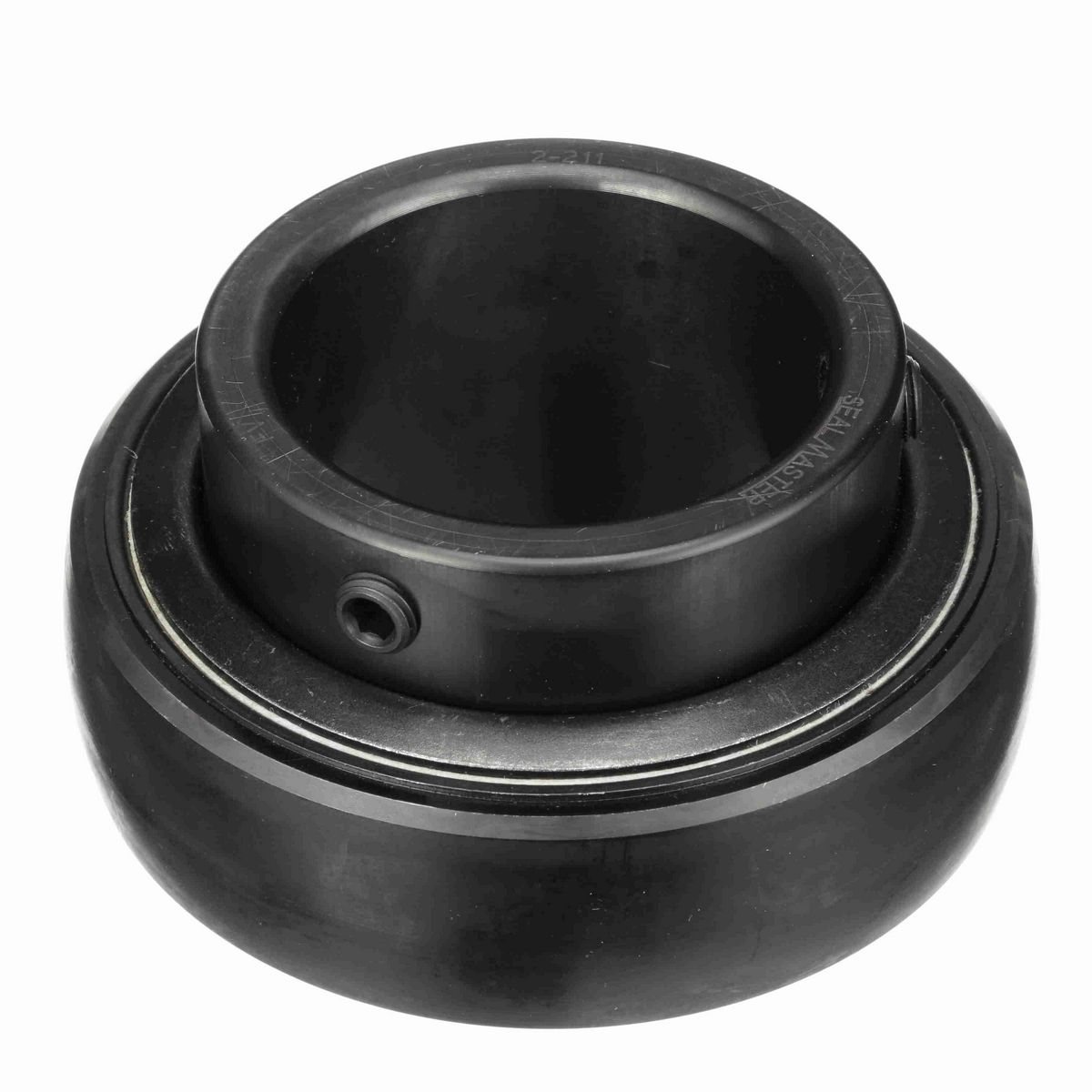

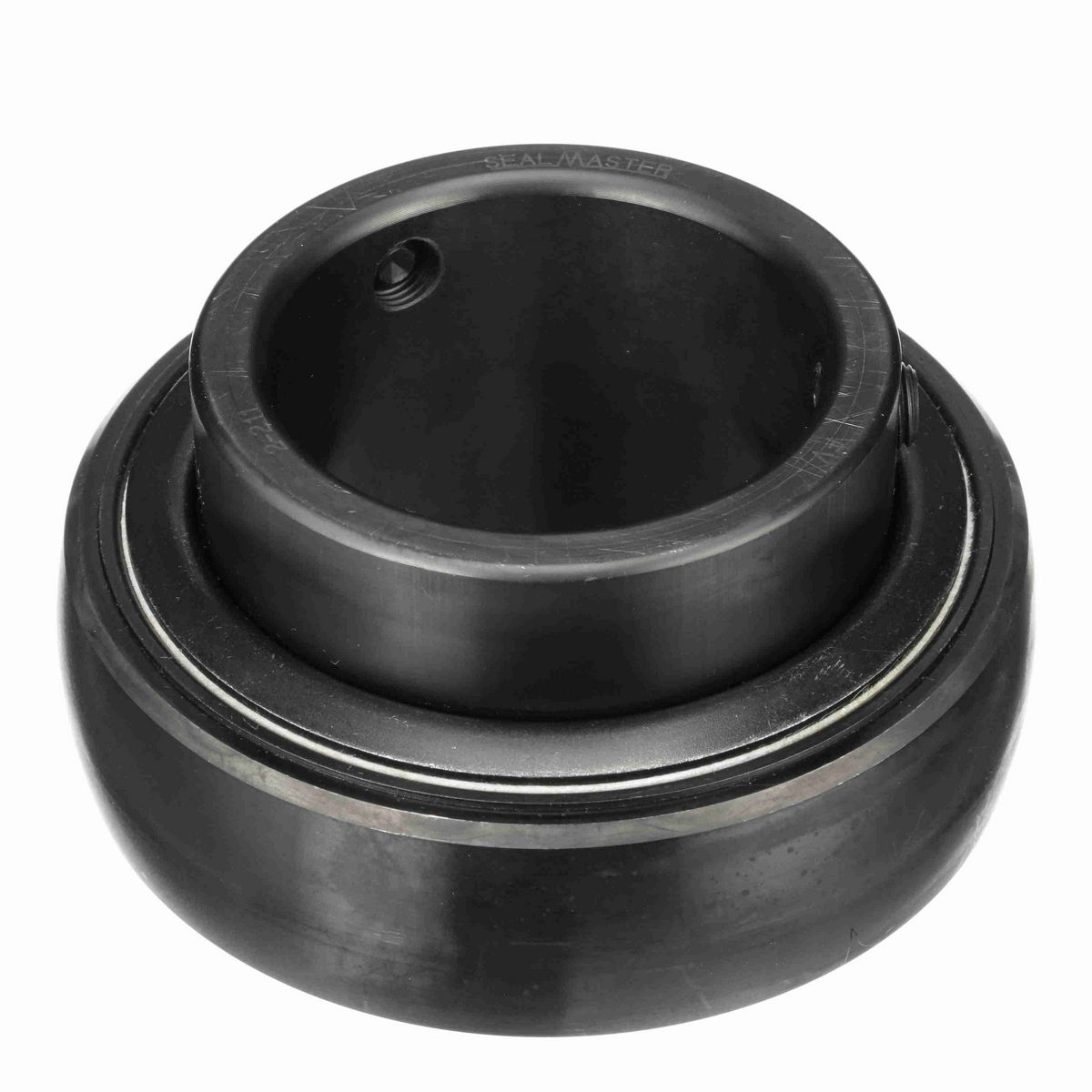

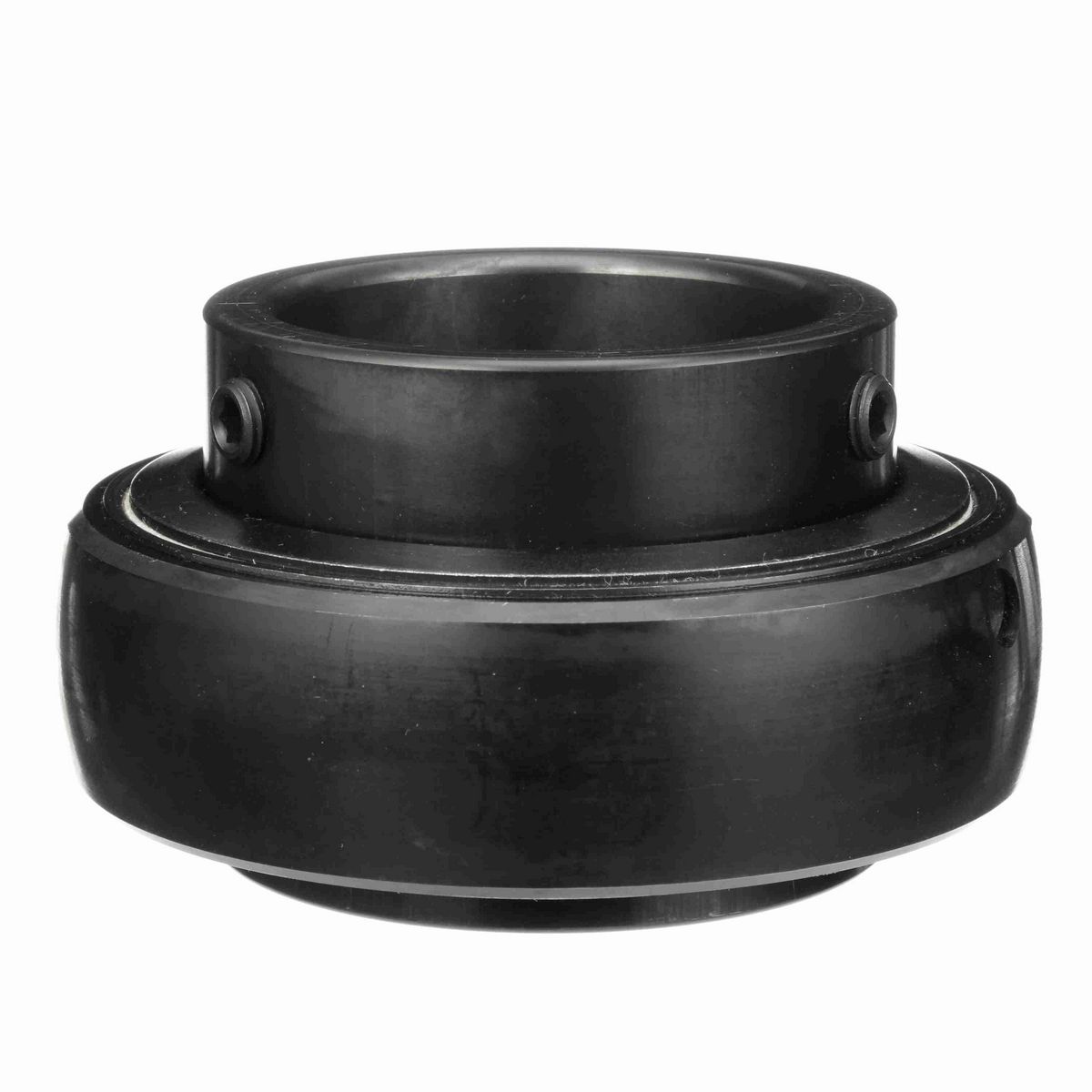

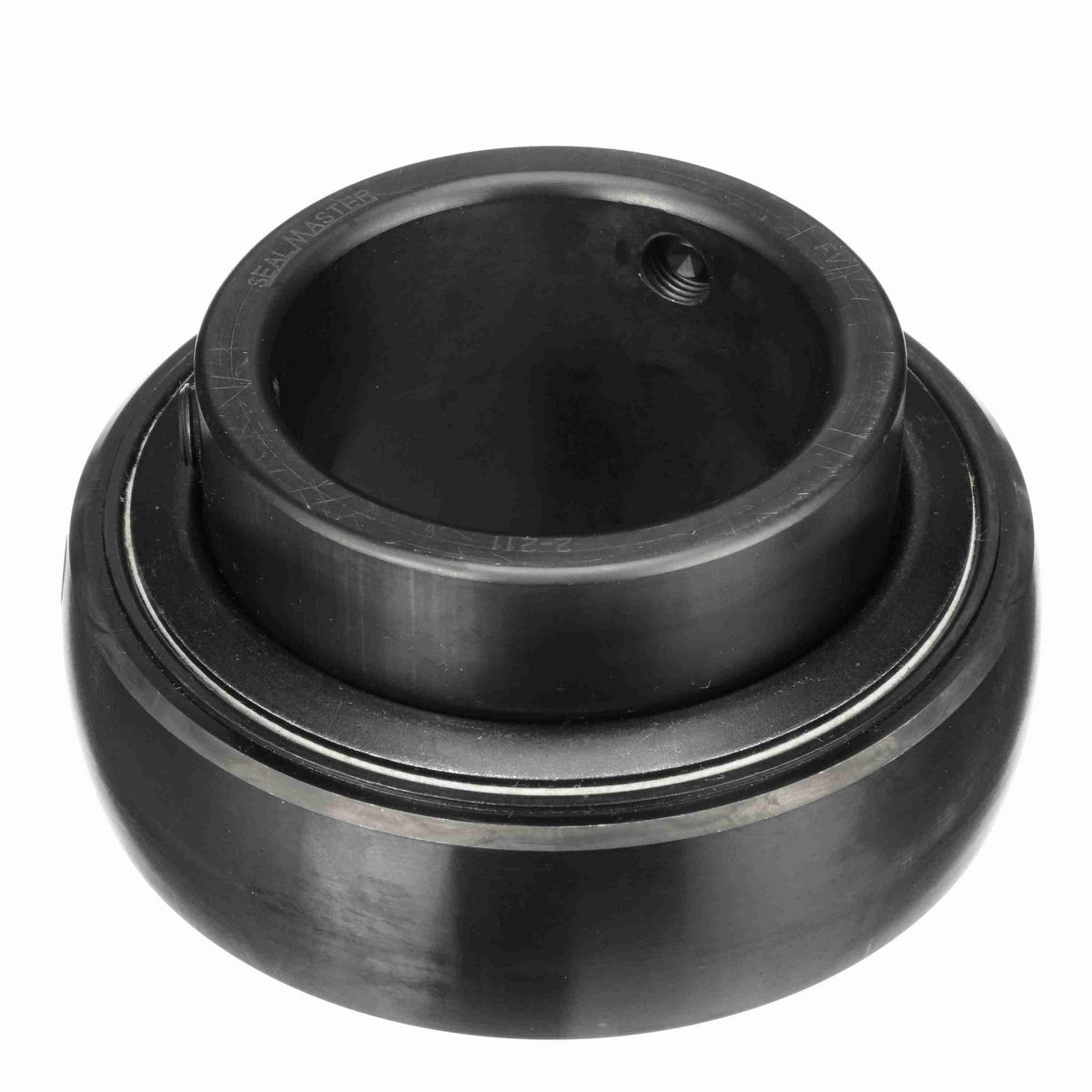

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.75 in
Bore Size (in)	2.6875 in
Inner Race Length (in)	2.75 in
Inner Ring OD (in)	3.438 in
Outer Race Width (in)	1.375 in
Centerline to Front Face (in)	1.688 in
Outer Race OD (in)	4.921 in

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Radius	0.08
Measure Units	Inch
Set Screw Thread	7/16-20
Rolling Element	Ball Bearing
Speed (Max) (RPM)	2500 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	13,971 lb
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	10,063 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Maximum Operating Temperature (F)	220 °F
Type of Seal	Felt Labyrinth Seal
Ability to Relubricate	Yes
Duty/Series	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	No
Locking Type	Set Screw
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461000441
Weight	5.32 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
