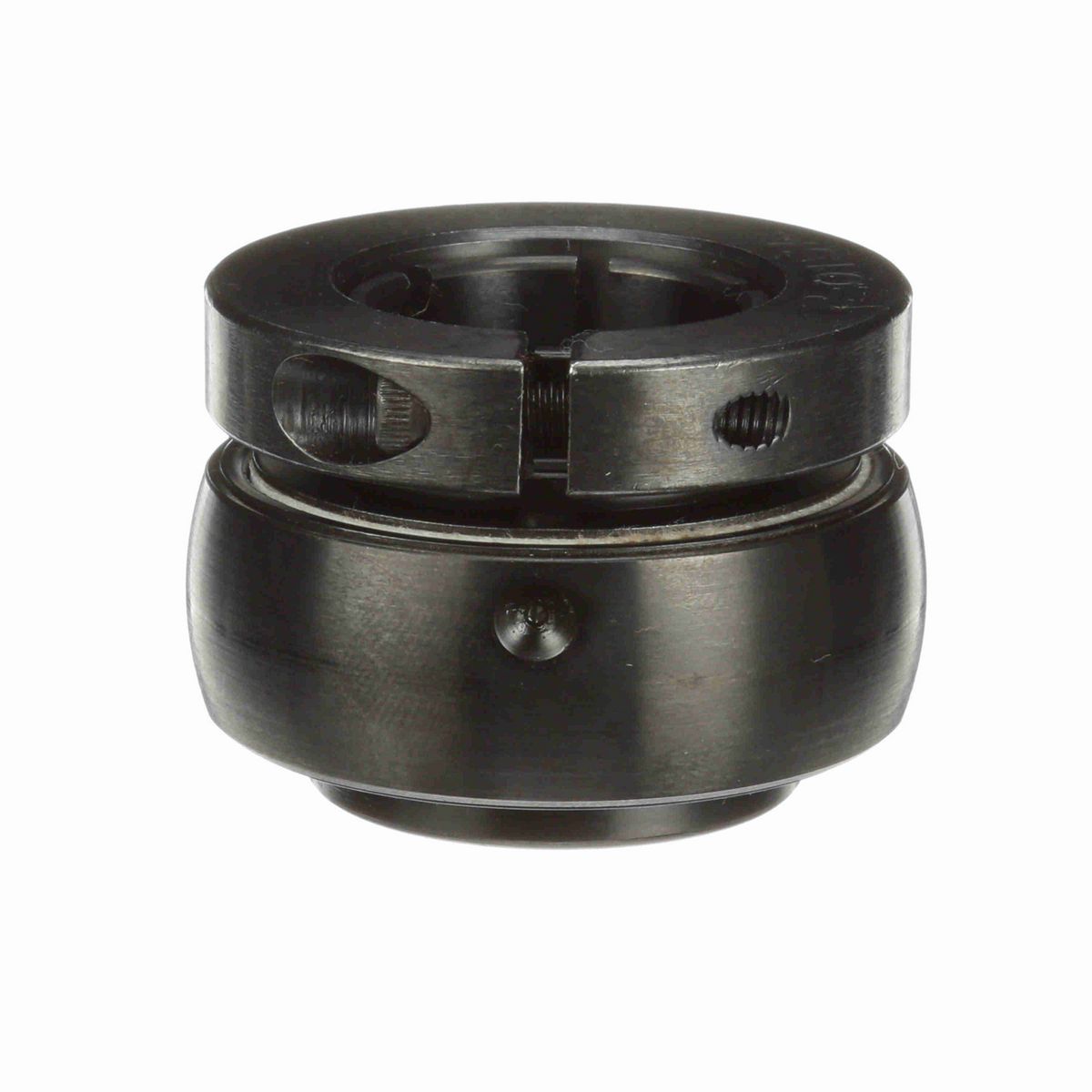

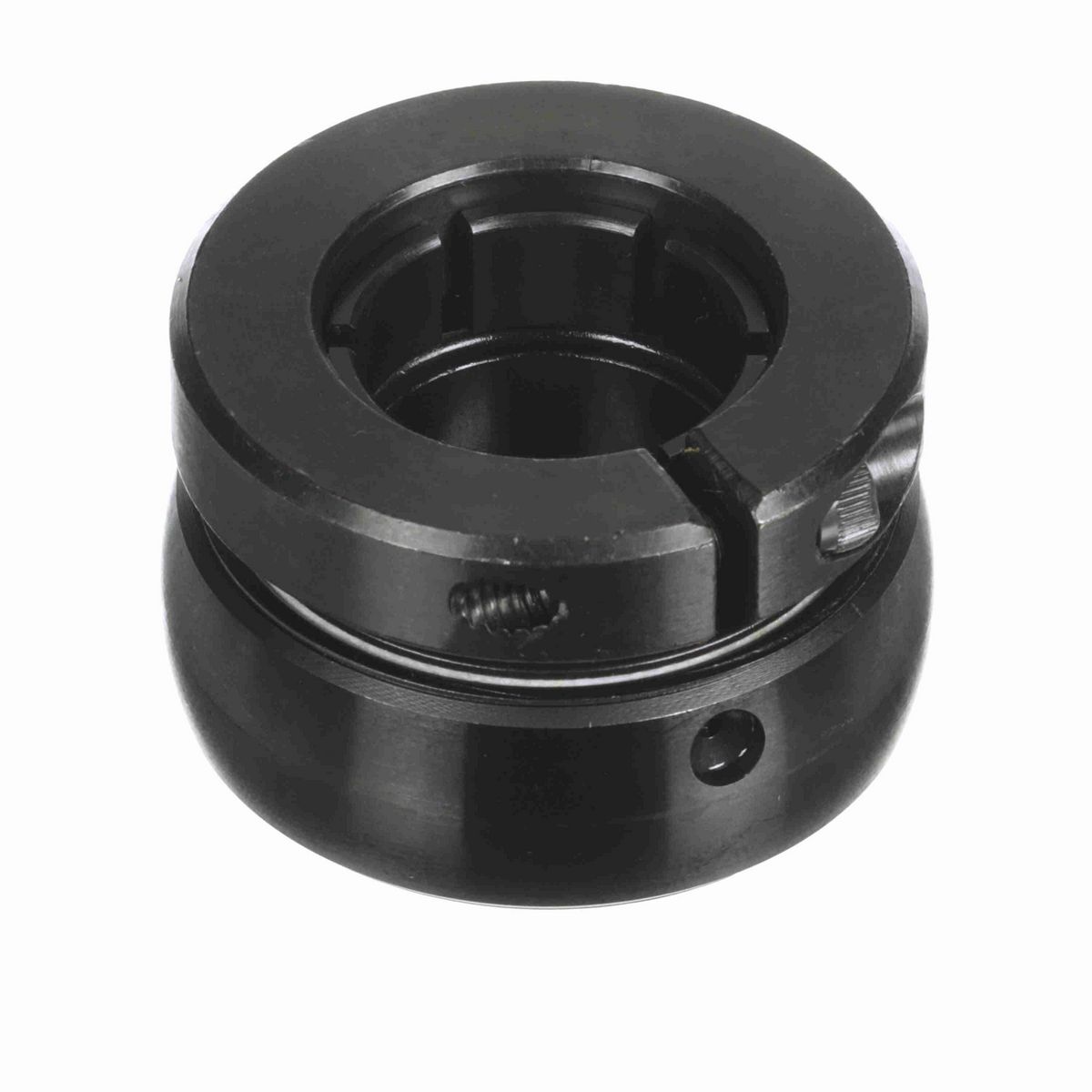

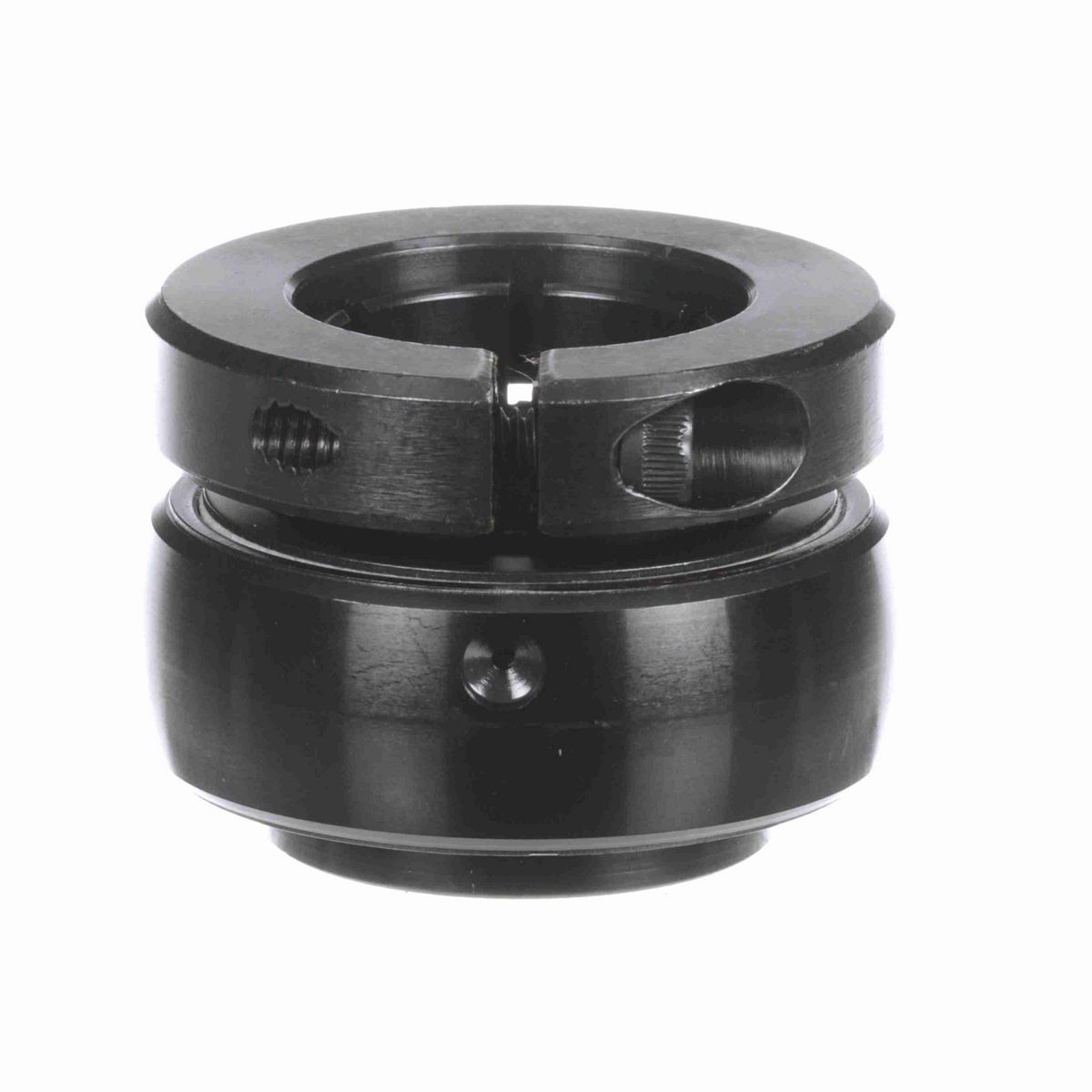

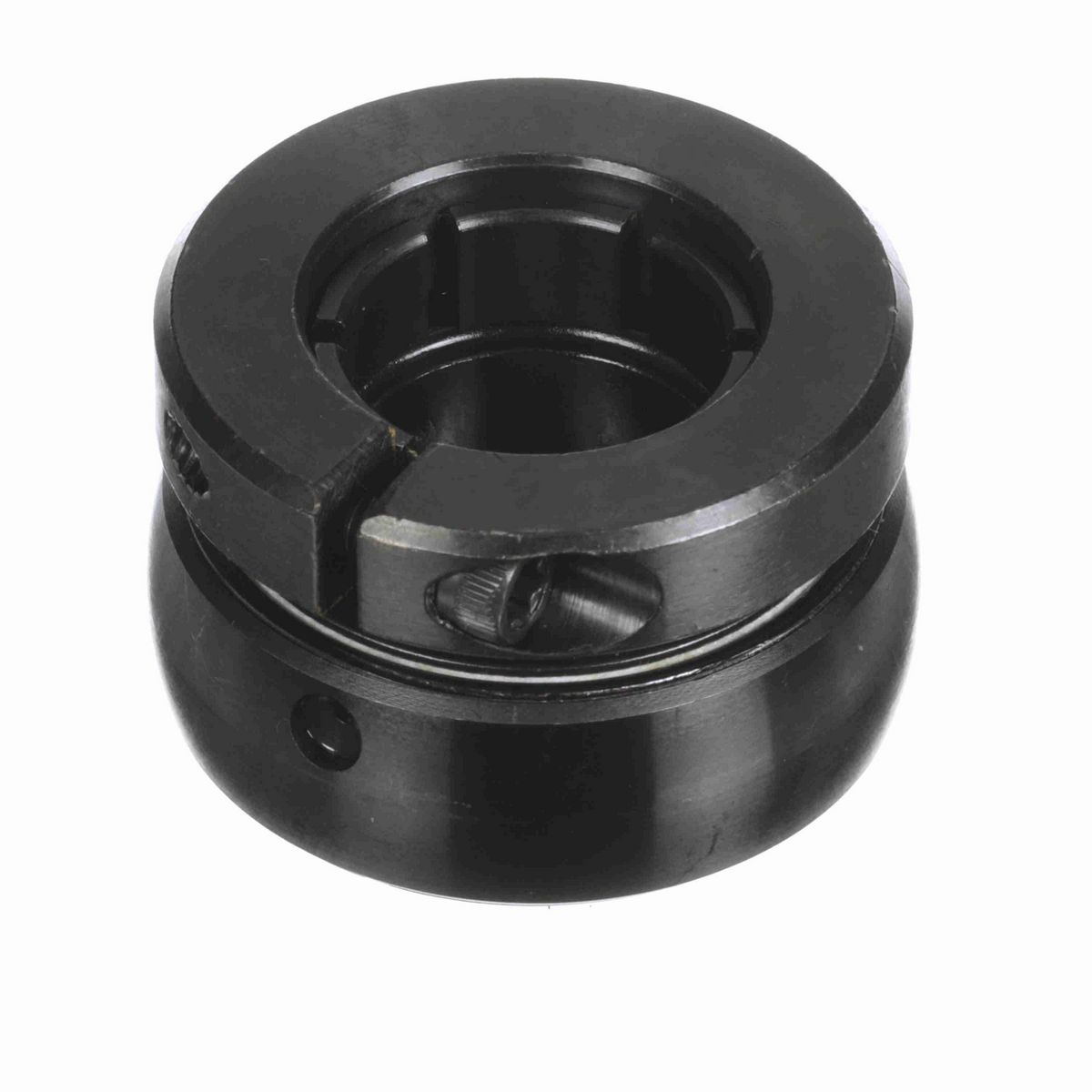

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.438 in
Bore Size (in)	1 in
Collar OD (in)	1.938 in
Outer Race OD (in)	2.047 in
Outer Race Width (in)	0.688 in
Centerline to Front Face (in)	0.813 in
Inner Ring OD (in)	1.938 in
Inner Race Length (in)	1.438 in

Technical Specifications

Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.04
Housing Type	Insert Only
Rolling Element	Ball Bearing
Torx Cap Screw	8-32 X 5/8
Measure Units	Inch
Internal Clearance	Standard
Speed (Max) (RPM)	9000 rpm
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	2,801 lb
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
End Cap	No
Radial Static Load Capacity (lb)	1,651 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Locking Type	Concentric
Fixed vs. Expansion	No

General Specifications

UPC	662461029091
Weight	0.69 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
