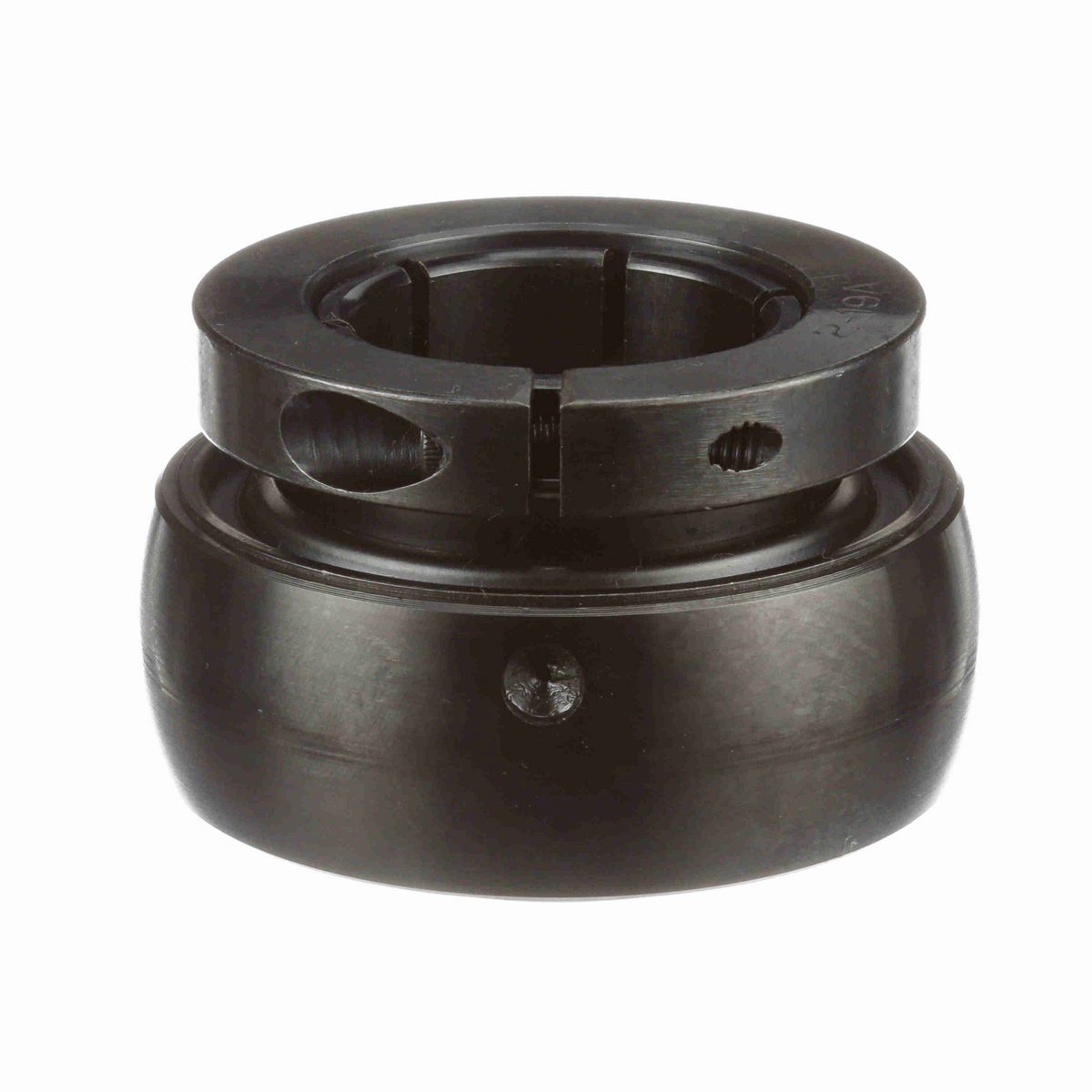

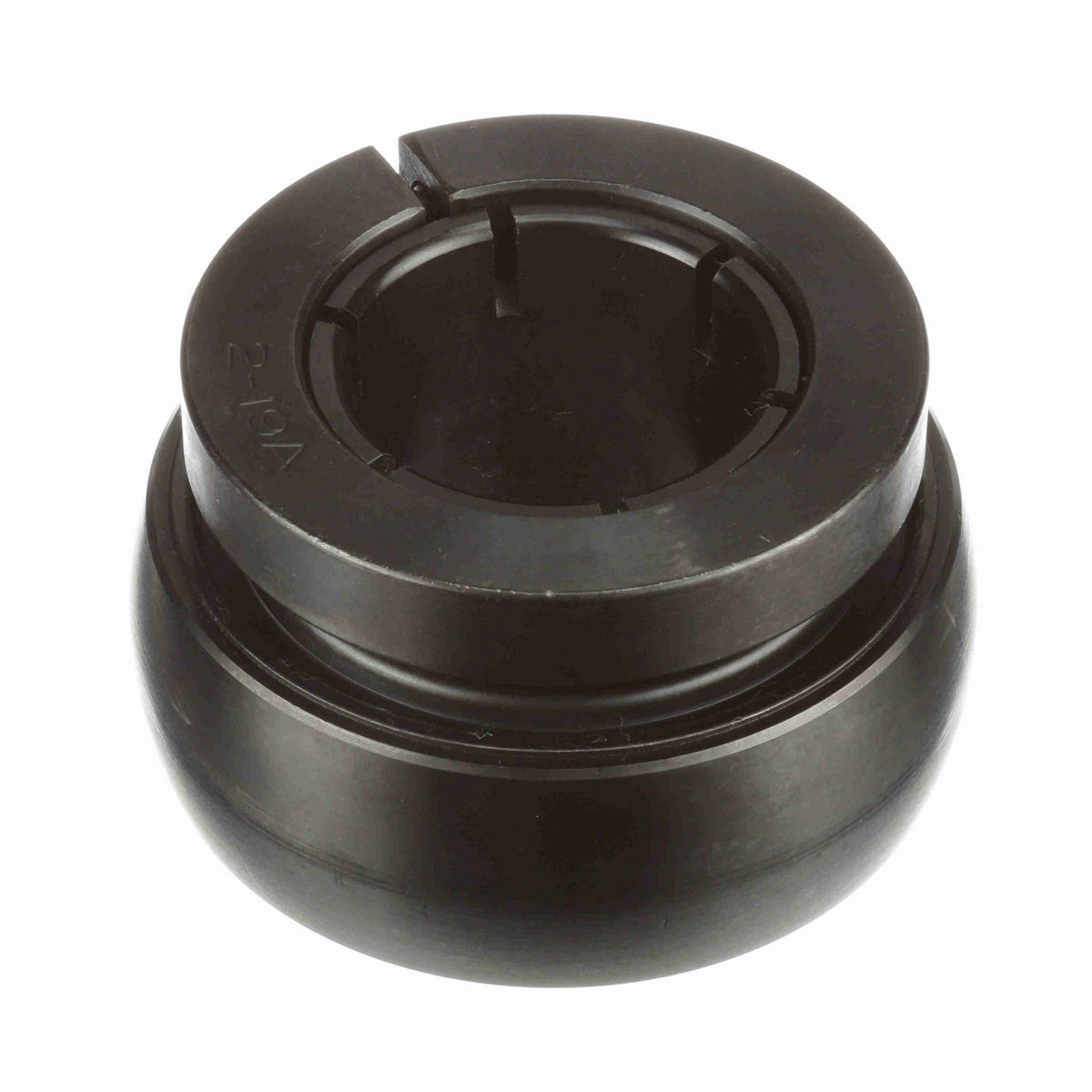

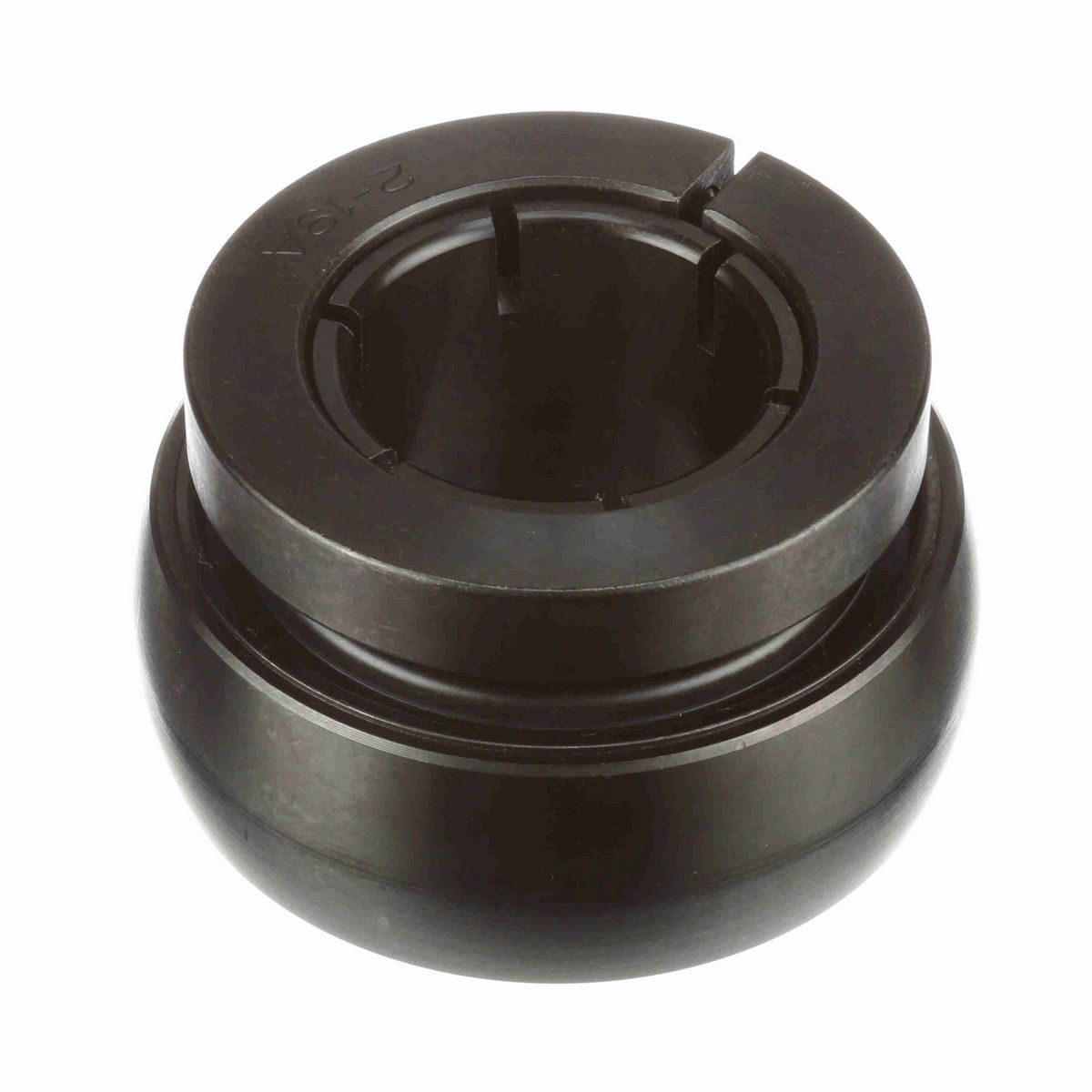

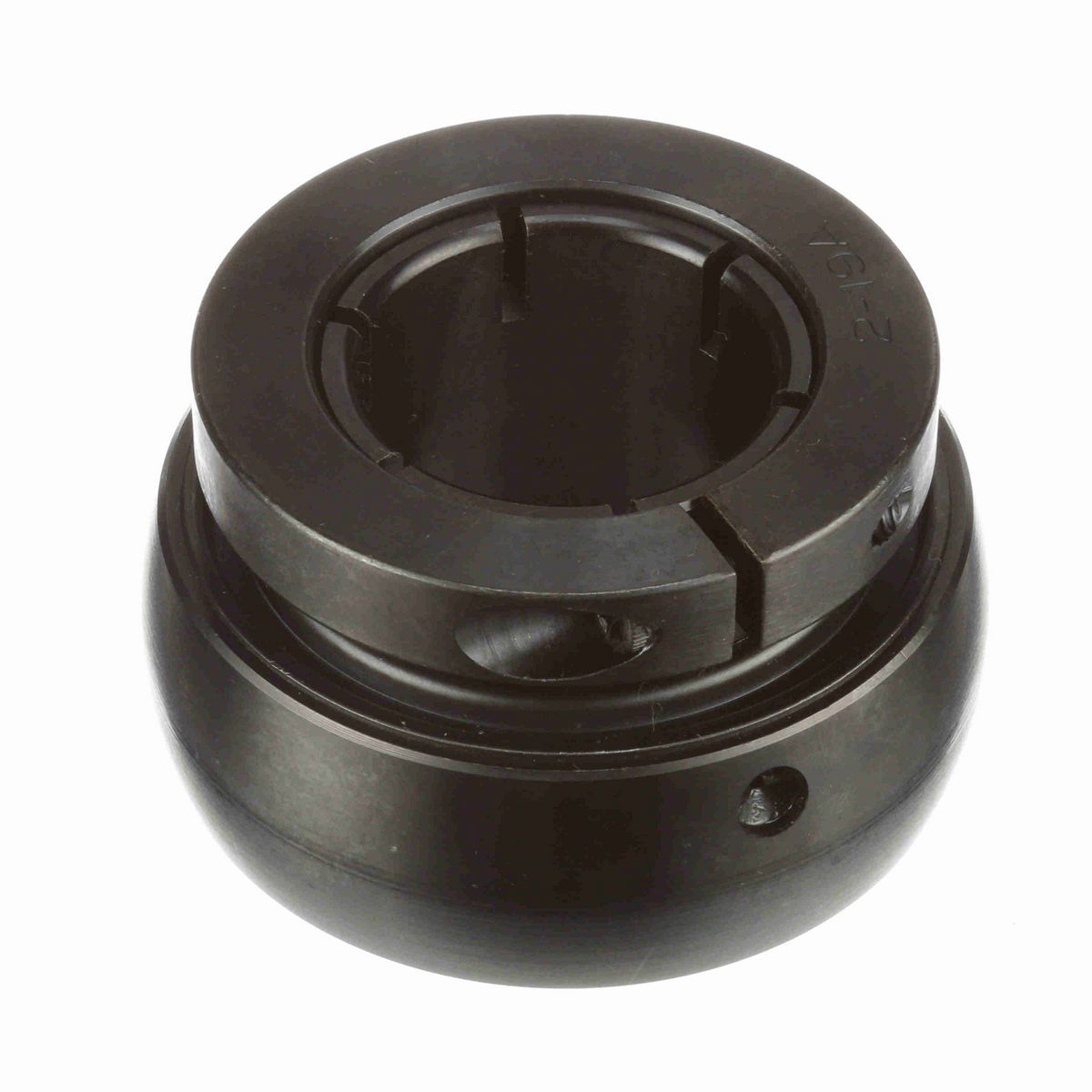

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2 in
Bore Size (in)	1.5000 in
Inner Ring OD (in)	2.688 in
Outer Race OD (in)	3.15 in
Outer Race Width (in)	1.094 in
Collar OD (in)	2.688 in
Centerline to Front Face (in)	1.188 in
Inner Race Length (in)	2.06 in

Technical Specifications

Rolling Element	Ball Bearing
Torx Cap Screw	10-24 X 3/4
Measure Units	Inch
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Radius	0.062
Housing Type	Insert Only
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,340 lb
Speed (Max) (RPM)	4150 rpm
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	4,467 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Fixed vs. Expansion	No
Type of Seal	Single Lip Contact Seal
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Retainer Type	Land Riding Retainer

General Specifications

UPC	662461032299
Weight	2.05 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
