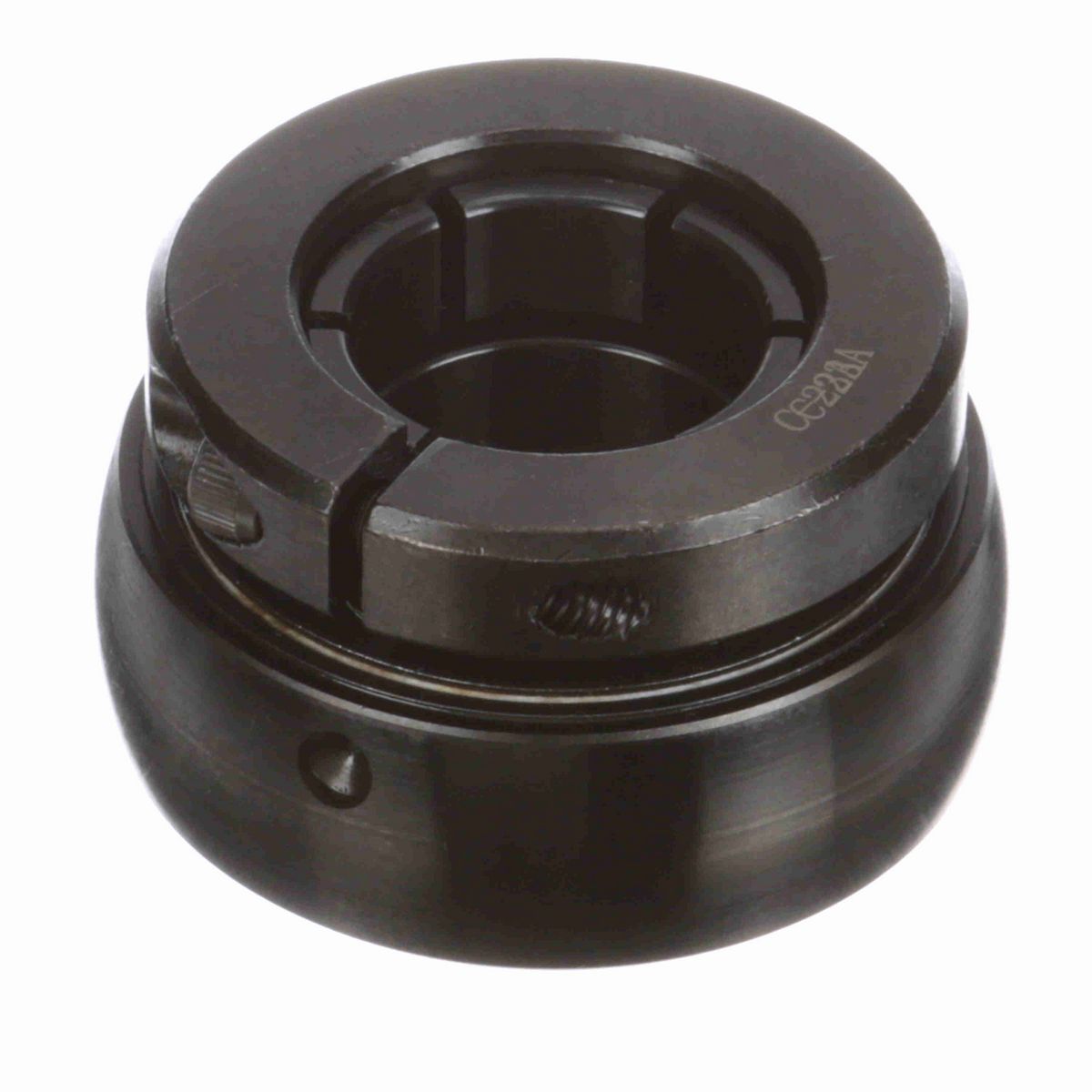

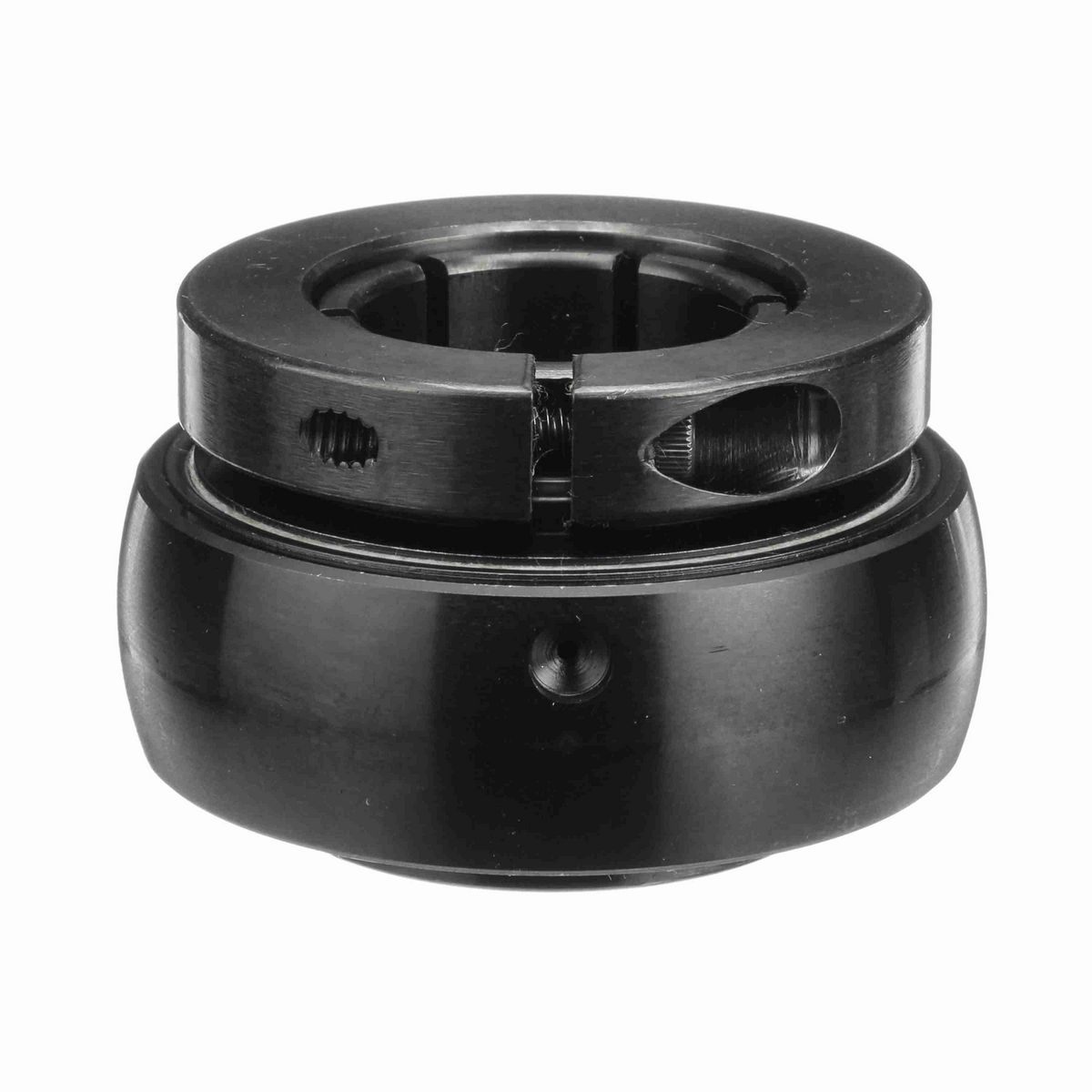

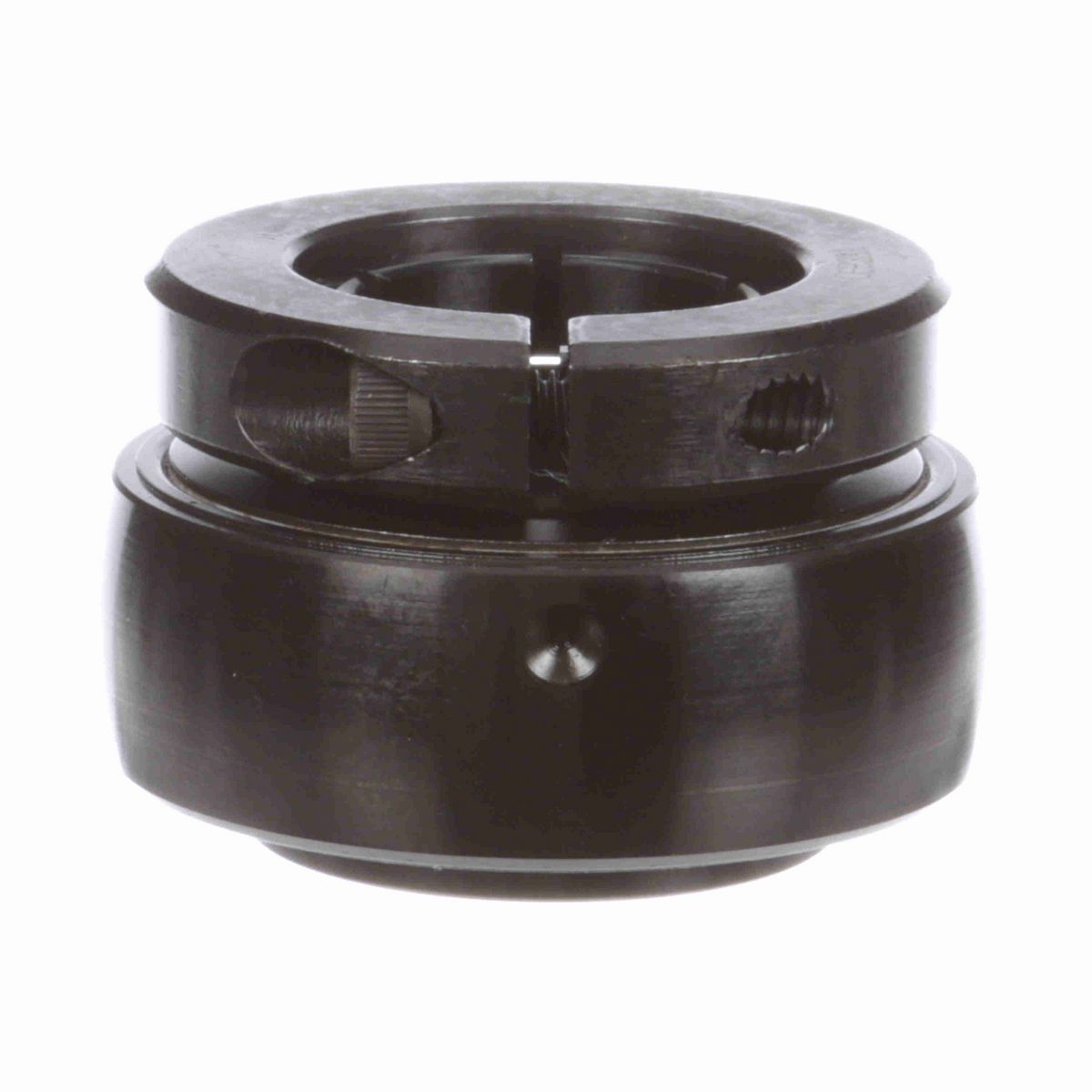

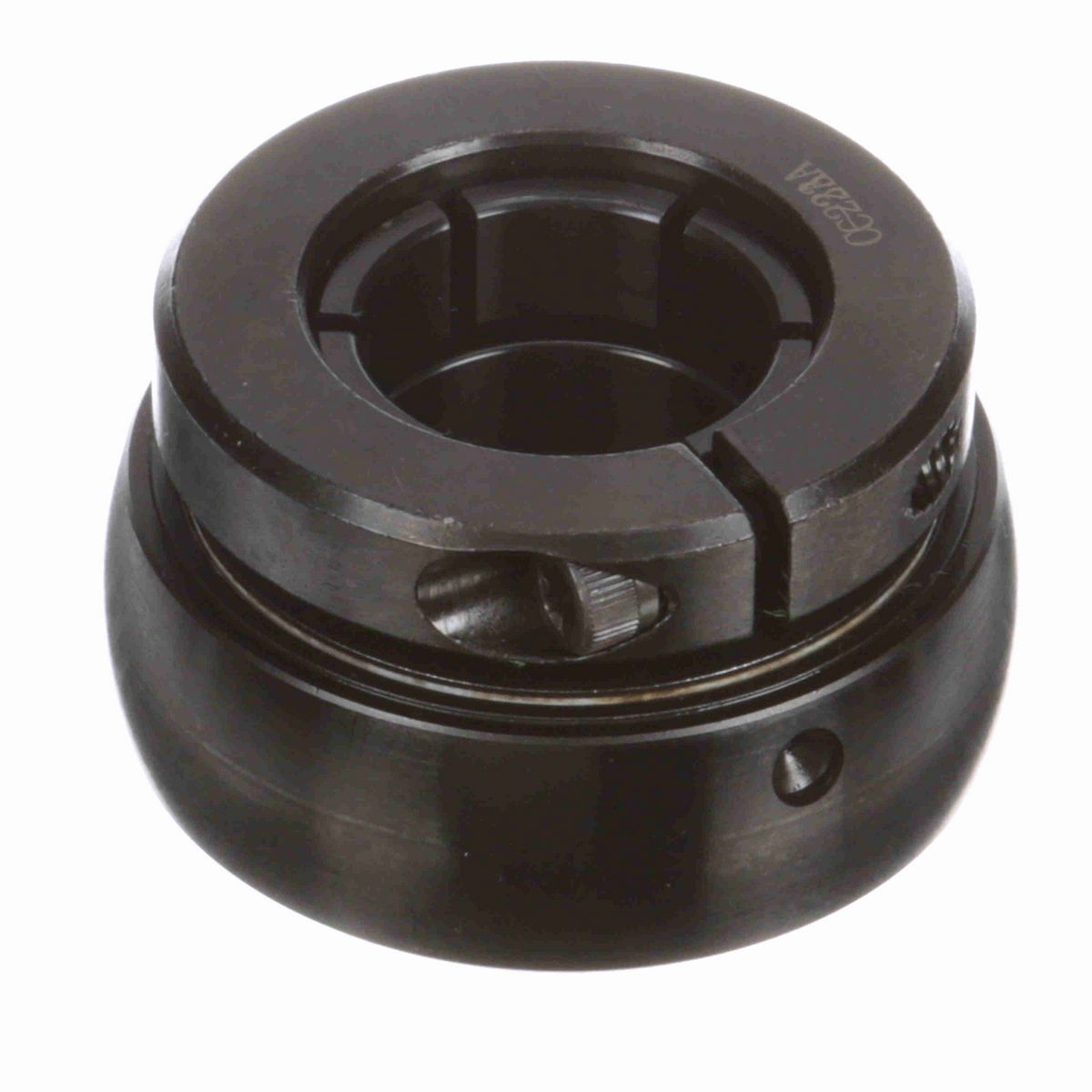

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.2500 in
Inner Race Length (in)	1.75 in
Outer Race OD (in)	2.835 in
Inner Ring OD (in)	2.438 in
Centerline to Front Face (in)	1 in
Collar OD (in)	2.438 in
Outer Race Width (in)	0.938 in

Technical Specifications

Measure Units	Inch
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Bore Shape	Straight
Torx Cap Screw	10-24 X 3/4
Housing Type	Insert Only
Radius	0.04
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	5,782 lb
Speed (Max) (RPM)	7600 rpm
Misalignment	±2.0° Misalignment - Static Only
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	3,493 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Locking Type	Concentric
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal

General Specifications

UPC	662461029121
Weight	1.55 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
