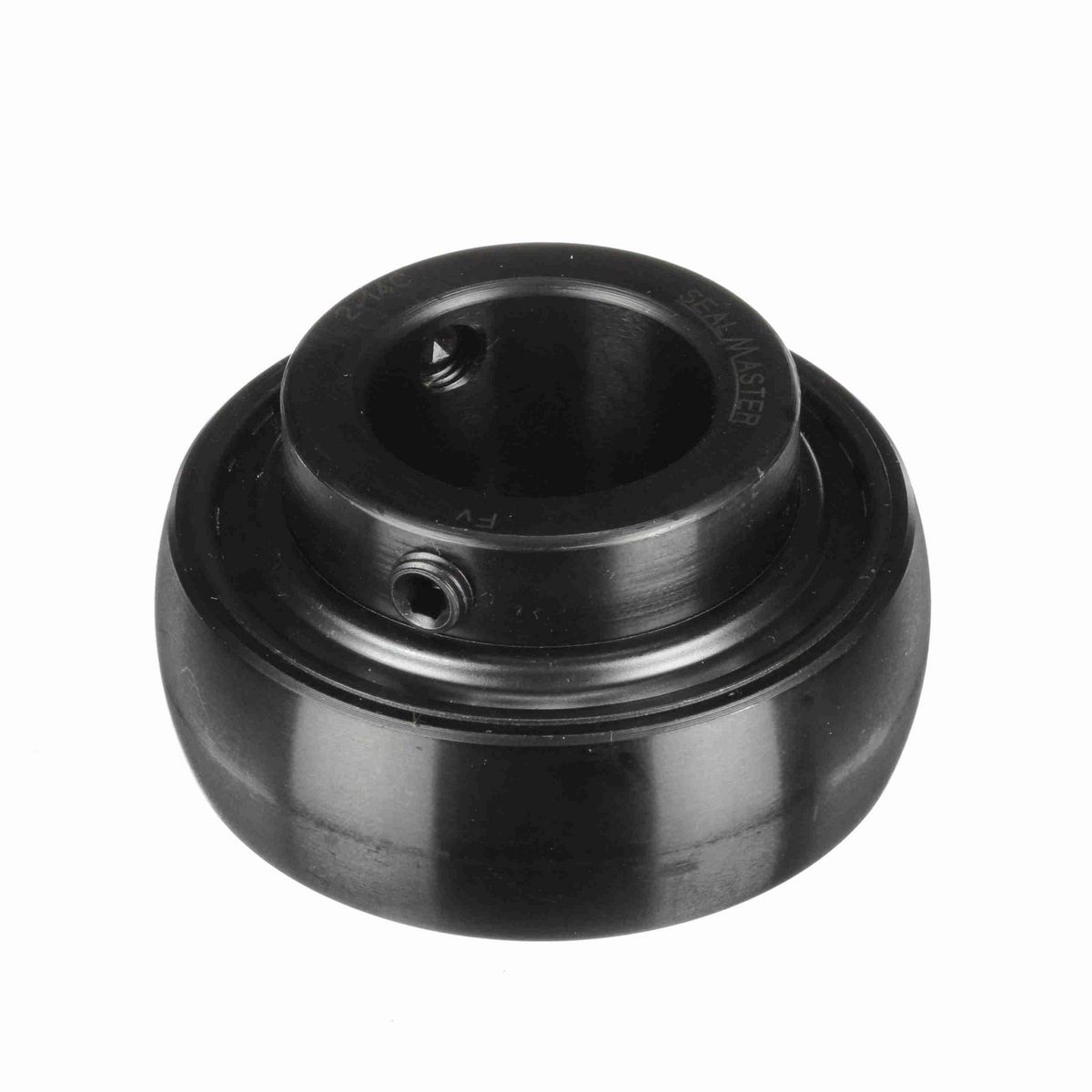

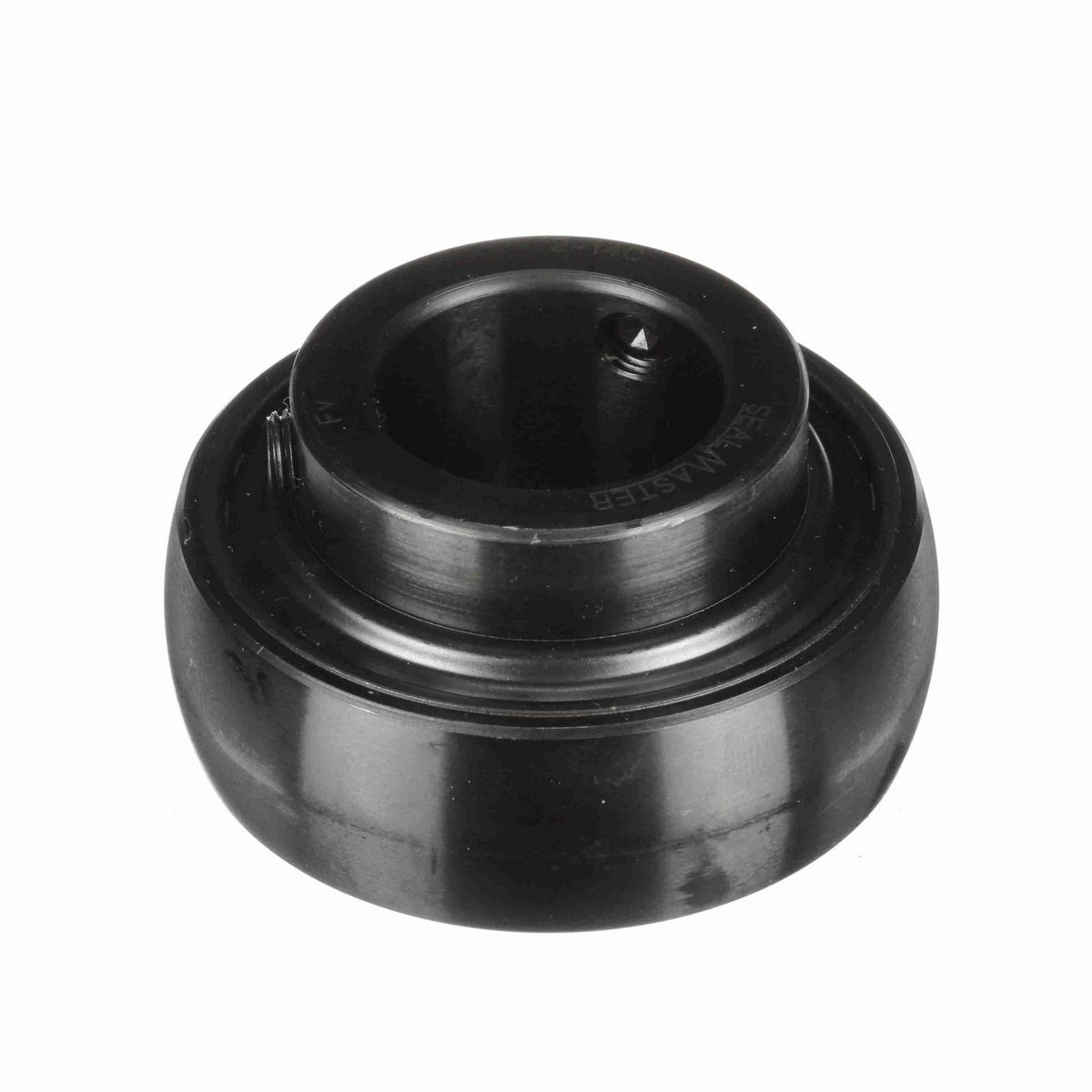

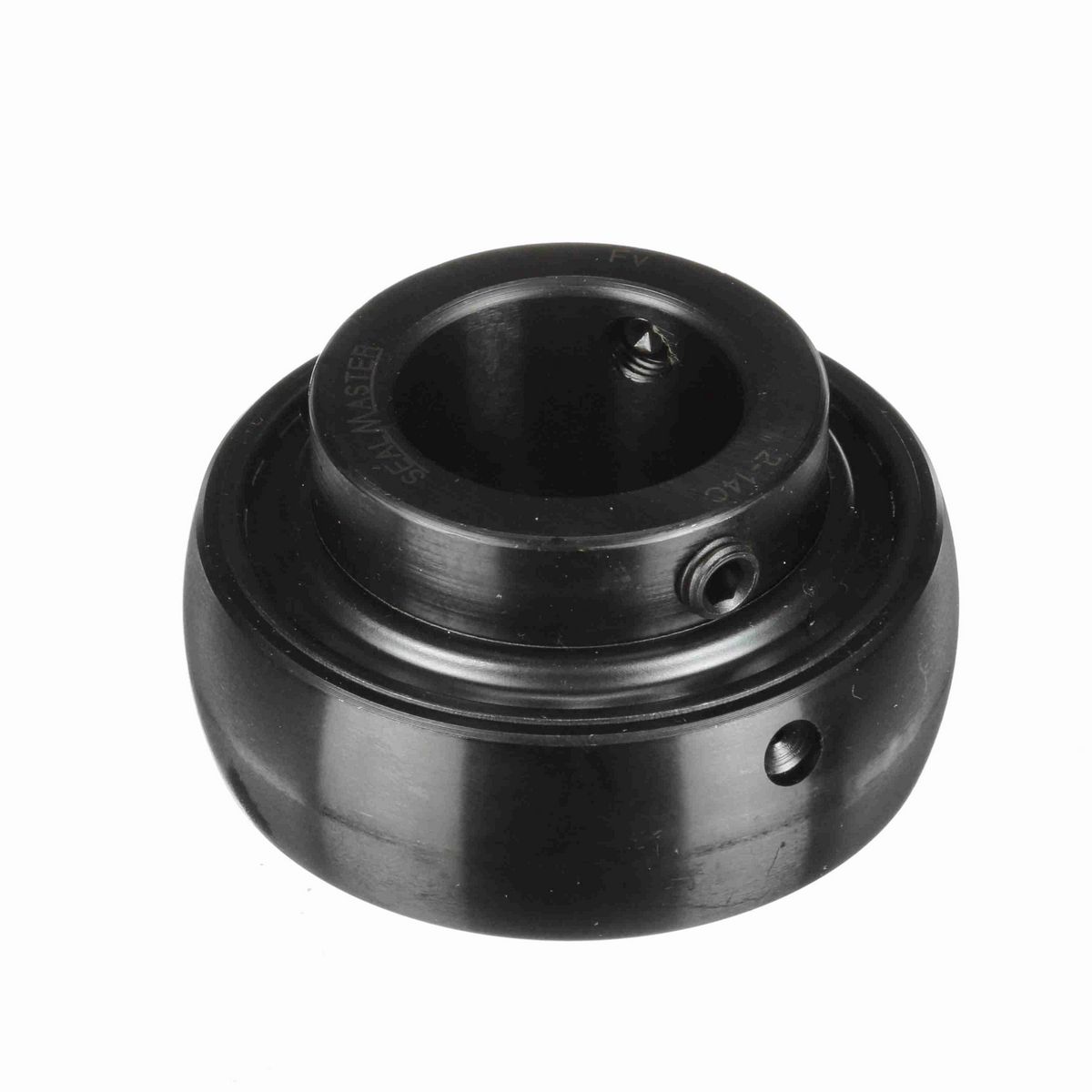

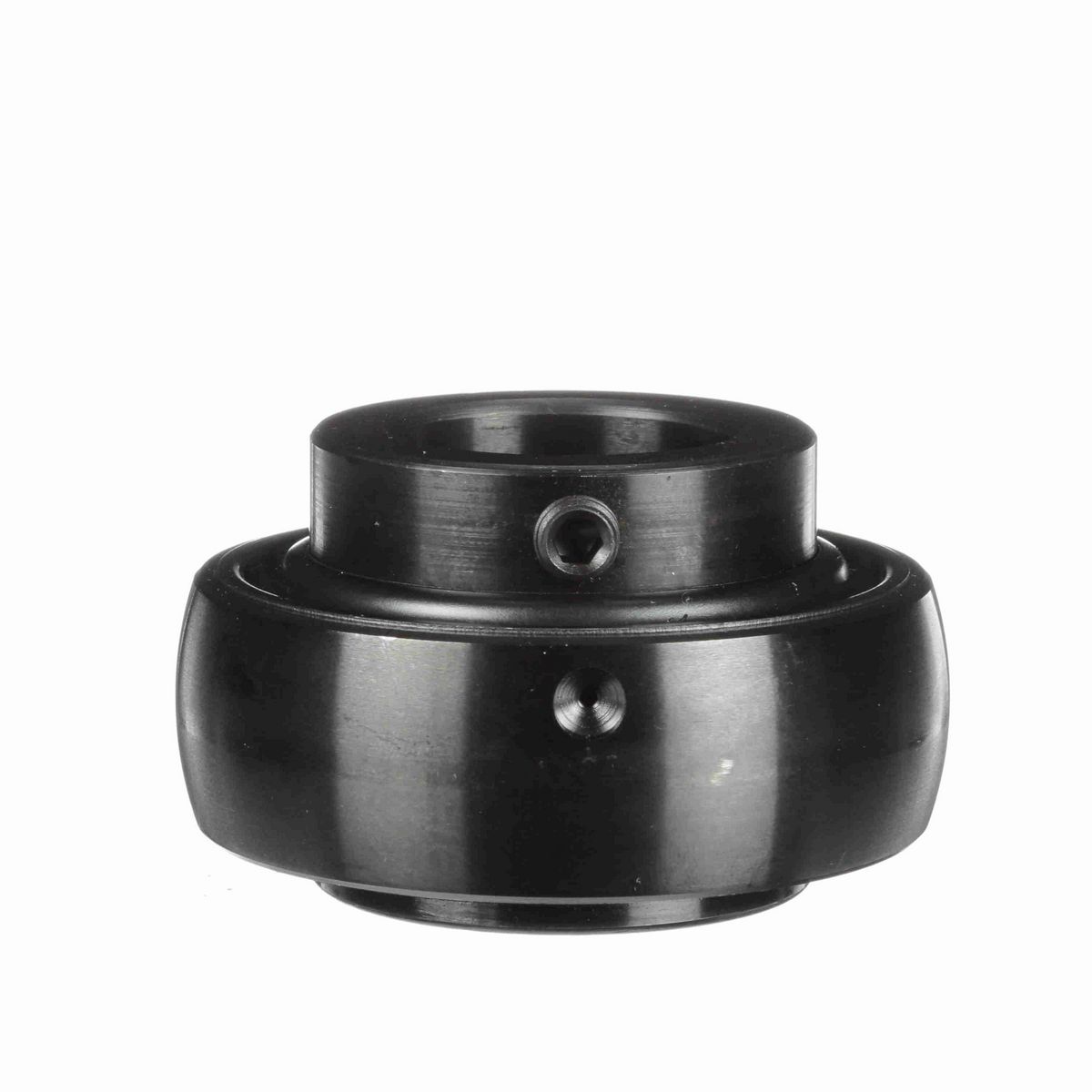

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.688 in
Bore Size (in)	1.2500 in
Centerline to Front Face (in)	1 in
Outer Race OD (in)	2.835 in
Inner Ring OD (in)	1.859 in
Inner Race Length (in)	1.688 in
Outer Race Width (in)	0.938 in

Technical Specifications

Radius	0.04
Set Screw Thread	5/16-24
Measure Units	Inch
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Rolling Element	Ball Bearing
Bore Shape	Straight
Speed (Max) (RPM)	4650 rpm
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	5,782 lb
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Radial Static Load Capacity (lb)	3,493 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Duty/Series	Standard
Ability to Relubricate	Yes
Type of Seal	Single Lip Contact Seal
Retainer Type	Land Riding Retainer
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No

General Specifications

UPC	662461019580
Weight	1.31 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
