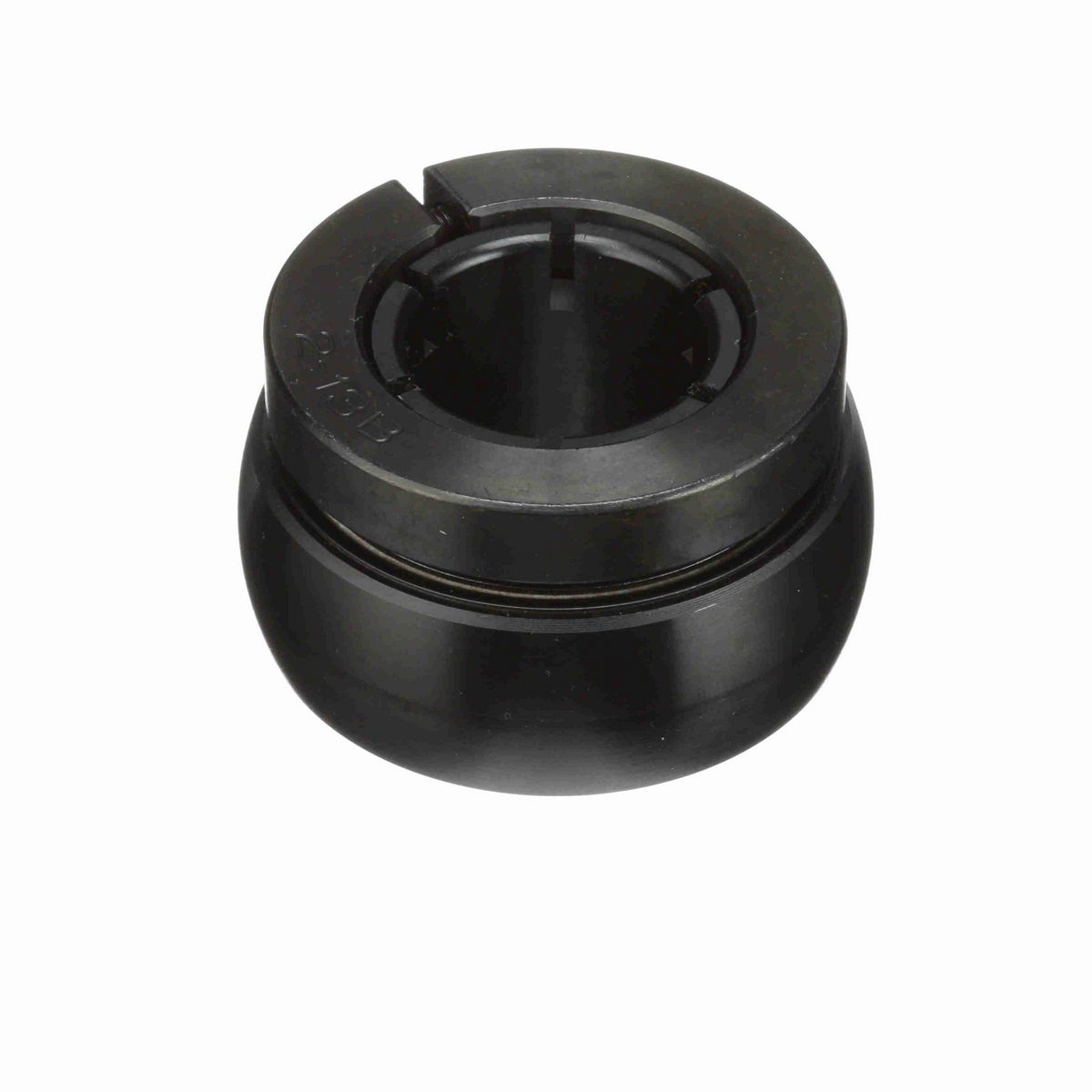

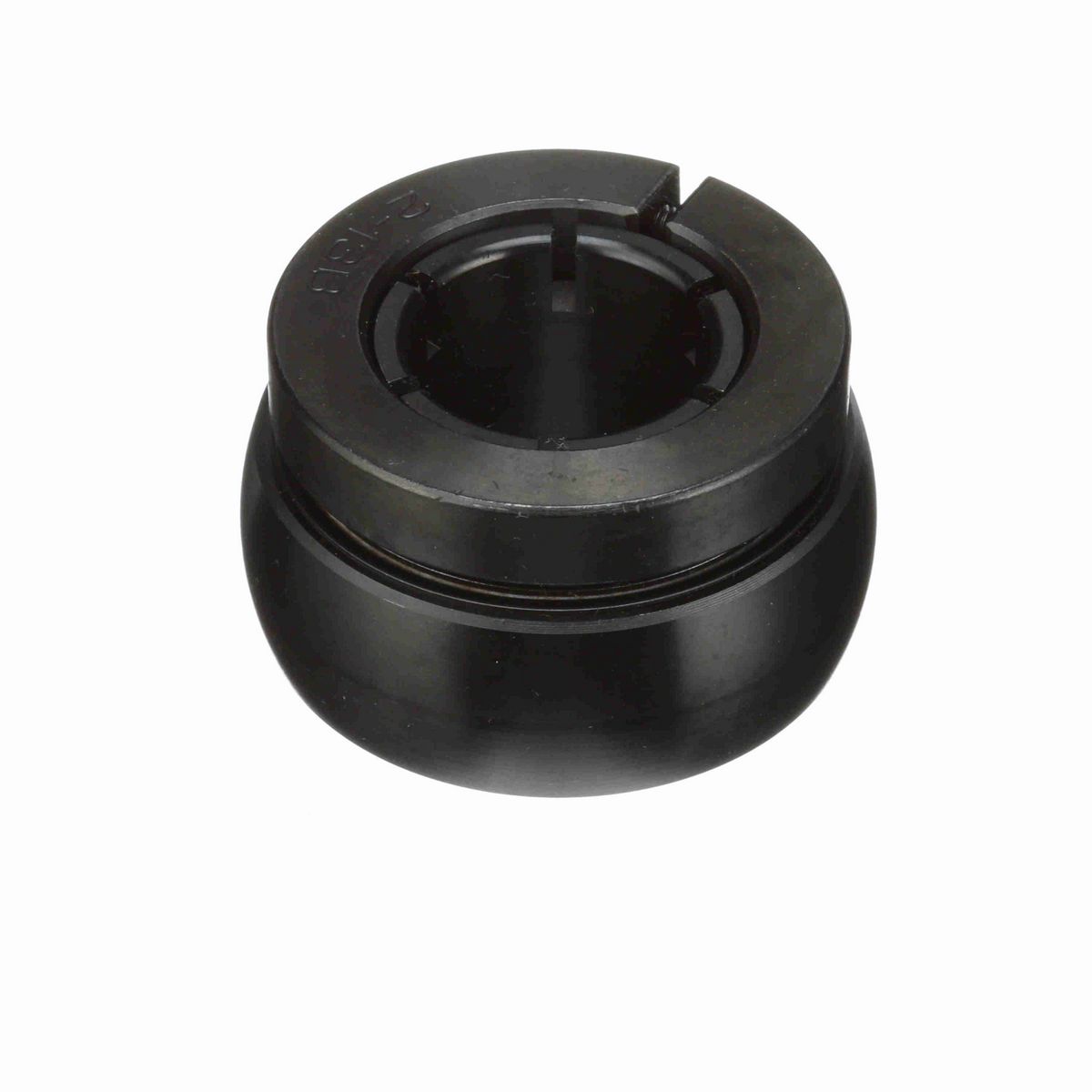

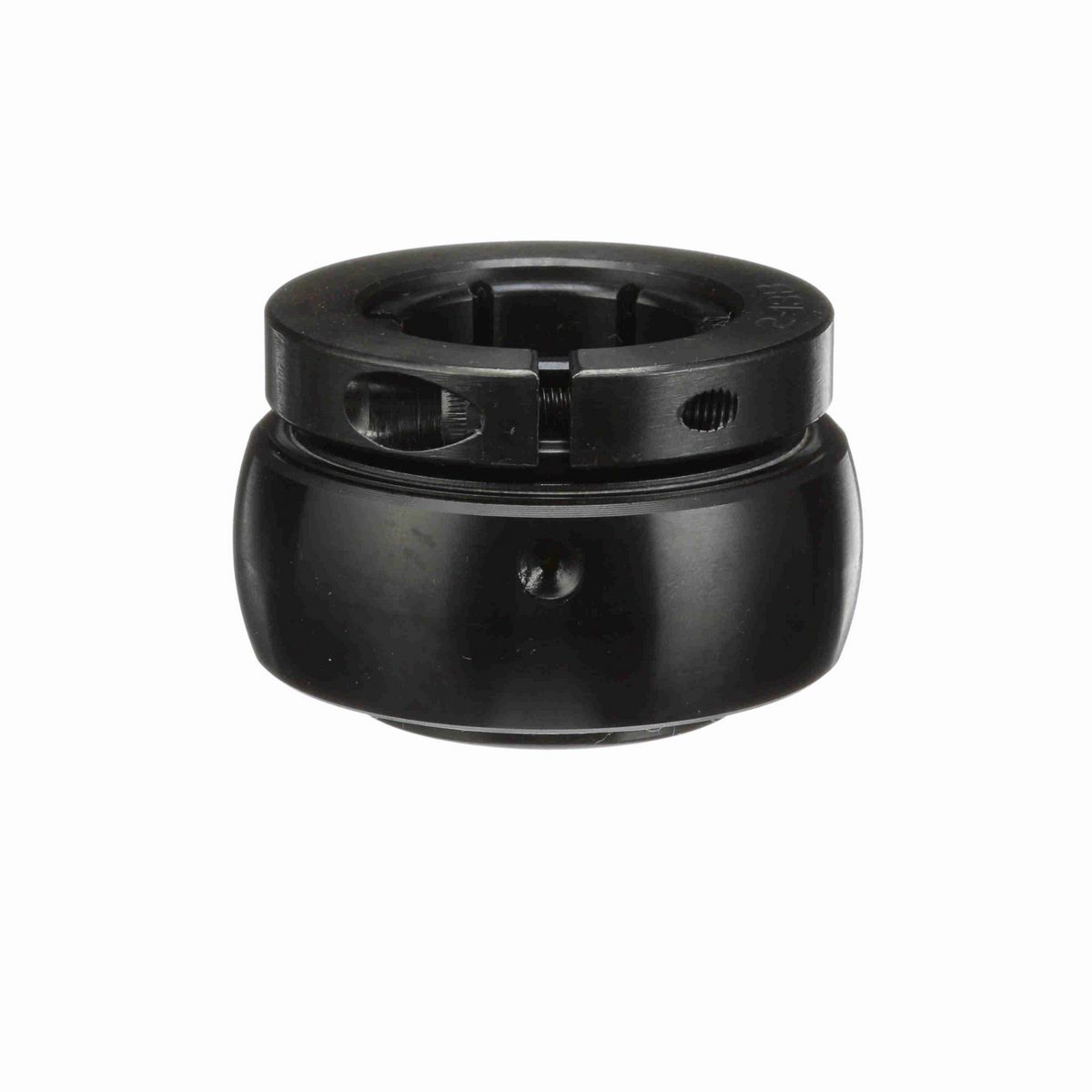

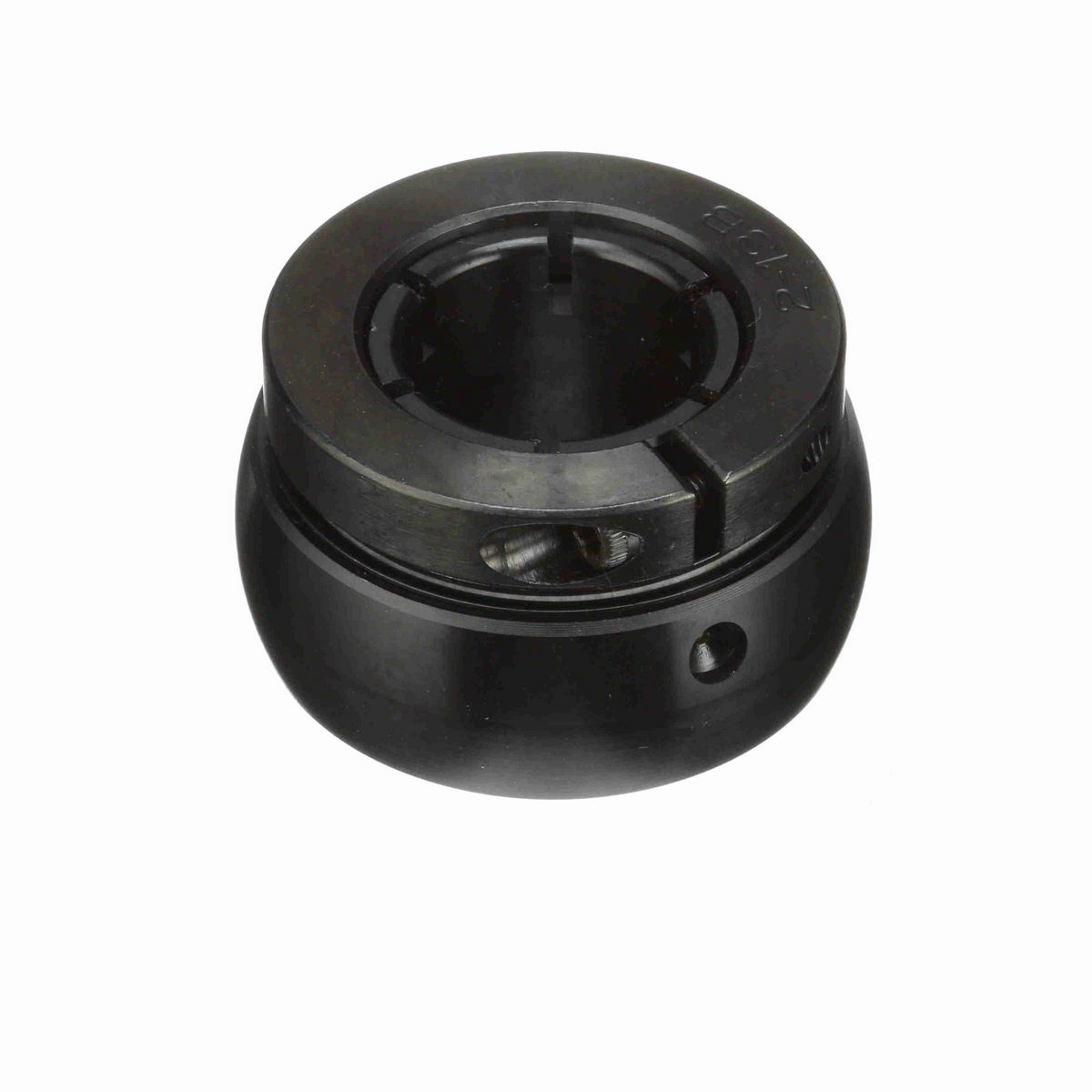

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.563 in
Bore Size (in)	1.1250 in
Centerline to Front Face (in)	0.875 in
Inner Ring OD (in)	2.188 in
Collar OD (in)	2.188 in
Outer Race OD (in)	2.441 in
Outer Race Width (in)	0.875 in
Inner Race Length (in)	1.563 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Rolling Element	Ball Bearing
Radius	0.08
Measure Units	Inch
Torx Cap Screw	T-25
Housing Type	Insert Only
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	4,381 lb
Speed (Max) (RPM)	7600 rpm
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	2,567 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Felt Labyrinth Seal
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Locking Type	Concentric

General Specifications

UPC	662461029107
Weight	1.05 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
