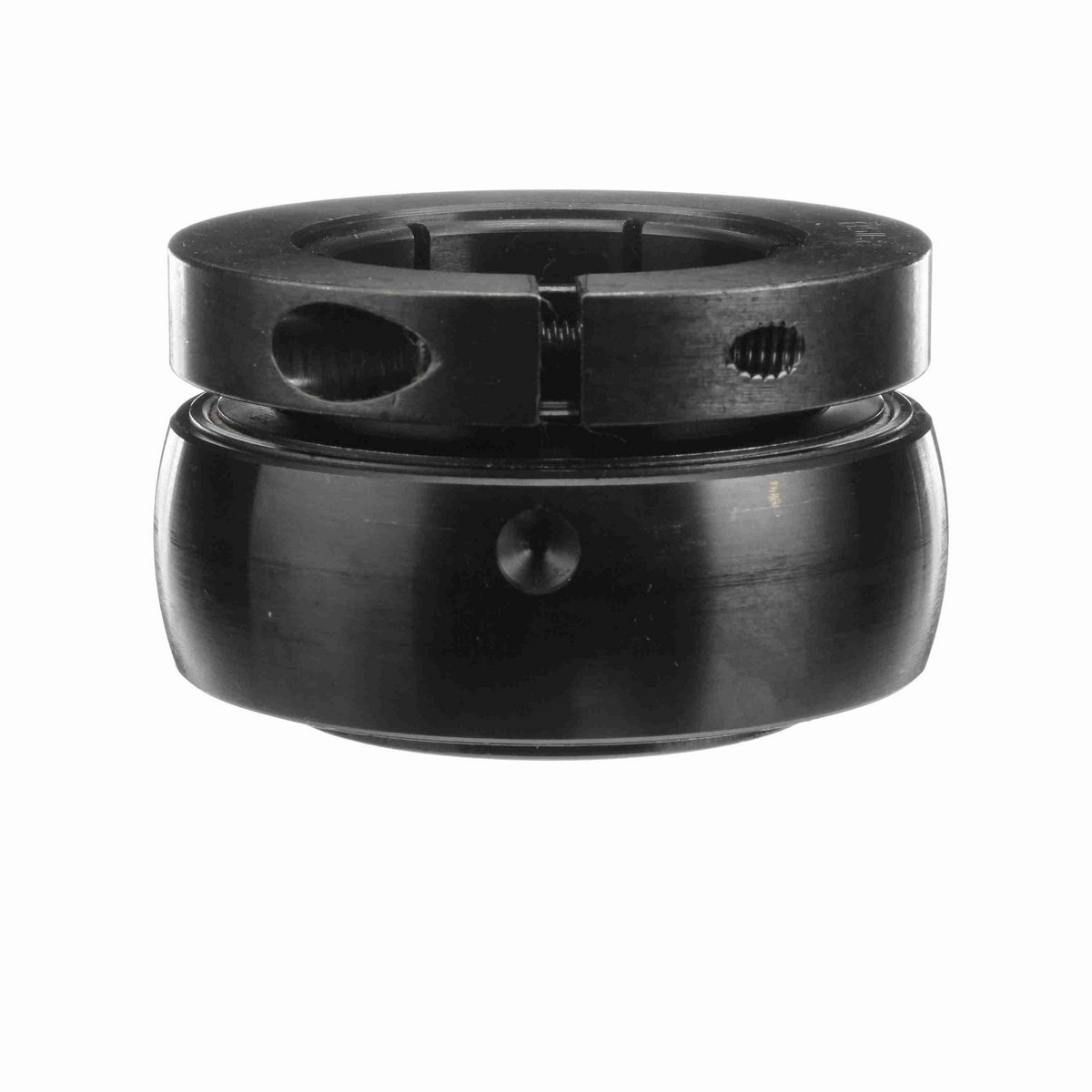

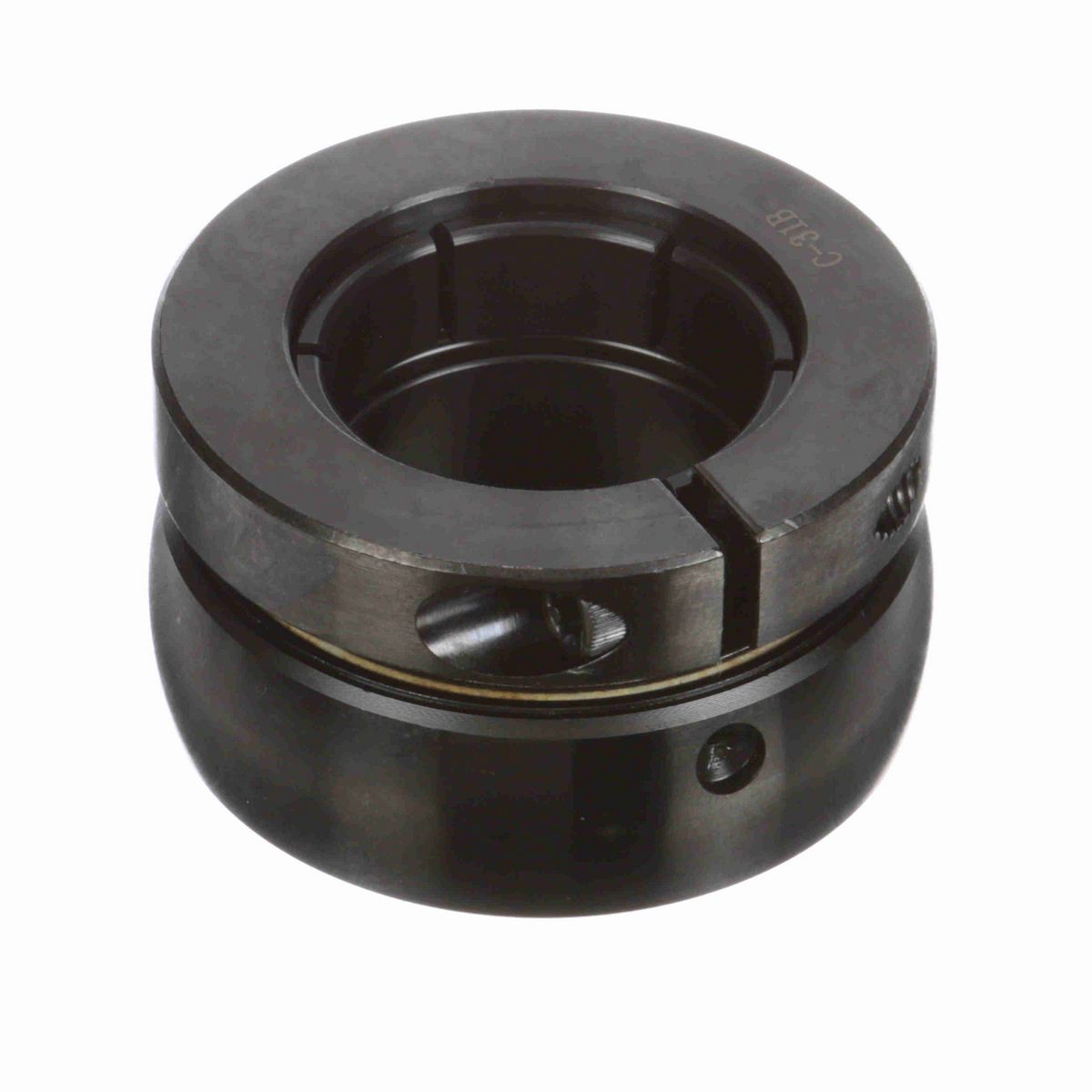

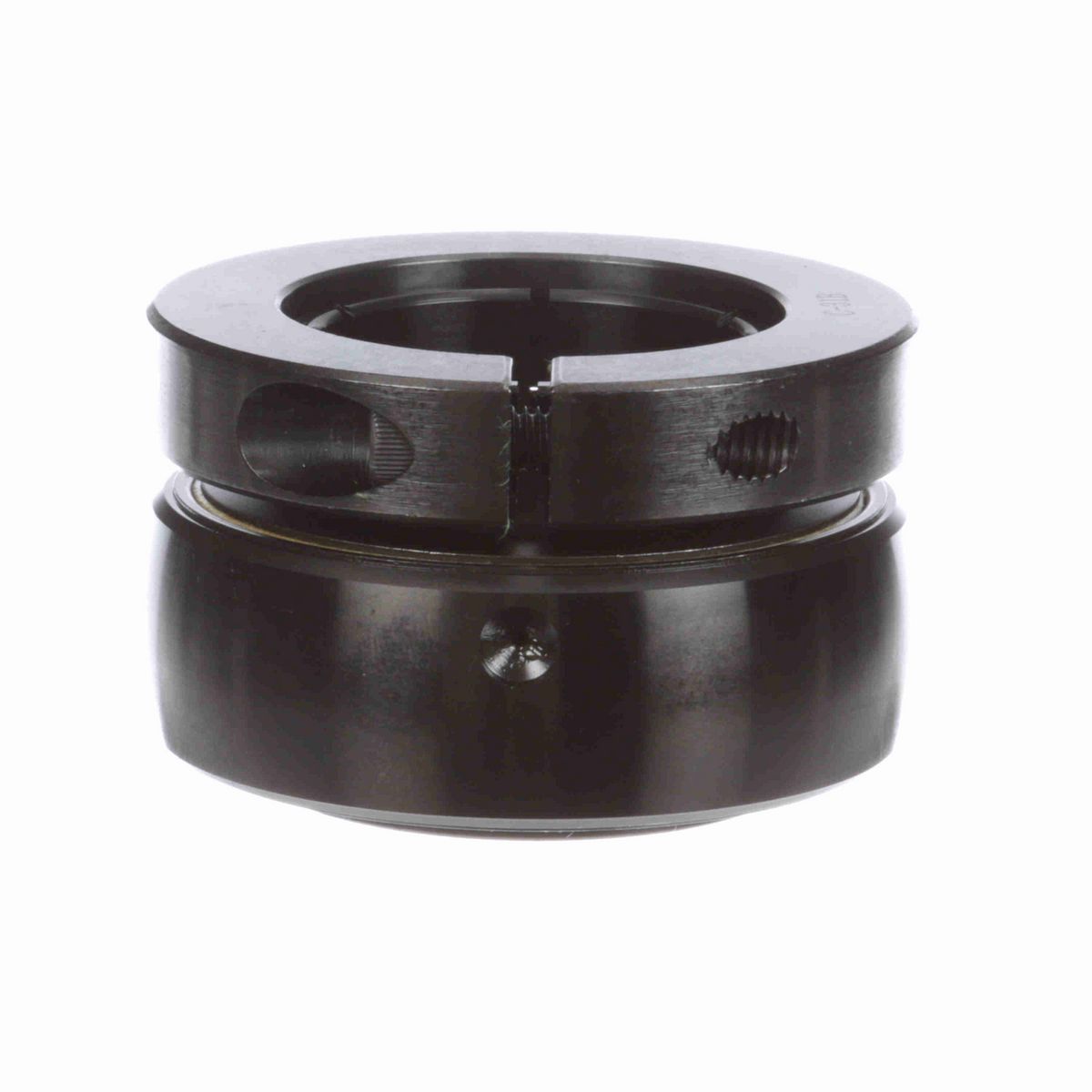

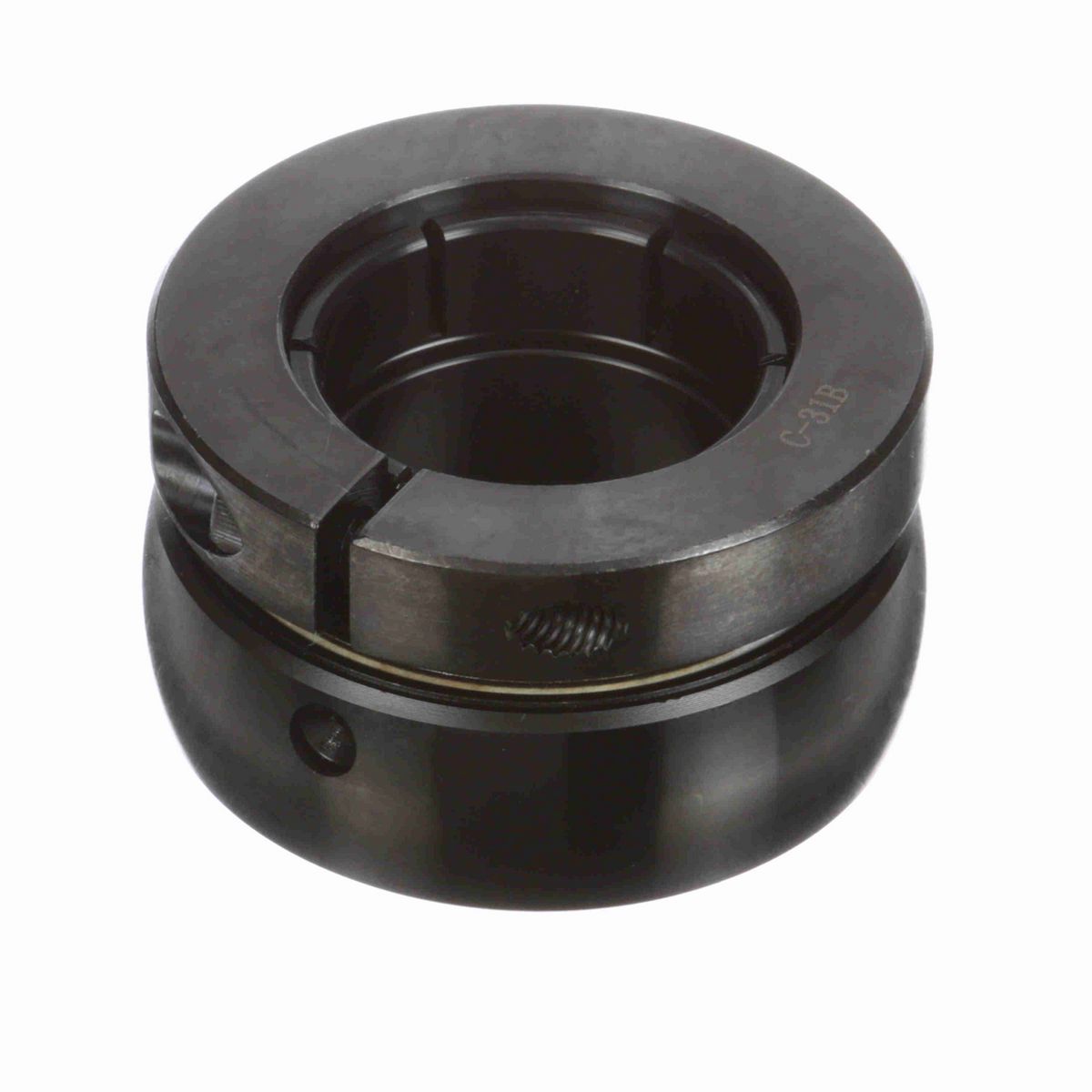

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.094 in
Bore Size (in)	1.9375 in
Collar OD (in)	3.375 in
Outer Race Width (in)	1.125 in
Inner Race Length (in)	2.094 in
Inner Ring OD (in)	3.375 in
Centerline to Front Face (in)	1.281 in
Outer Race OD (in)	3.543 in

Technical Specifications

Torx Cap Screw	1/4-20 X 1
Rolling Element	Ball Bearing
Bore Shape	Straight
Measure Units	Inch
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Radius	0.062
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,889 lb
Internal Clearance	Standard
Speed (Max) (RPM)	5000 rpm
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	5,216 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Locking Type	Concentric
Duty/Series	Standard
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461029190
Weight	2.87 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
