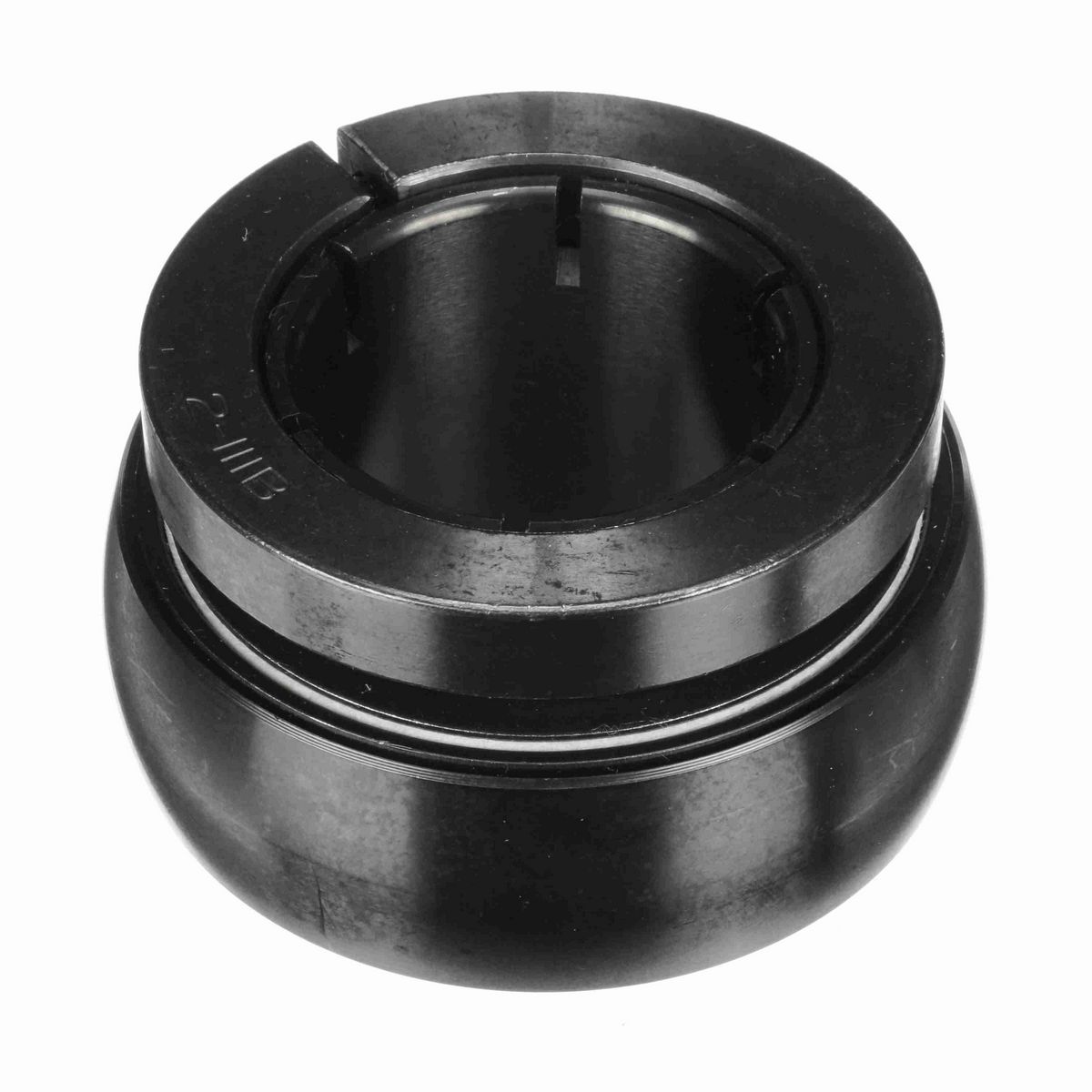

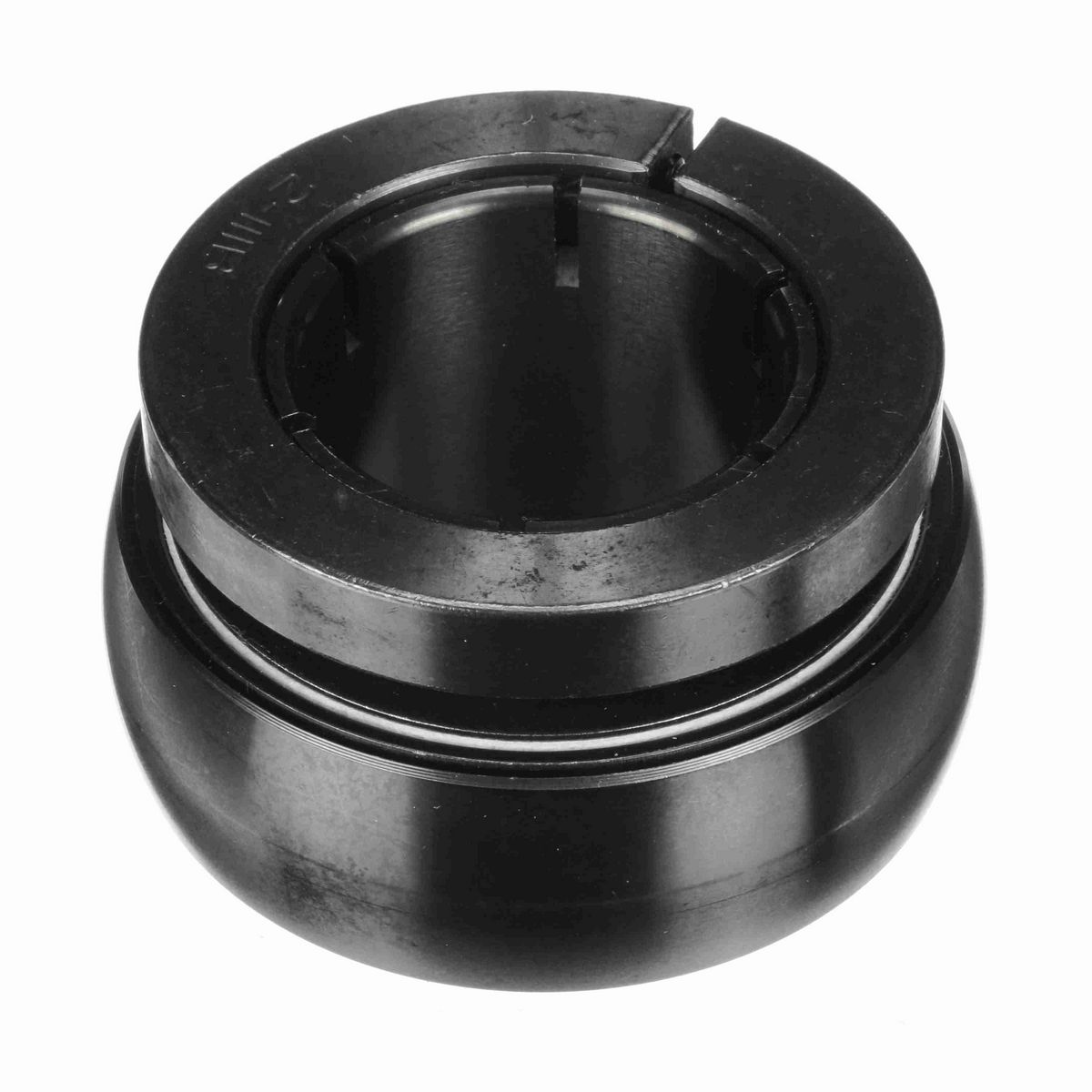

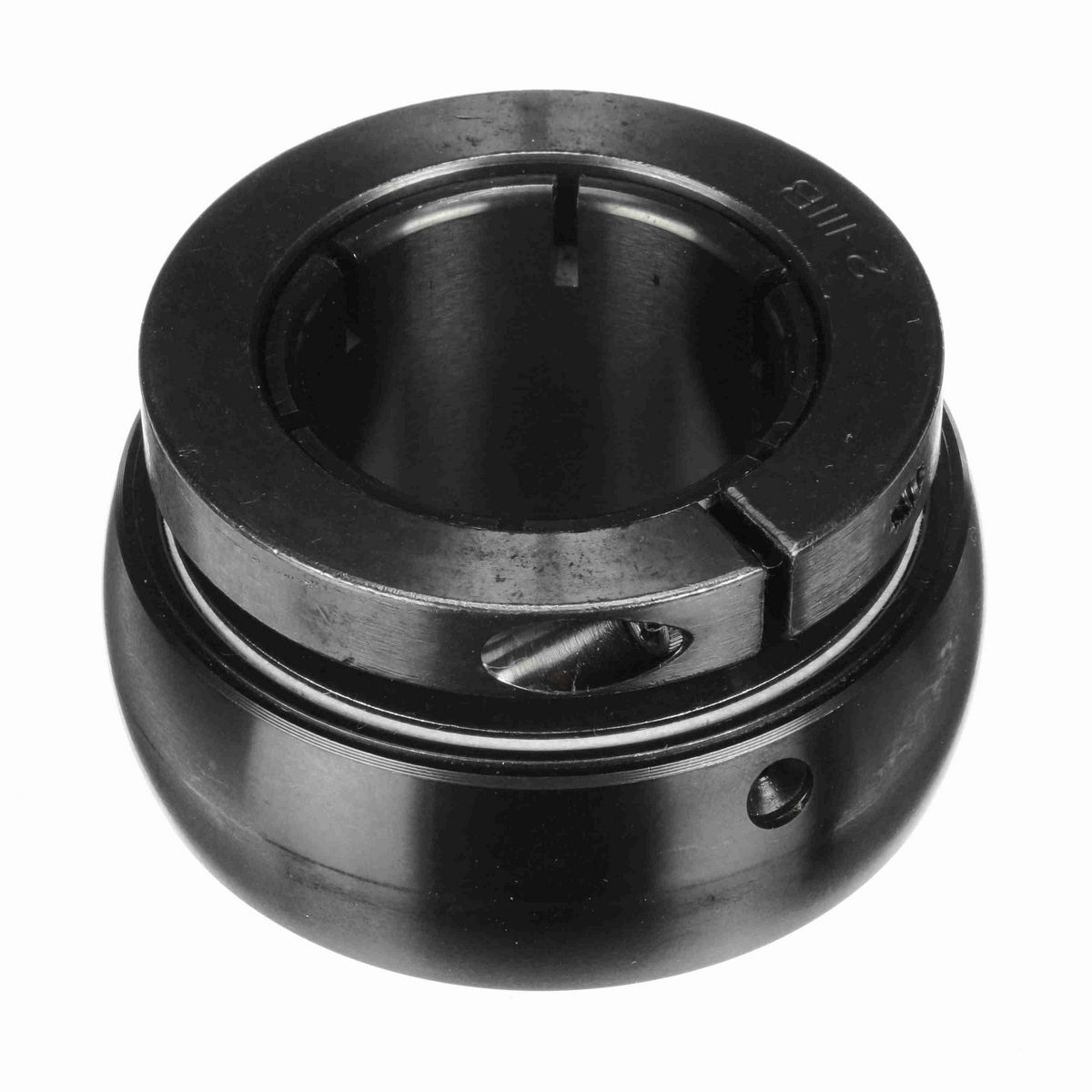

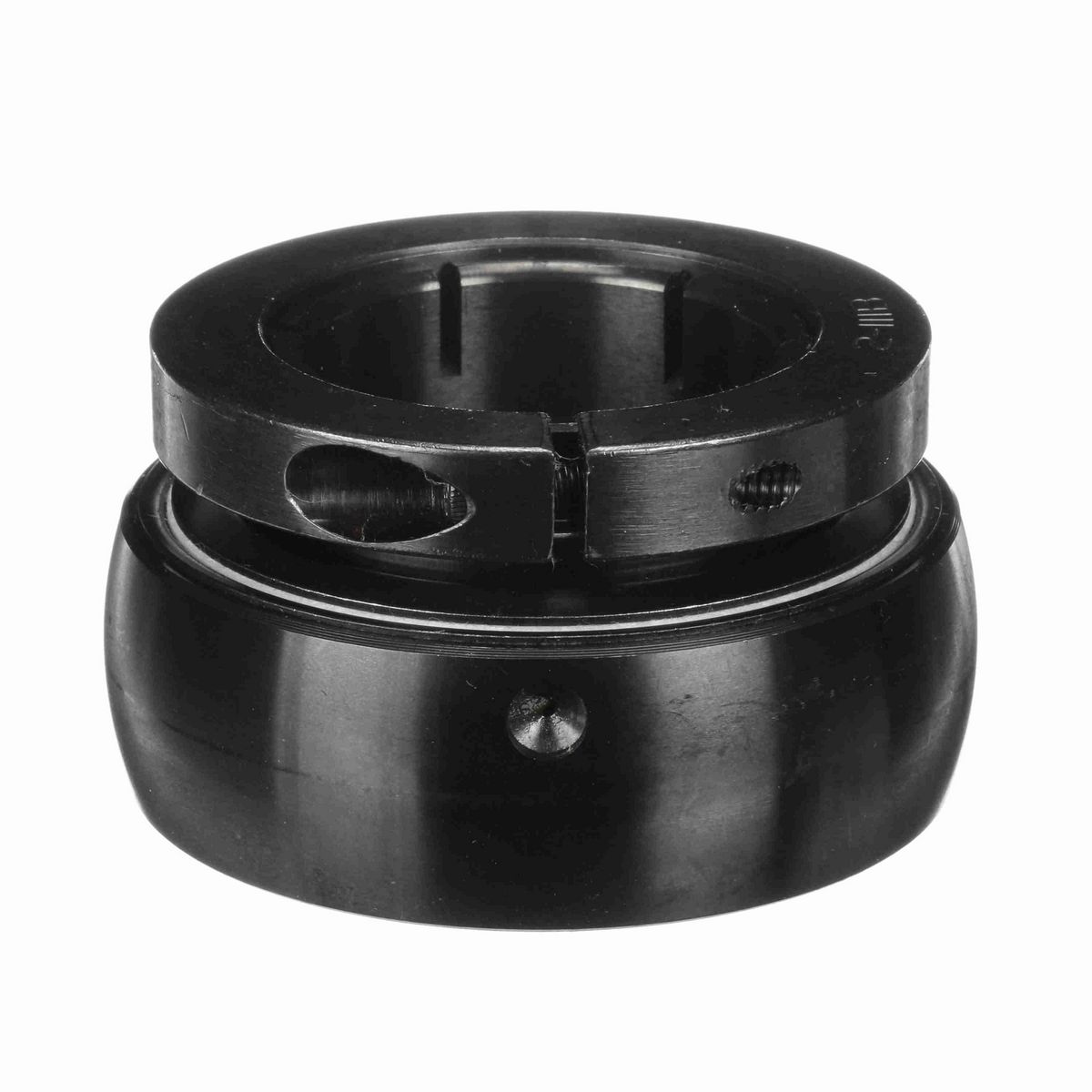

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2 in
Bore Size (in)	1.7500 in
Inner Ring OD (in)	2.938 in
Centerline to Front Face (in)	1.188 in
Inner Race Length (in)	2 in
Collar OD (in)	2.938 in
Outer Race Width (in)	1.094 in
Outer Race OD (in)	3.347 in

Technical Specifications

Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Torx Cap Screw	T-27
Rolling Element	Ball Bearing
Radius	0.1
Speed (Max) (RPM)	5300 rpm
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	7,901 lb
Misalignment	±2.0° Misalignment - Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
End Cap	No
Radial Static Load Capacity (lb)	5,139 lb
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Type of Seal	Felt Labyrinth Seal
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461029183
Weight	2.18 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
