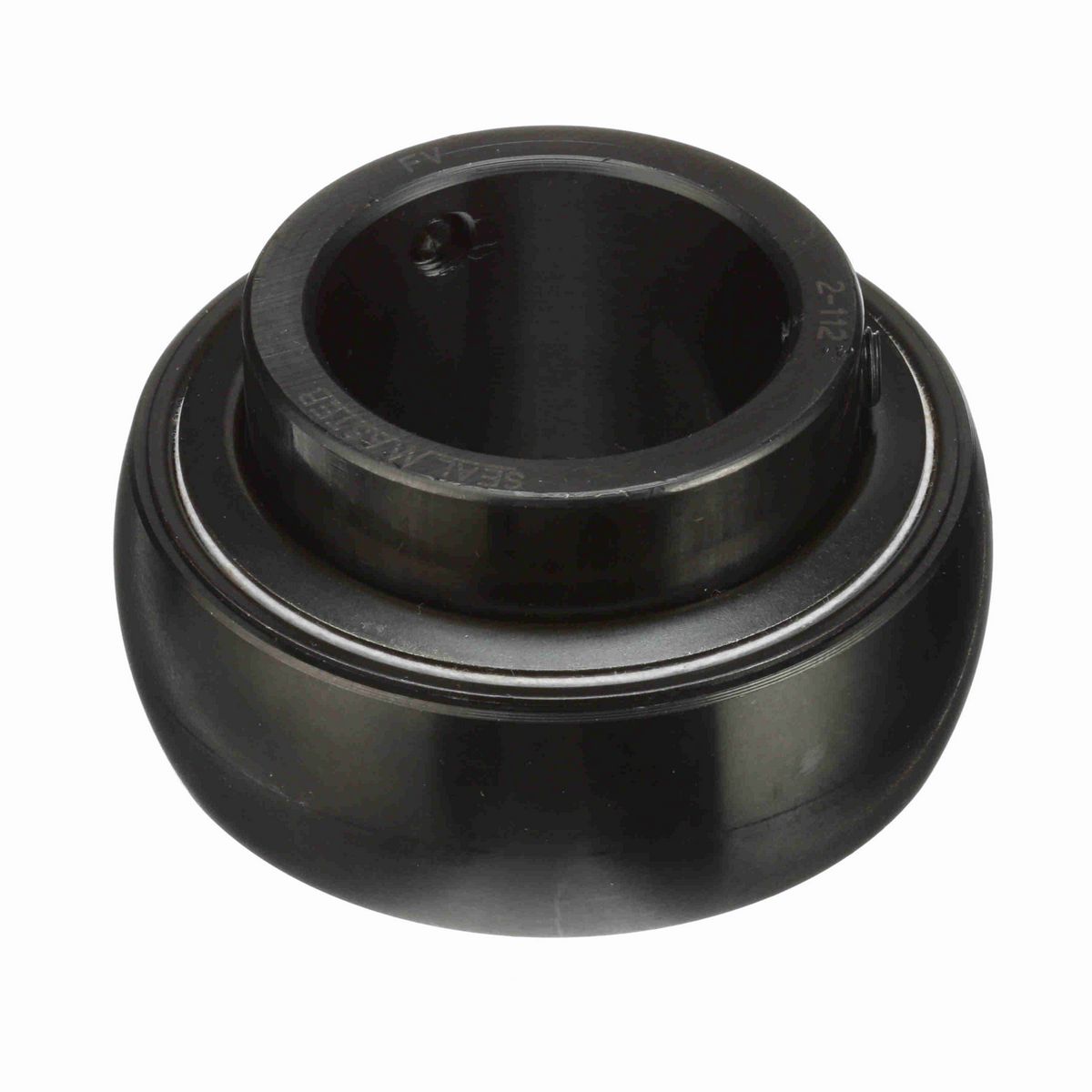

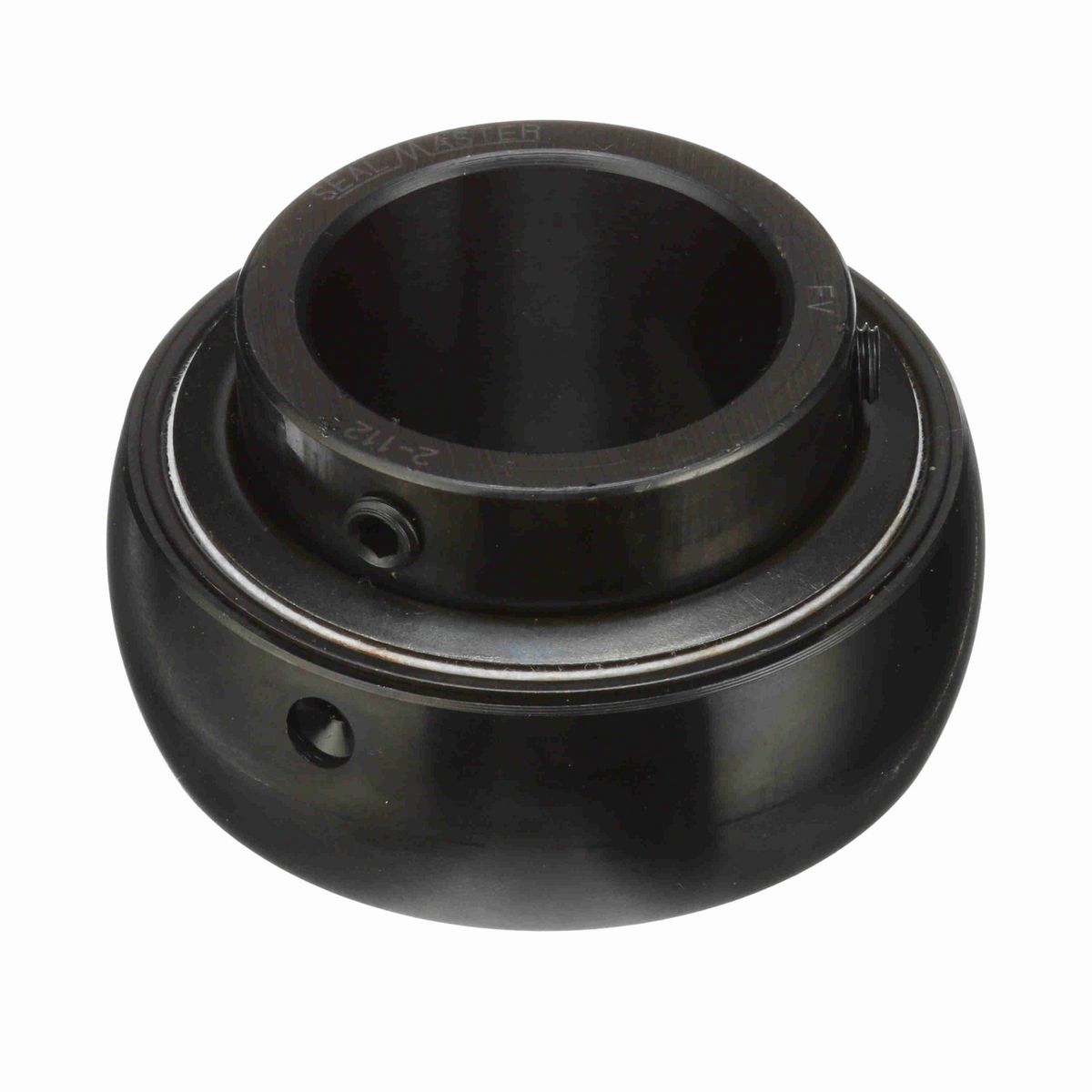

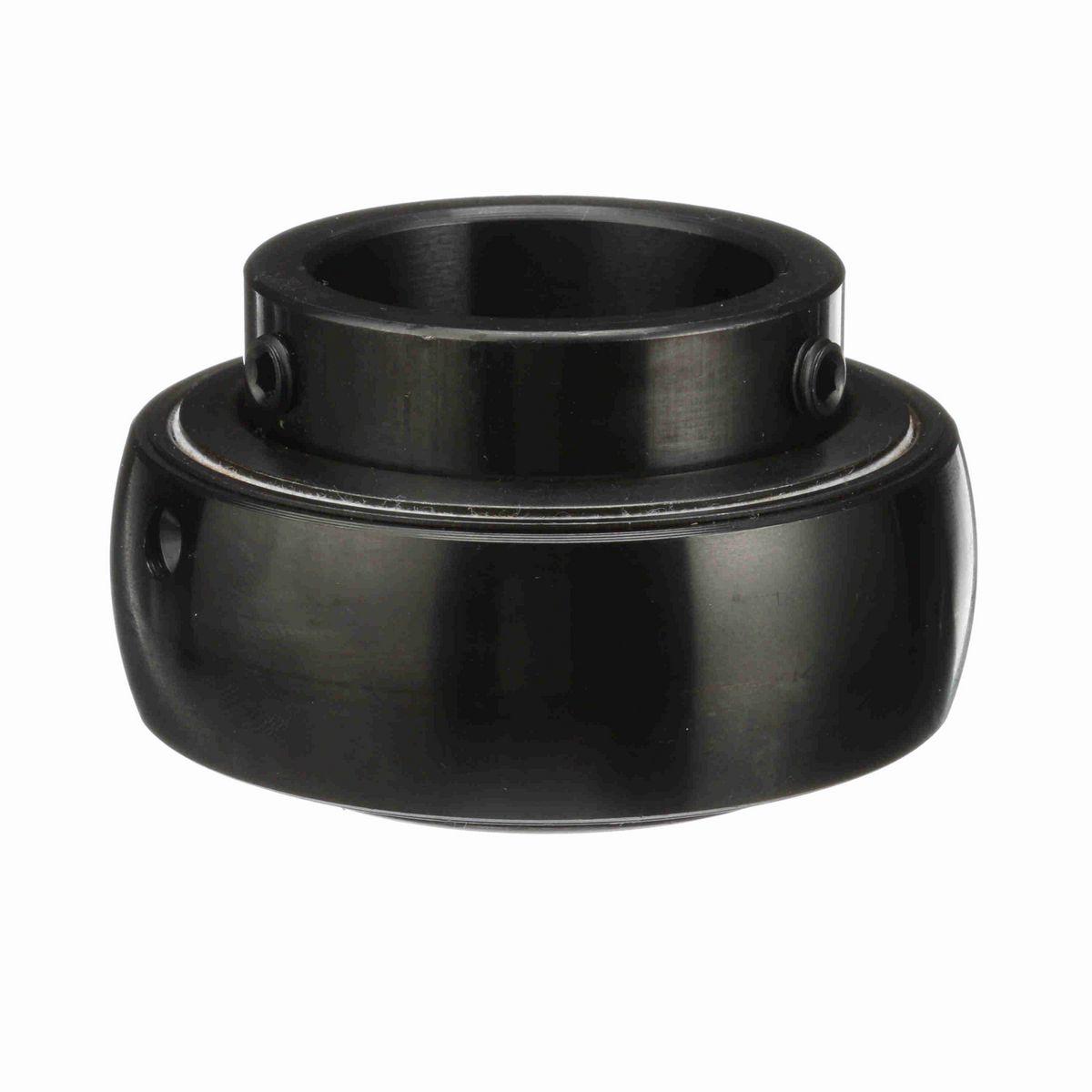

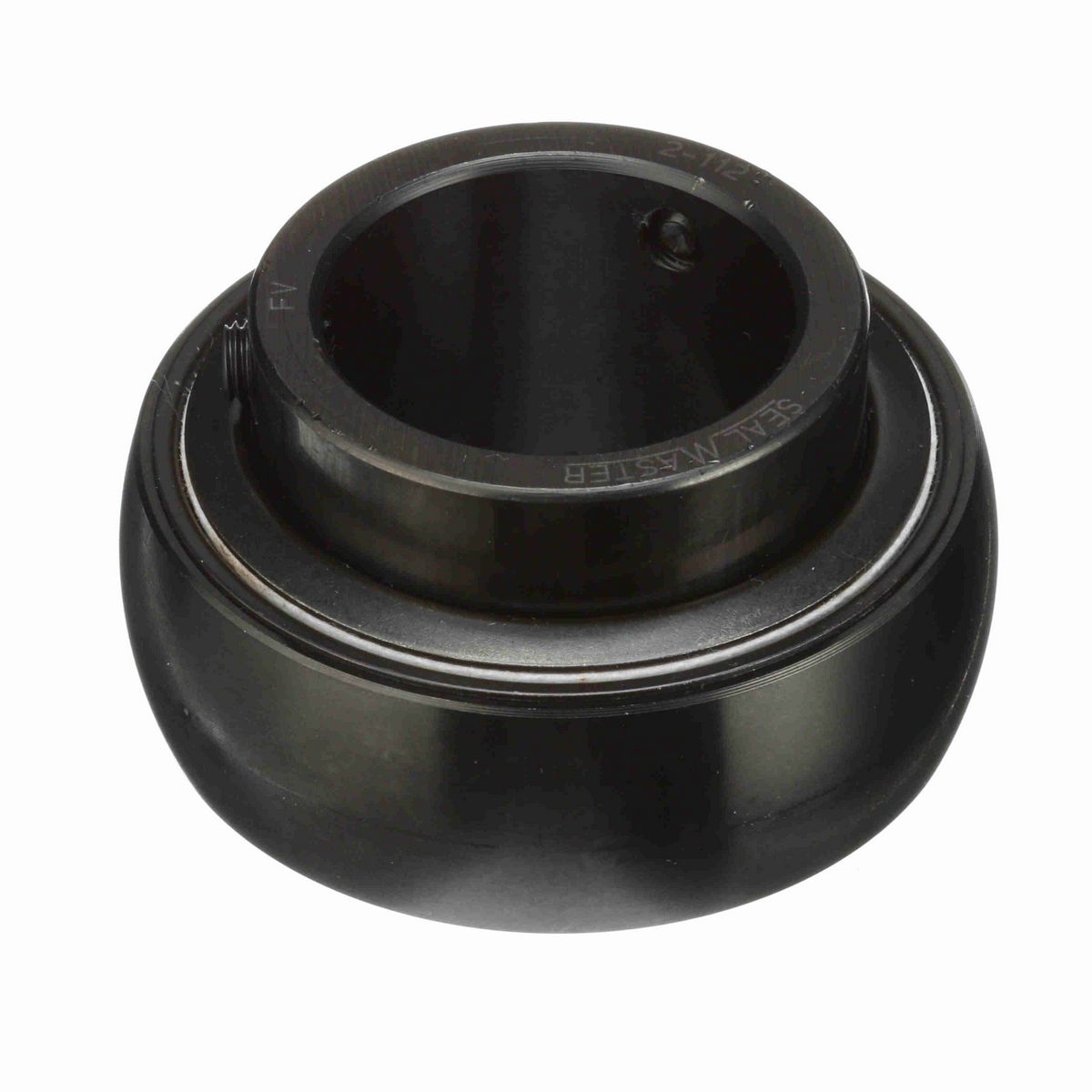

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.7500 in
Outer Race OD (in)	3.347 in
Centerline to Front Face (in)	1.188 in
Inner Ring OD (in)	2.297 in
Inner Race Length (in)	1.938 in
Outer Race Width (in)	1.094 in

Technical Specifications

Measure Units	Inch
Bore Shape	Straight
Radius	0.062
Rolling Element	Ball Bearing
Set Screw Thread	5/16-24
Insert Material	52100 Bearing Steel, Black Oxided
Housing Type	Insert Only
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	7,901 lb
Internal Clearance	Standard
Speed (Max) (RPM)	3800 rpm
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	5,139 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Locking Type	Set Screw
Retainer Type	Land Riding Retainer
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard

General Specifications

UPC	662461000281
Weight	1.88 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
