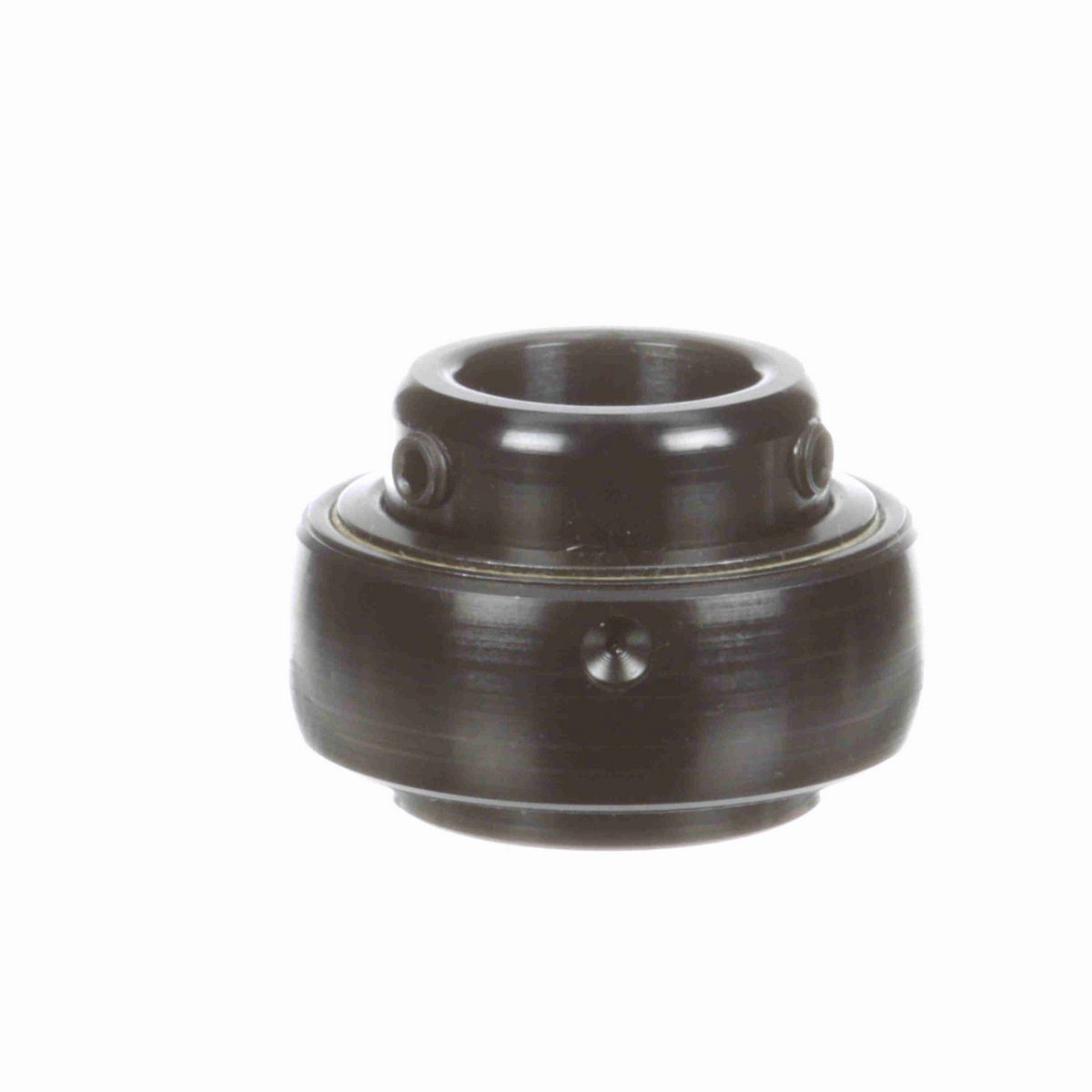

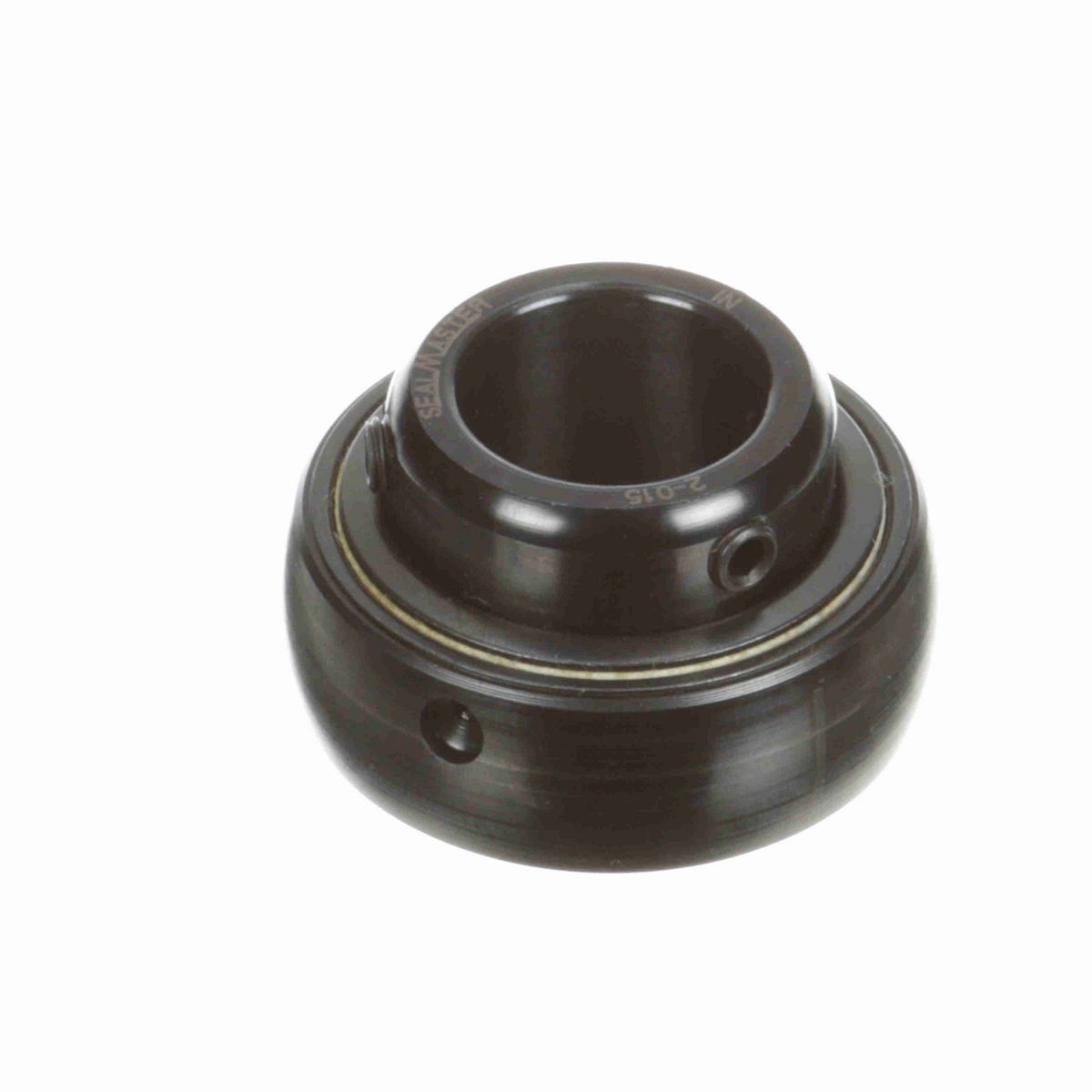

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.375 in
Bore Size (in)	0.9375 in
Outer Race Width (in)	0.688 in
Centerline to Front Face (in)	0.813 in
Inner Ring OD (in)	1.375 in
Inner Race Length (in)	1.375 in
Outer Race OD (in)	2.047 in

Technical Specifications

Measure Units	Inch
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.04
Housing Type	Insert Only
Set Screw Thread	1/4-28
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	2,801 lb
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Speed (Max) (RPM)	6350 rpm
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	1,651 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Retainer Type	Land Riding Retainer
Locking Type	Set Screw
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Duty/Series	Standard
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461000113
Weight	0.60 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
