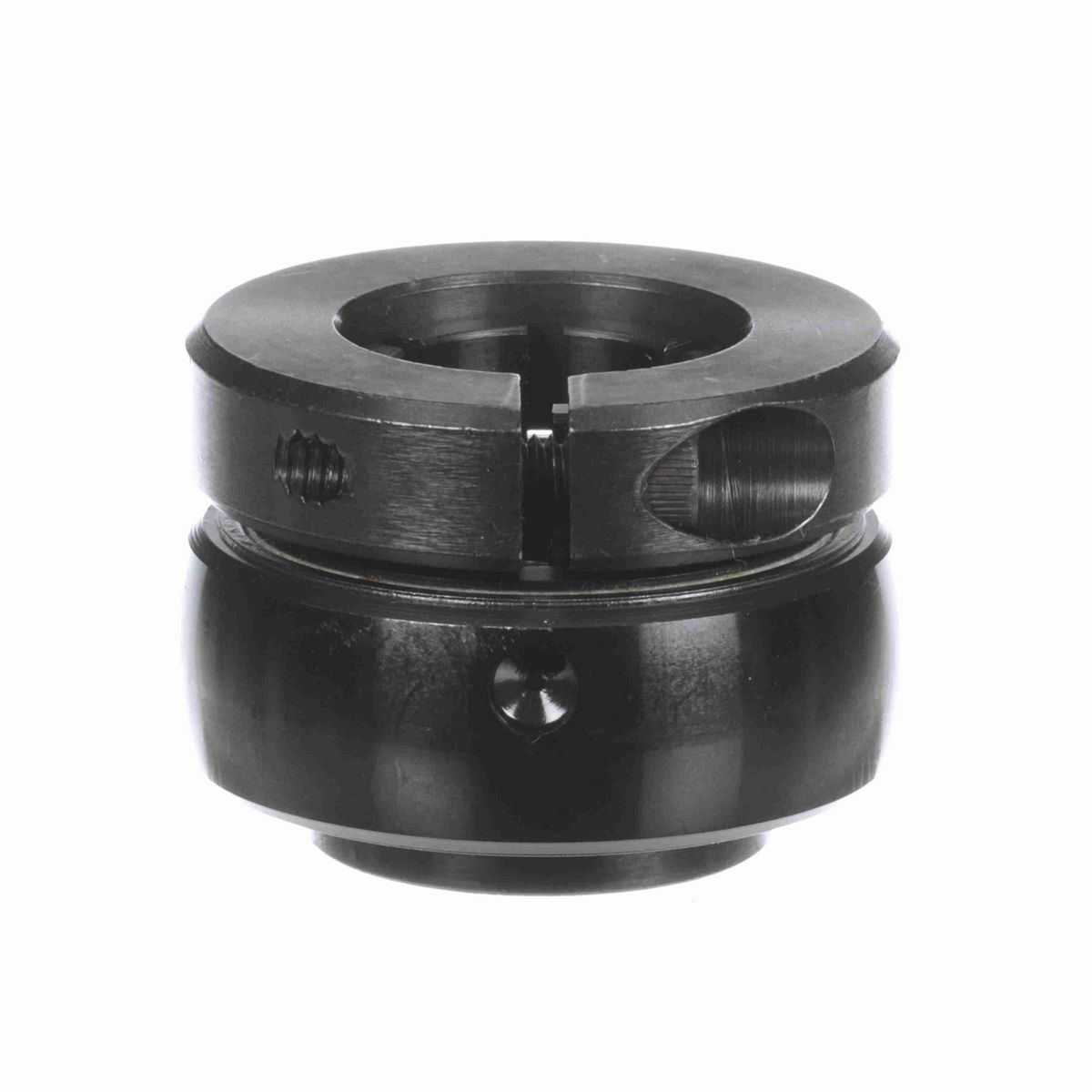

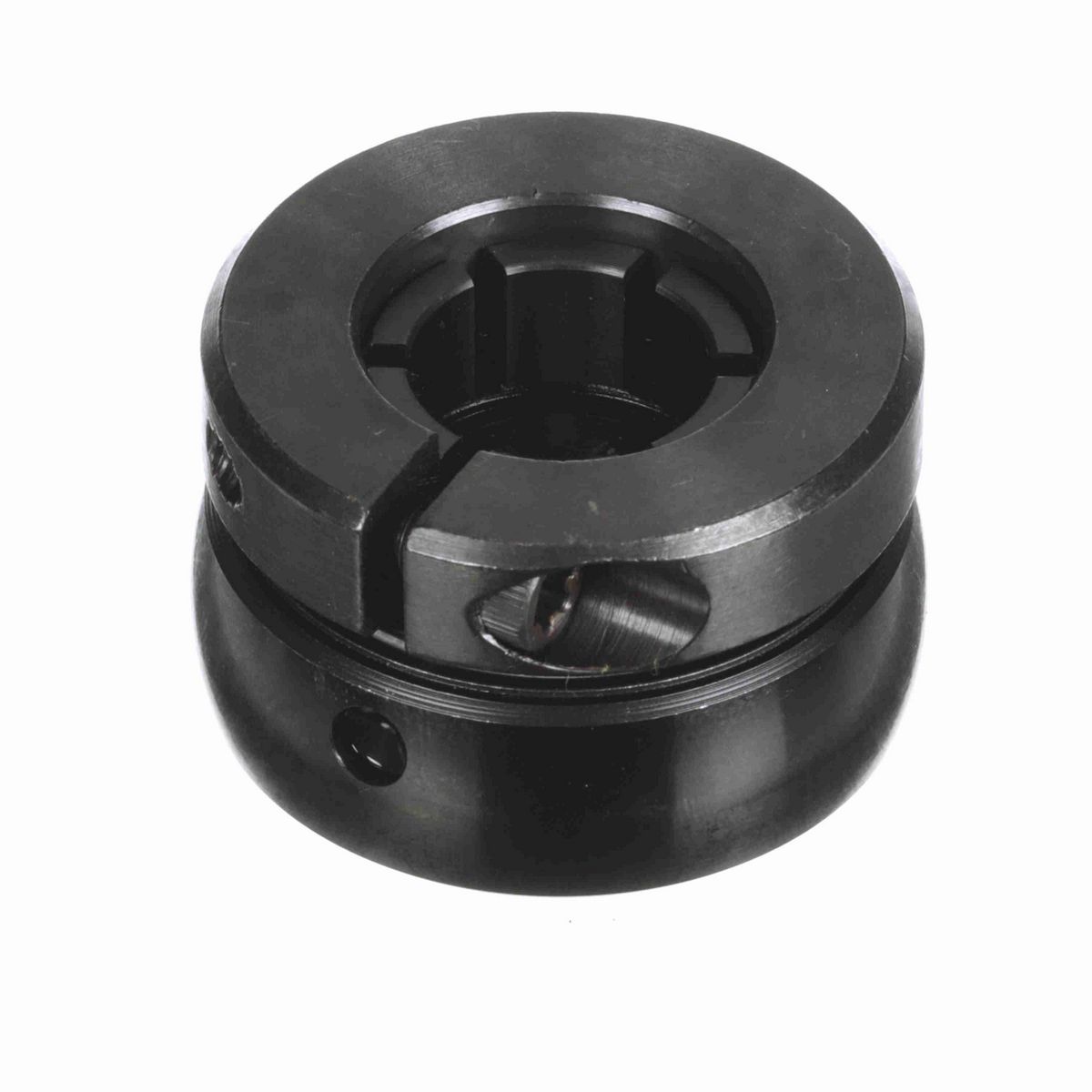

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.281 in
Bore Size (in)	0.7500 in
Outer Race OD (in)	1.85 in
Inner Ring OD (in)	1.75 in
Outer Race Width (in)	0.625 in
Inner Race Length (in)	1.281 in
Centerline to Front Face (in)	0.719 in
Collar OD (in)	1.75 in

Technical Specifications

Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert Only
Torx Cap Screw	8-32 X 5/8
Rolling Element	Ball Bearing
Radius	0.04
Insert Material	52100 Bearing Steel, Black Oxided
Speed (Max) (RPM)	10200 rpm
Radial Dynamic Load Capacity (lb)	2,611 lb
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	1,444 lb
Cage Material	PPS
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Locking Type	Concentric
Retainer Type	Land Riding Retainer
Ability to Relubricate	Yes
Fixed vs. Expansion	No

General Specifications

UPC	662461029077
Weight	0.57 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
