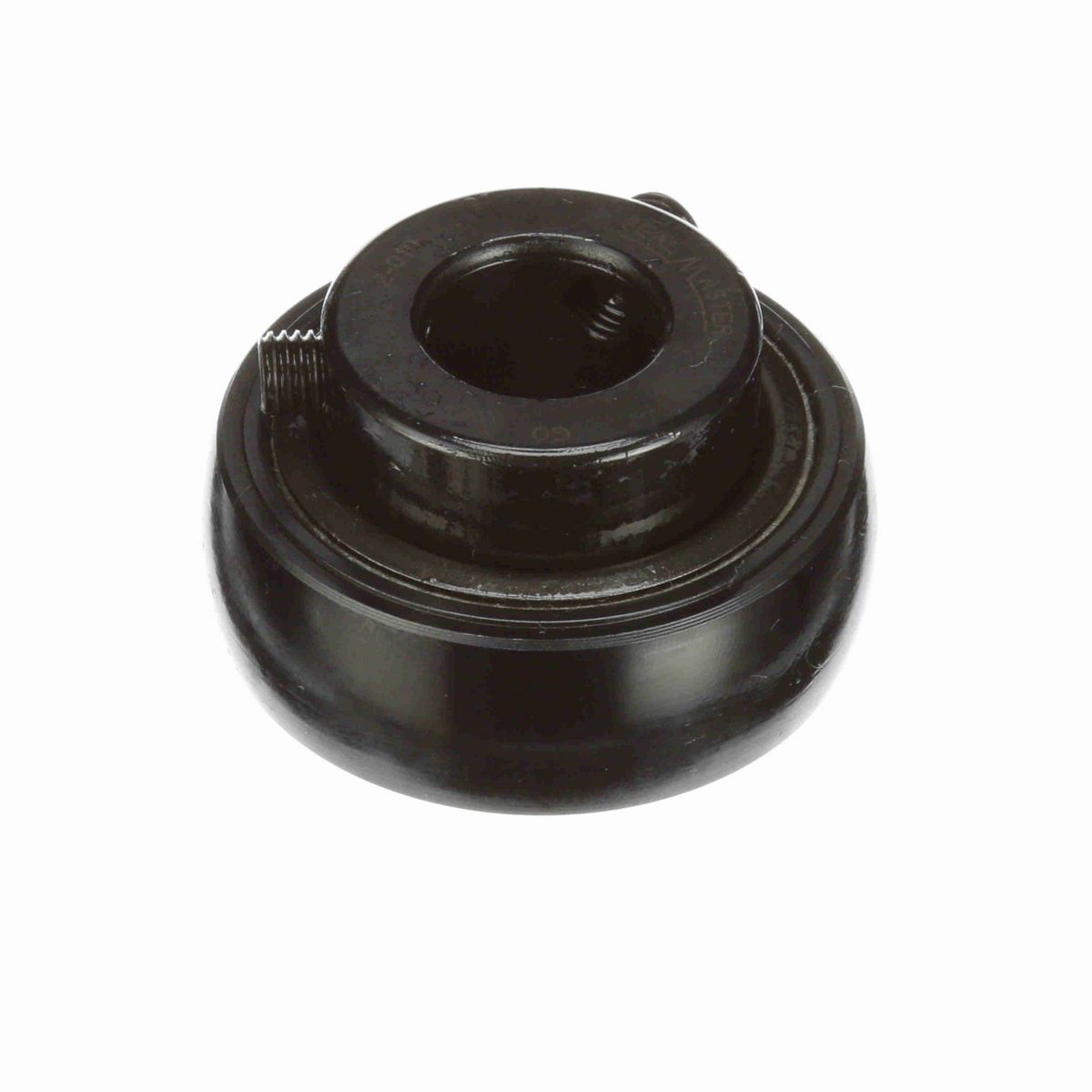

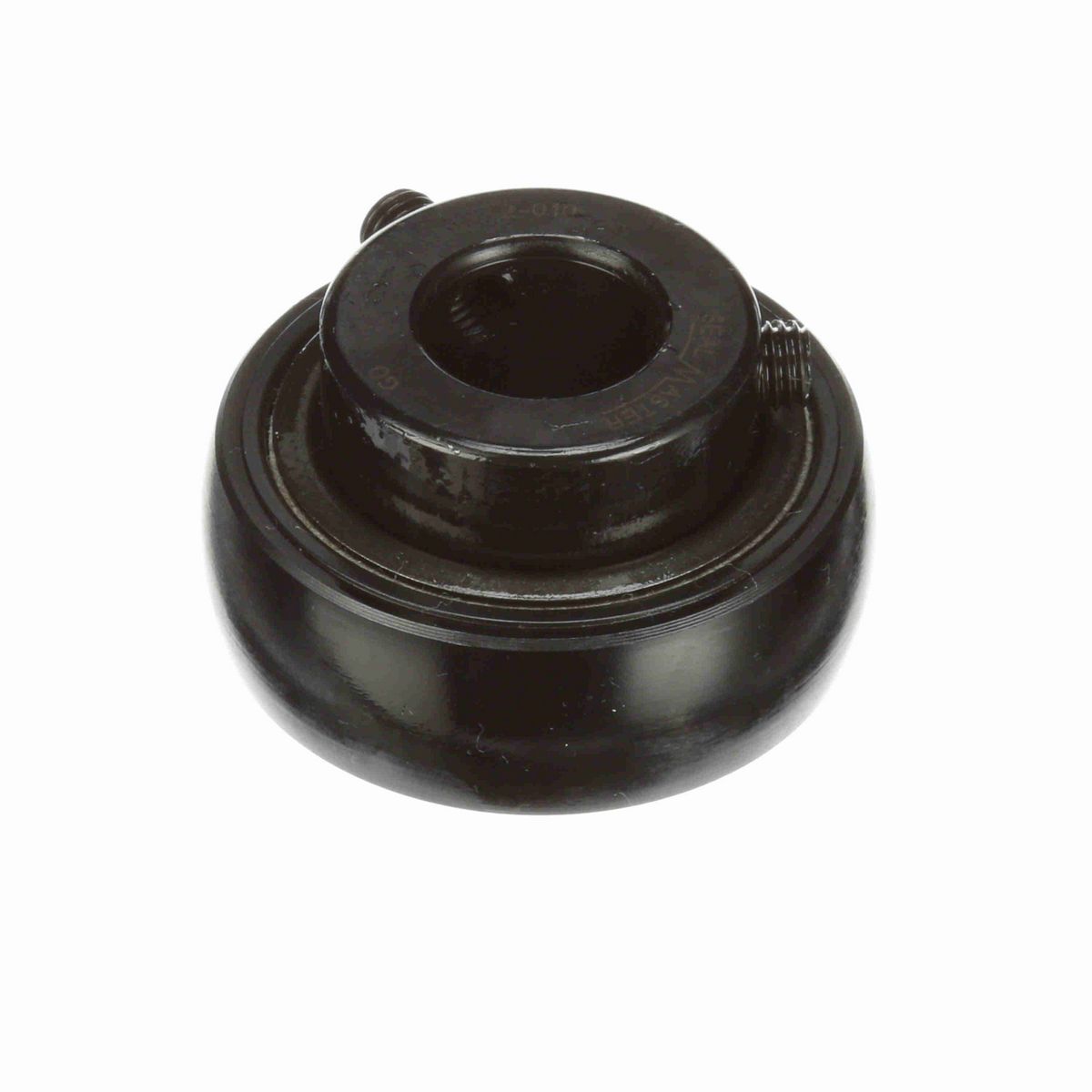

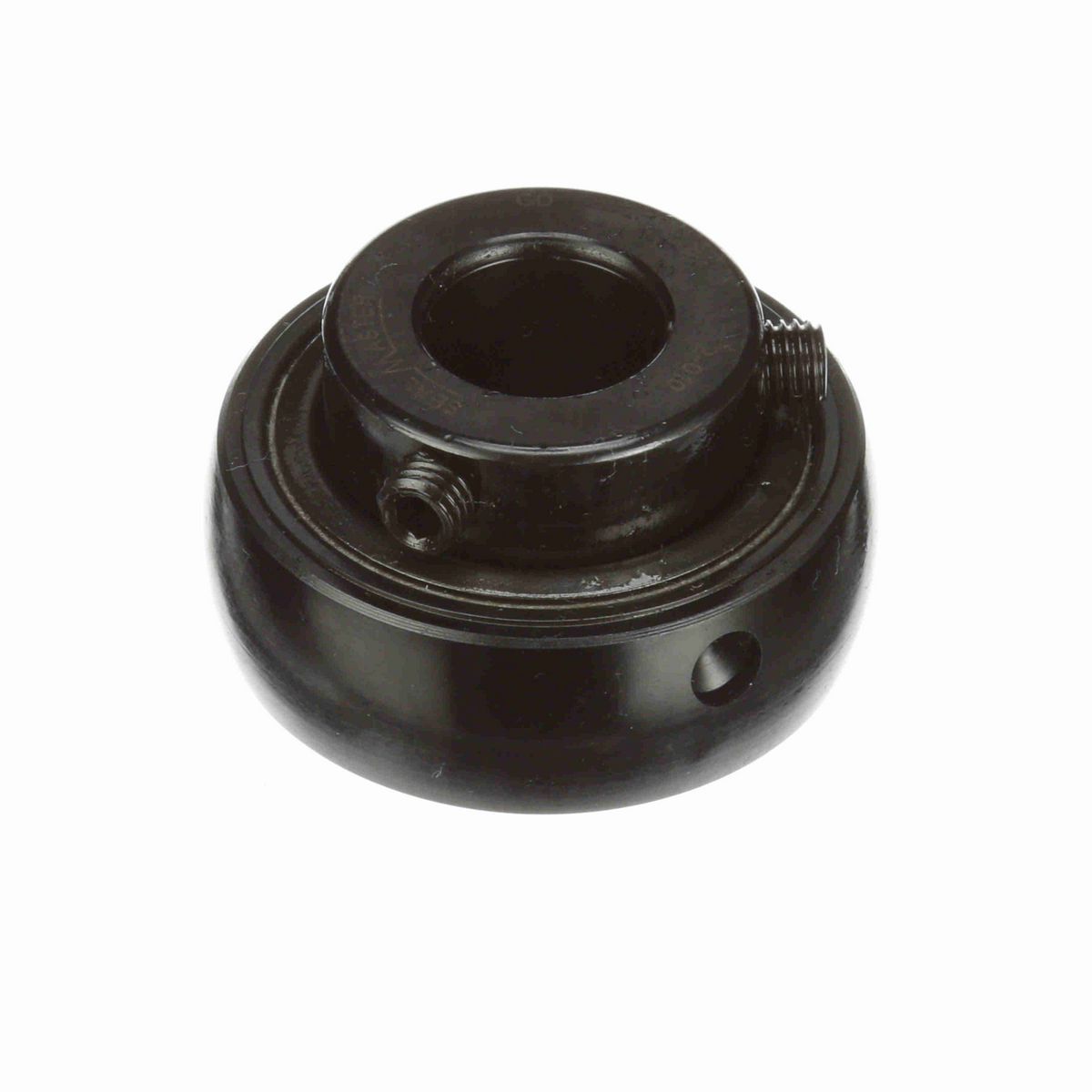

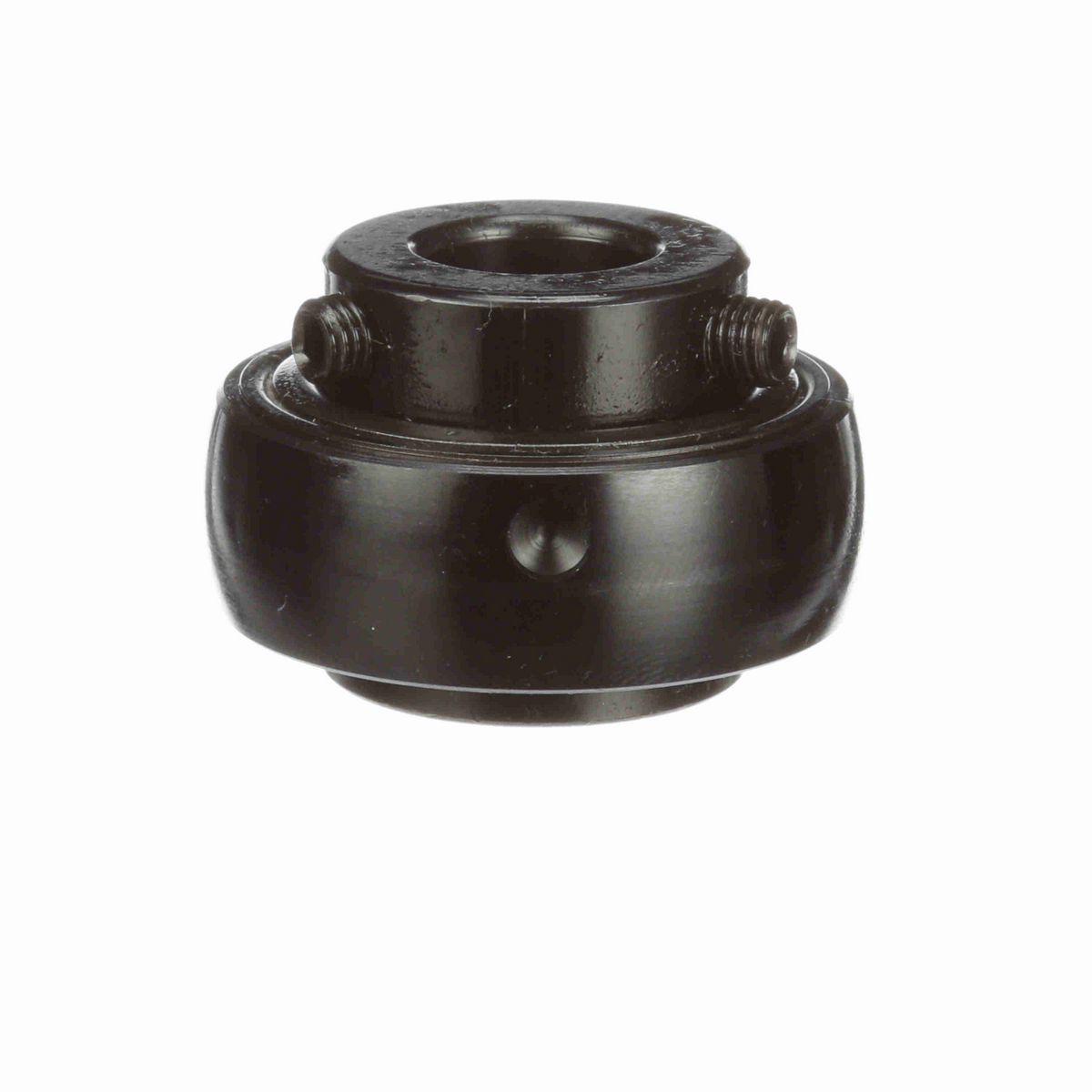

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.219 in
Bore Size (in)	0.6250 in
Outer Race Width (in)	0.625 in
Inner Ring OD (in)	1.188 in
Outer Race OD (in)	1.85 in
Centerline to Front Face (in)	0.719 in
Inner Race Length (in)	1.219 in

Technical Specifications

Measure Units	Inch
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28
Radius	0.04
Housing Type	Insert Only
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	2,611 lb
Speed (Max) (RPM)	7300 rpm
Misalignment	±2.0° Misalignment - Static Only
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide Coated
End Cap	No
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	1,444 lb
Cage Material	PPS
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Type of Seal	Felt Labyrinth Seal
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Fixed vs. Expansion	No
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461000052
Weight	0.48 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
