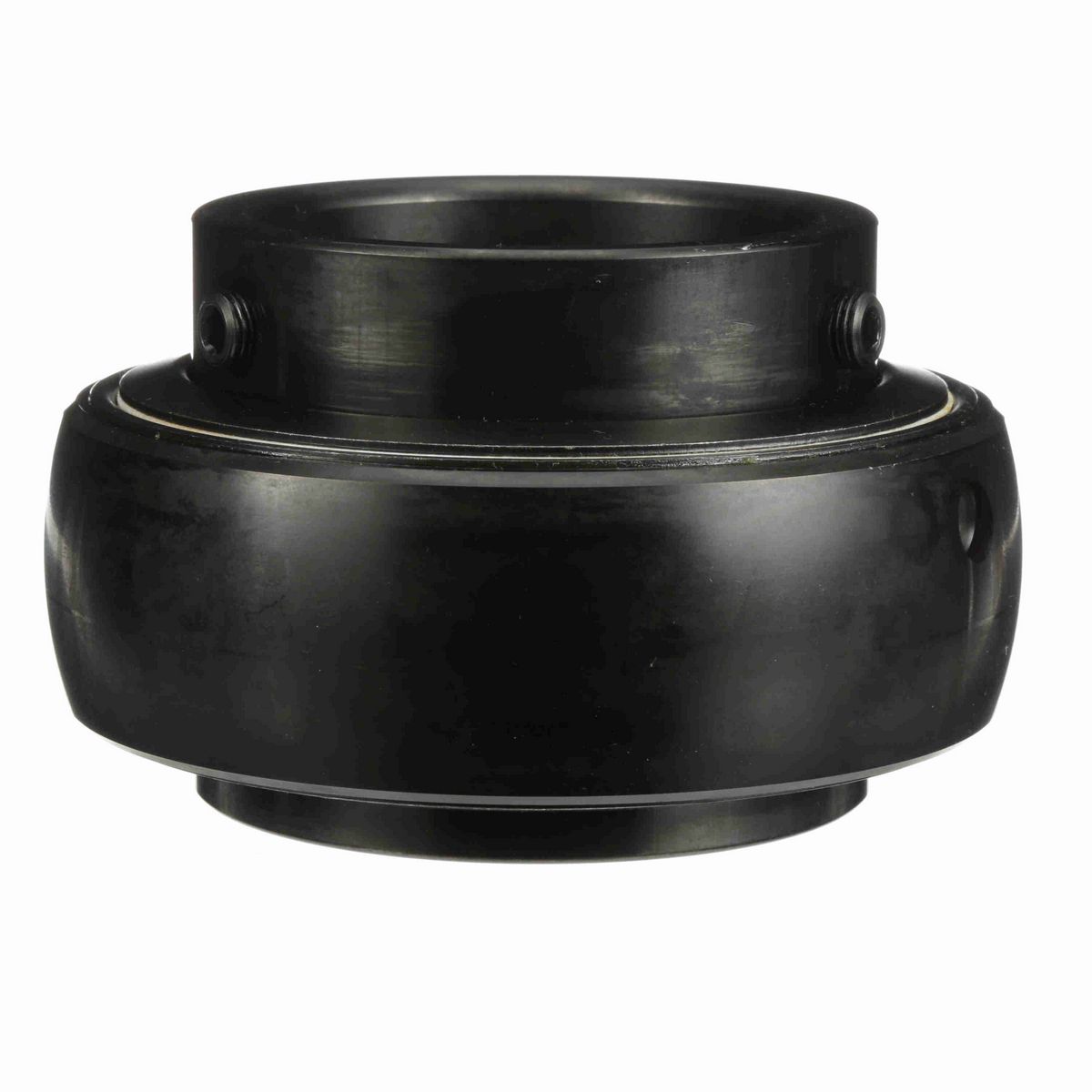

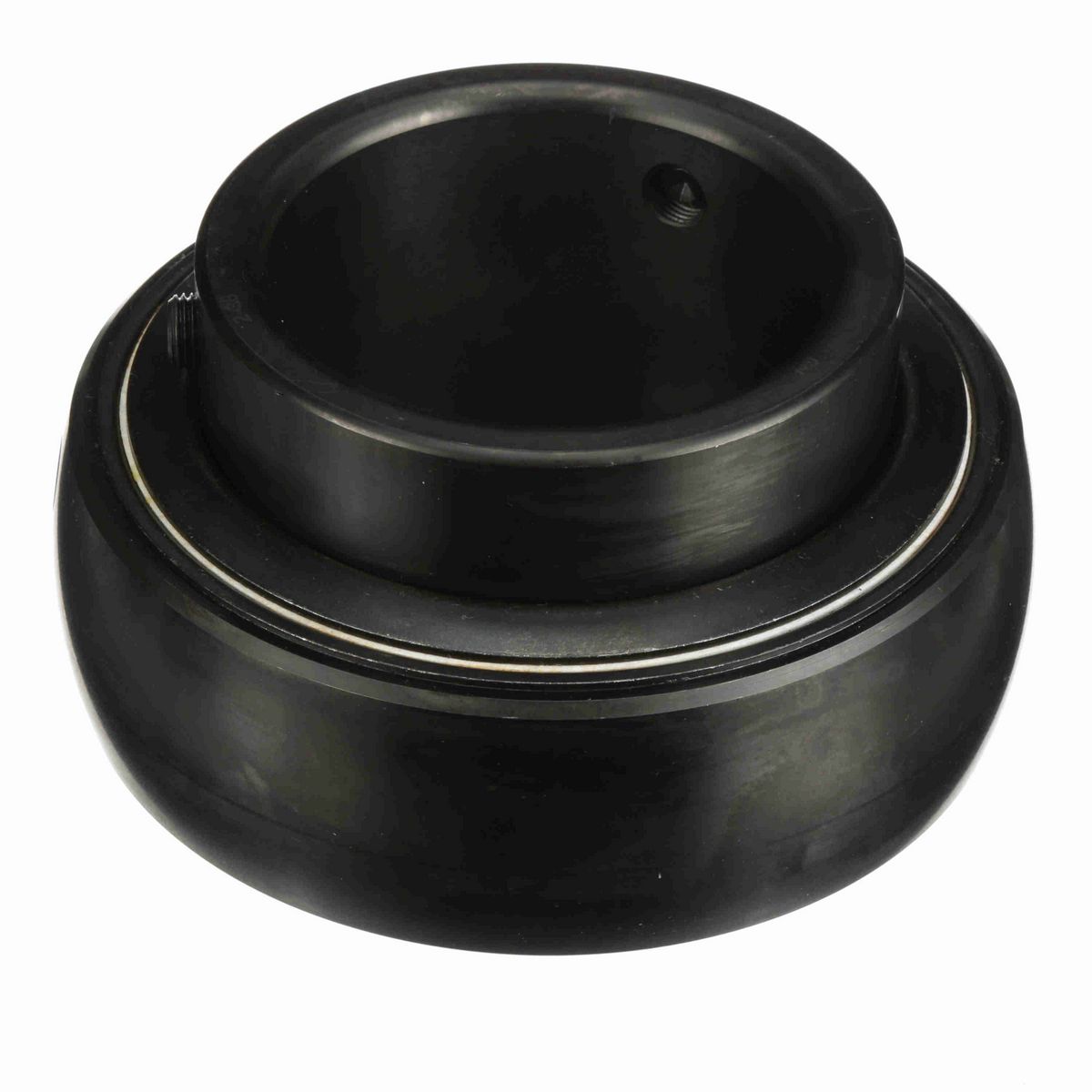

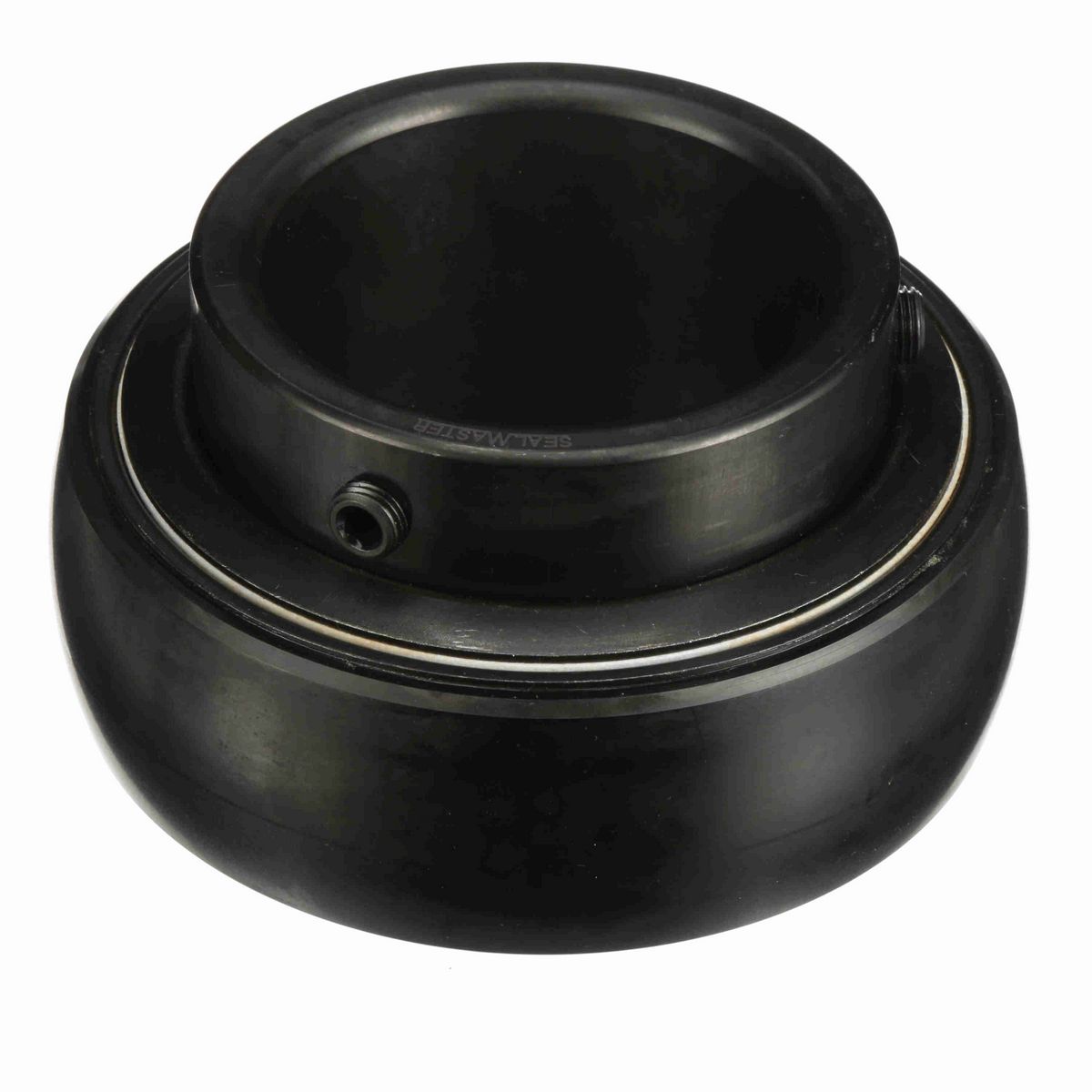

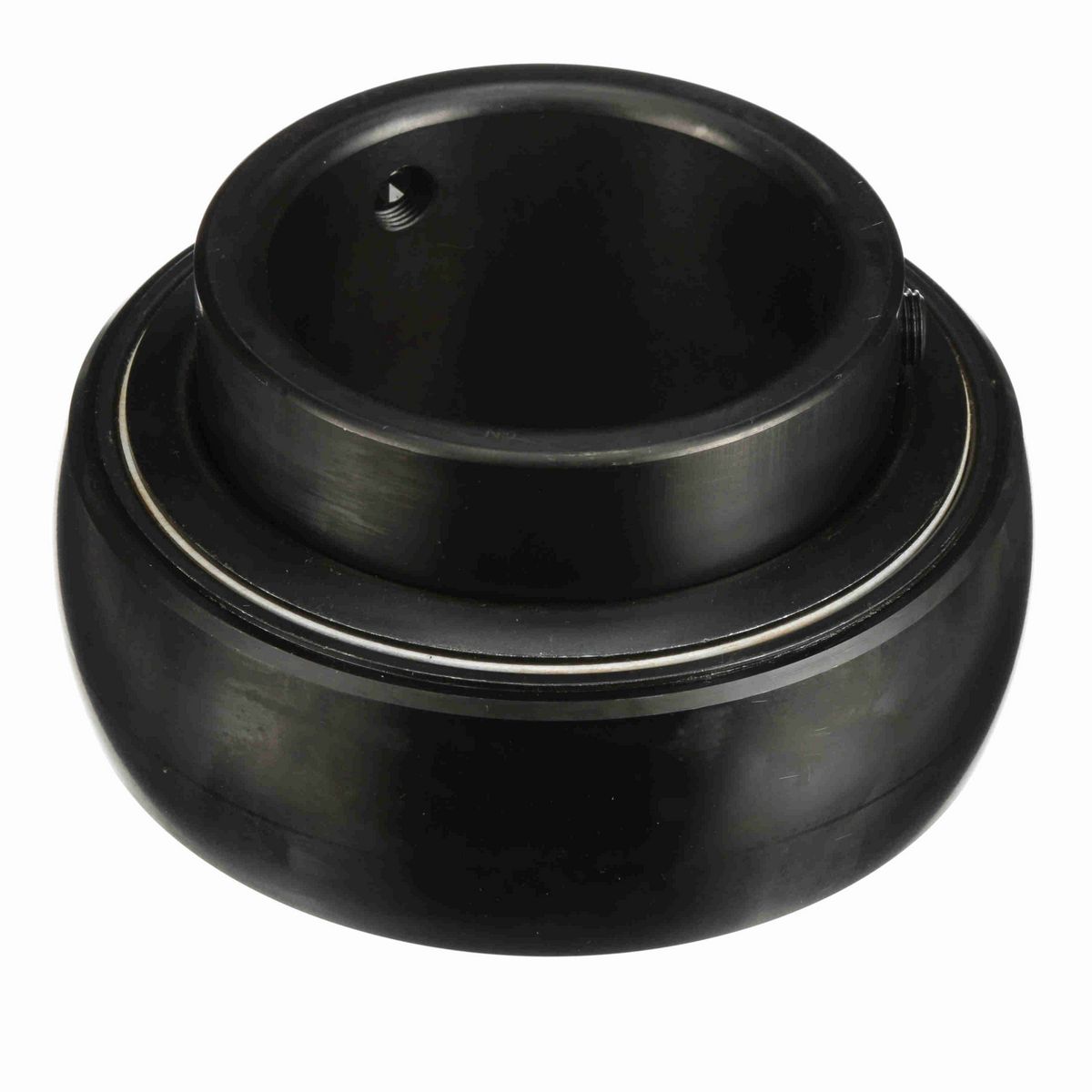

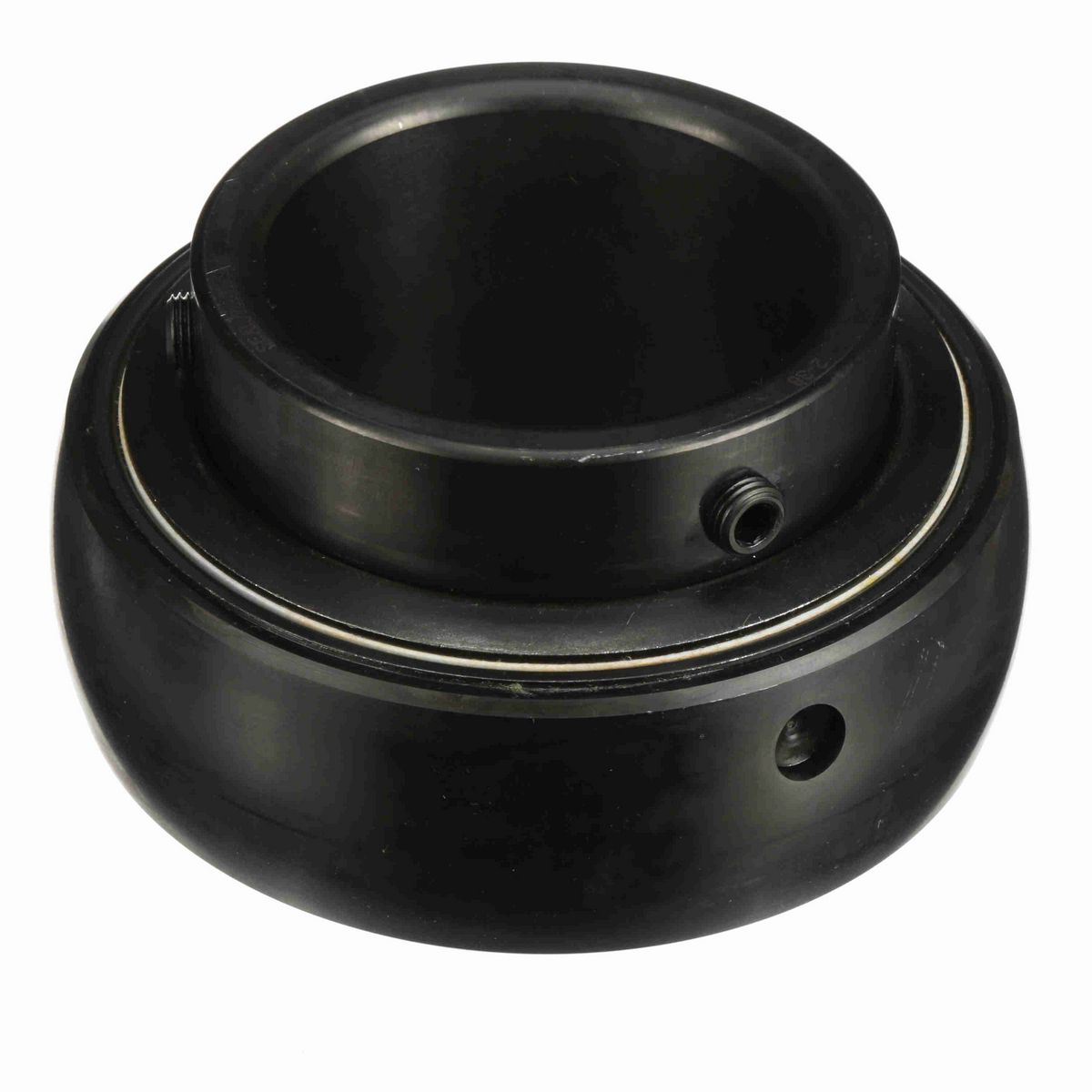

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.78125 in
Bore Size (in)	3.5000 in
Inner Ring OD (in)	4.390625 in
Outer Race OD (in)	6.2992 in
Inner Race Length (in)	3.78125 in
Centerline to Front Face (in)	2.21875 in
Outer Race Width (in)	2 in

Technical Specifications

Bore Shape	Straight
Housing Type	Insert Only
Rolling Element	Ball Bearing
Set Screw Thread	1/2-20
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.12
Measure Units	Inch
Internal Clearance	Standard
Speed (Max) (RPM)	2000 rpm
Radial Dynamic Load Capacity (lb)	21,566 lb
Misalignment	±2.0° Misalignment - Static Only
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	16,301 lb
Cage Material	Brass
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Duty/Series	Standard
Ability to Relubricate	Yes
Fixed vs. Expansion	No

General Specifications

UPC	662461000564
Weight	11.54 LB
Packaged Length	6.38 IN
Packaged Width	6.31 IN
Packaged Height	3.88 IN
HTC	8482.10.5056
Country of Origin	United States of America
