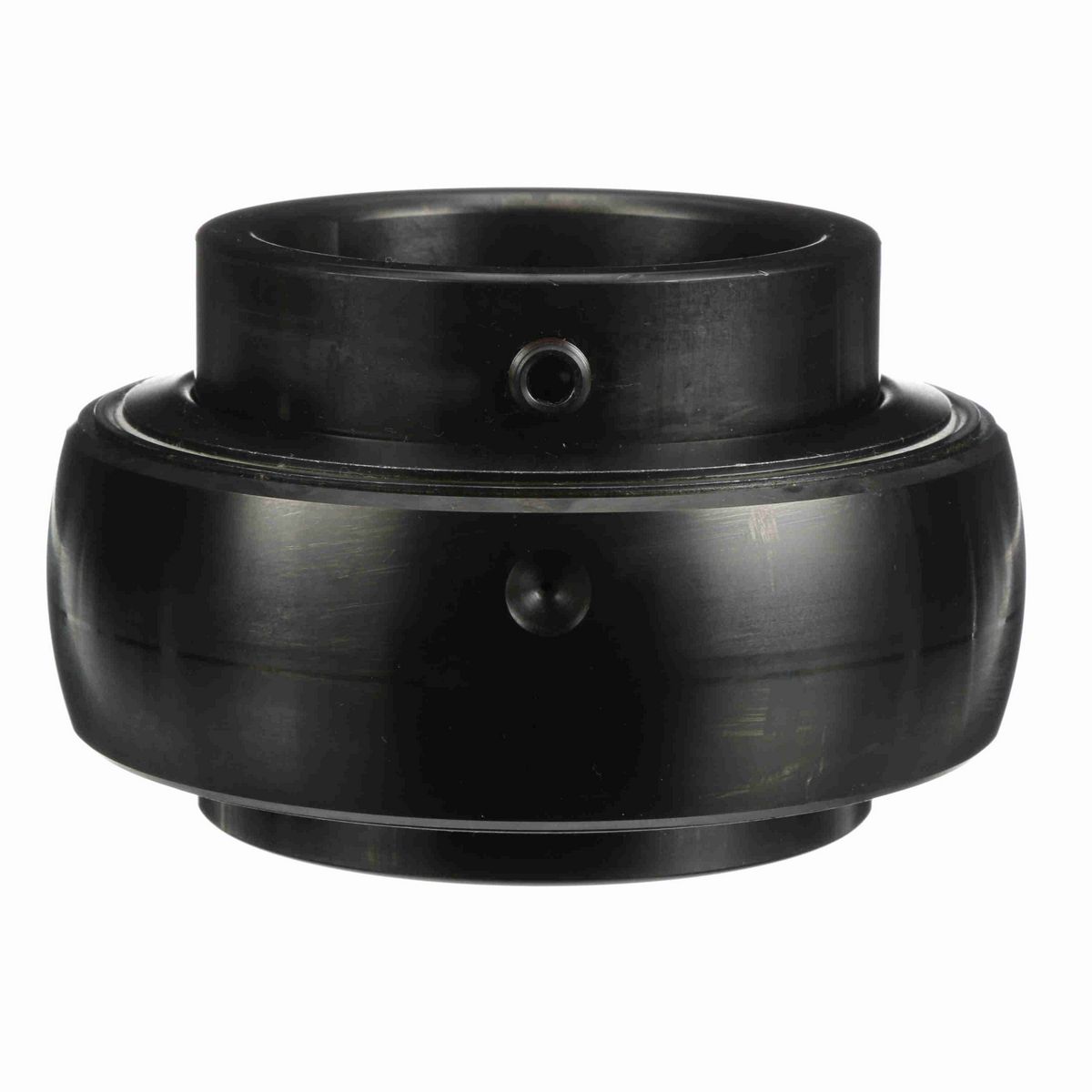

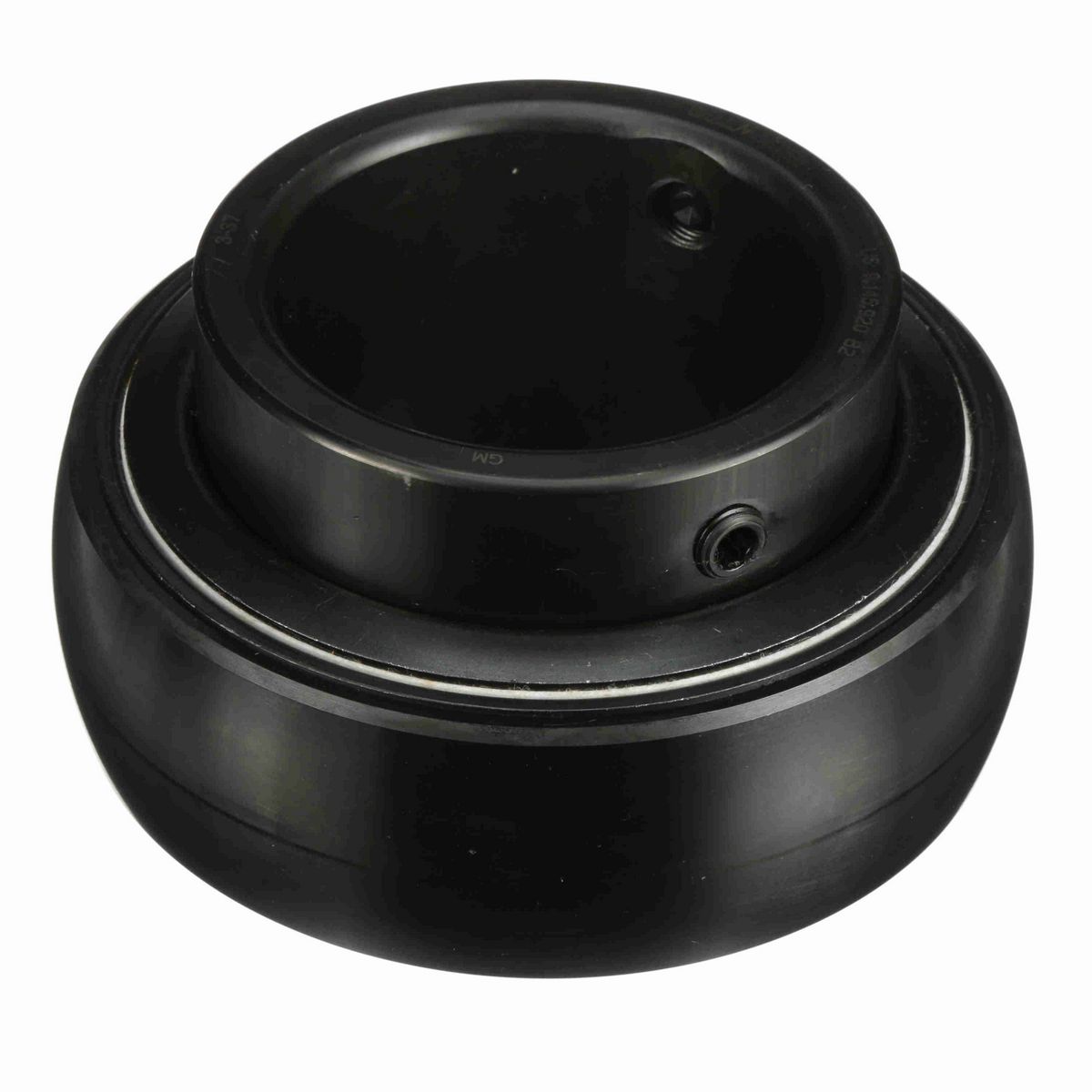

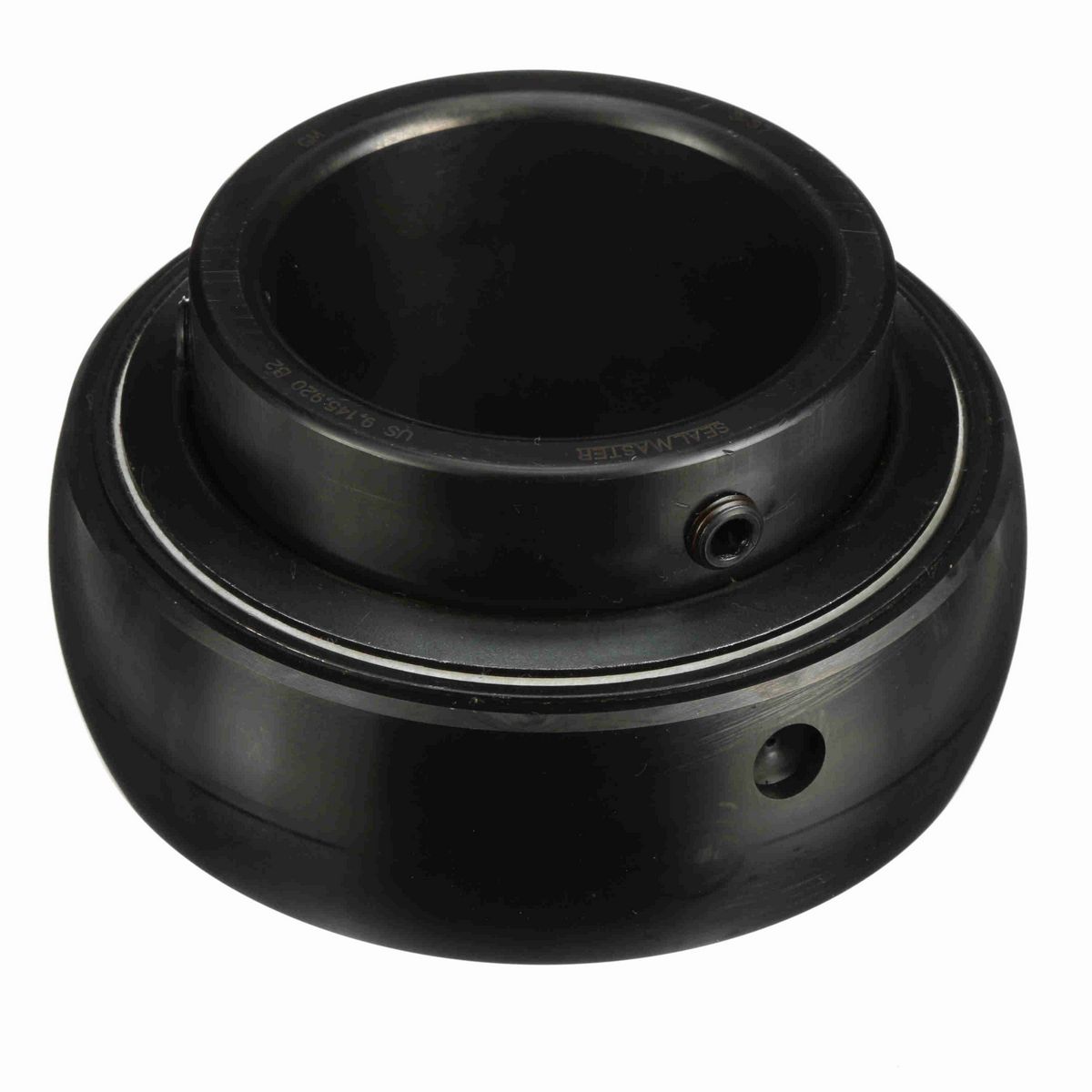

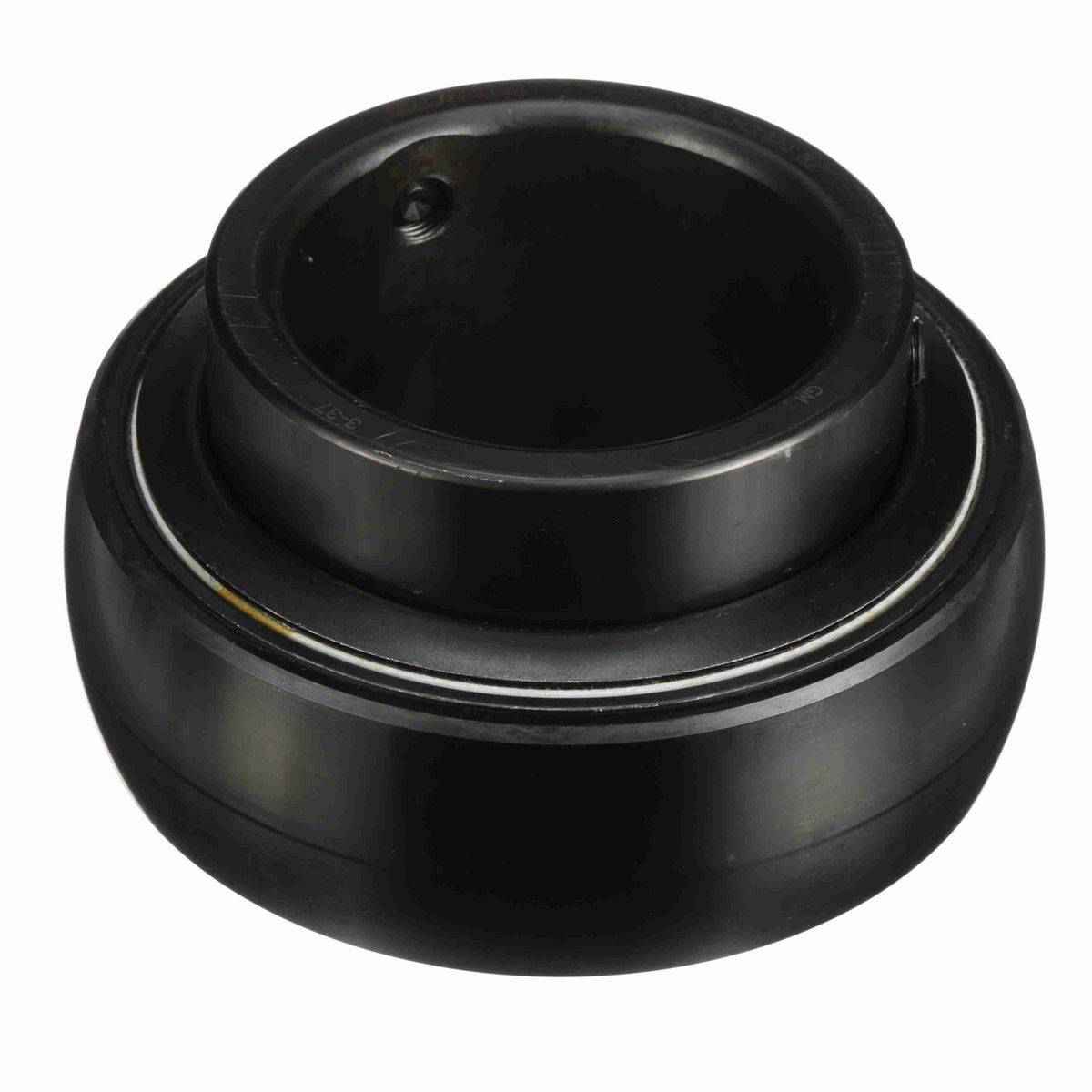

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	3.78125 in
Bore Size (in)	3.4375 in
Outer Race Width (in)	2 in
Centerline to Front Face (in)	2.21875 in
Outer Race OD (in)	6.2992 in
Inner Ring OD (in)	4.390625 in
Inner Race Length (in)	3.78125 in

Technical Specifications

Radius	0.12
Housing Type	Insert Only
Set Screw Thread	1/2-20
Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Rolling Element	Ball Bearing
Bore Shape	Straight
Speed (Max) (RPM)	2000 rpm
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	21,566 lb
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Black Oxide Coated
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	16,301 lb
Cage Material	Brass
Precision Rating	ABEC 1
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Type of Seal	Felt Labyrinth Seal
Lubrication Type	Lithium Complex NLGI 2 Grease
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Duty/Series	Medium

General Specifications

UPC	662461000878
Weight	11.97 LB
Packaged Length	6.38 IN
Packaged Width	6.31 IN
Packaged Height	3.88 IN
HTC	8482.10.5056
Country of Origin	United States of America
