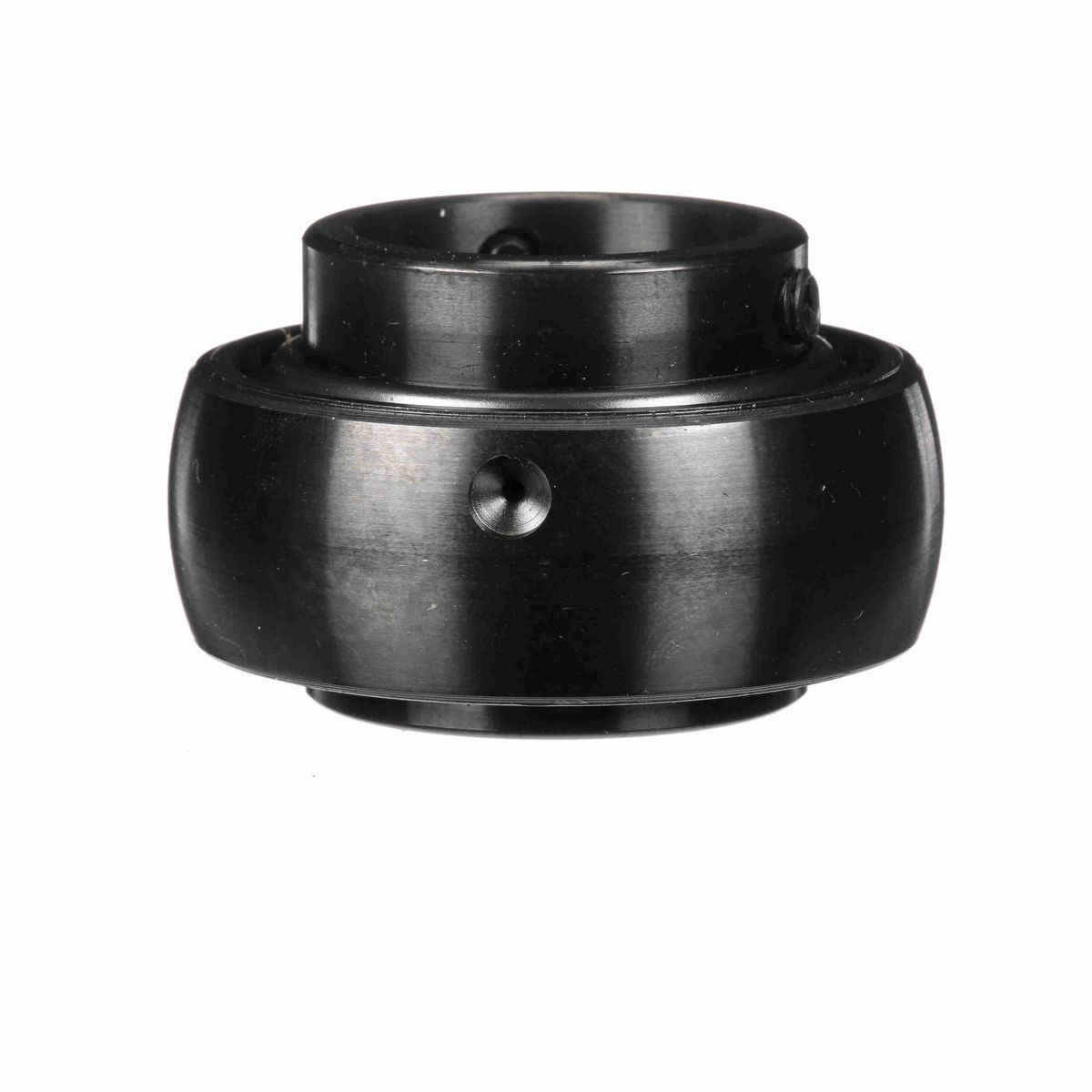

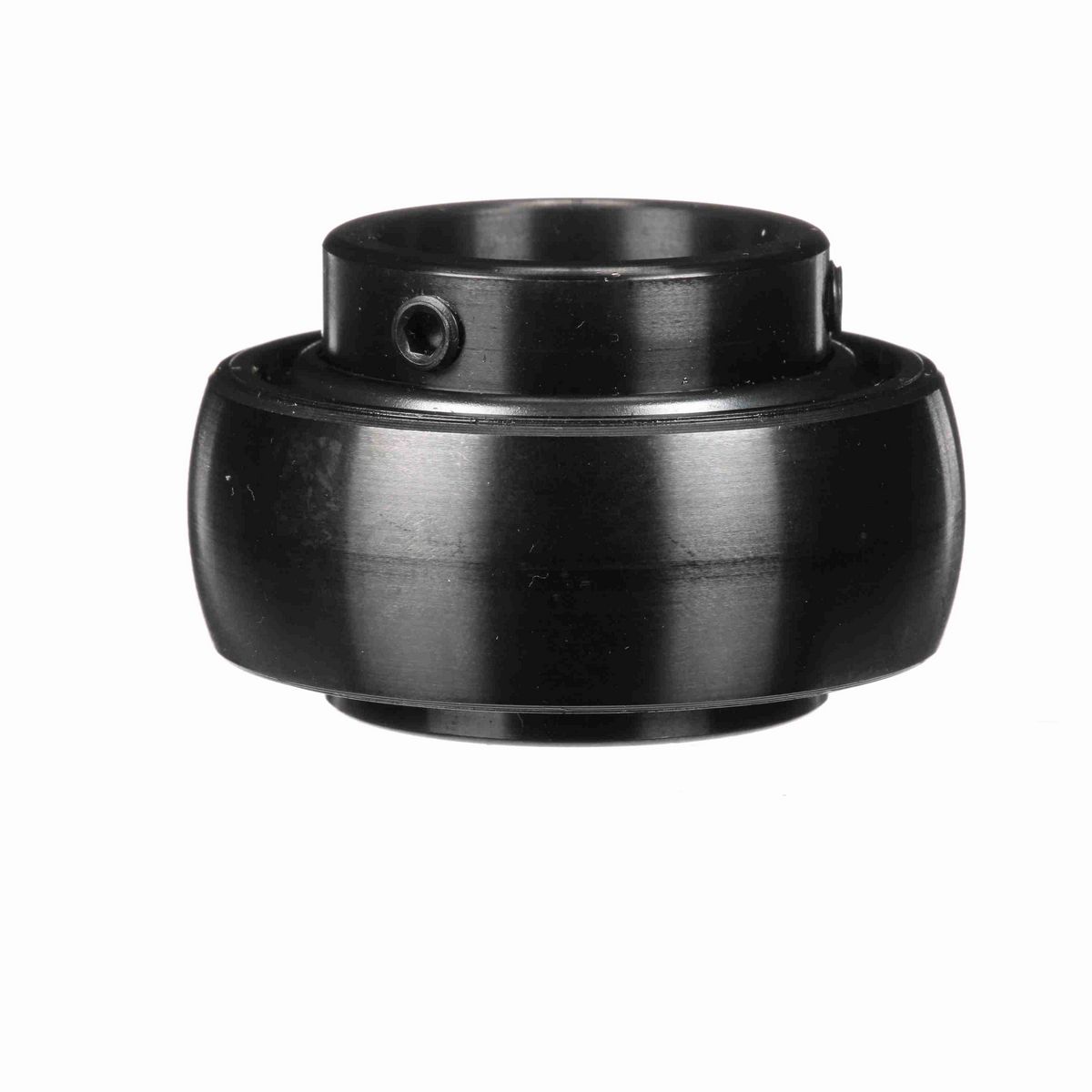

• Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.2500 in
Outer Race Width (in)	0.875 in
Outer Race OD (in)	2.441 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Inner Race Length (in)	1.5 in

Technical Specifications

Bore Shape	Straight
Housing Type	Insert Only
Set Screw Thread	1/4-28
Measure Units	Inch
Radius	0.04
Insert Material	52100 Bearing Steel, Black Oxided
Rolling Element	Ball Bearing
Internal Clearance	Standard
Speed (Max) (RPM)	5450 rpm
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	4,381 lb
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Outer Ring Land Profile	Standard
Radial Static Load Capacity (lb)	2,567 lb
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Type of Seal	Single Lip Contact Seal
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Locking Type	Set Screw
Ability to Relubricate	Yes
Retainer Type	Land Riding Retainer
Fixed vs. Expansion	No

General Specifications

UPC	662461019412
Weight	0.75 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
