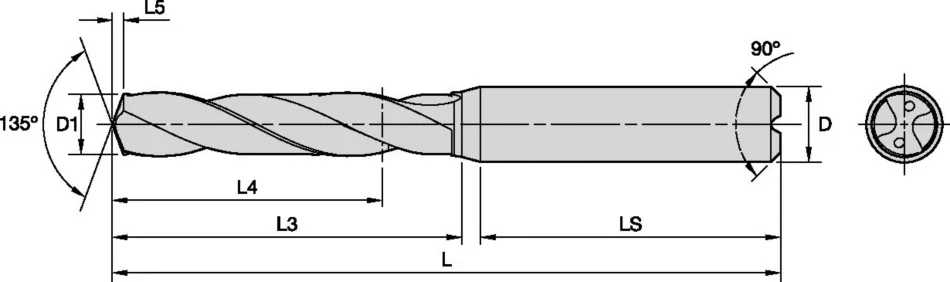

Solid Carbide Drill for Non-Ferrous Materials Kennametal KenDrill HPS - 5 x D - Internal Coolant - Straight Shank - Metric [5434759]

Overview

Uses and application

• Drilling: Stacked Plates
• Drilling
• Tool Dimensions: 2flute/2margin/coolant
• DIN number 6535
• DIN number 6537
• Drilling - Through Coolant
• Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
• Shank - Cylindrical Plain ≤h6
• Helix Angle: 30°
• DIN Numbers: ER Collet

Workpiece Materials

• Non-Ferrous

Features and benefits

• HPS Beyond™ drills for aluminum machining with MQL.
• Material-specific SC drill with highly polished surface that ensures superior chip evacuation and avoids built-up edge, even when MQL coolant is applied.
• Sharp cutting edge enables higher tool life in aluminum and other non-ferrous materials.
• HP point enables high feed rates by progressive rake angle.
• Enlarged flute design enables fast chip evacuation and high metal removal rates.
• Enlarged chamfer on back end according to DIN 69090-3 (round cylindrical for MQL) to ensure optimum coolant flow without leakage.
