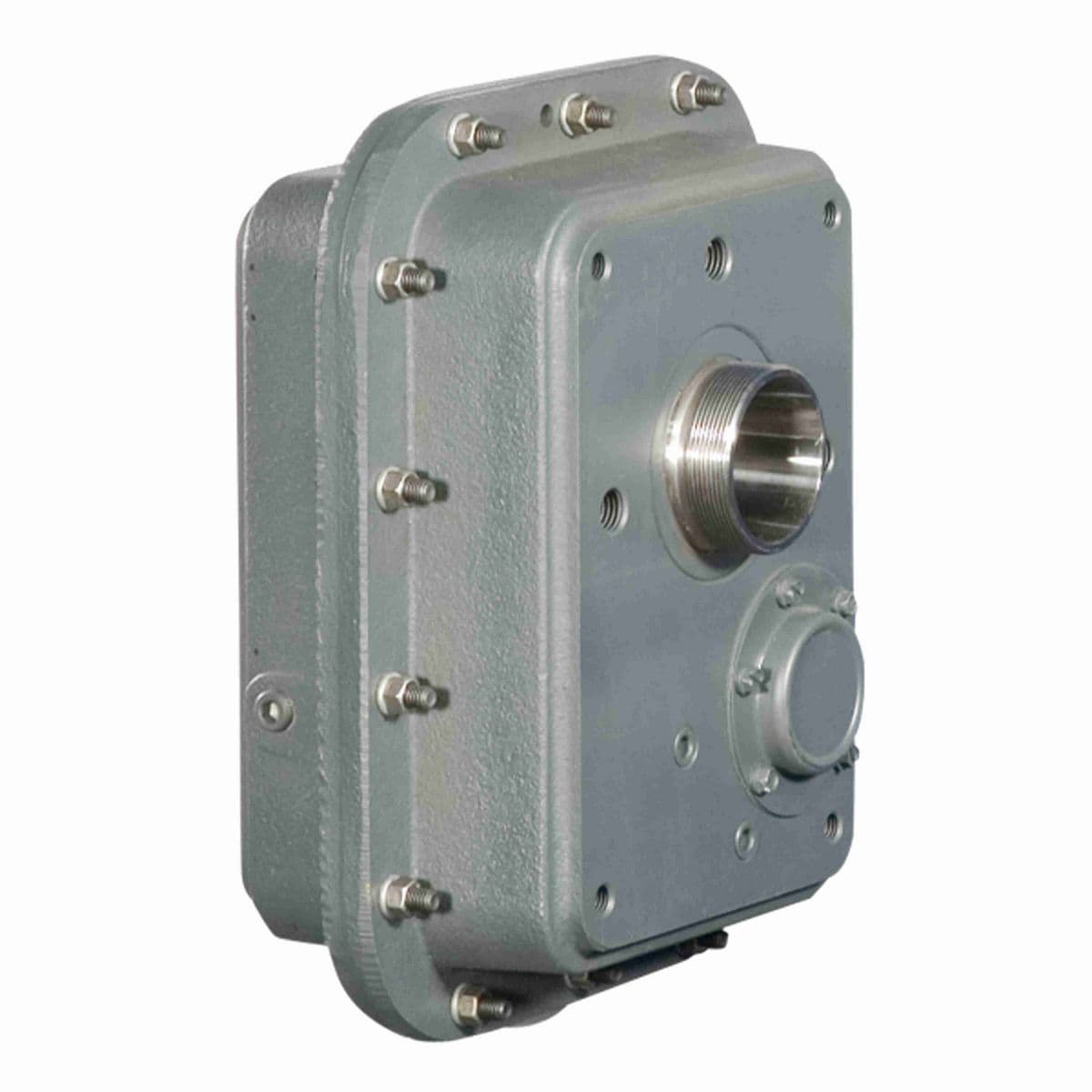

• Size 5107 shaft mounted parallel helical gear drive with a 5:1 ratio. Heavy duty tapered roller bearings and high temperature grease purgeable Viton seals provide maximum protection in extreme environments. Standard Shaft Mounted (JR), Screw Conveyor (JSC) and Flanged Mounted (JF) units are built up from a Basic Unit (J)

Technical Specifications

Low Speed Shaft Diameter (in)	1.4375 in
Lip Seal Material	Viton
High Speed Shaft Diameter (in)	0.875 in
Type of Auxiliary Cooling Supplied with Gear Drive	None
Exact Ratio	5.077
High Speed Shaft Speed [Max] (rpm)	1,777 rpm
Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline	2.9 in
High Speed Shaft Length (in)	2 in
Product	Basic Drives
Series	Quadrive Accessories
Recommended Driven Shaft Length [Nom] (in)	5 in
Width Through Housing (in)	5.92 in
Nominal Ratio	5

General Specifications

UPC	782934634529
Weight	25.00 LB
HTC	8483405010
Country of Origin	United States of America
