• This Product has the Browning Exclusive Twice the Life Guarantee
• Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.

Technical Specifications

Pitch Diameter (in)	3.844 in
Material	Steel, Hardened Teeth
Chain Pitch (in)	0.75 in

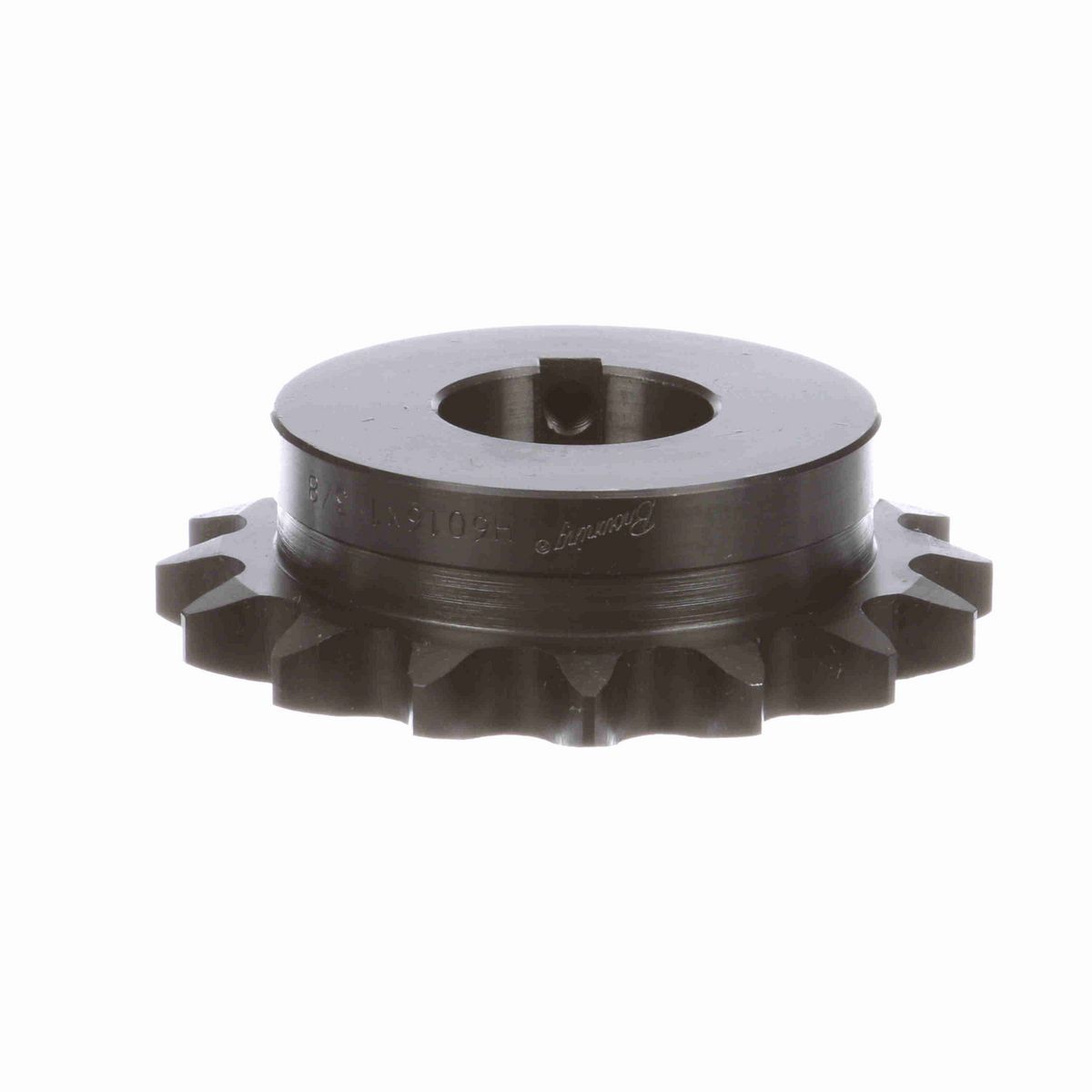

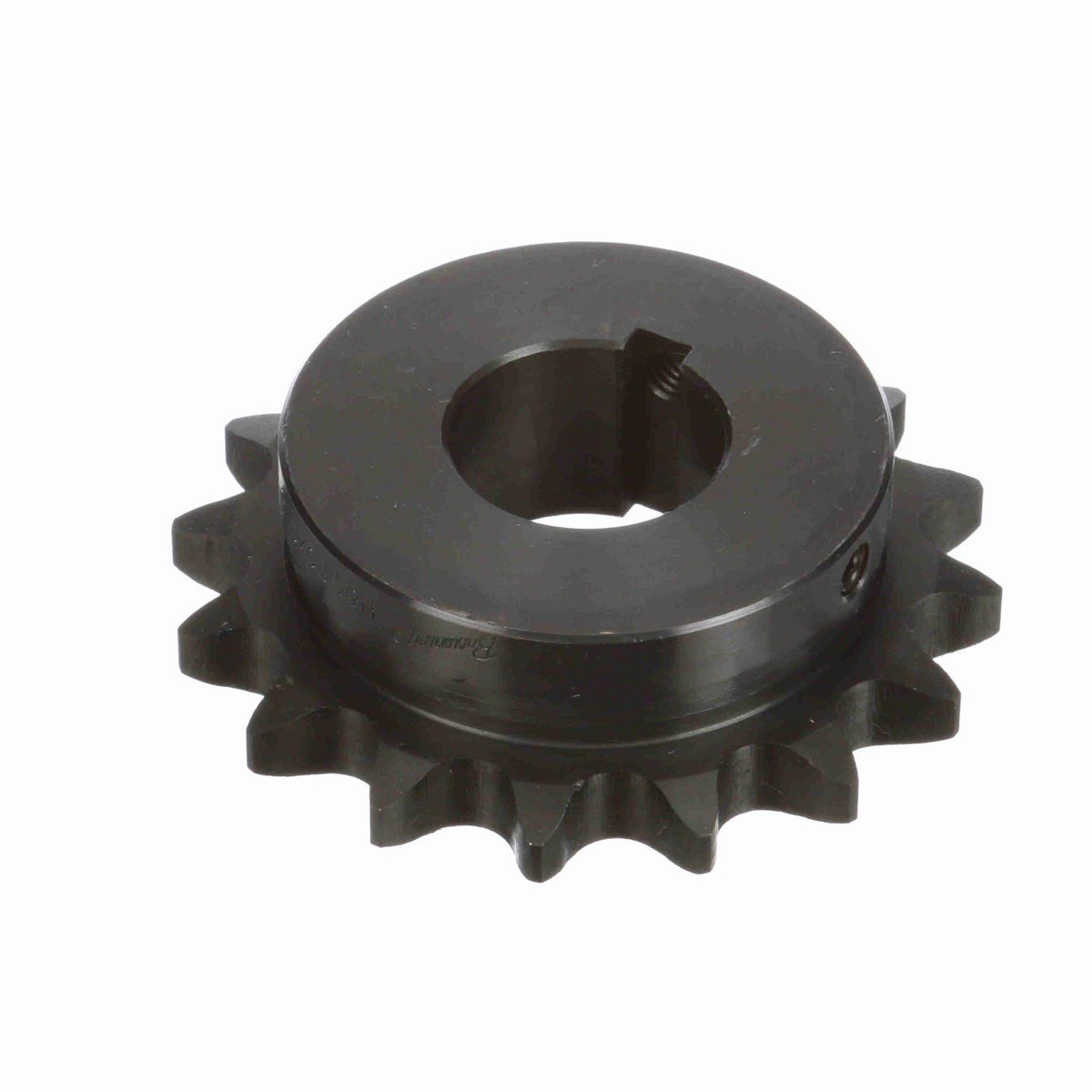

Product Type	Finished Bore Roller Chain Sprocket
Number of Teeth	16
Chain Used	No. 60, 3/4 in. Pitch ANSI Chain
Outside Diameter (in)	4.221 in
Bore Type	Finished Bore
Hub Projection (in)	0.796875 in
Tooth Width (in)	0.459 in
Length Through Bore (in)	1.25 in
Hub Type	Type B
Hub Diameter (in)	3.0625 in
Sprocket Material	Steel, Hardened Teeth
Overall Length (in)	1.25 in
Number of Strands/Width	1
Bore Diameter (in)	1.375 in
Pitch Type	Single
Hardened Teeth	With Hardened Teeth
Keyway Size	5/16 x 5/32
Maximum Bore (in)	1.38 in
Maximum Bore (mm)	0 mm
Minimum Bore (mm)	0 mm

General Specifications

UPC	662289985654
Weight	2.40 LB
Packaged Length	5.56 IN
Packaged Width	5.56 IN
Packaged Height	1.31 IN
HTC	8483.90.1050
Country of Origin	United States of America
