• This Product has the Browning Exclusive Twice the Life Guarantee
• Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.

Technical Specifications

Chain Pitch (in)	0.75 in
Pitch Diameter (in)	3.607 in
Chain Used	No. 60, 3/4 in. Pitch ANSI Chain

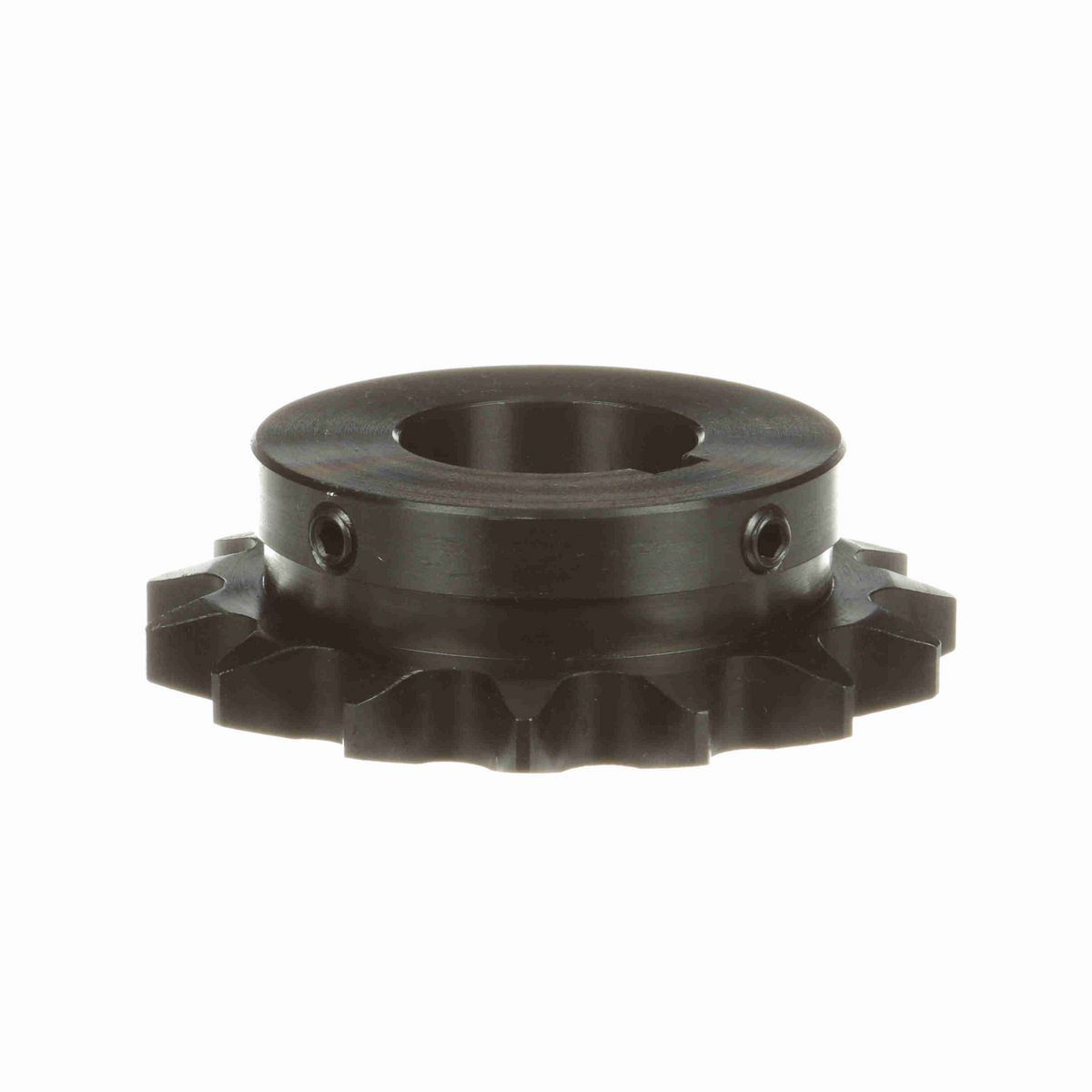

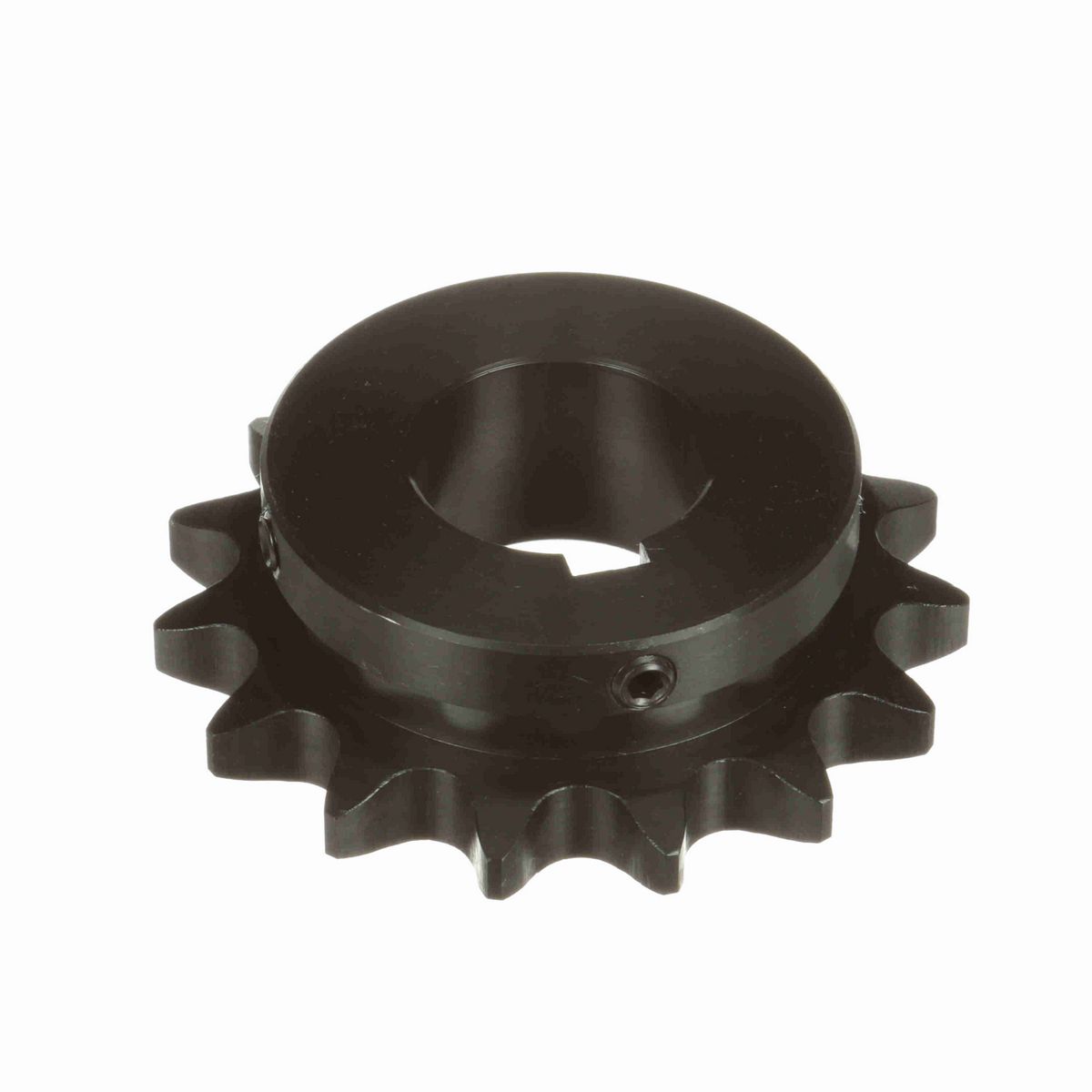

Product Type	Finished Bore Roller Chain Sprocket
Material	Steel, Hardened Teeth
Number of Teeth	15
Bore Type	Finished Bore
Outside Diameter (in)	3.979 in
Number of Strands/Width	1
Bore Diameter (in)	1.4375 in
Hub Diameter (in)	2.891 in
Tooth Width (in)	0.459 in
Hub Projection (in)	0.796875 in
Hub Type	Type B
Length Through Bore (in)	1.25 in
Keyway Size	3/8 X 3/16
Hardened Teeth	With Hardened Teeth
Pitch Type	Single
Maximum Bore (mm)	0 mm
Minimum Bore (mm)	0 mm
Maximum Bore (in)	1.44 in

General Specifications

UPC	662289244232
Weight	1.96 LB
Packaged Length	4.56 IN
Packaged Width	4.56 IN
Packaged Height	1.56 IN
HTC	8483.90.1050
Country of Origin	United States of America
