• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Chain Pitch (in)	0.625 in
Bushing Used	Split Taper
Material	Steel, Hardened Teeth
Max Bore (in)	1.75 in
Pitch Diameter (in)	3.797 in
Chain Used	No. 50, 5/8 in. Pitch ANSI Chain
Number of Teeth	19

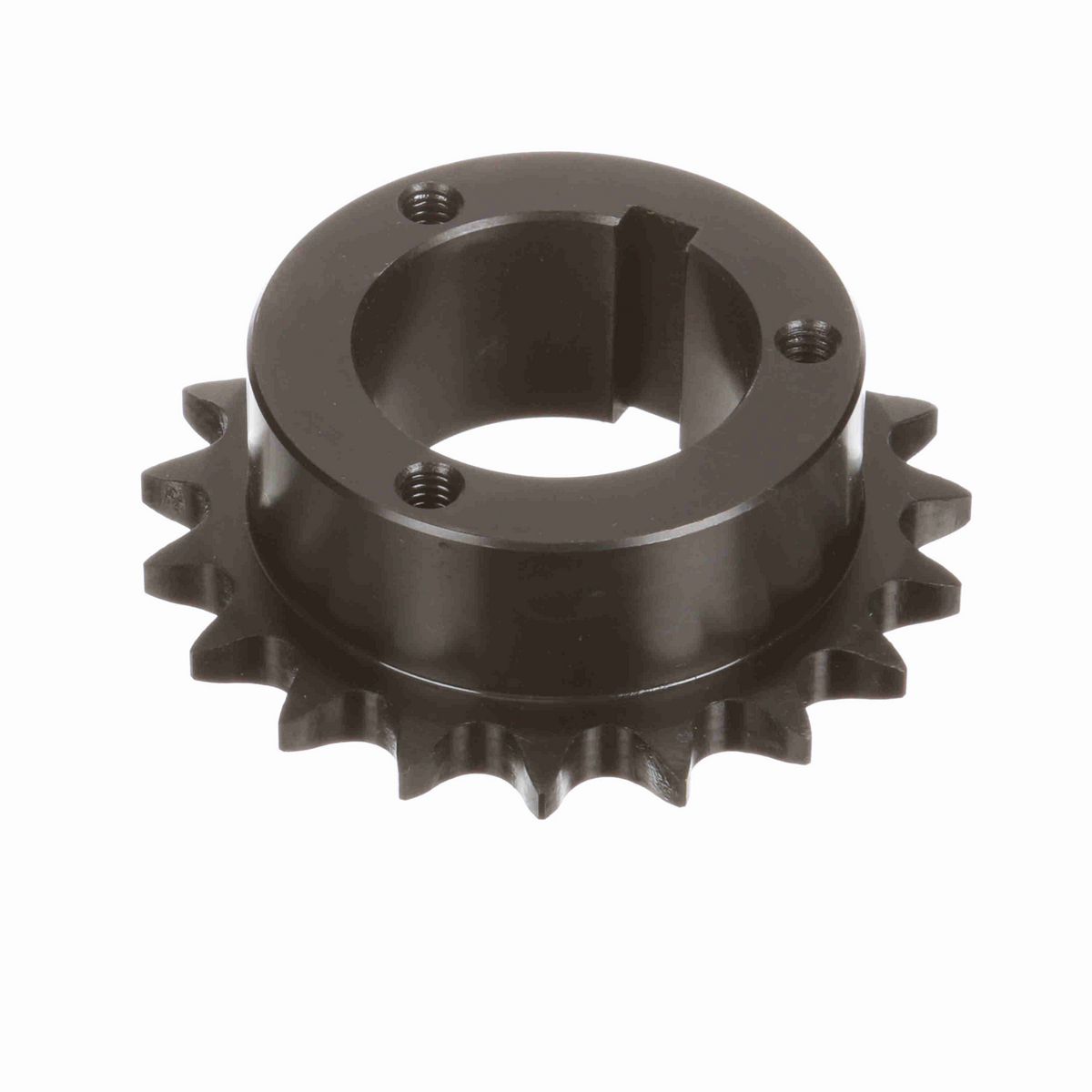

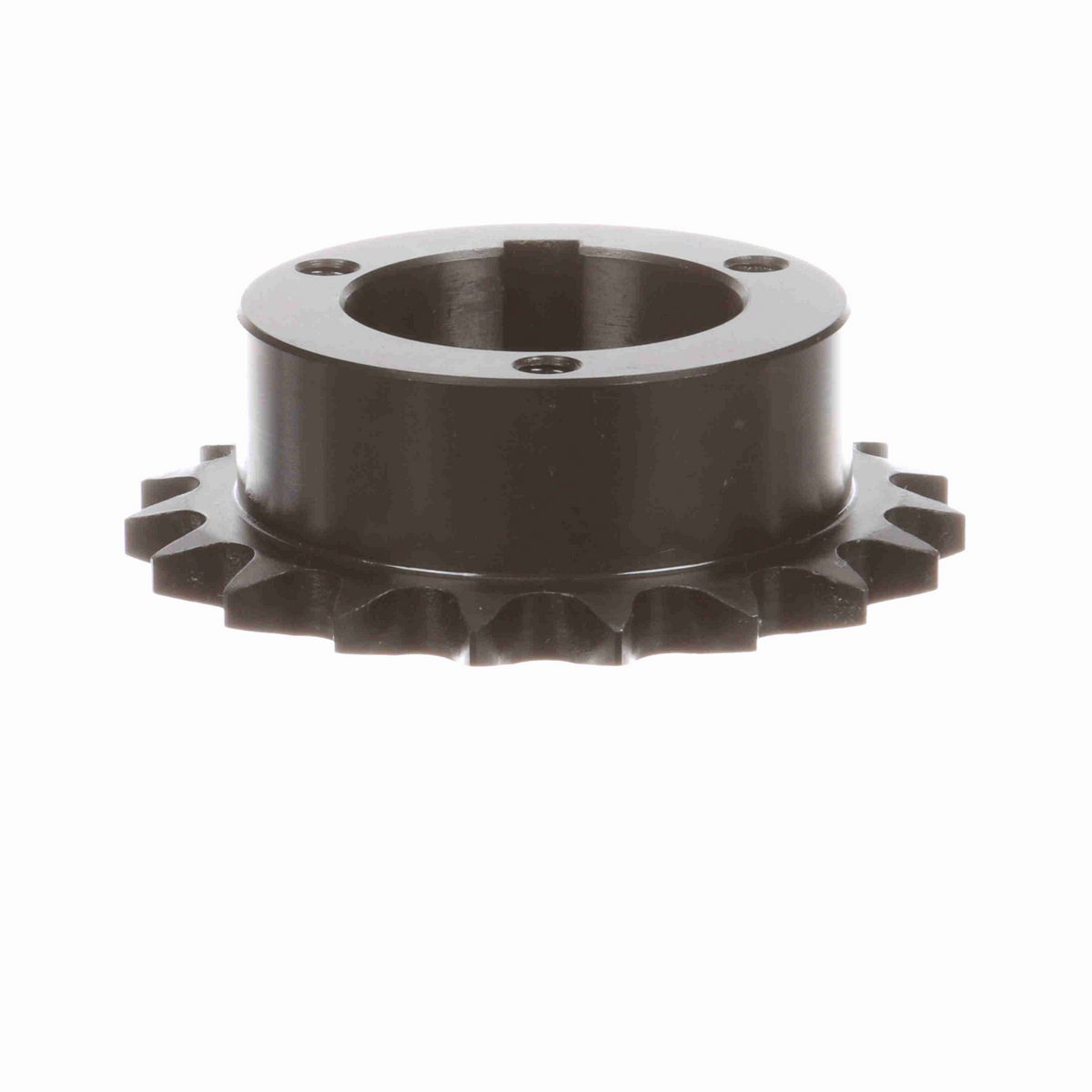

Product Type	Bushed Roller Chain Sprocket
Min Bore (in)	0.5 in
Overall Length (in)	2.221225 in
Outside Diameter (in)	4.12 in
Bore Type	Bushed Bore
Number of Strands/Width	1
Hub Diameter (in)	3 in
Maximum Bore (in)	1.75 in
Maximum Bore (mm)	42 mm
Minimum Bore (mm)	14 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289235131
Weight	1.93 LB
Packaged Length	6.40 IN
Packaged Width	6.10 IN
Packaged Height	1.70 IN
HTC	8483.90.1050
Country of Origin	China
