• This Product has the Browning Exclusive Twice the Life Guarantee
• Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.

Technical Specifications

Number of Teeth	11
Material	Steel, Hardened Teeth
Pitch Diameter (in)	2.218 in

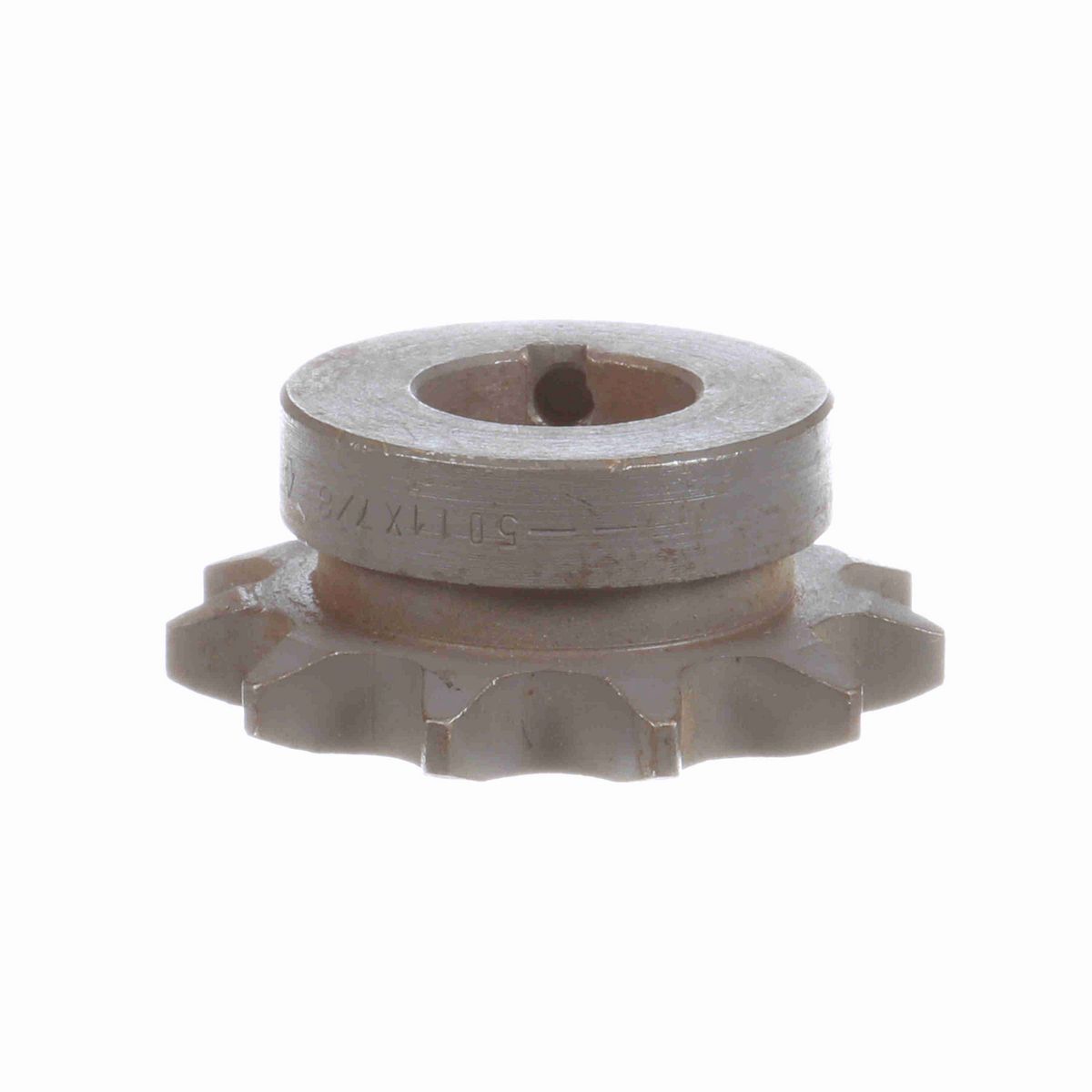

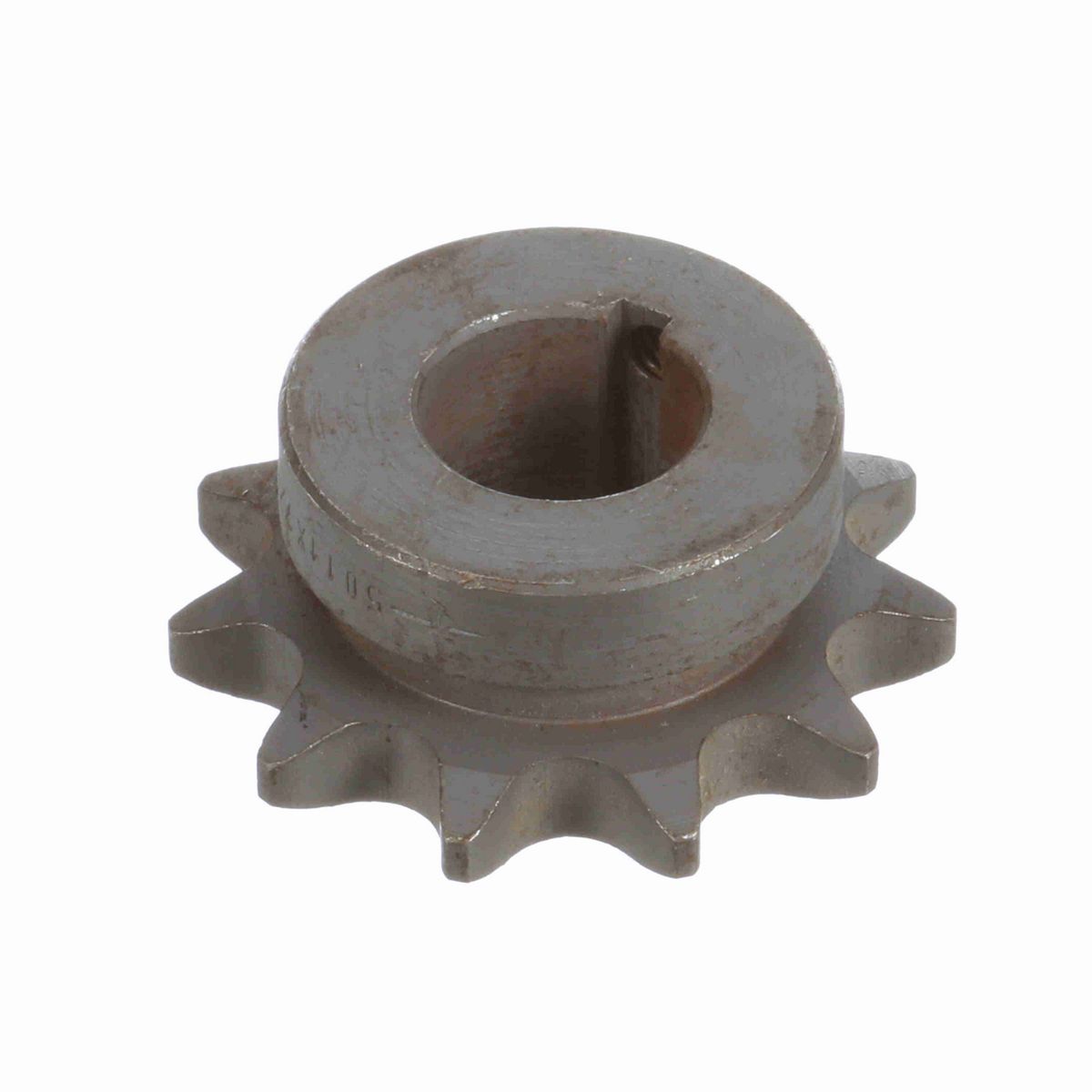

Product Type	Finished Bore Roller Chain Sprocket
Chain Pitch (in)	0.625 in
Chain Used	No. 50, 5/8 in. Pitch ANSI Chain
Outside Diameter (in)	2.504 in
Length Through Bore (in)	1 in
Bore Type	Finished Bore
Hub Projection (in)	0.656 in
Tooth Width (in)	0.343 in
Hub Diameter (in)	1.75 in
Hub Type	Type B
Sprocket Material	Steel, Hardened Teeth
Overall Length (in)	1 in
Bore Diameter (in)	0.875 in
Number of Strands/Width	1
Pitch Type	Single
Hardened Teeth	With Hardened Teeth
Keyway Size	3/16 X 3/32
Maximum Bore (in)	0.88 in
Maximum Bore (mm)	0 mm
Minimum Bore (mm)	0 mm

General Specifications

UPC	662289273508
Weight	0.58 LB
Packaged Length	2.76 IN
Packaged Width	2.76 IN
Packaged Height	1.18 IN
HTC	8483.90.1050
Country of Origin	United States of America
