• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Max Bore (in)	1.75 in
Bushing Used	Split Taper
Min Bore (in)	0.5 in

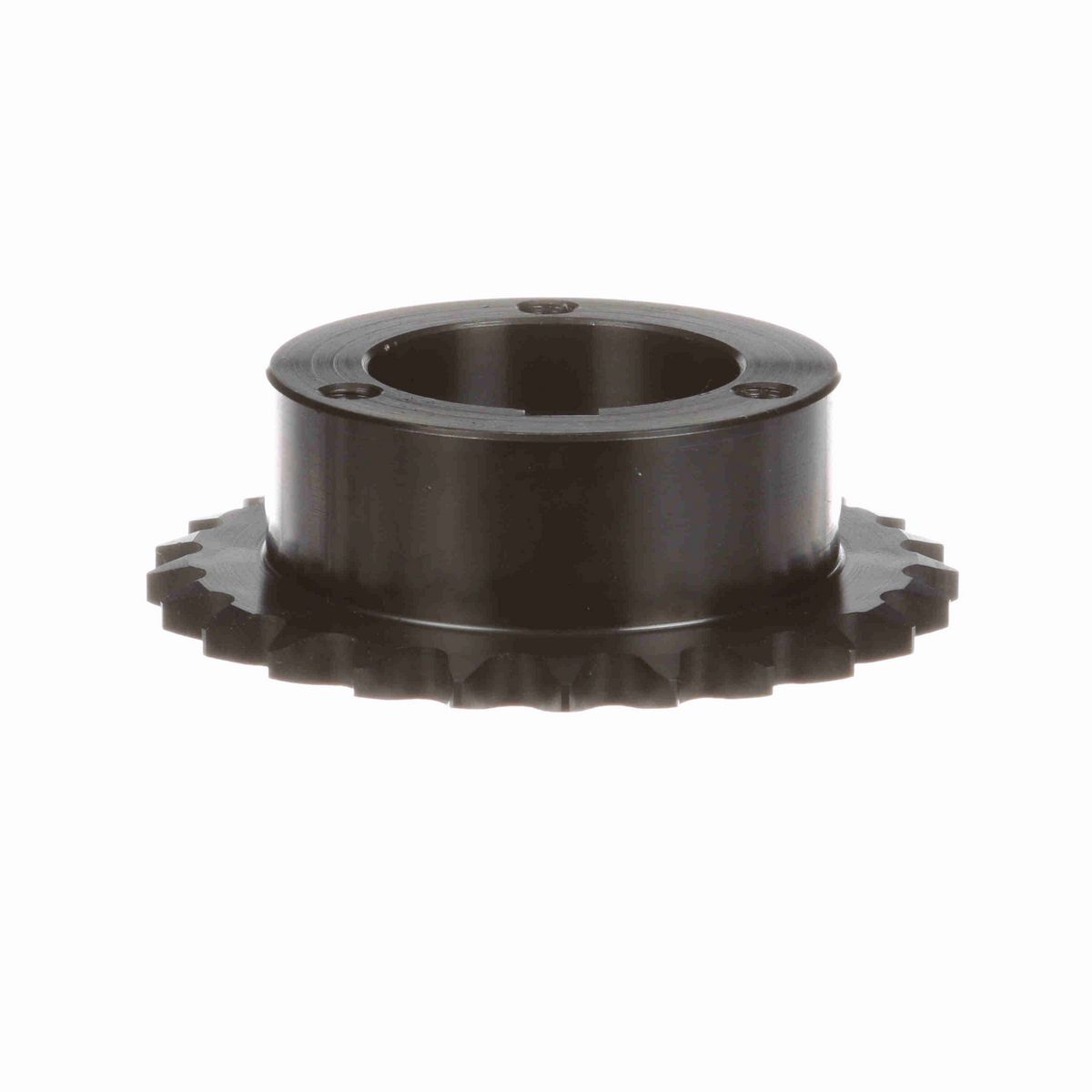

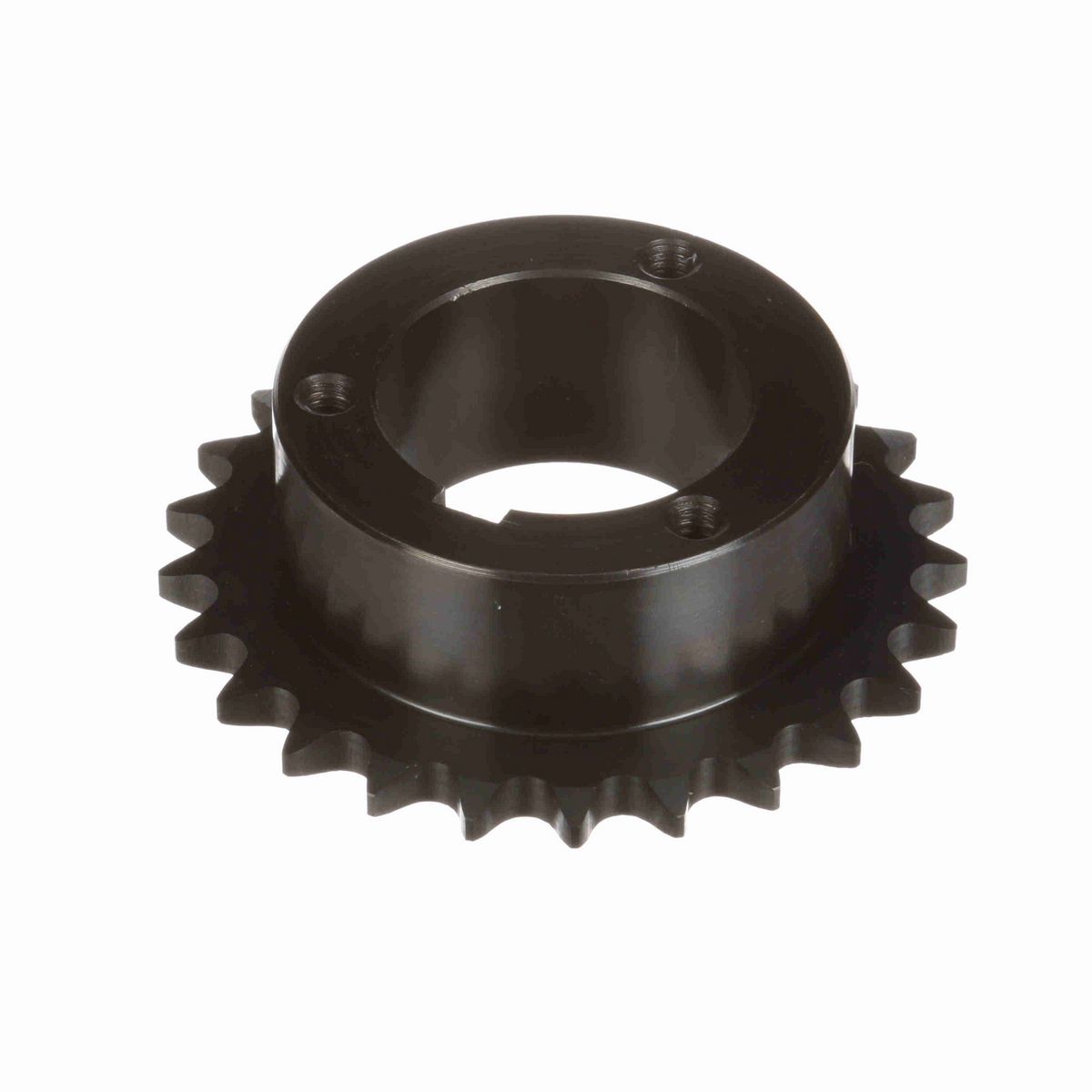

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Material	Steel, Hardened Teeth
Chain Pitch (in)	0.5 in
Number of Teeth	25
Pitch Diameter (in)	3.989 in
Overall Length (in)	2.221225 in
Outside Diameter (in)	4.258 in
Bore Type	Bushed Bore
Number of Strands/Width	1
Hub Diameter (in)	3 in
Maximum Bore (in)	1.75 in
Minimum Bore (mm)	14 mm
Maximum Bore (mm)	42 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289134823
Weight	1.97 LB
Packaged Length	5.10 IN
Packaged Width	5.00 IN
Packaged Height	2.10 IN
HTC	8483.90.1050
Country of Origin	China
