• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

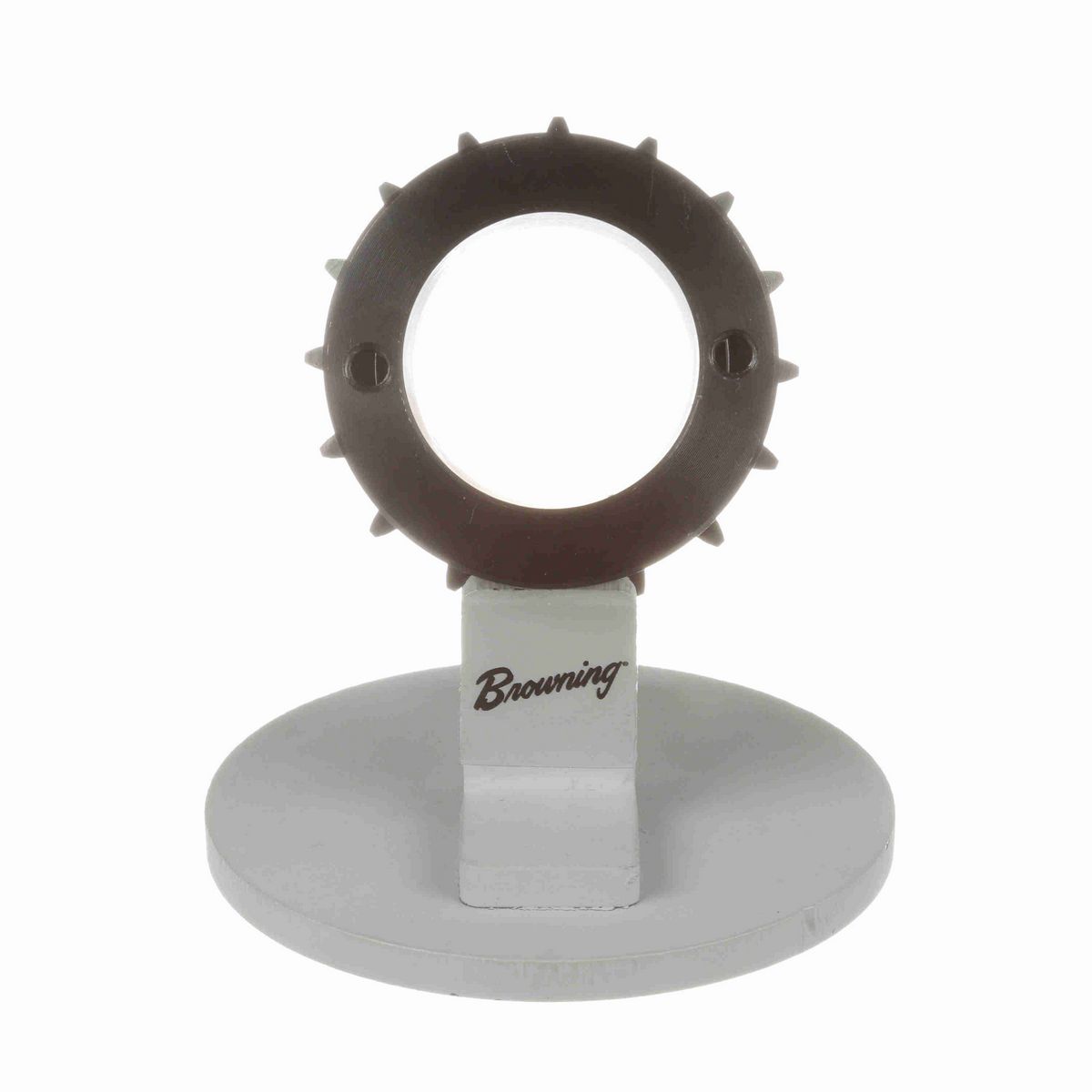

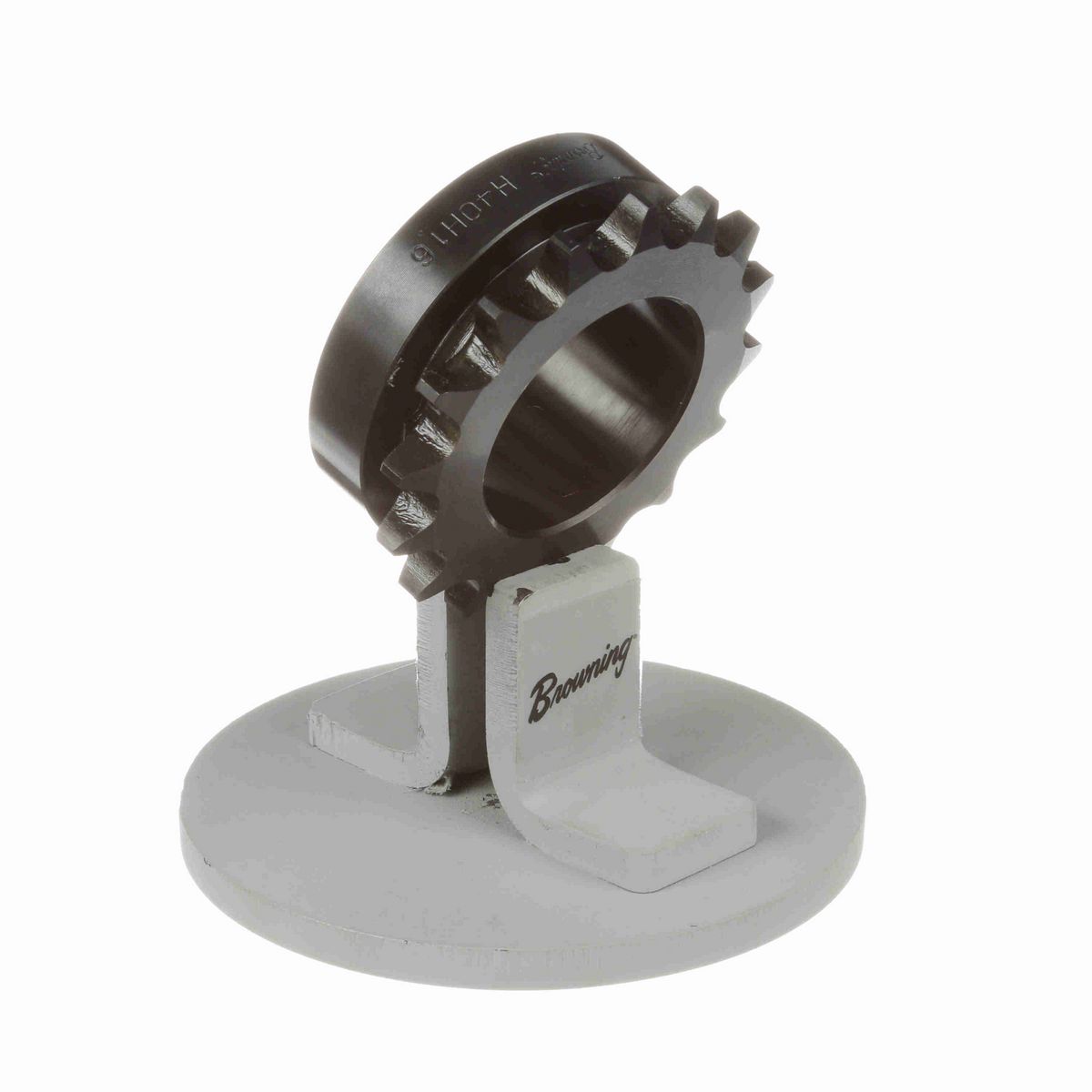

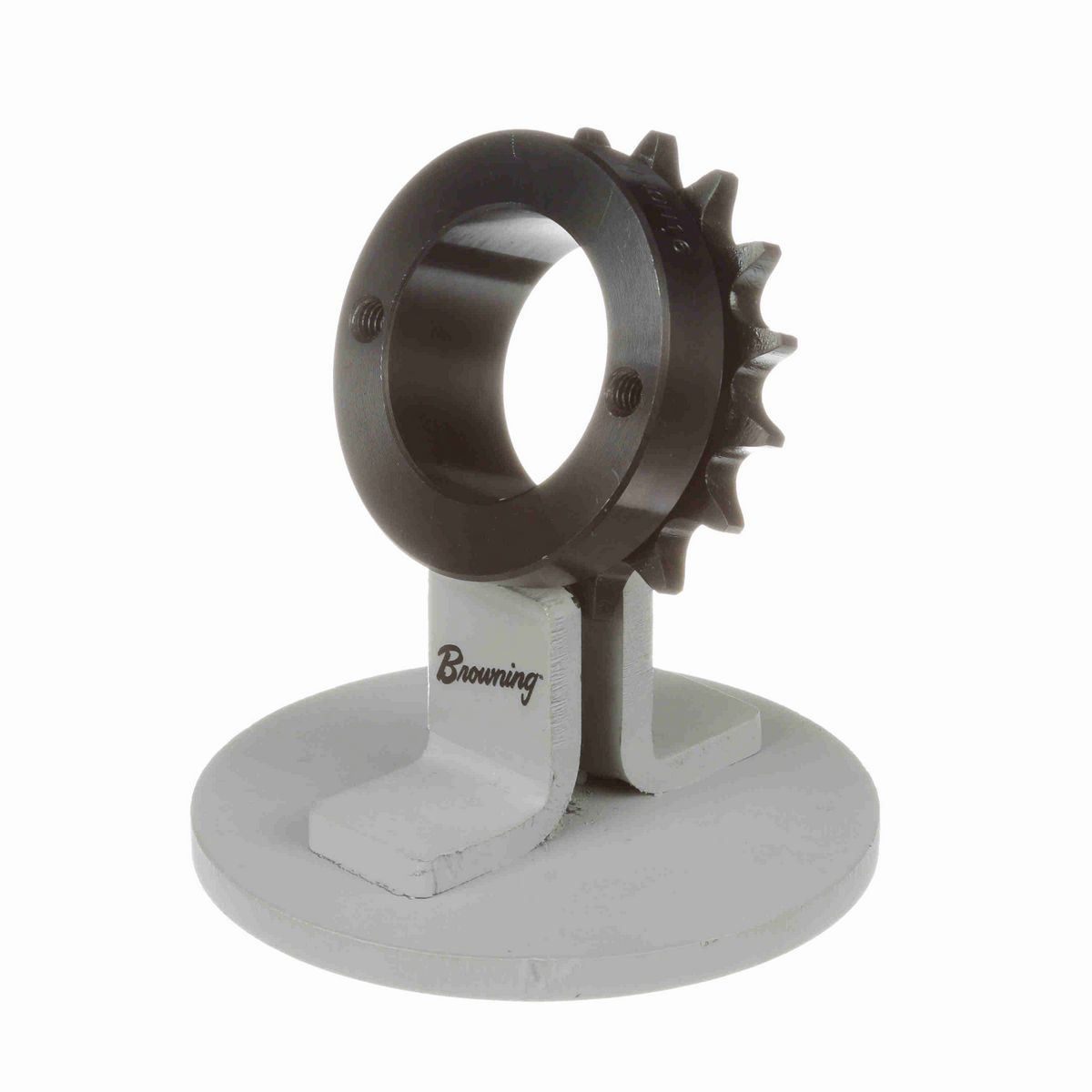

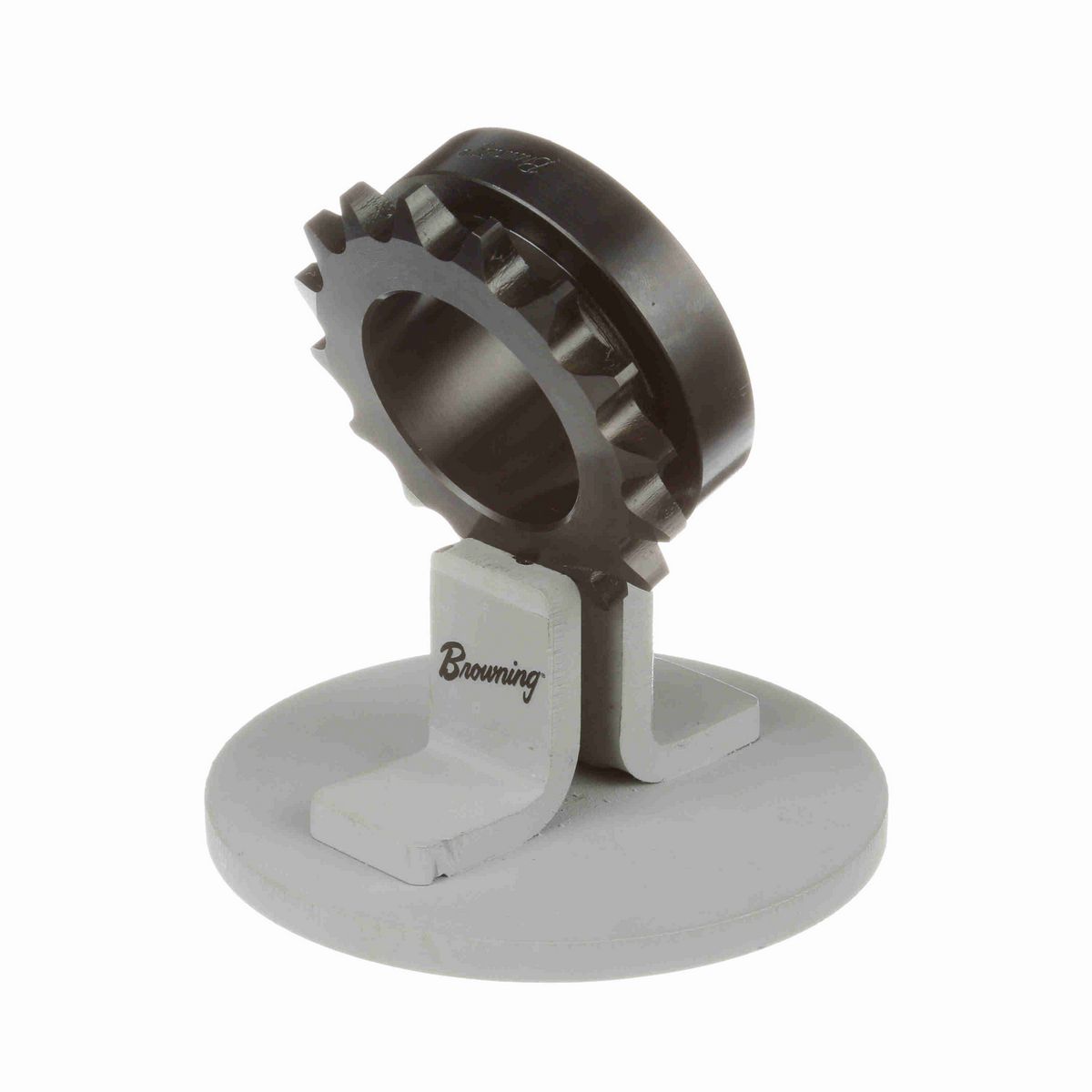

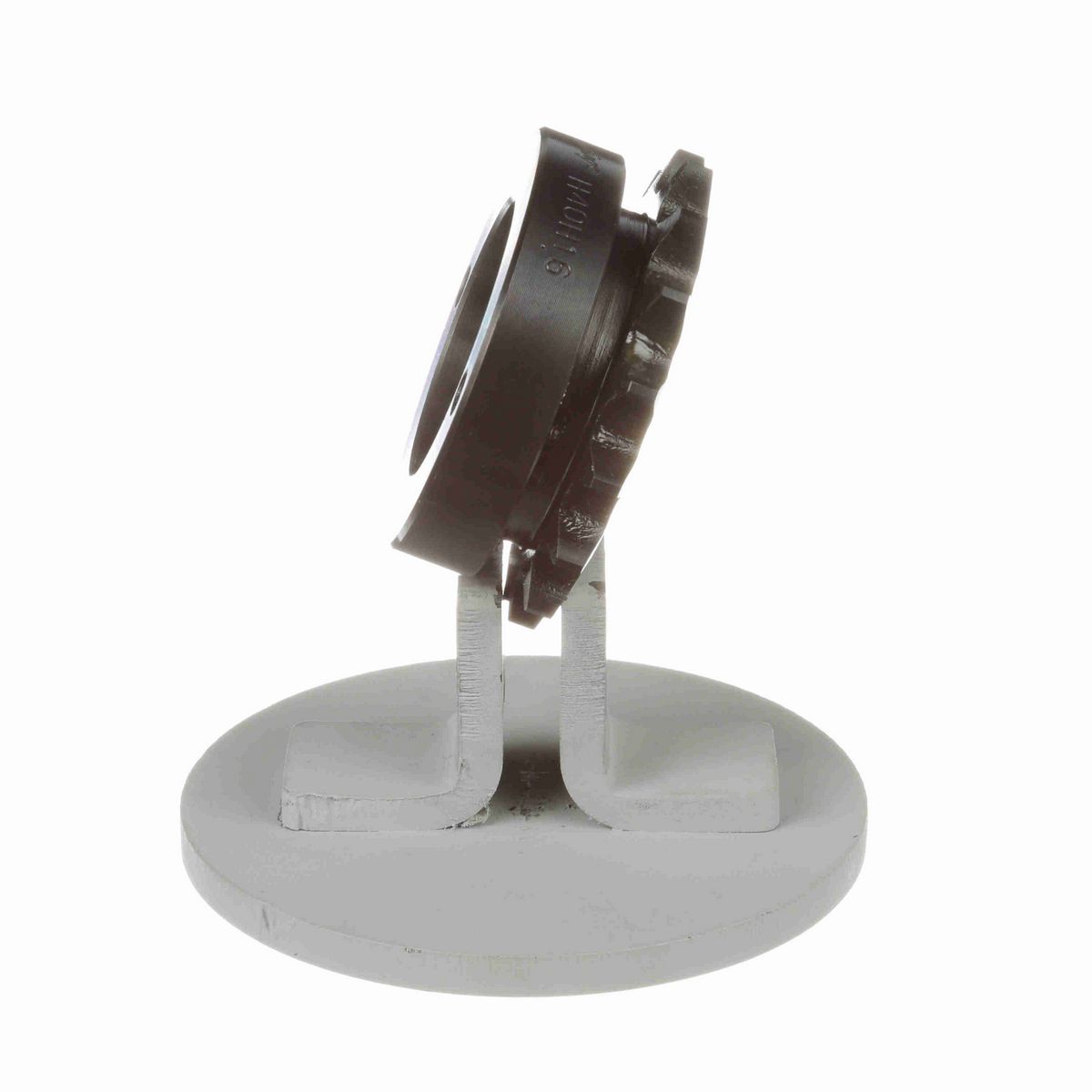

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Pitch Diameter (in)	2.563 in
Min Bore (in)	0.375 in
Material	Steel, Hardened Teeth
Number of Teeth	16
Max Bore (in)	1.5 in
Chain Pitch (in)	0.5 in
Bushing Used	Split Taper
Overall Length (in)	1.60825 in
Bore Type	Bushed Bore
Outside Diameter (in)	2.814 in
Number of Strands/Width	1
Hub Diameter (in)	2.494 in
Maximum Bore (in)	1.5 in
Maximum Bore (mm)	38 mm
Minimum Bore (mm)	10 mm
Pitch Type	Single
Number of Hubs	1

General Specifications

UPC	662289304684
Weight	0.72 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	1.30 IN
HTC	8483.90.1050
Country of Origin	China
