• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Min Bore (in)	0.375 in
Material	Steel
Max Bore (in)	1 in
Chain Pitch (in)	0.5 in
Pitch Diameter (in)	2.563 in

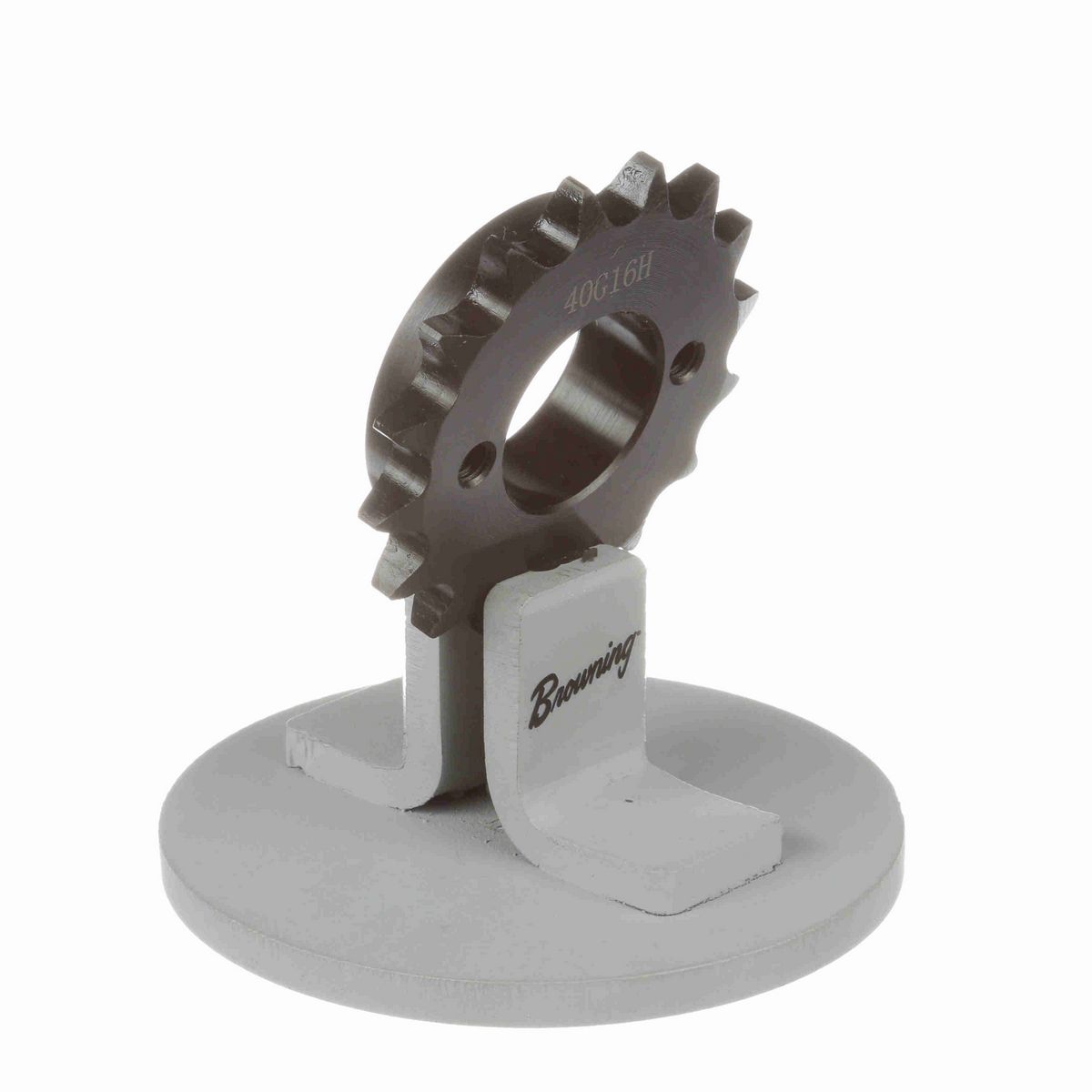

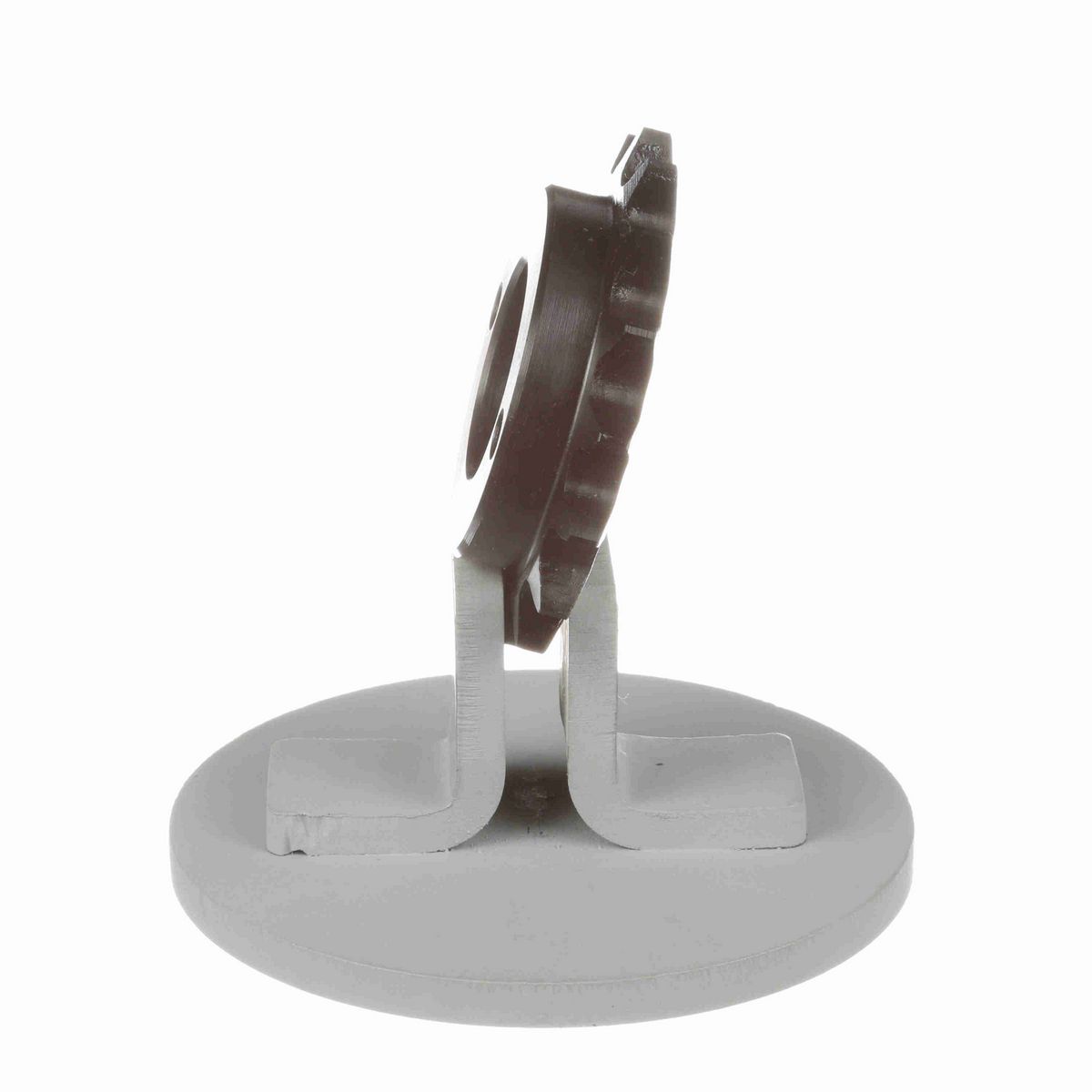

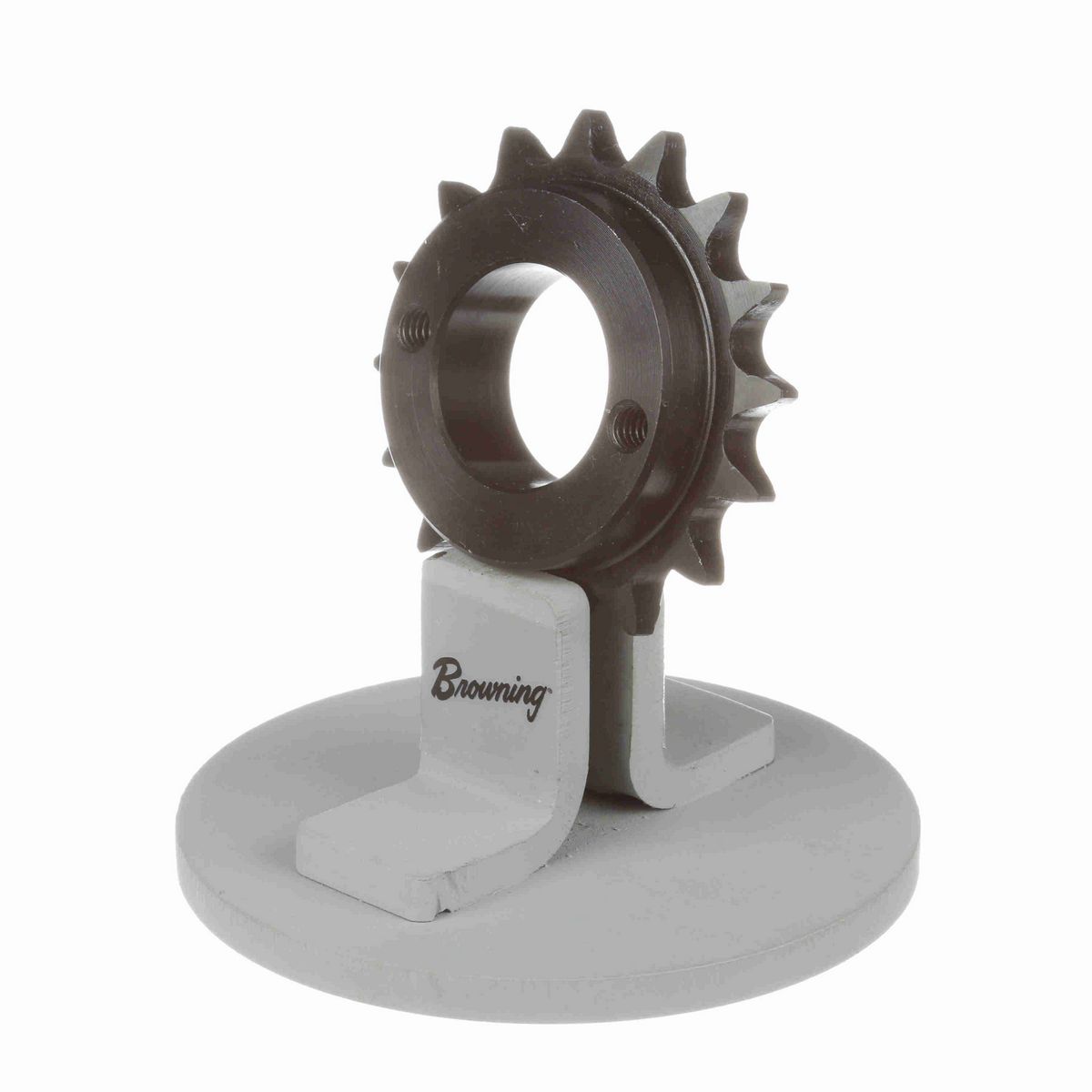

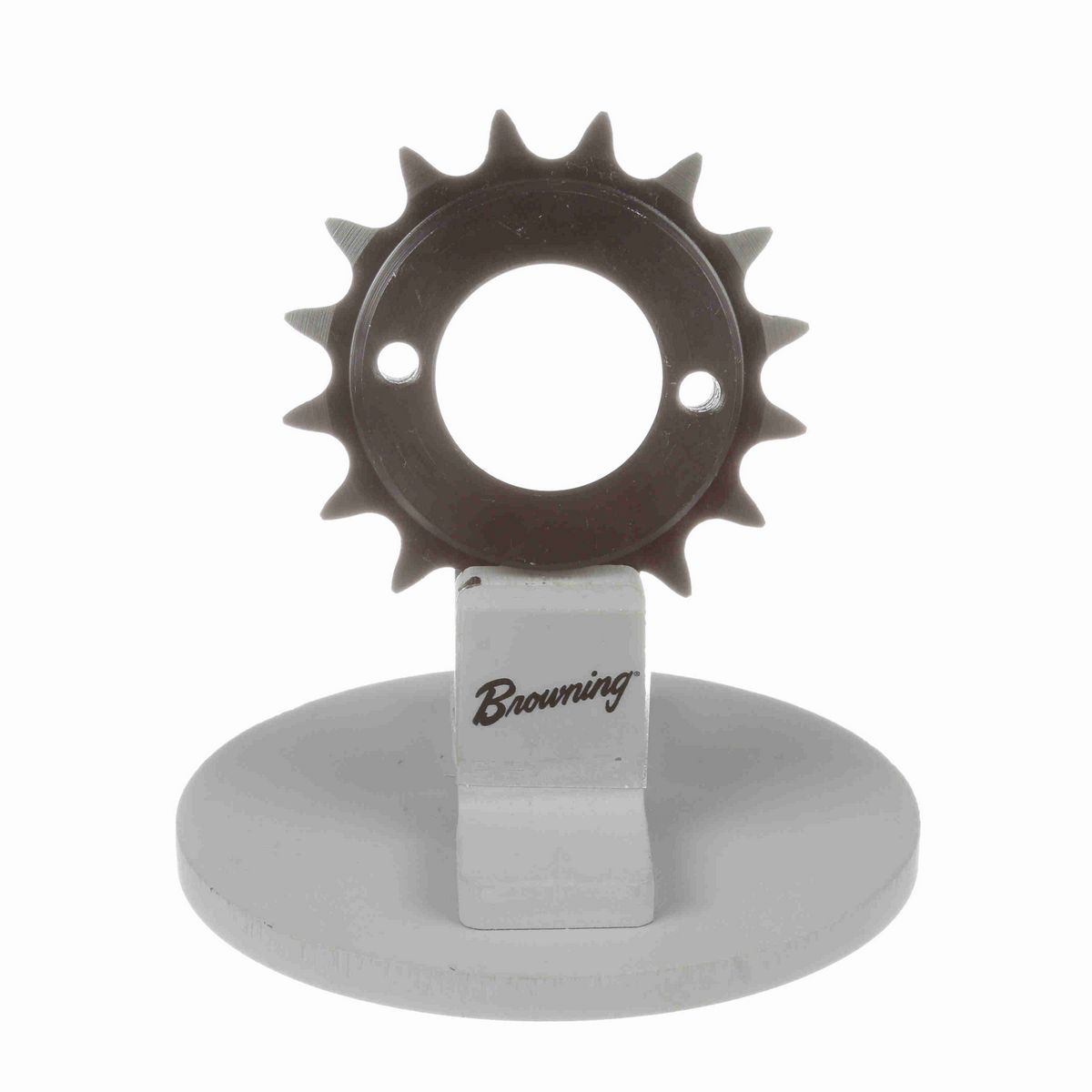

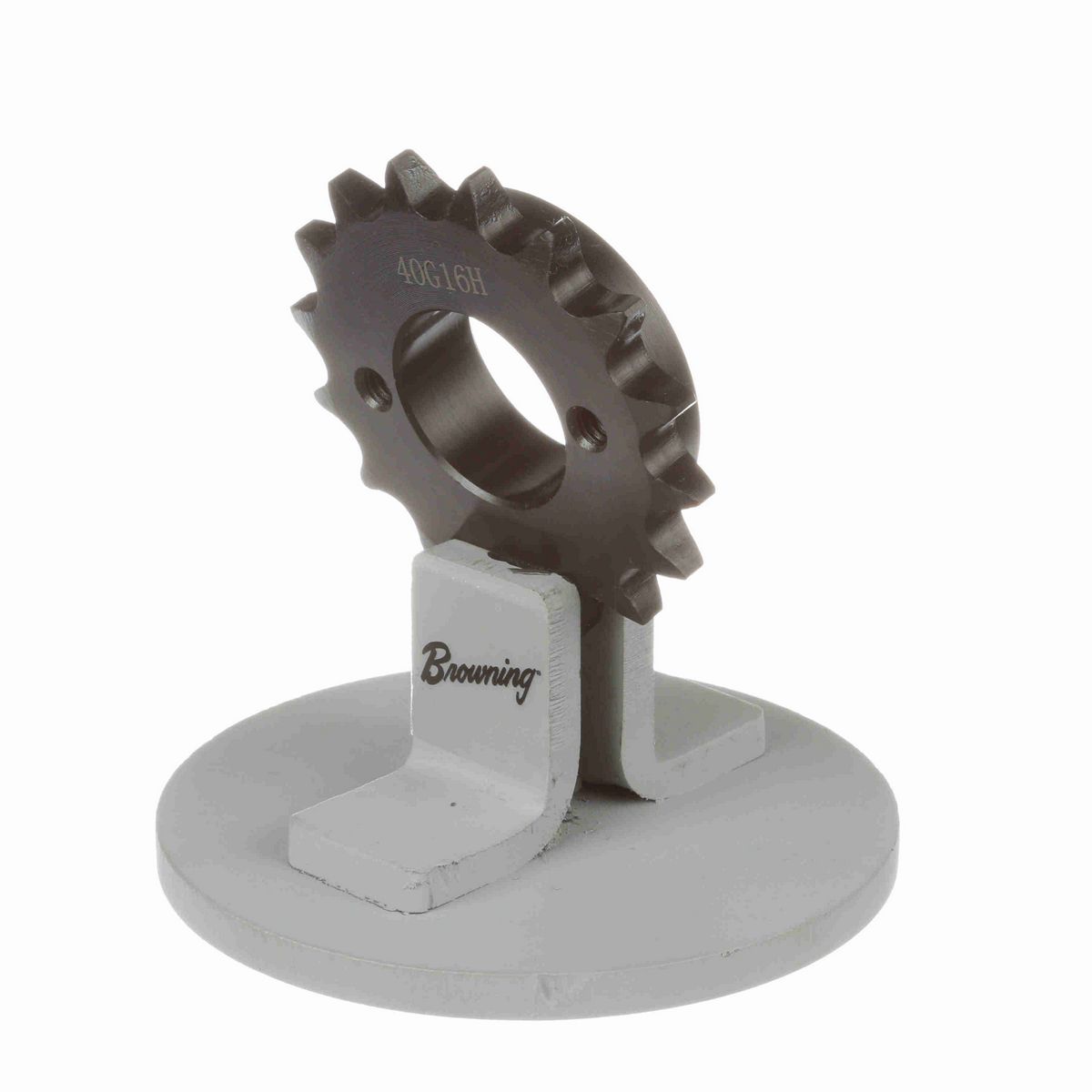

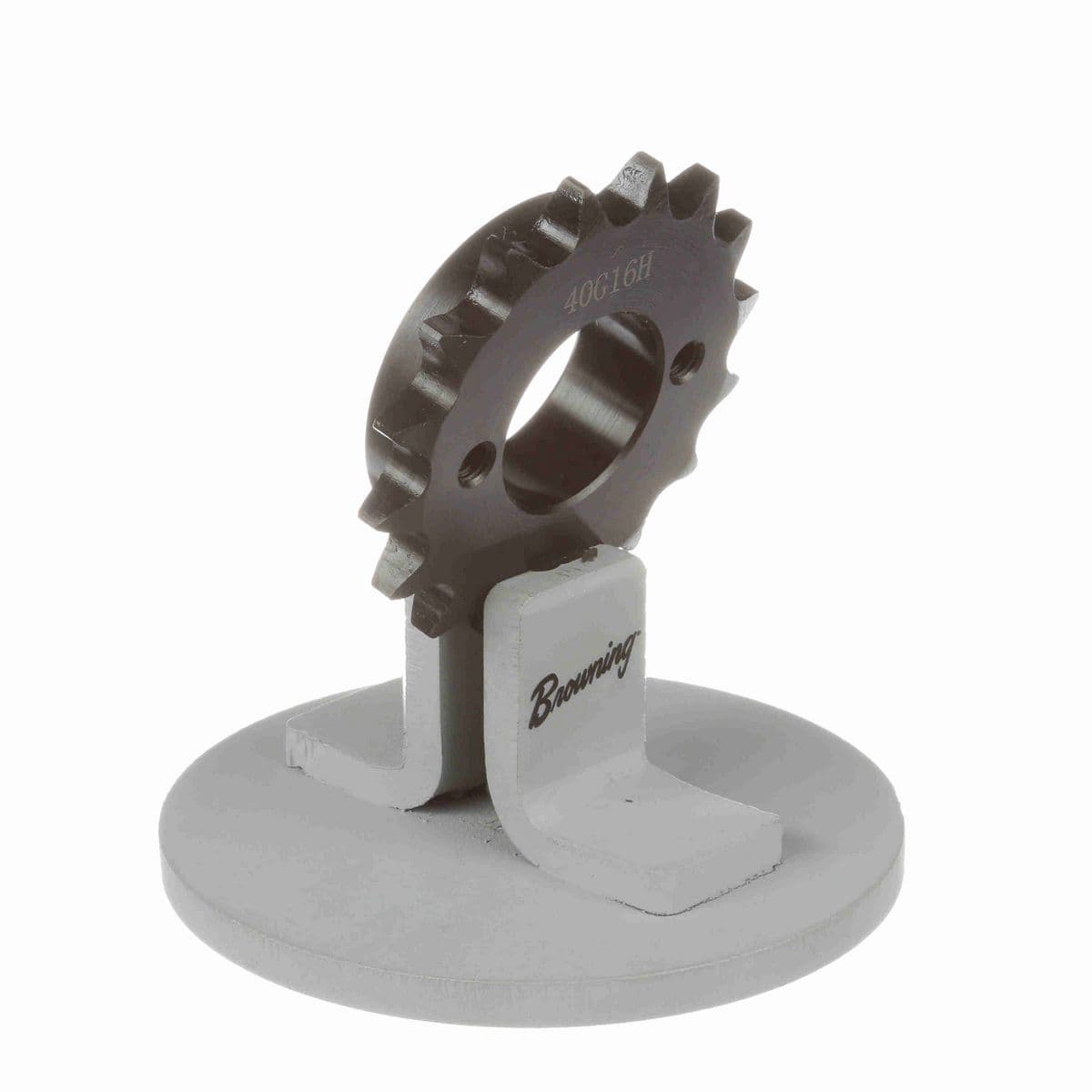

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Number of Teeth	16
Bushing Used	Split Taper
Outside Diameter (in)	2.814 in
Bore Type	Bushed Bore
Overall Length (in)	1.26825 in
Number of Strands/Width	1
Hub Diameter (in)	2.015 in
Length Through Bore (in)	1.25 in
Tooth Width (in)	0.284 in
Maximum Bore (in)	1 in
Minimum Bore (mm)	10 mm
Maximum Bore (mm)	25 mm
Hub Projection (in)	1.12 in
Number of Hubs	1
Pitch Type	Single
Hardened Teeth	Yes
Overall Width (in)	1.25 in

General Specifications

UPC	662289770205
Weight	0.56 LB
Packaged Length	4.30 IN
Packaged Width	4.30 IN
Packaged Height	1.40 IN
HTC	8483.90.1050
Country of Origin	China
