• This Product has the Browning Exclusive Twice the Life Guarantee
• Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.

Technical Specifications

Pitch Diameter (in)	1.932 in

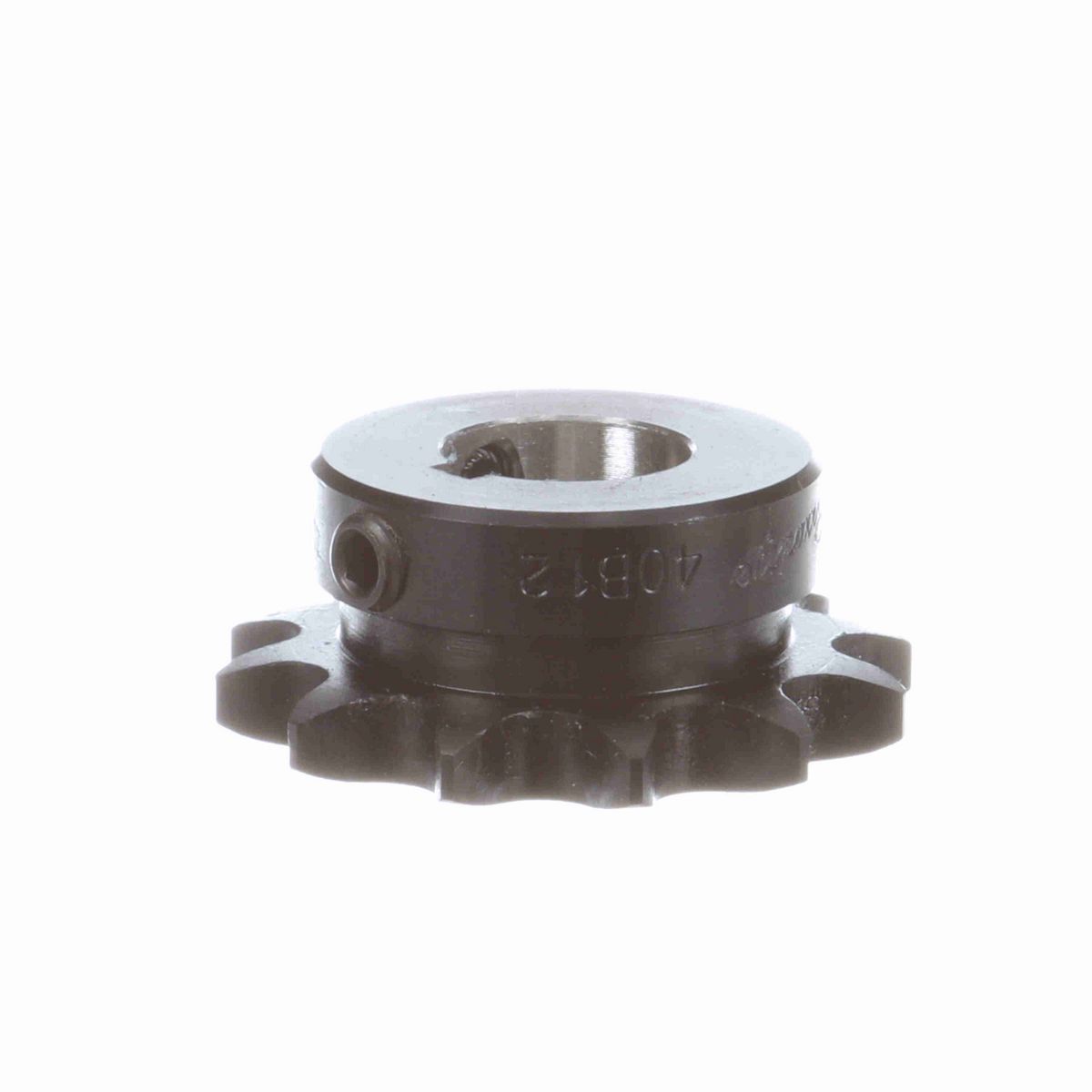

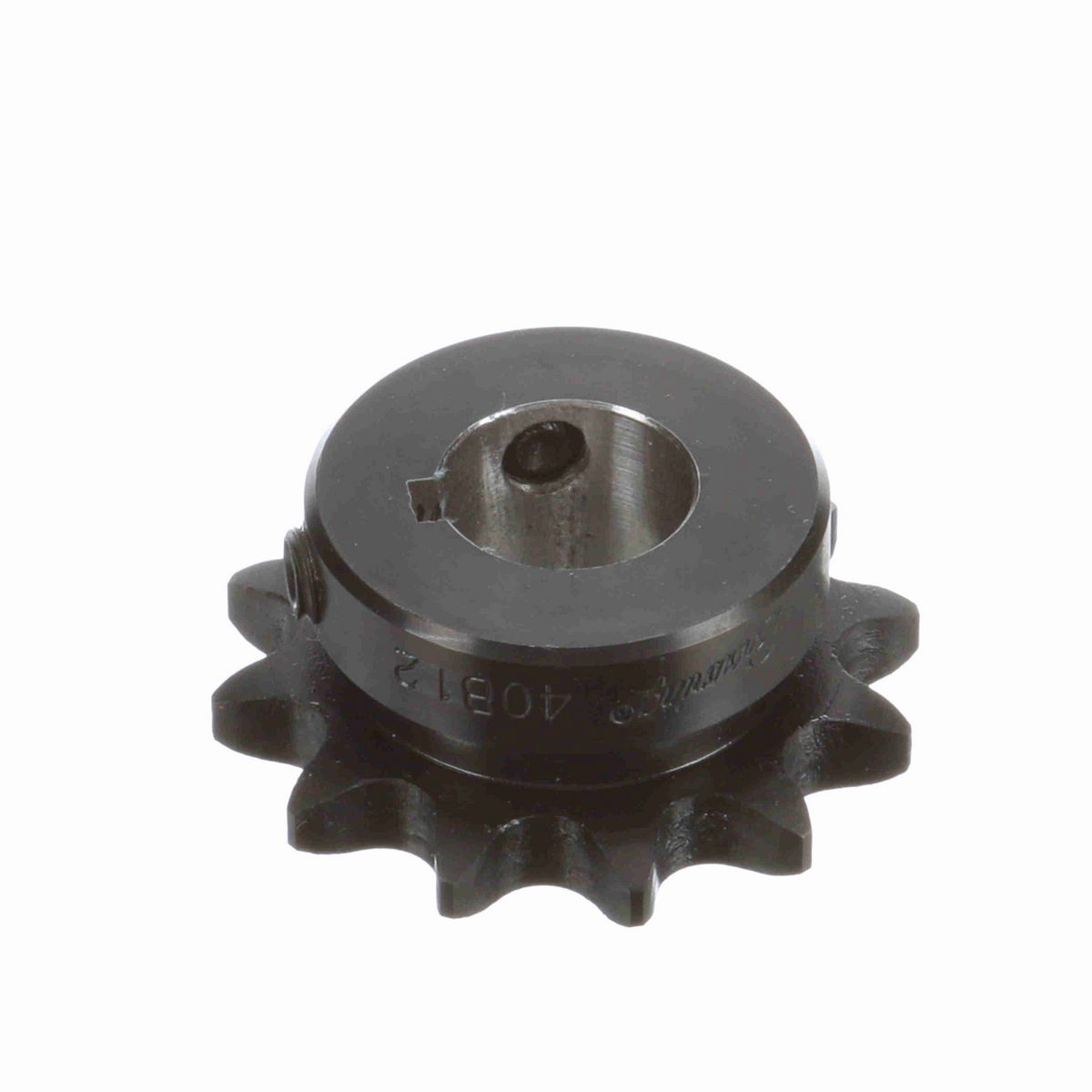

Product Type	Finished Bore Roller Chain Sprocket
Chain Pitch (in)	0.5 in
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Material	Steel, Hardened Teeth
Number of Teeth	12
Bore Type	Finished Bore
Outside Diameter (in)	2.166 in
Bore Diameter (in)	0.75 in
Number of Strands/Width	1
Tooth Width (in)	0.284 in
Hub Projection (in)	0.596 in
Hub Type	Type B
Length Through Bore (in)	0.891 in
Hub Diameter (in)	1.609 in
Hardened Teeth	With Hardened Teeth
Keyway Size	3/16 X 3/32
Pitch Type	Single
Maximum Bore (in)	0.75 in
Maximum Bore (mm)	0 mm
Minimum Bore (mm)	0 mm

General Specifications

UPC	662289292868
Weight	0.44 LB
Packaged Length	2.56 IN
Packaged Width	2.56 IN
Packaged Height	1.38 IN
HTC	8483.90.1050
Country of Origin	United States of America
