• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

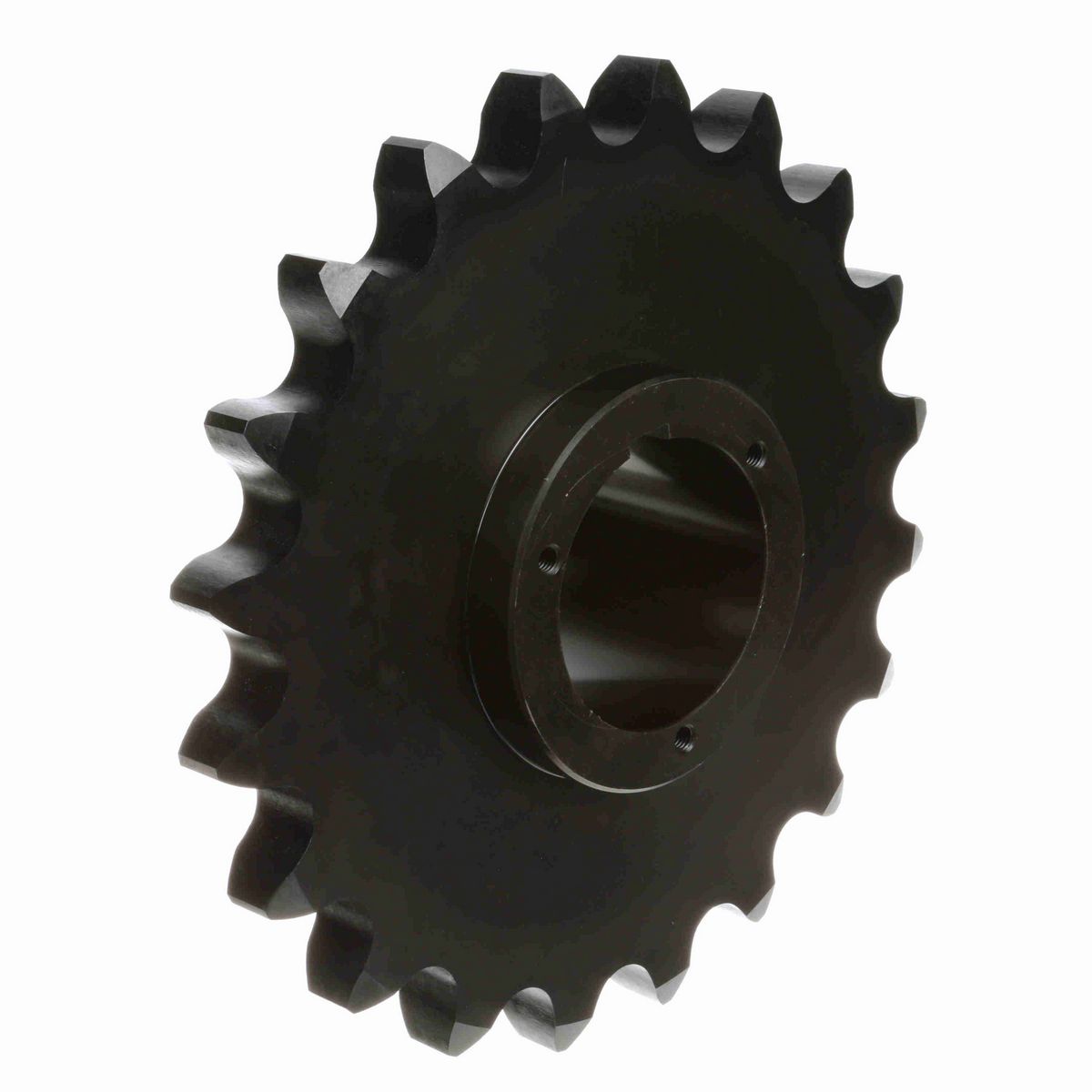

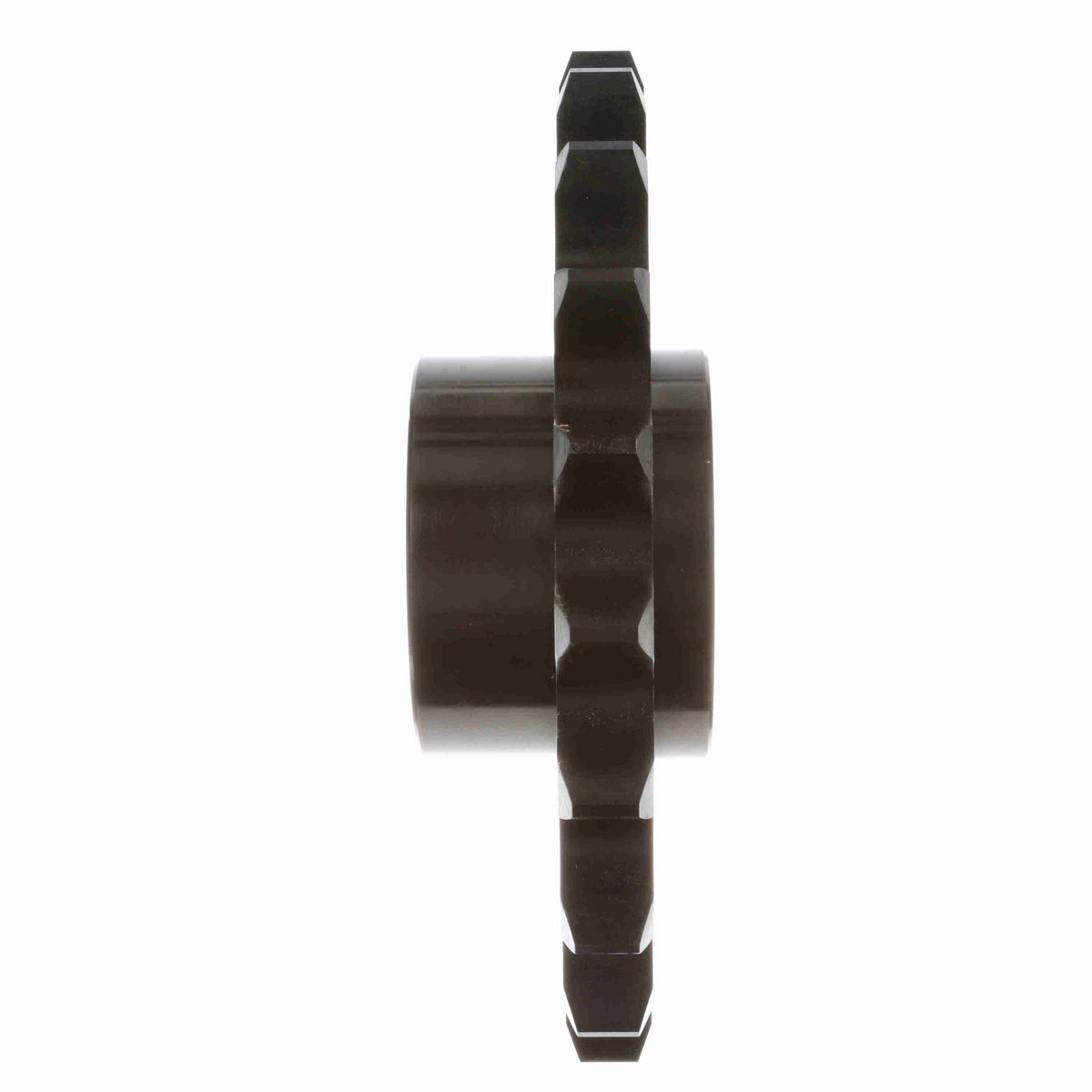

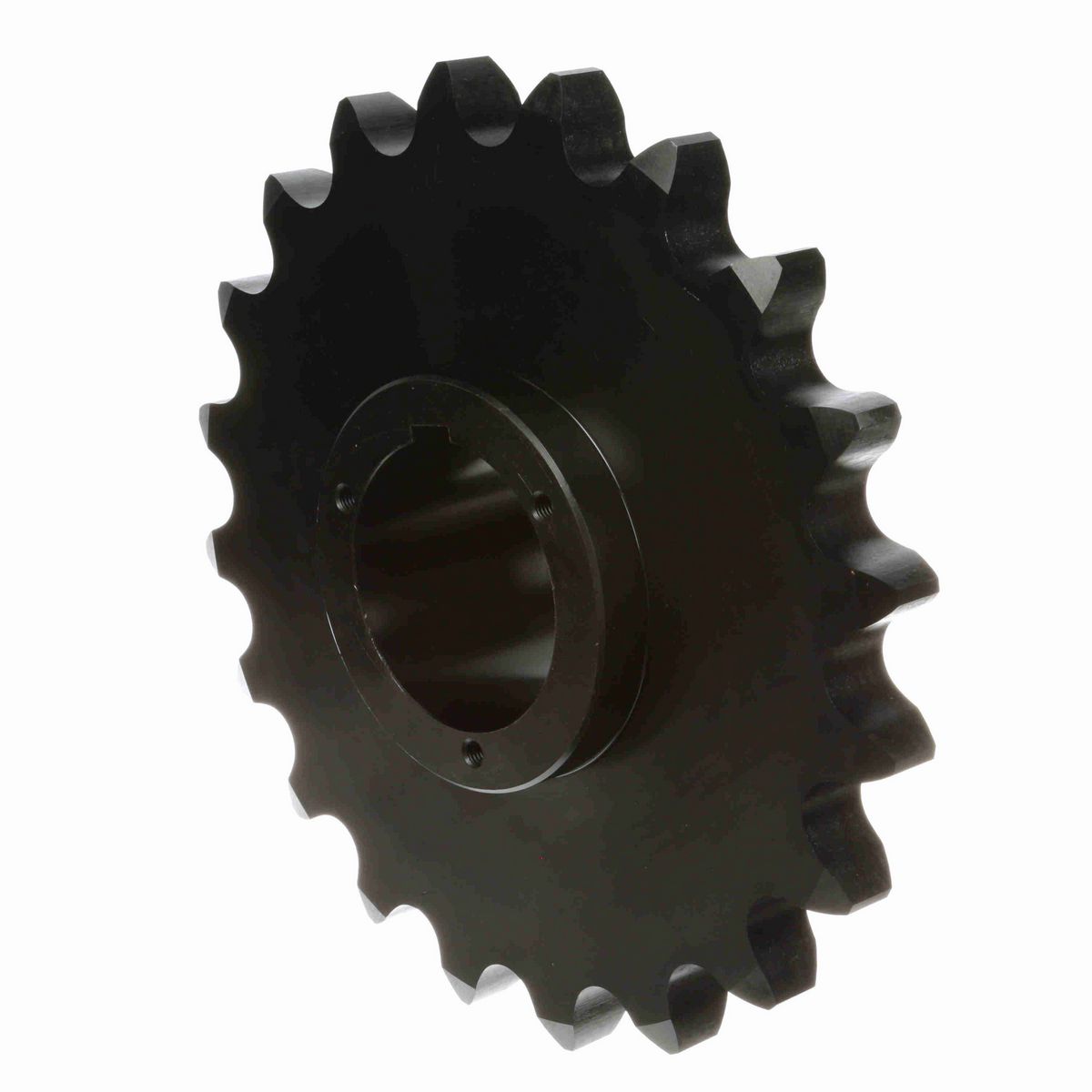

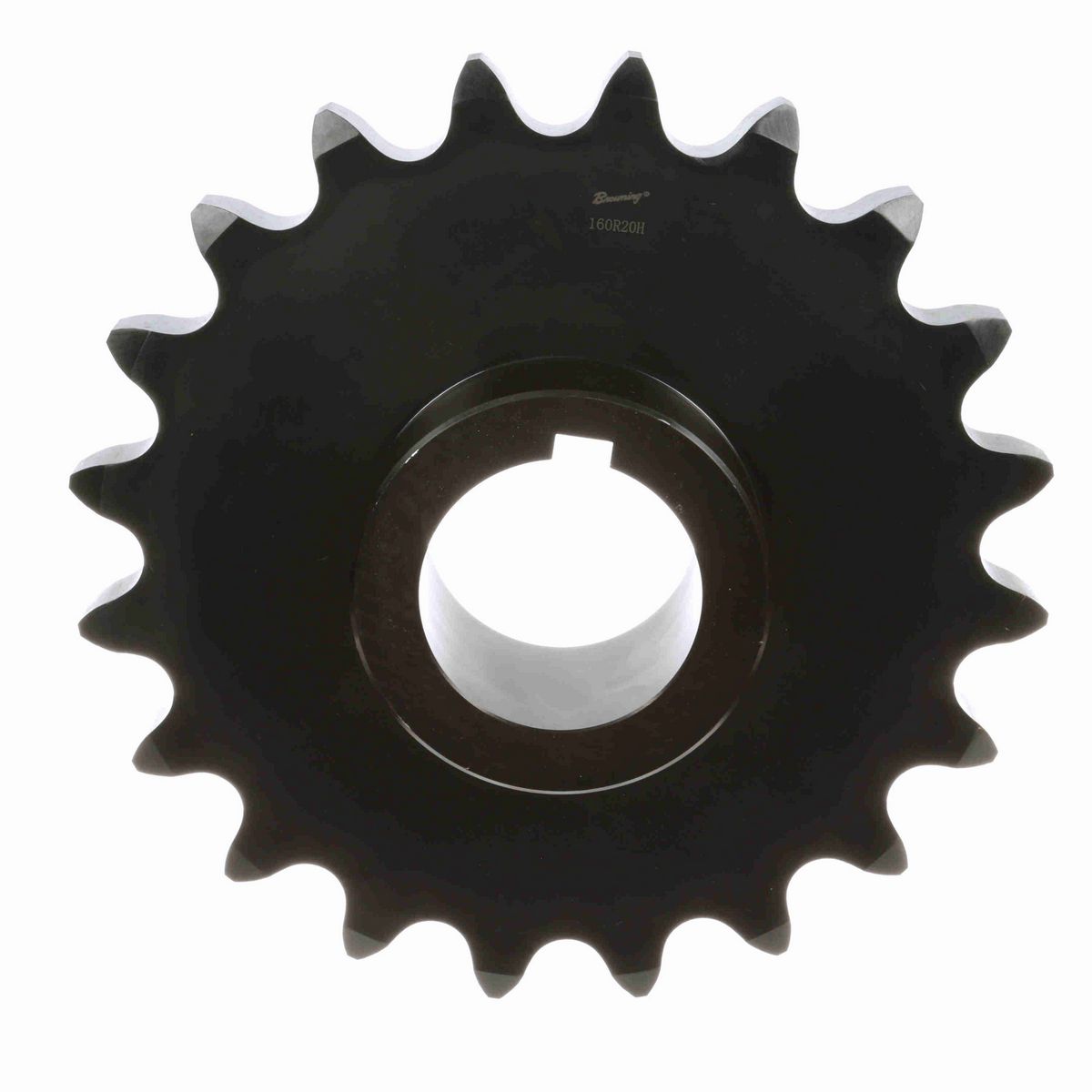

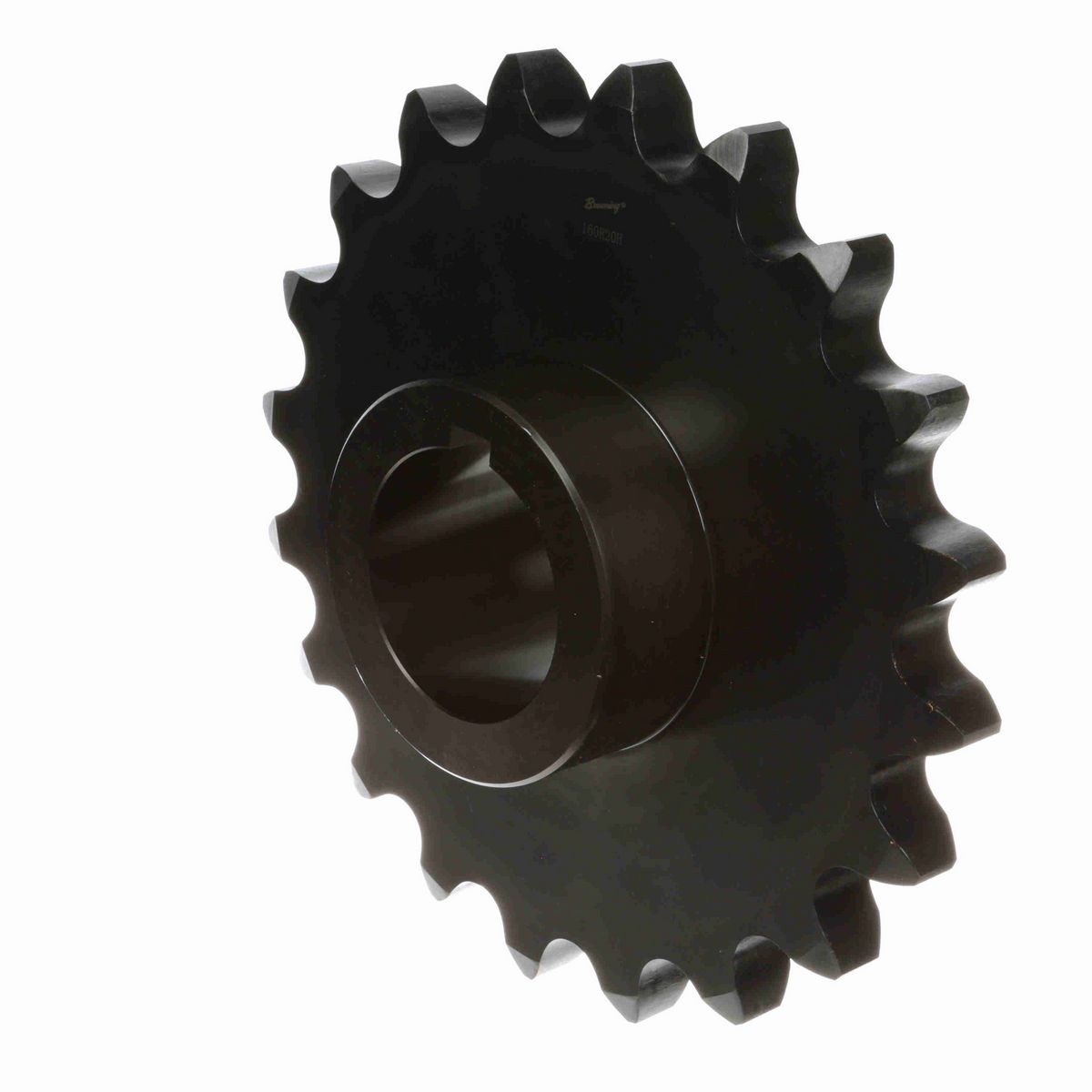

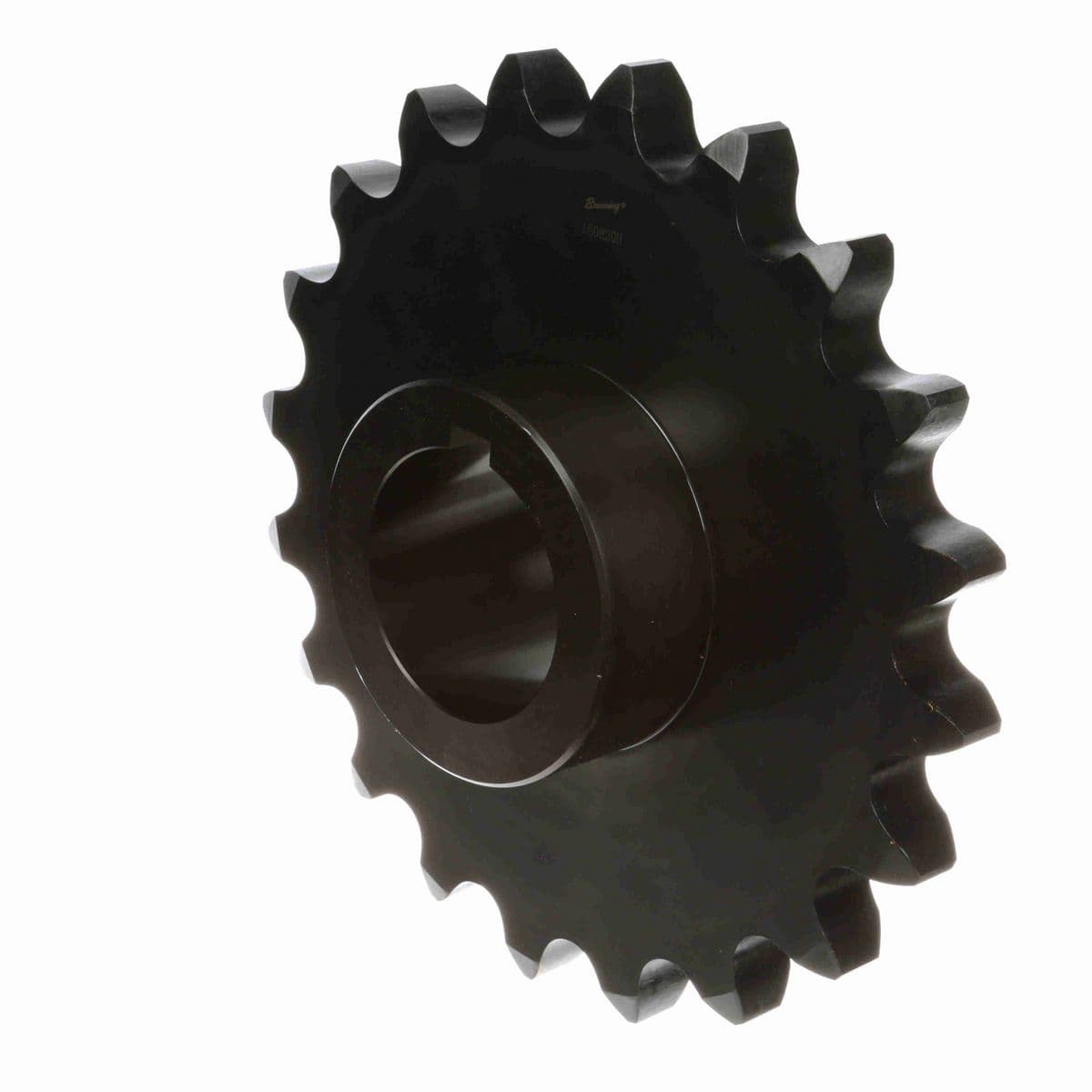

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 160, 2 in. Pitch ANSI Chain
Max Bore (in)	3.625 in
Bushing Used	Split Taper
Chain Pitch (in)	2 in
Material	Steel, Hardened Teeth
Pitch Diameter (in)	12.785 in
Number of Teeth	20
Min Bore (in)	1.375 in
Overall Length (in)	5.219375 in
Outside Diameter (in)	13.828 in
Bore Type	Bushed Bore
Number of Strands/Width	1
Hub Diameter (in)	5.375 in
Maximum Bore (in)	3.625 in
Minimum Bore (mm)	35 mm
Maximum Bore (mm)	90 mm
Pitch Type	Single
Number of Hubs	2

General Specifications

UPC	662289266951
Weight	47.58 LB
Packaged Length	15.70 IN
Packaged Width	15.60 IN
Packaged Height	1.60 IN
HTC	8483.90.1050
Country of Origin	China
