• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Number of Teeth	19
Bushing Used	Split Taper
Max Bore (in)	3.75 in
Pitch Diameter (in)	9.113 in
Chain Pitch (in)	1.5 in
Min Bore (in)	1.125 in
Chain Used	No. 120, 1-1/2 in. Pitch ANSI Chain
Material	Steel, Hardened Teeth

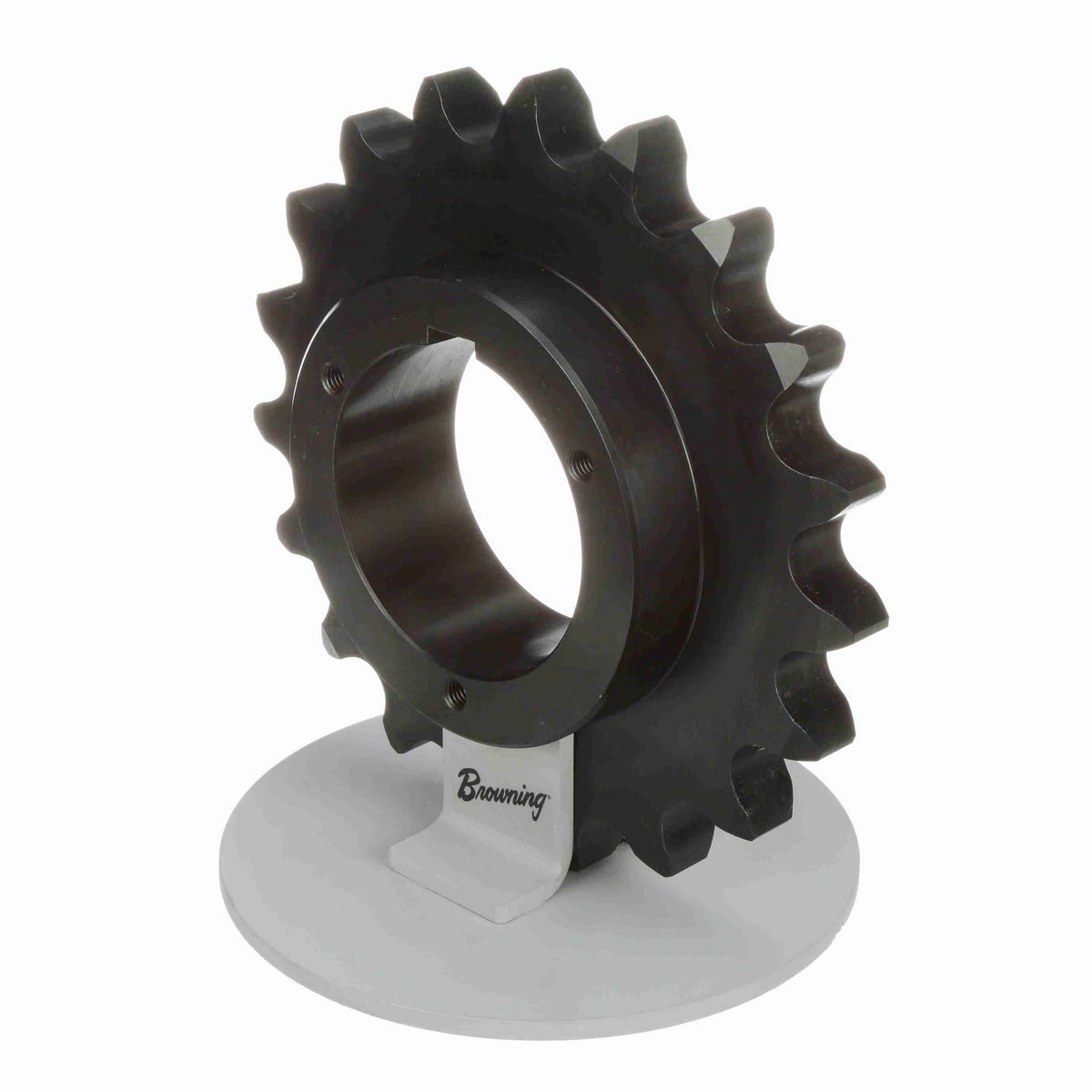

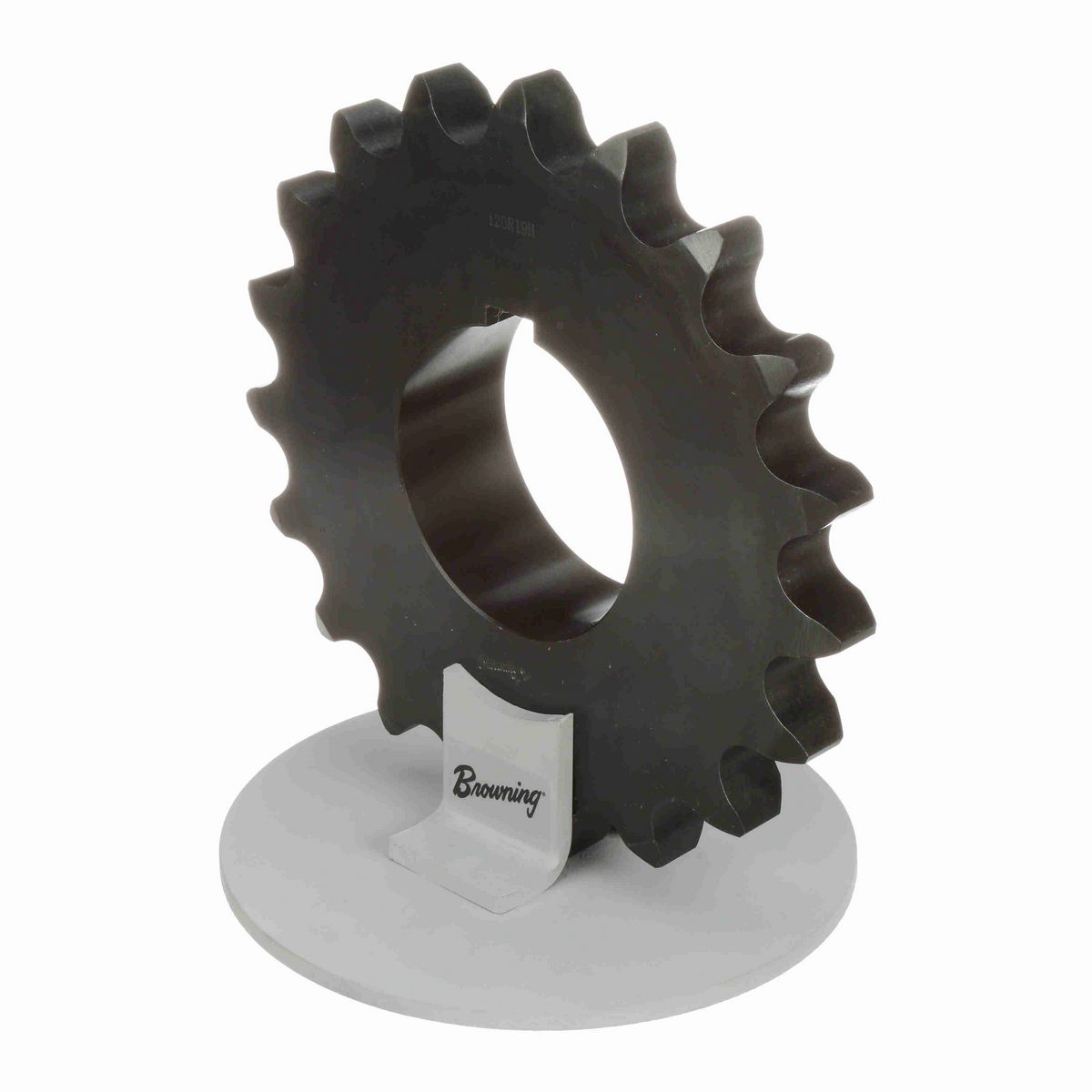

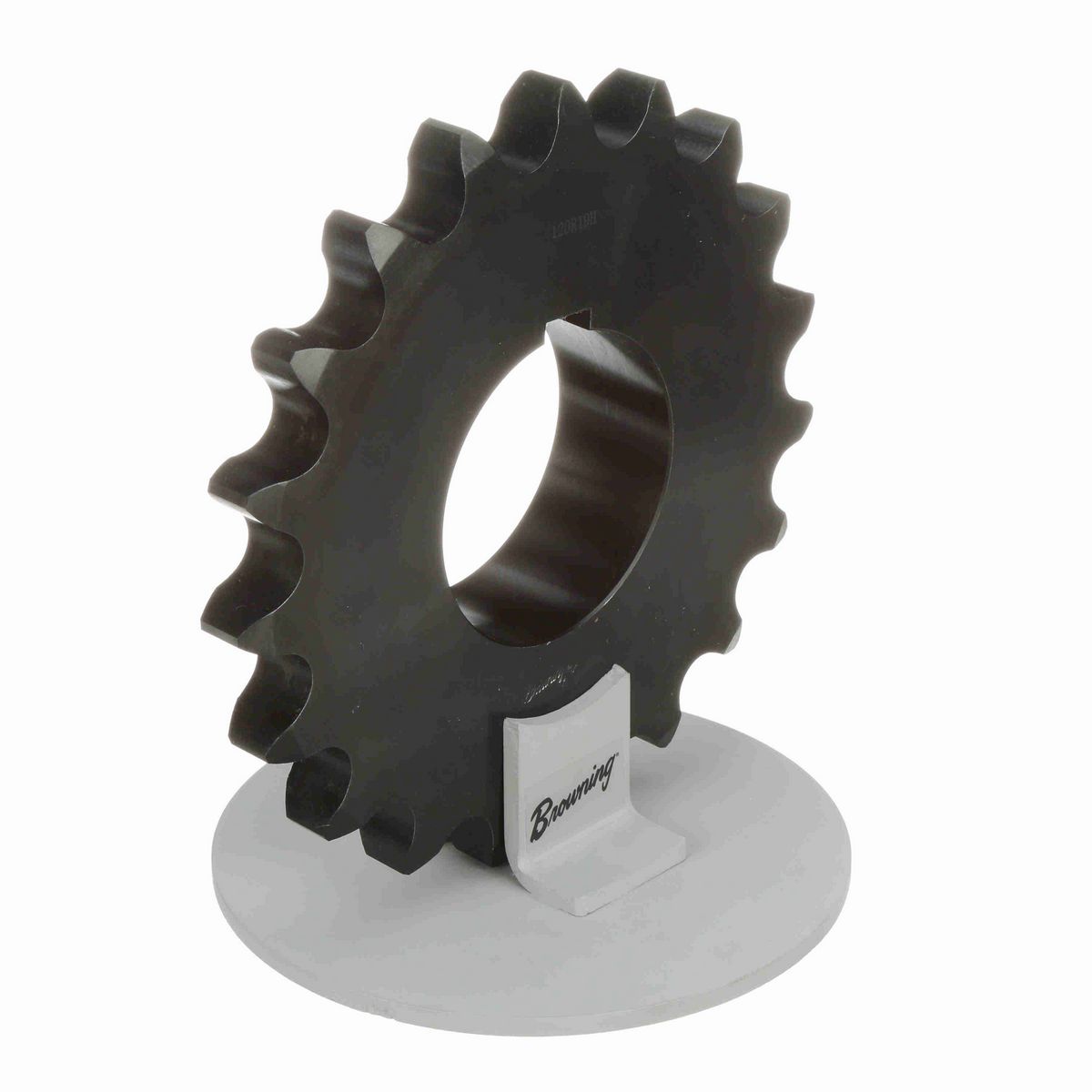

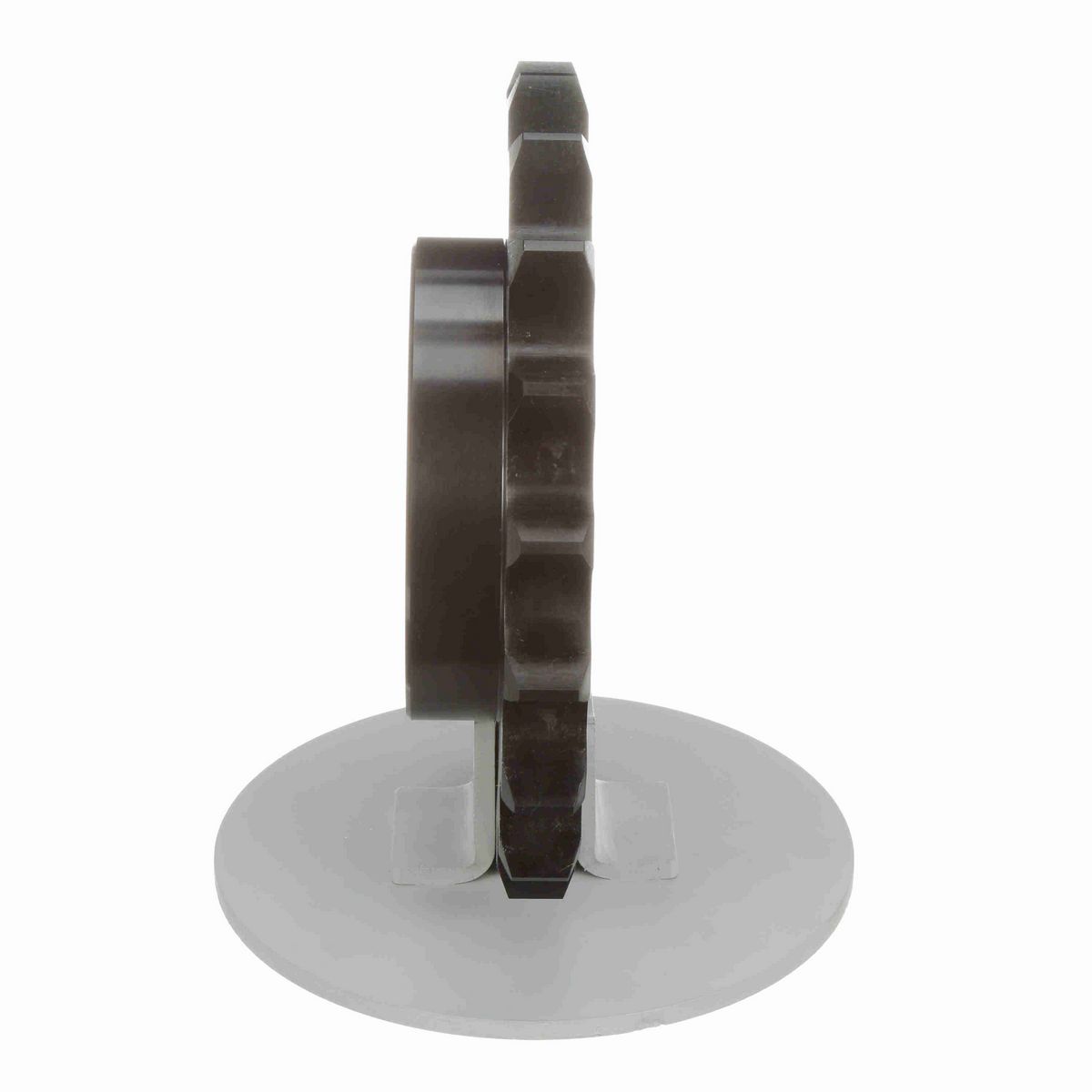

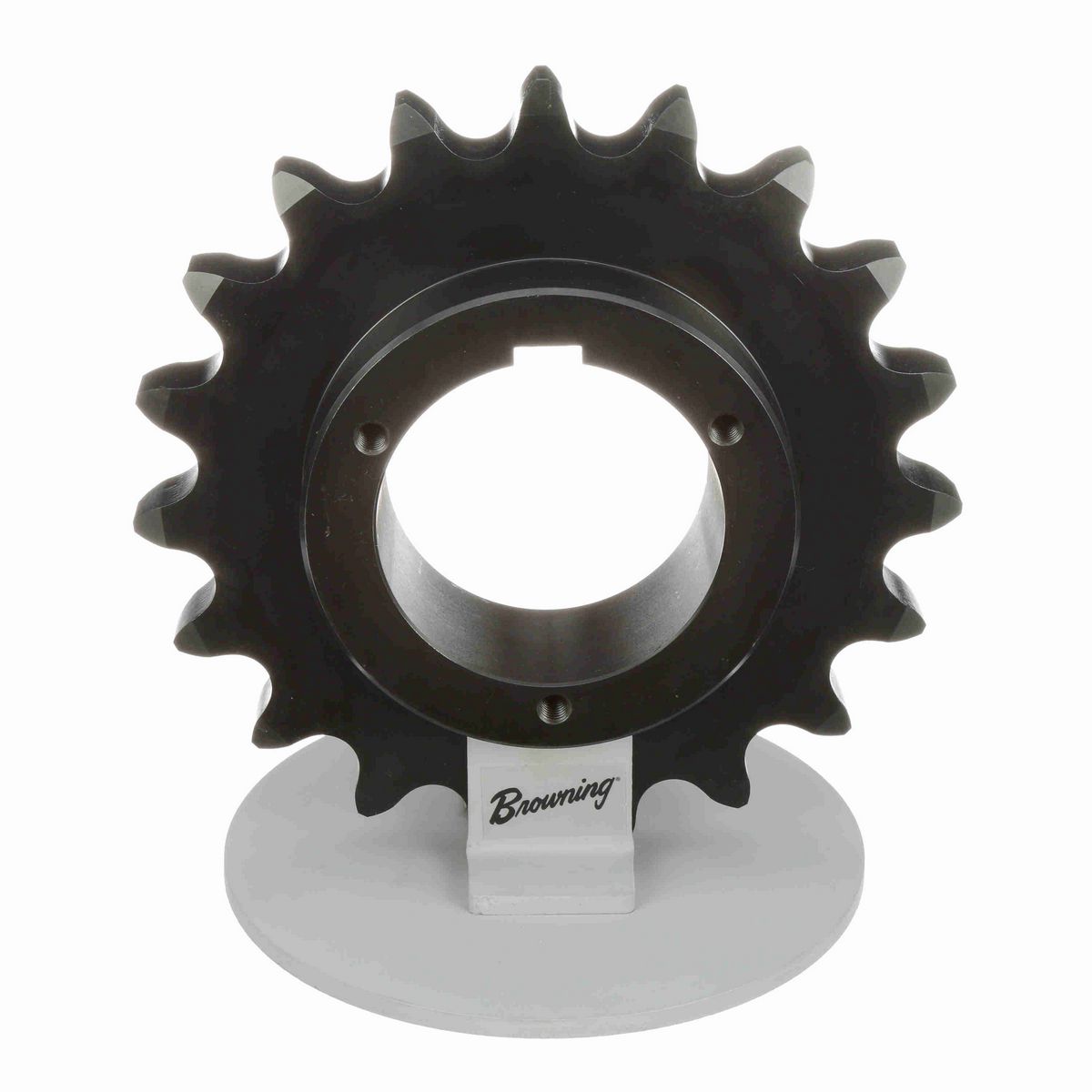

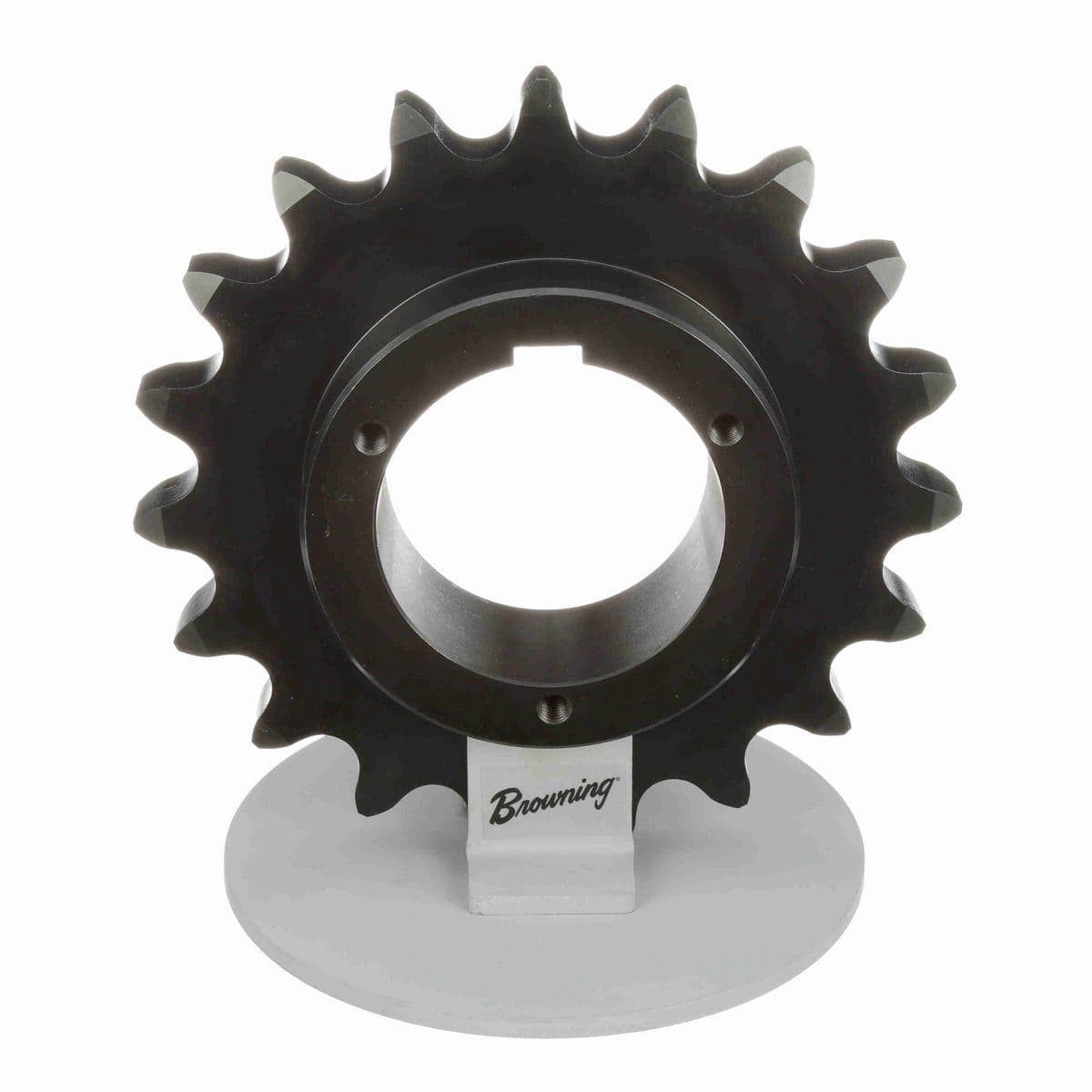

Product Type	Bushed Roller Chain Sprocket
Bore Type	Bushed Bore
Overall Length (in)	3.219375 in
Outside Diameter (in)	9.889 in
Number of Strands/Width	1
Hub Diameter (in)	5.375 in
Maximum Bore (in)	3.75 in
Maximum Bore (mm)	95 mm
Minimum Bore (mm)	28 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289206612
Weight	17.24 LB
Packaged Length	10.60 IN
Packaged Width	10.50 IN
Packaged Height	2.60 IN
HTC	8483.90.1050
Country of Origin	China
