• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Max Bore (in)	2.6875 in
Chain Pitch (in)	1.5 in

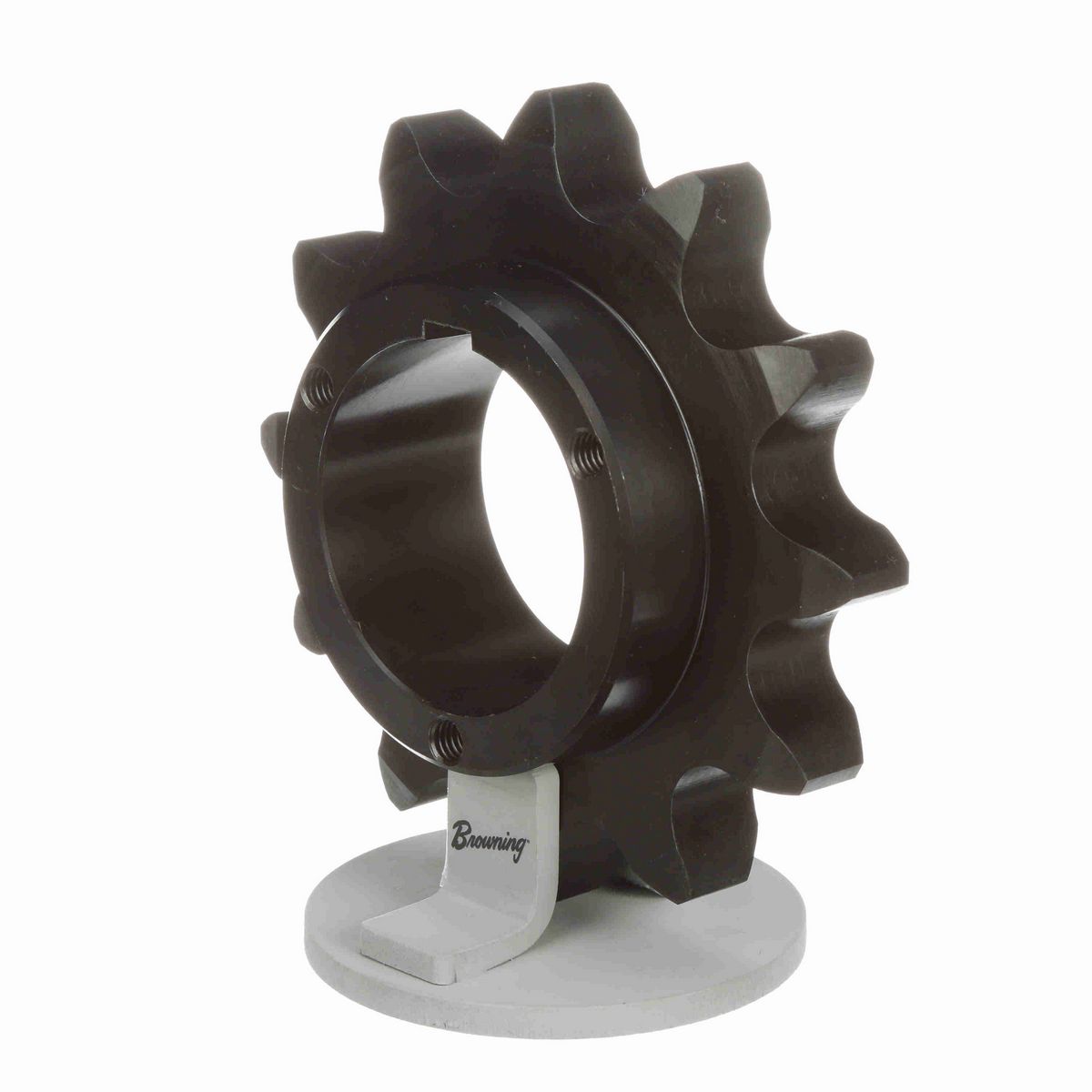

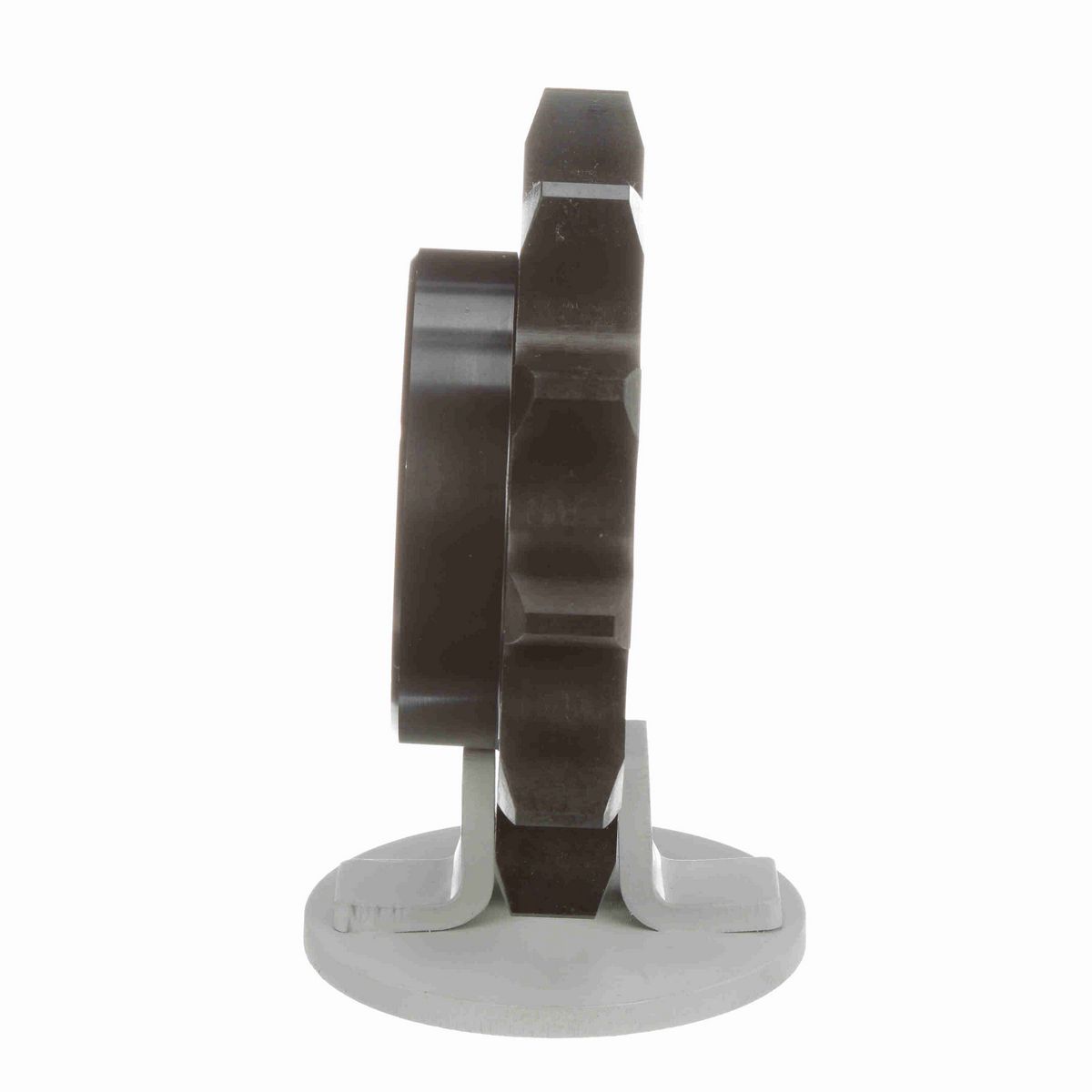

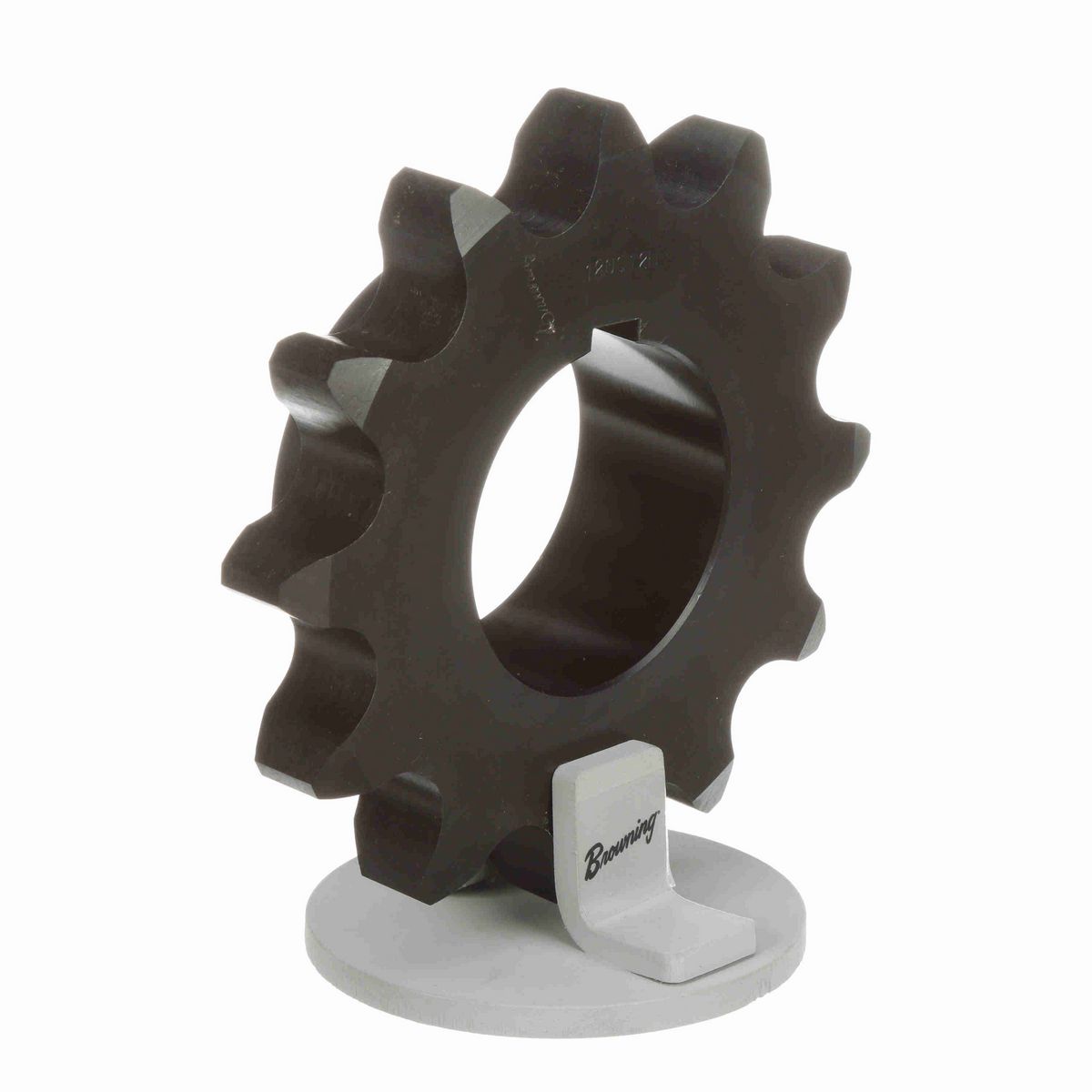

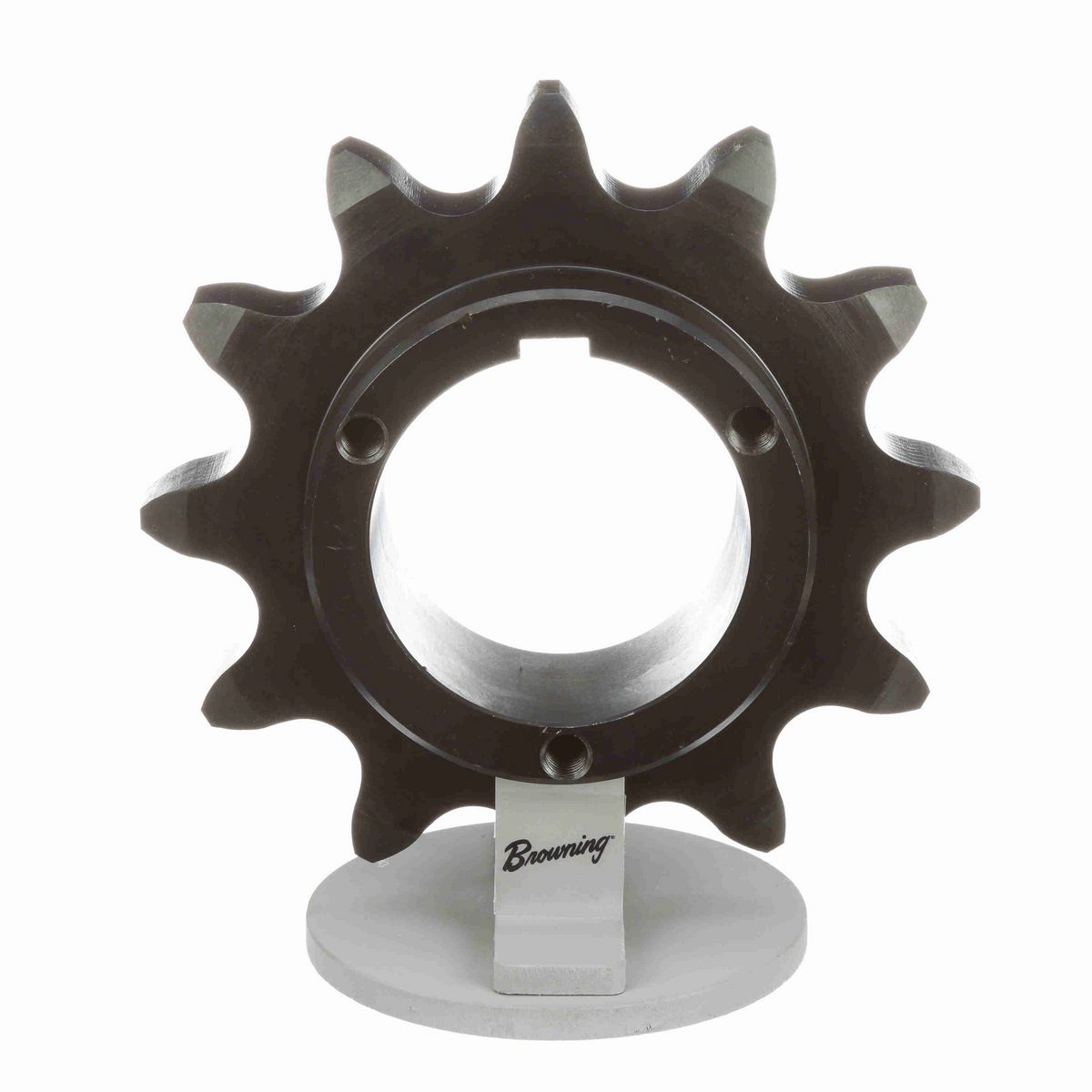

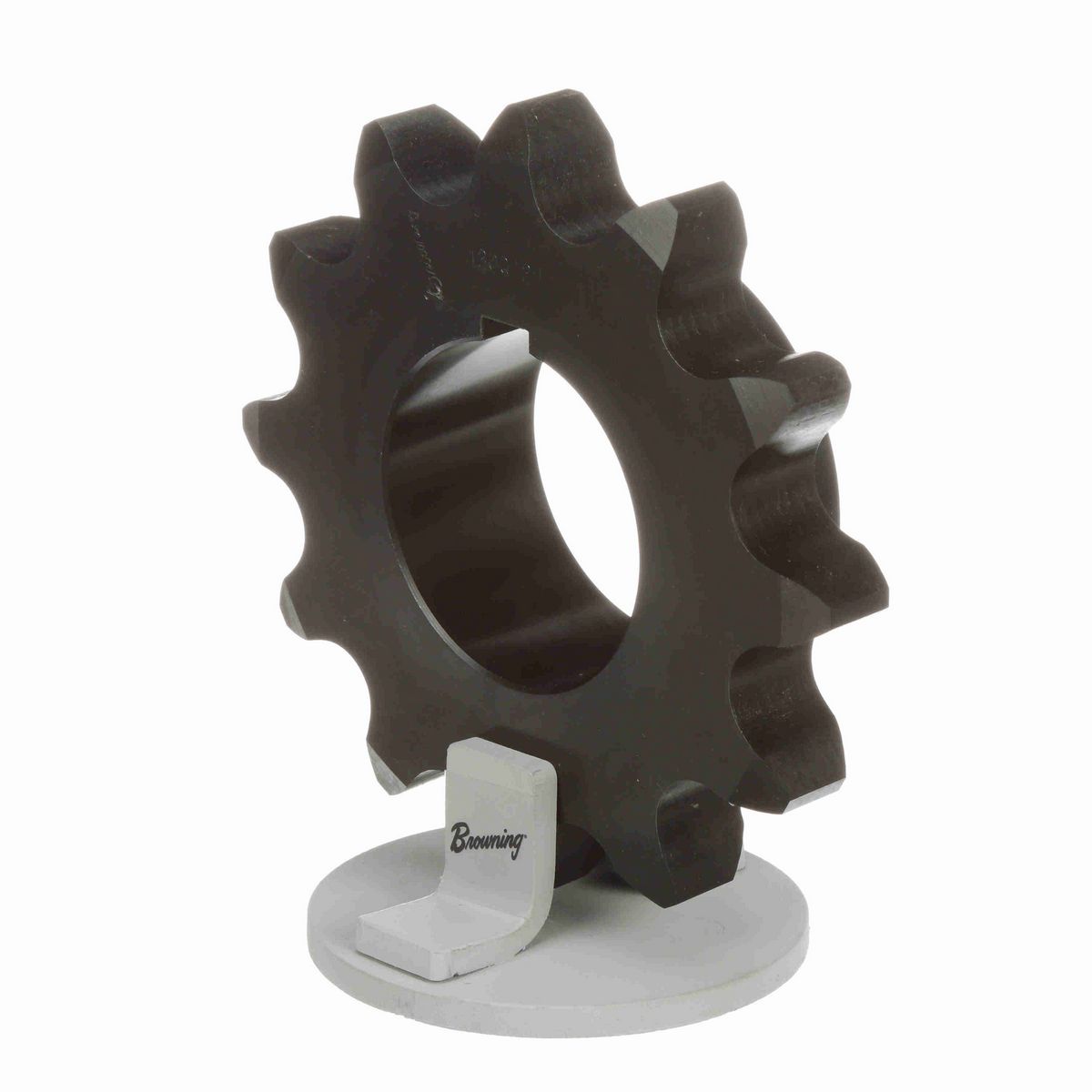

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 120, 1-1/2 in. Pitch ANSI Chain
Min Bore (in)	0.75 in
Pitch Diameter (in)	5.796 in
Bushing Used	Split Taper
Material	Steel, Hardened Teeth
Number of Teeth	12
Outside Diameter (in)	6.498 in
Bore Type	Bushed Bore
Overall Length (in)	2.828125 in
Number of Strands/Width	1
Hub Diameter (in)	4.125 in
Maximum Bore (in)	2.6875 in
Minimum Bore (mm)	18 mm
Maximum Bore (mm)	65 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289266500
Weight	5.90 LB
Packaged Length	6.63 IN
Packaged Width	6.63 IN
Packaged Height	1.75 IN
HTC	8483.90.1050
Country of Origin	China
