• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

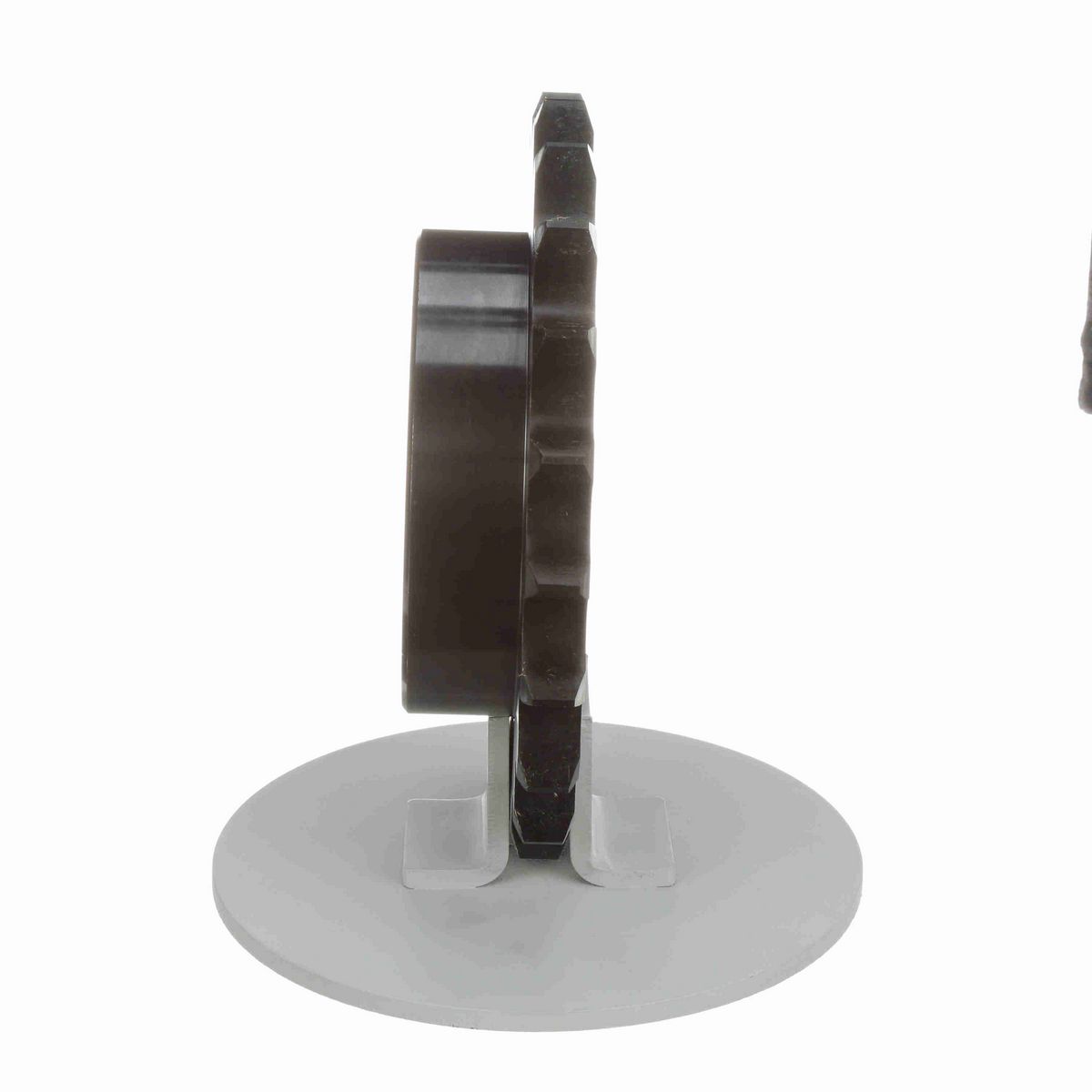

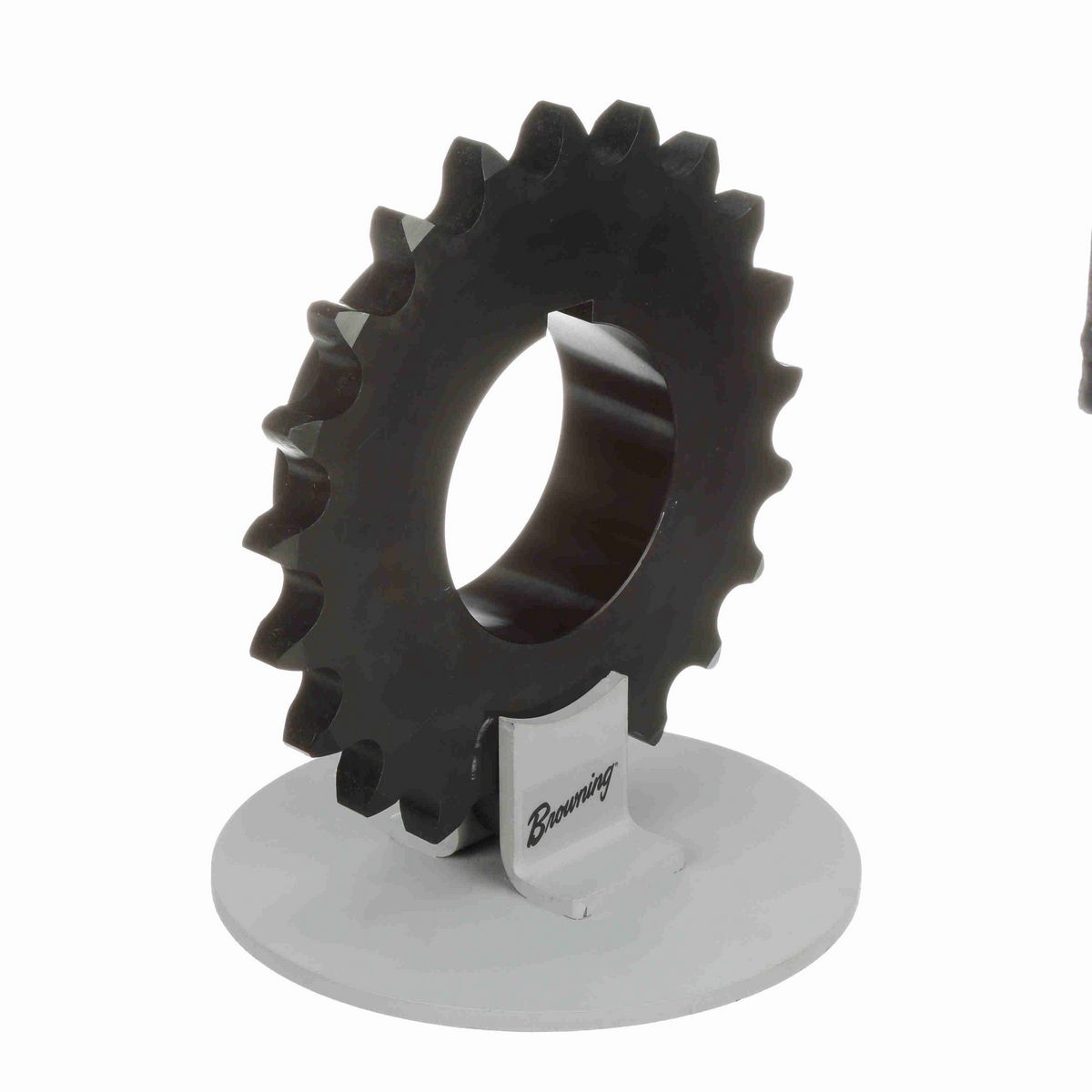

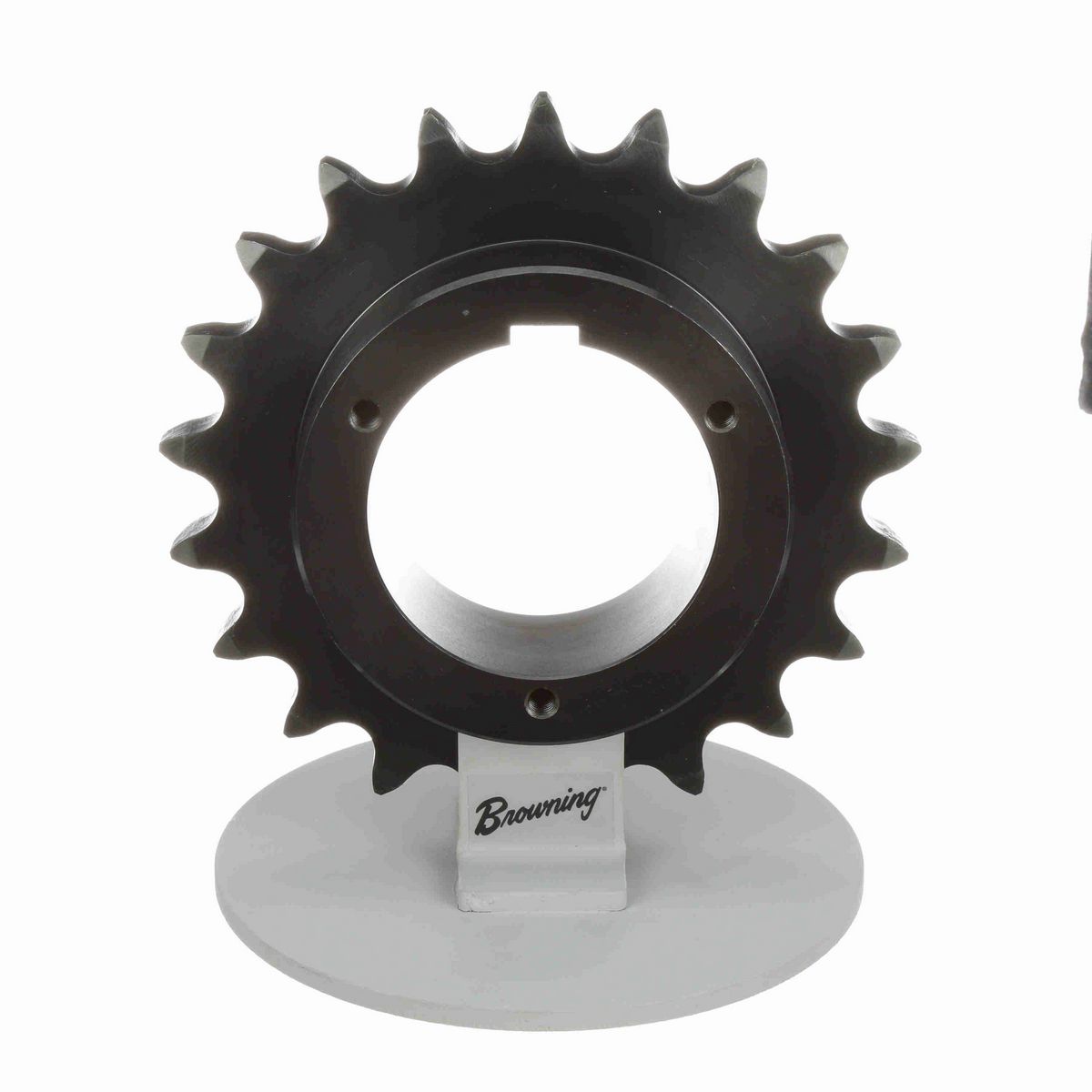

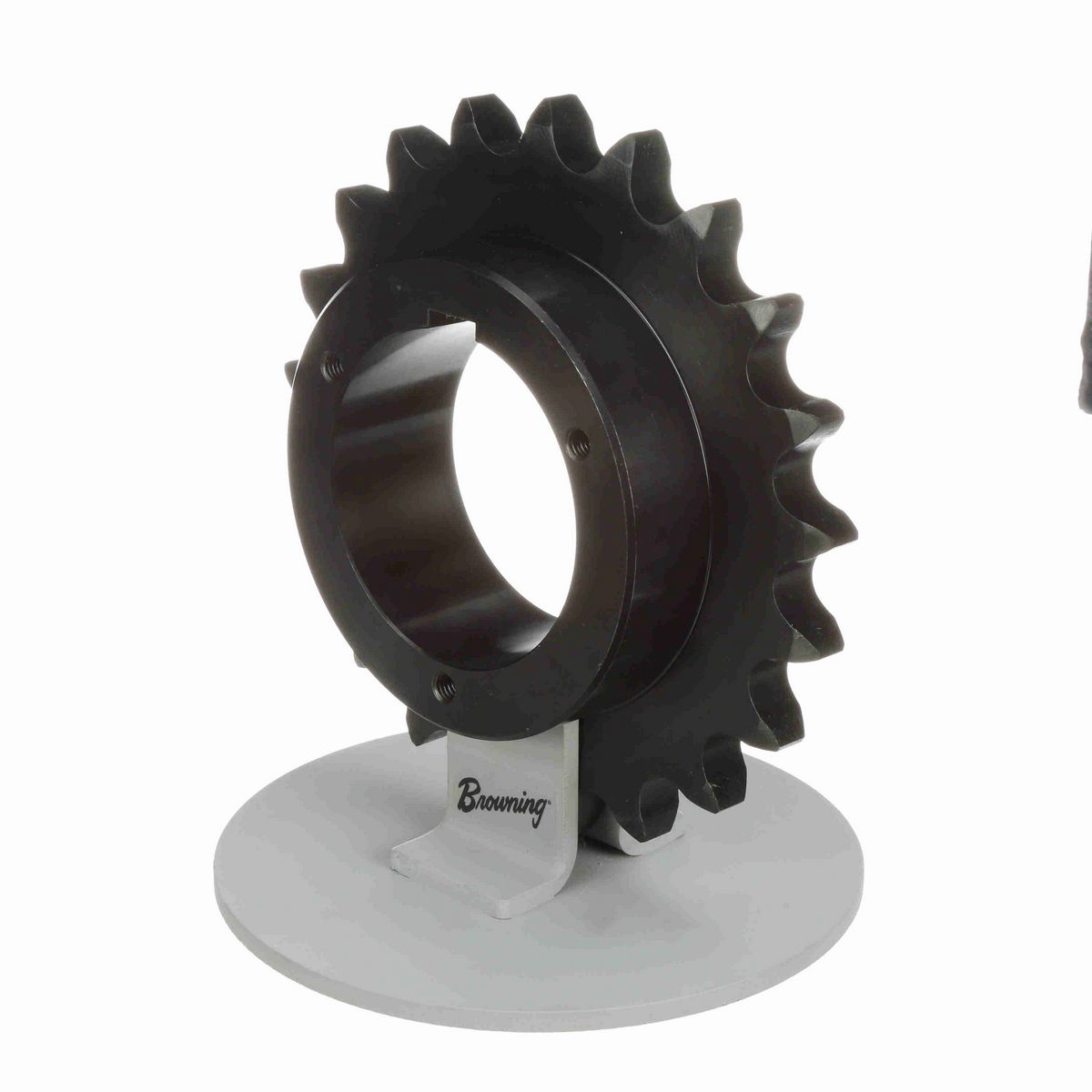

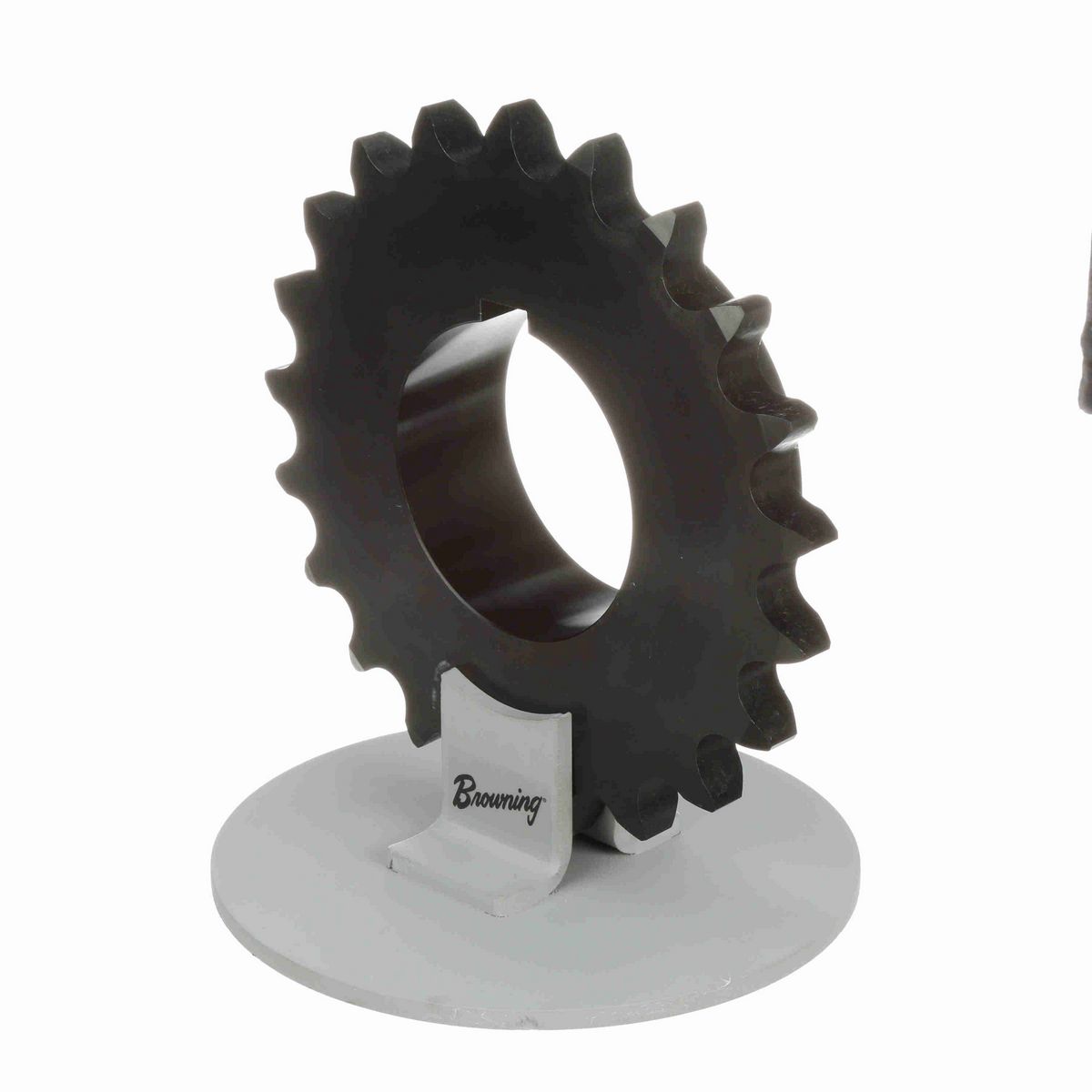

Product Type	Bushed Roller Chain Sprocket
Bushing Used	Split Taper
Material	Steel, Hardened Teeth
Number of Teeth	21
Pitch Diameter (in)	8.387 in
Chain Pitch (in)	1.25 in
Min Bore (in)	1.125 in
Chain Used	No. 100, 1-1/4 in. Pitch ANSI Chain
Max Bore (in)	3.75 in
Overall Length (in)	3.219375 in
Bore Type	Bushed Bore
Outside Diameter (in)	9.043 in
Number of Strands/Width	1
Hub Diameter (in)	5.375 in
Maximum Bore (in)	3.75 in
Minimum Bore (mm)	28 mm
Maximum Bore (mm)	95 mm
Pitch Type	Single
Number of Hubs	1

General Specifications

UPC	662289722969
Weight	12.92 LB
Packaged Length	10.00 IN
Packaged Width	9.90 IN
Packaged Height	2.10 IN
HTC	8483.90.1050
Country of Origin	China
