• This Product has the Browning Exclusive Twice the Life Guarantee
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Chain Pitch (in)	1.25 in
Pitch Diameter (in)	9.577 in
Min Bore (in)	0.75 in
Number of Teeth	24
Max Bore (in)	2.6875 in

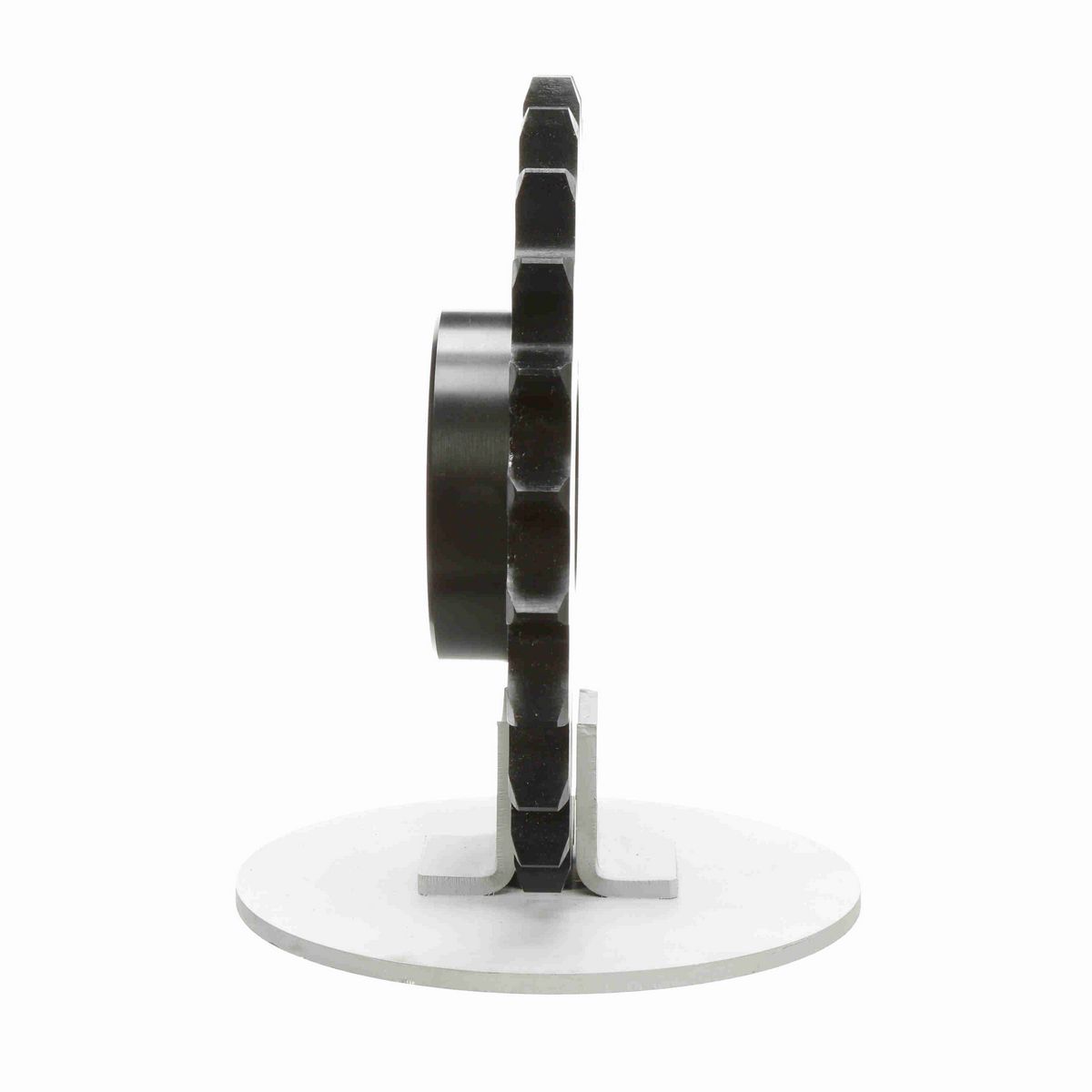

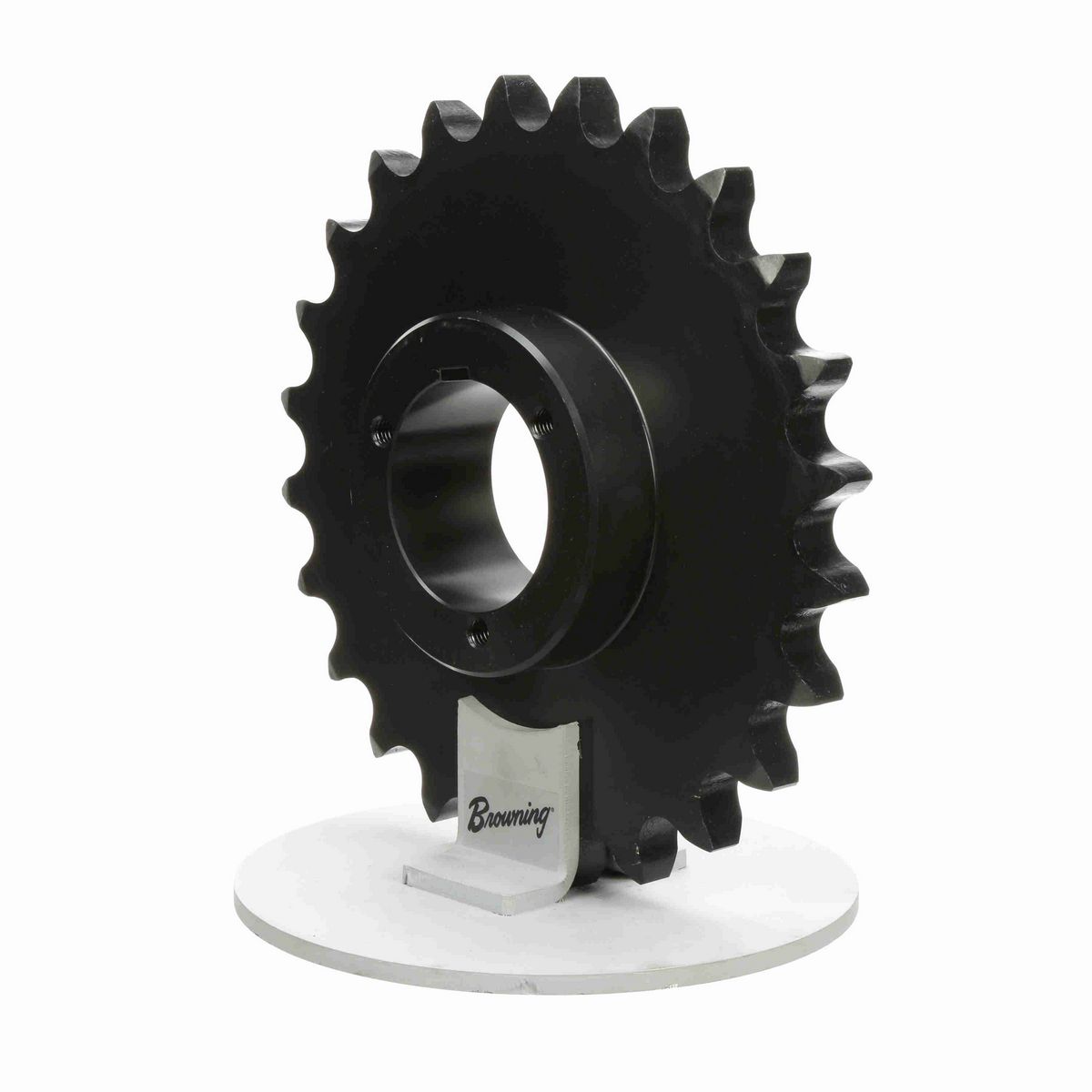

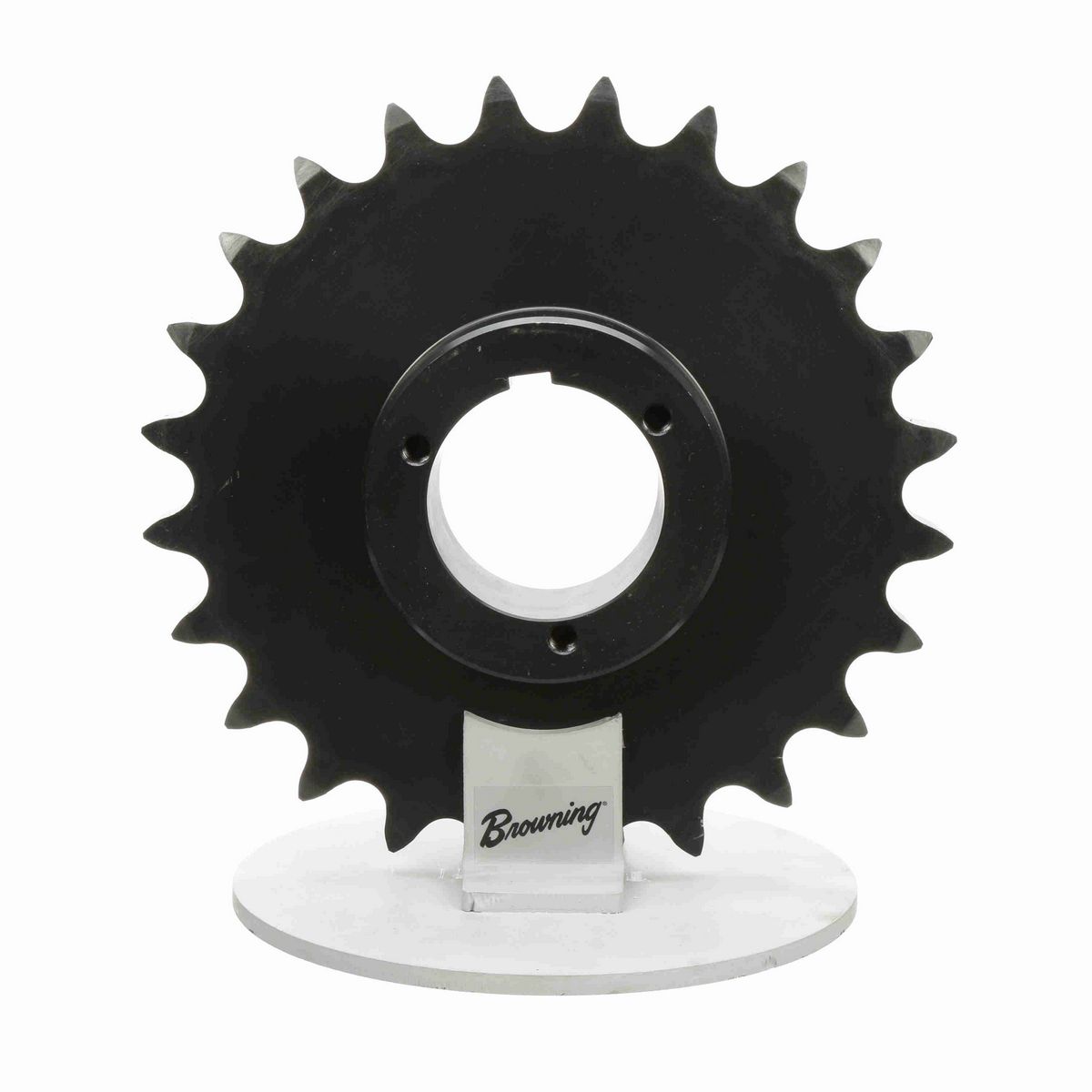

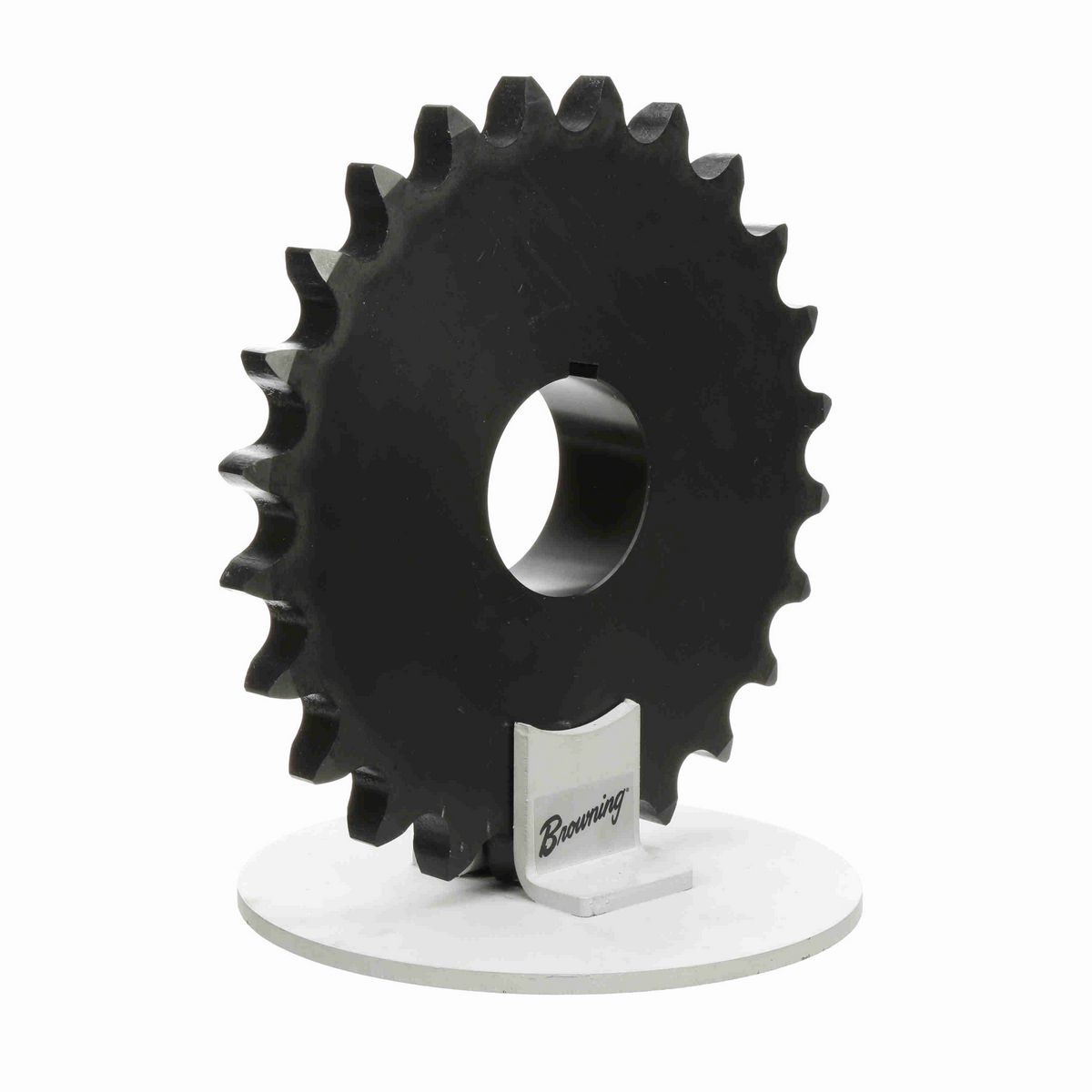

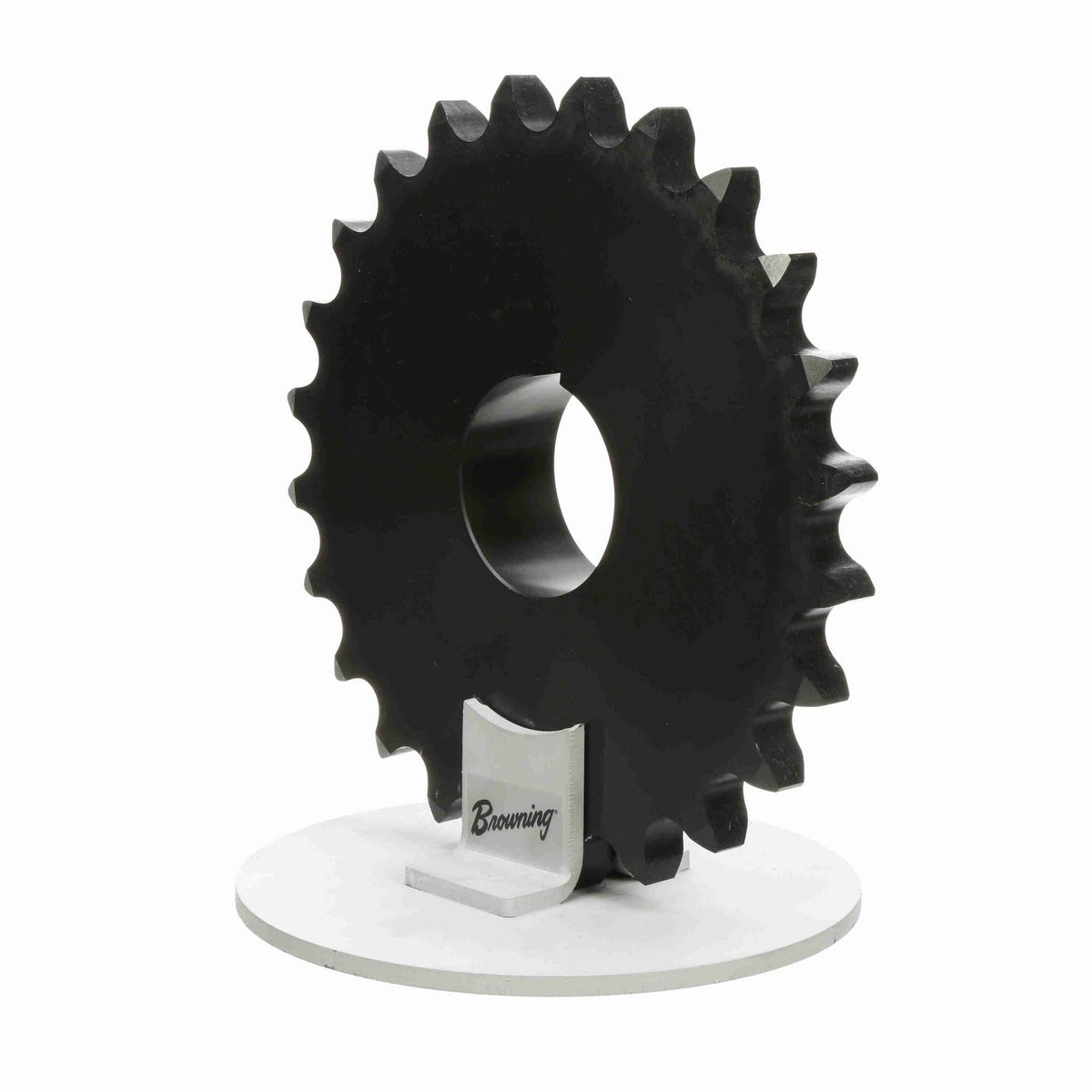

Product Type	Bushed Roller Chain Sprocket
Chain Used	No. 100, 1-1/4 in. Pitch ANSI Chain
Bushing Used	Split Taper
Material	Steel, Hardened Teeth
Overall Length (in)	2.828125 in
Outside Diameter (in)	10.245 in
Bore Type	Bushed Bore
Number of Strands/Width	1
Hub Diameter (in)	4.125 in
Maximum Bore (in)	2.6875 in
Maximum Bore (mm)	65 mm
Minimum Bore (mm)	18 mm
Pitch Type	Single
Number of Hubs	1

General Specifications

UPC	662289296453
Weight	15.17 LB
Packaged Length	11.00 IN
Packaged Width	10.70 IN
Packaged Height	2.30 IN
HTC	8483.90.1050
Country of Origin	China
