• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

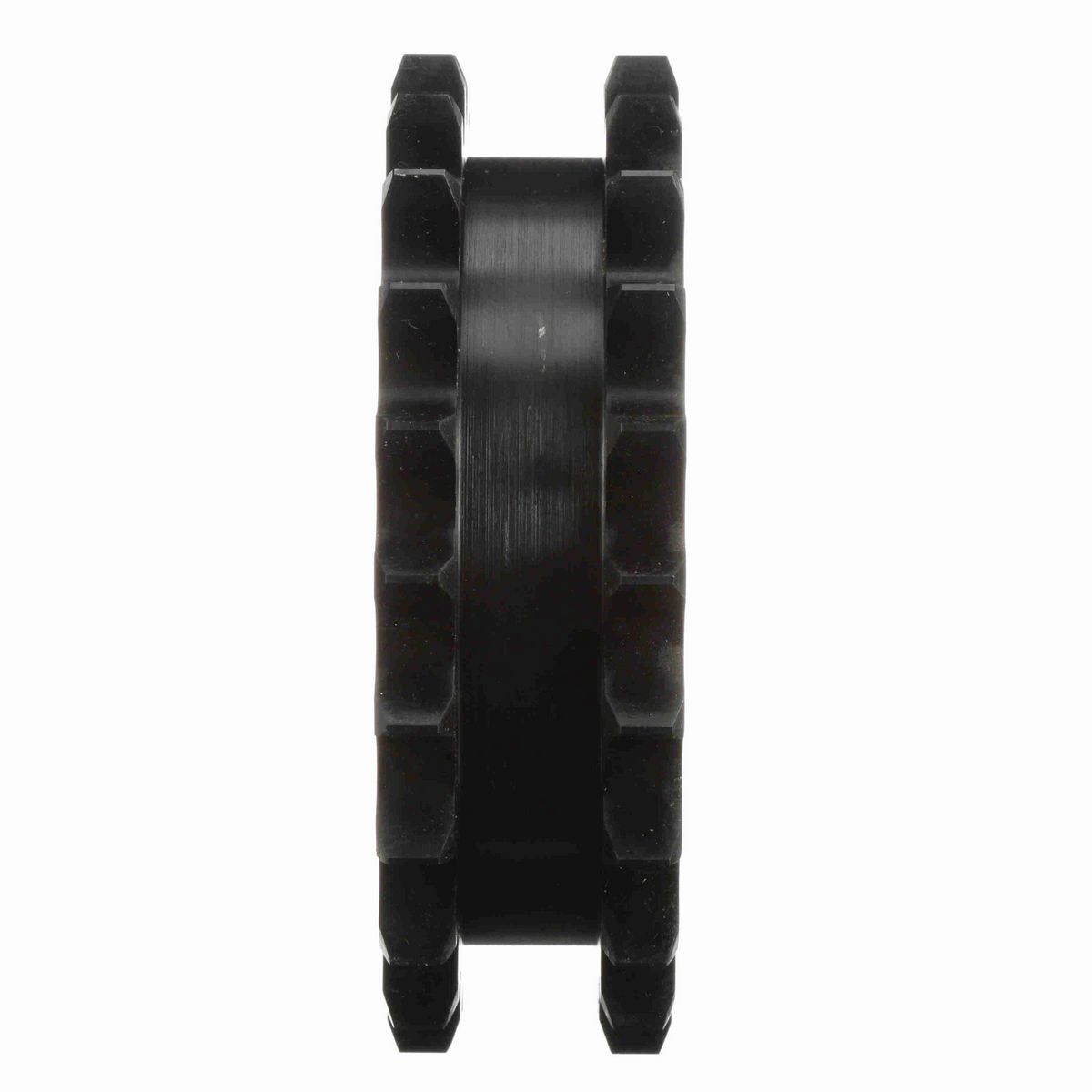

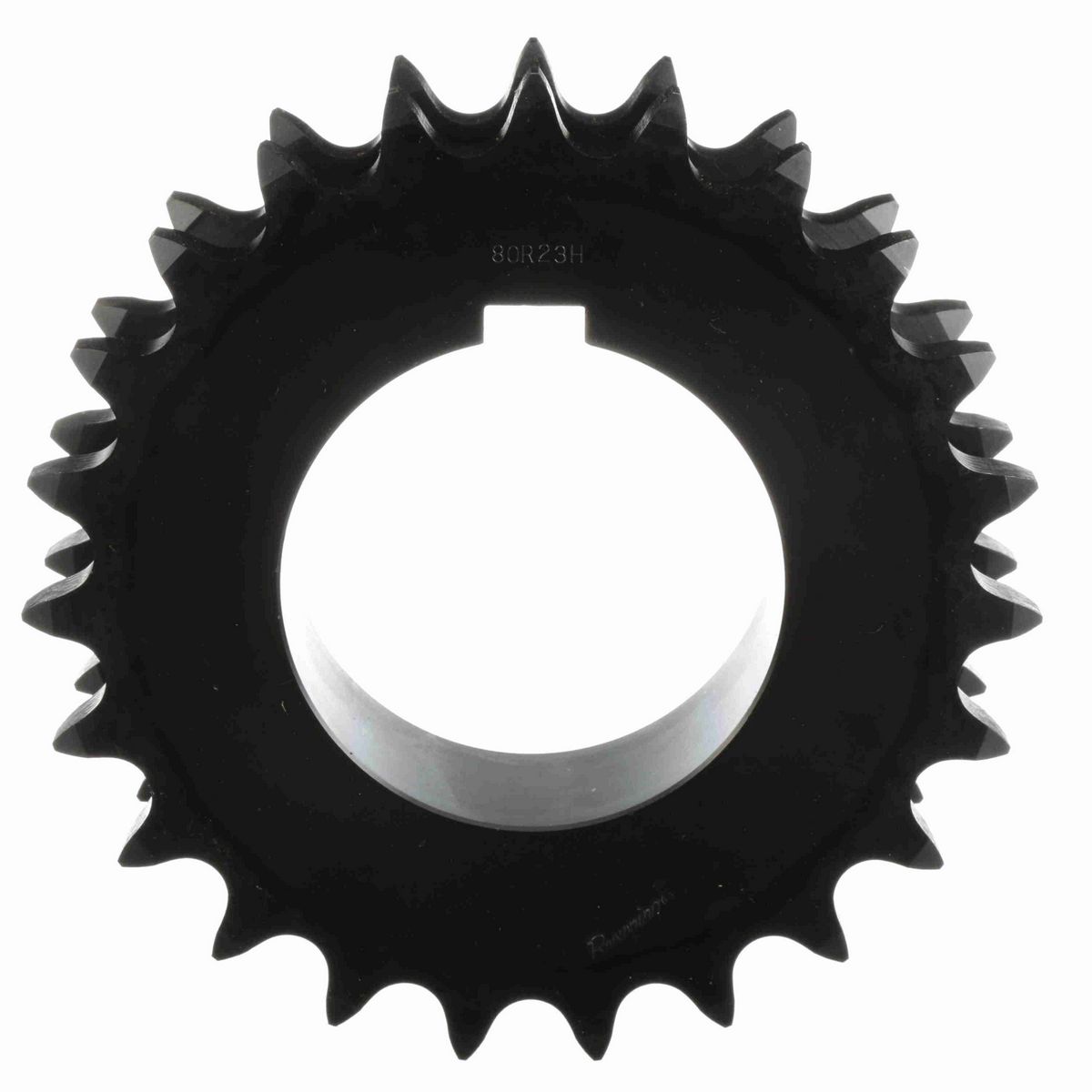

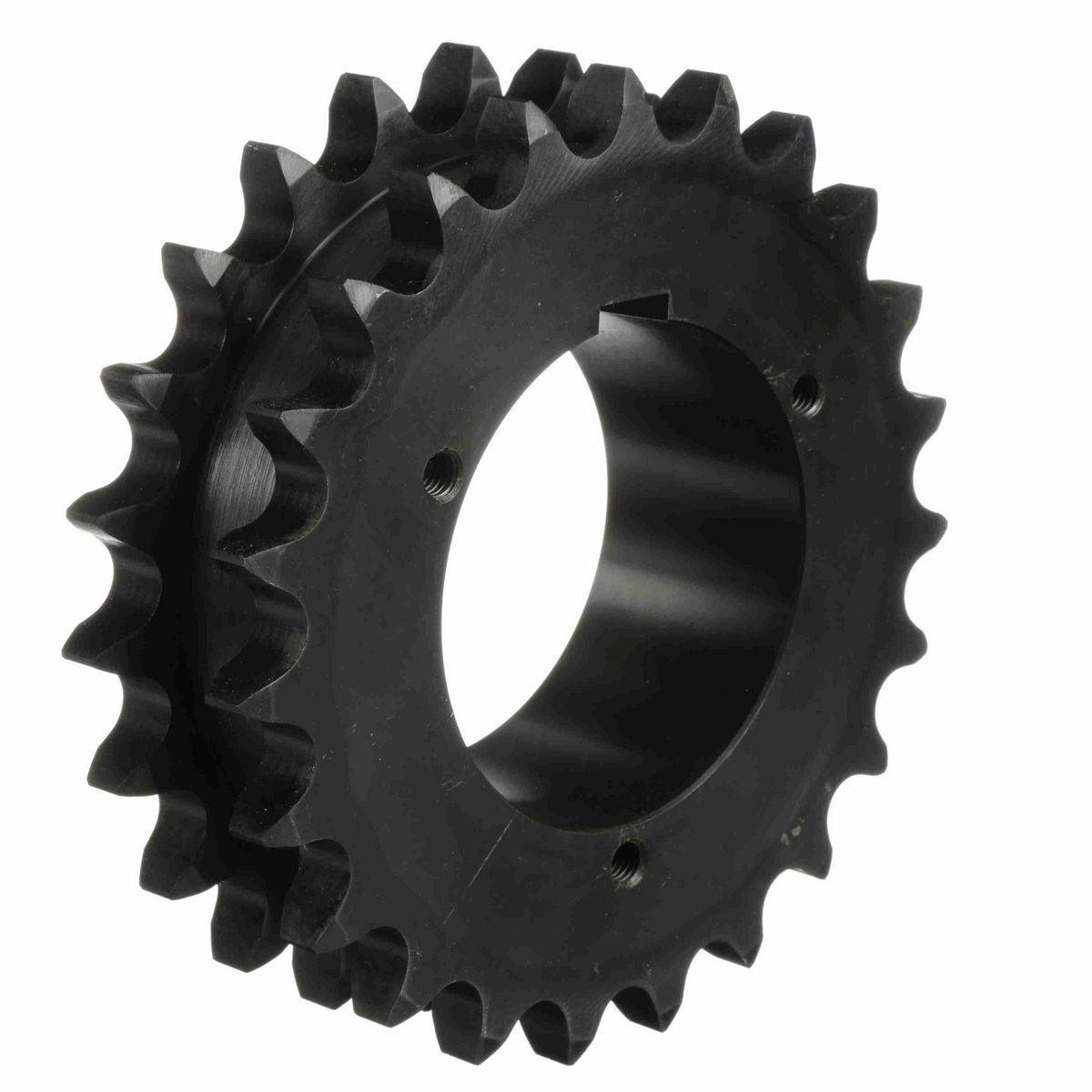

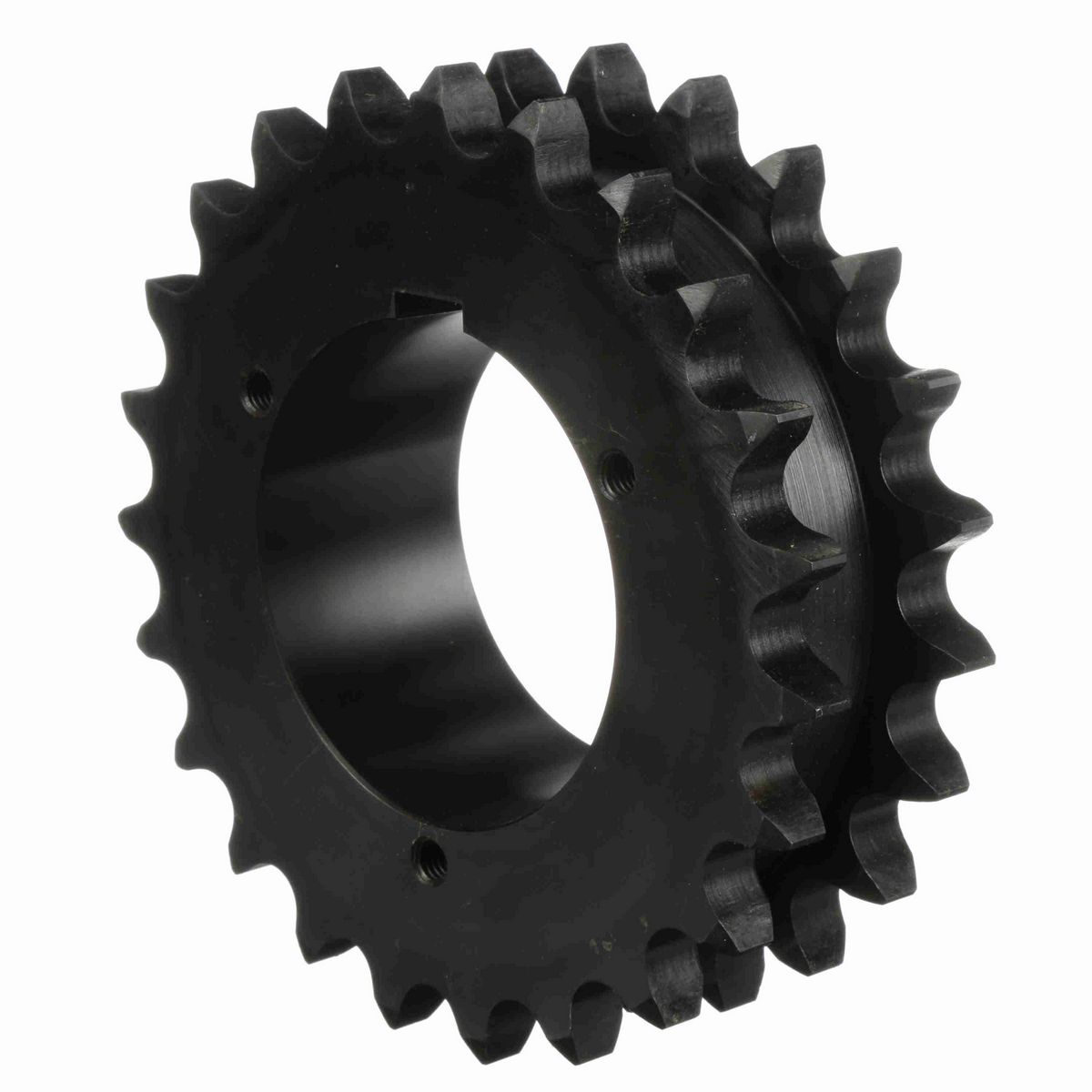

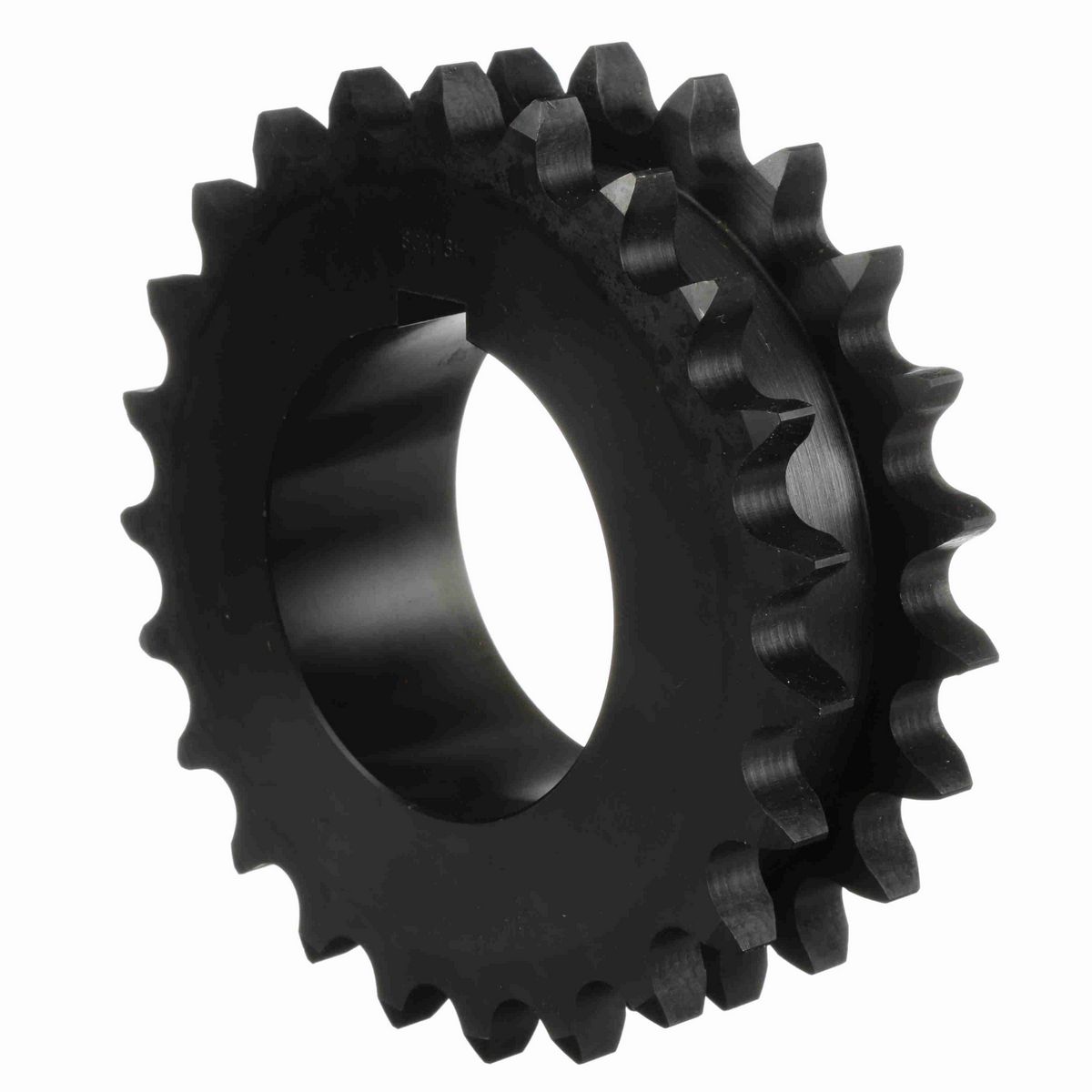

Product Type	Bushed Roller Chain Sprocket
Pitch Diameter (in)	7.344 in
Chain Pitch (in)	1 in
Material	Steel
Bushing Used	Split Taper
Min Bore (in)	1.125 in
Number of Teeth	23
Max Bore (in)	3.75 in
Chain Used	No. 80, 1 in. Pitch ANSI Chain
Bore Type	Bushed Bore
Overall Length (in)	3.34375 in
Outside Diameter (in)	7.876 in
Number of Strands/Width	2
Tooth Width (in)	0.575 in
Length Through Bore (in)	2.203125 in
Hub Diameter (in)	5.375 in
Hardened Teeth	Yes
Pitch Type	Single
Overall Width (in)	3.34375 in

General Specifications

UPC	662289138524
Weight	14.52 LB
Packaged Length	10.50 IN
Packaged Width	10.50 IN
Packaged Height	2.60 IN
HTC	8483.90.1050
Country of Origin	China
