• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Min Bore (in)	0.5 in
Number of Teeth	19
Pitch Diameter (in)	3.7972 in
Chain Used	No. 50, 5/8 in. Pitch ANSI Chain
Material	Steel

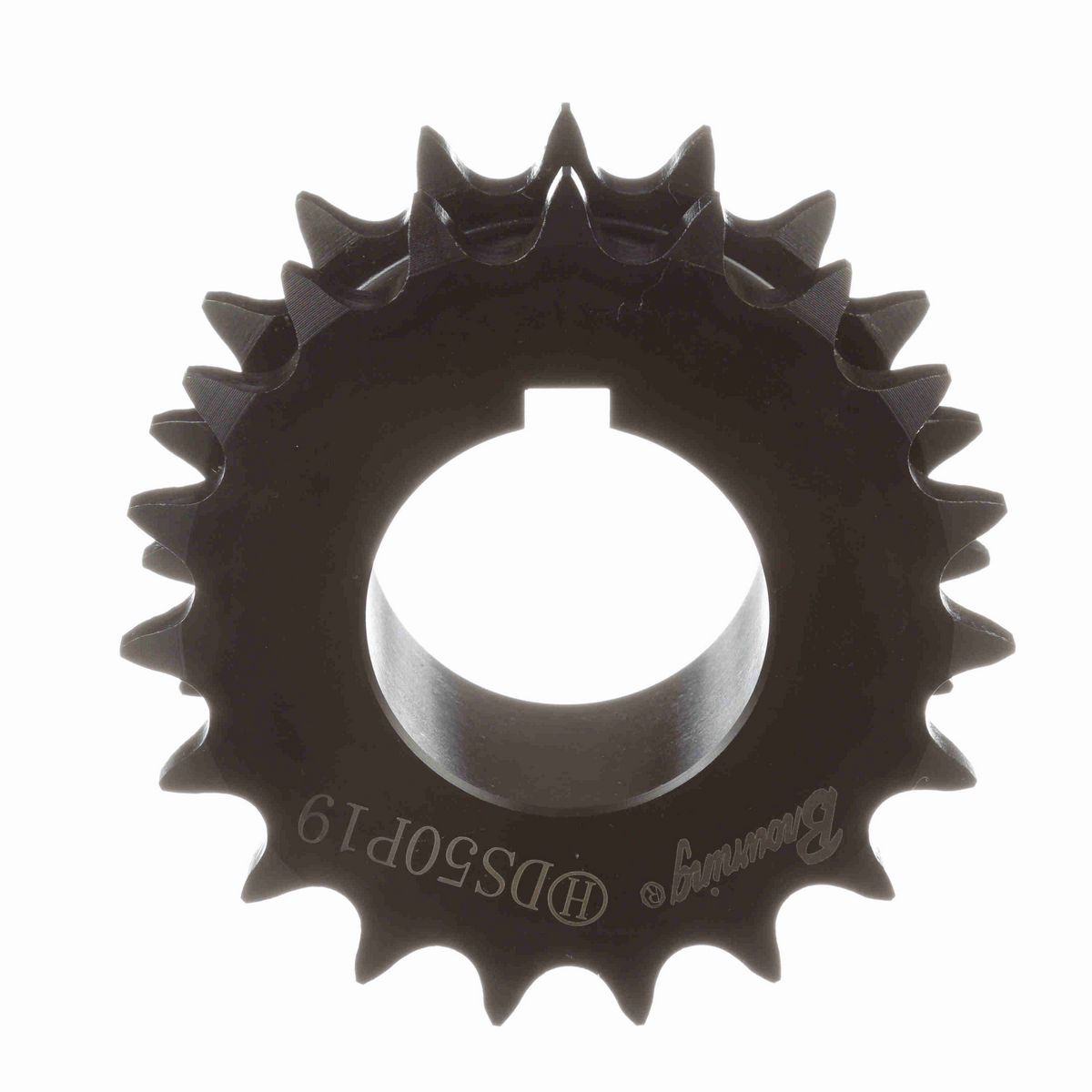

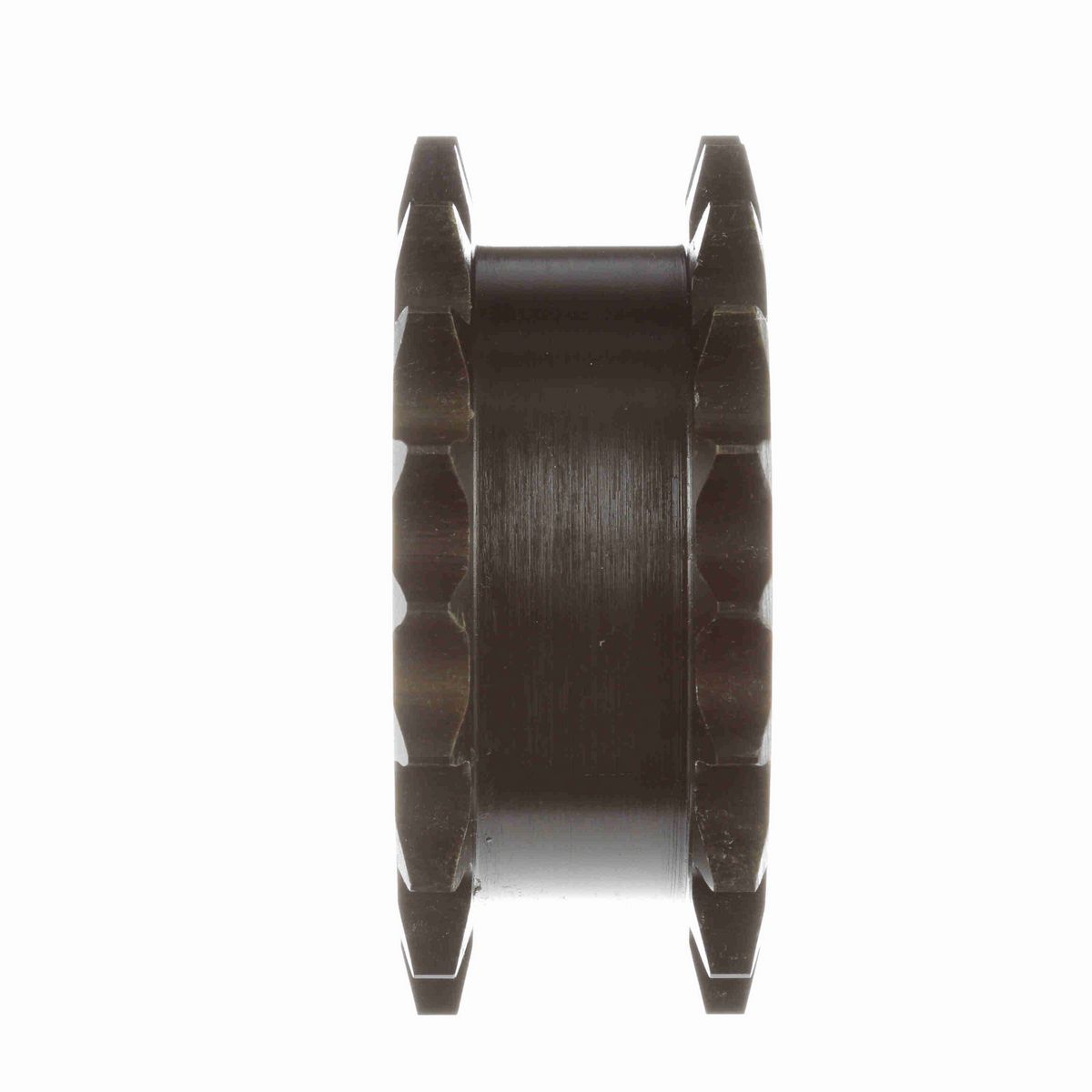

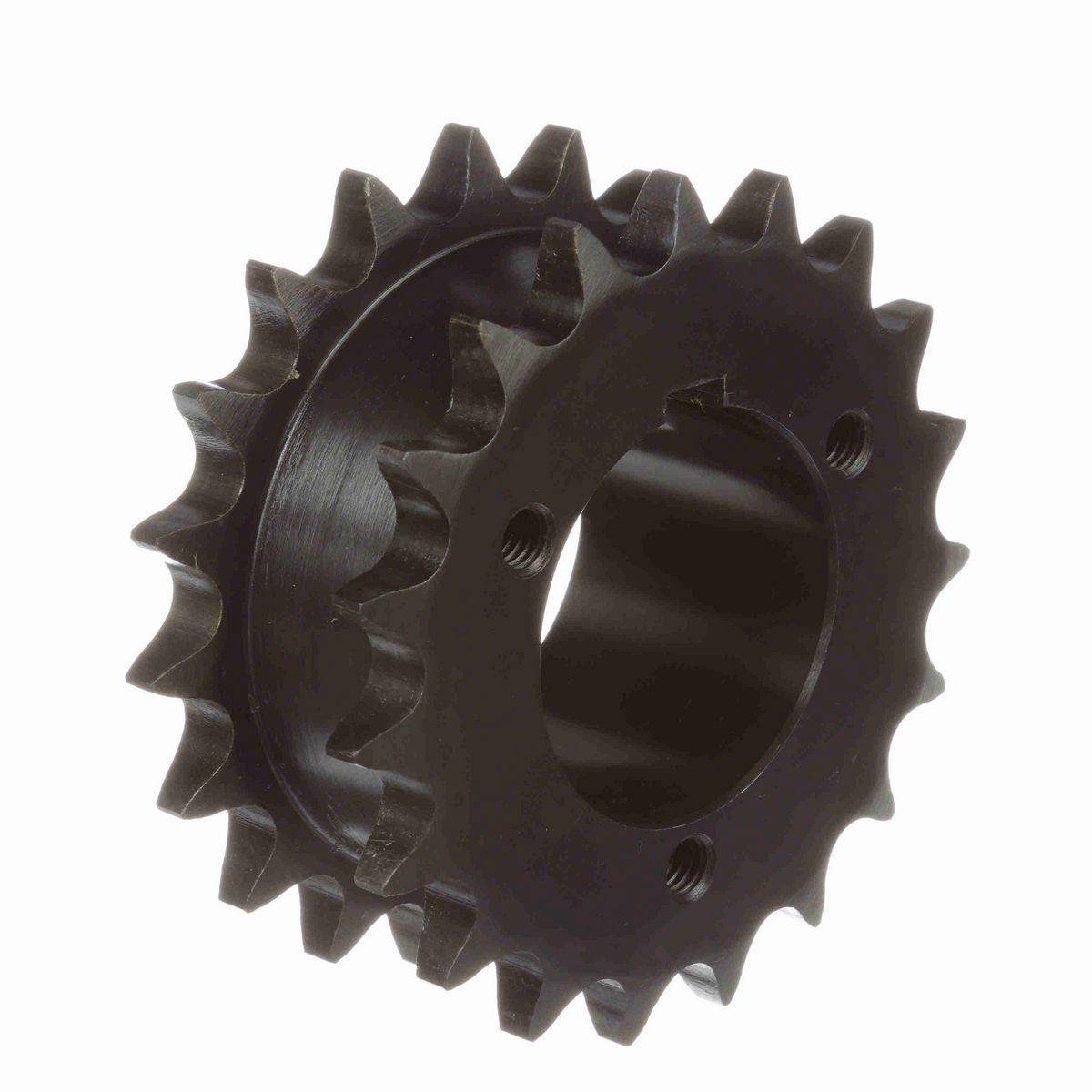

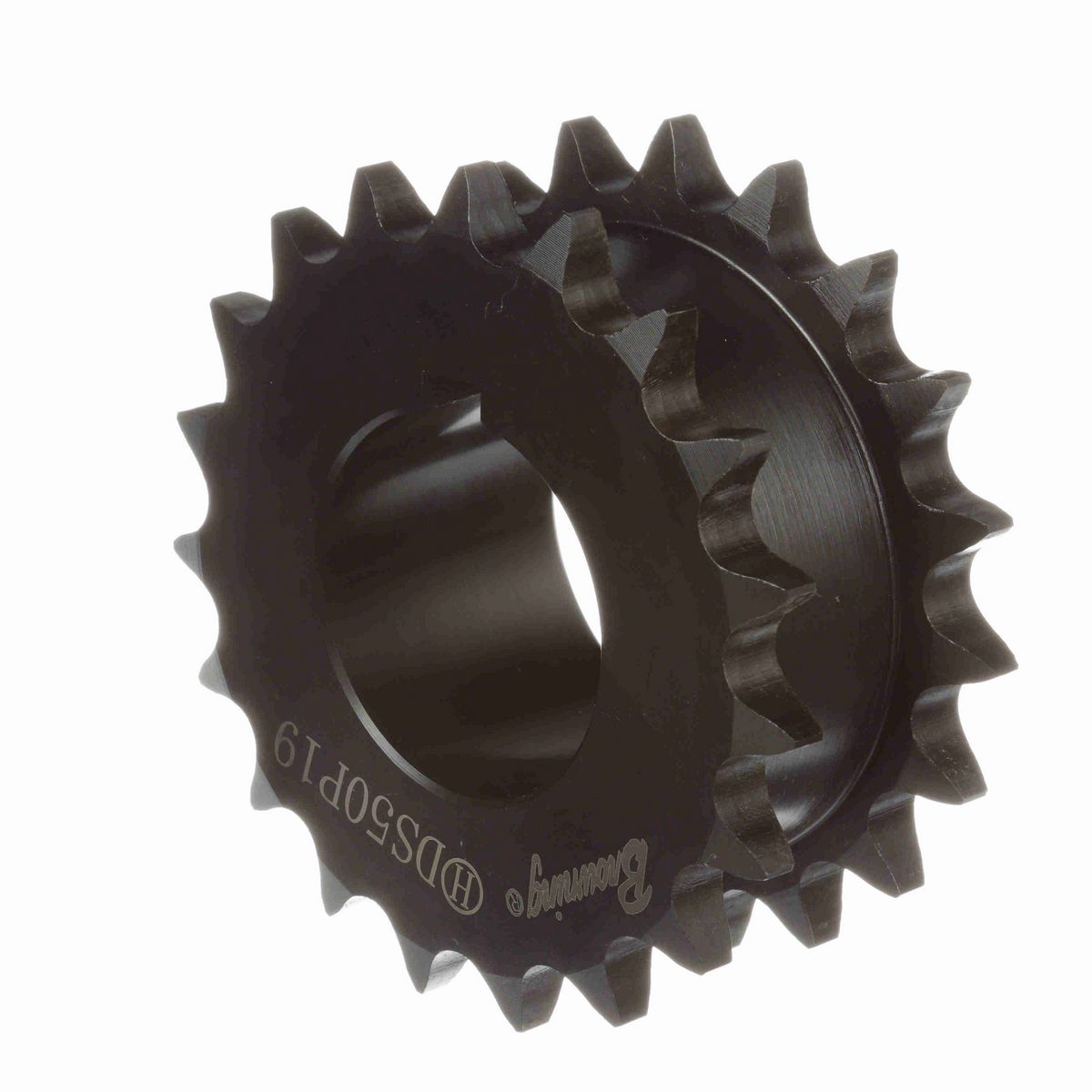

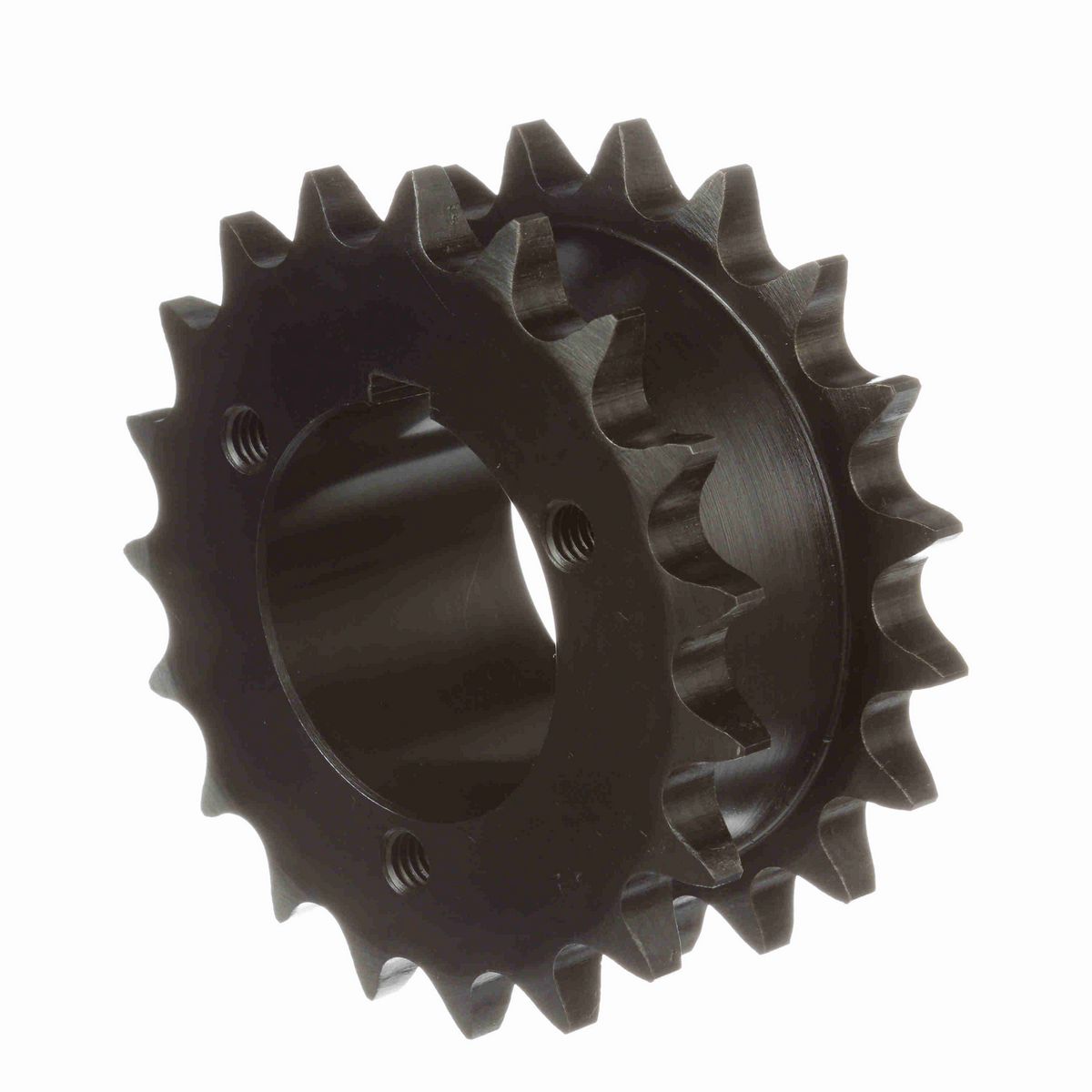

Product Type	Bushed Roller Chain Sprocket
Max Bore (in)	1.75 in
Chain Pitch (in)	0.625 in
Bushing Used	Split Taper
Bore Type	Bushed Bore
Outside Diameter (in)	4.12 in
Overall Length (in)	2.46875 in
Number of Strands/Width	2
Hub Diameter (in)	3 in
Pitch Type	Single
Hardened Teeth	Yes

General Specifications

UPC	662289178414
Weight	2.74 LB
Packaged Length	5.10 IN
Packaged Width	4.60 IN
Packaged Height	1.90 IN
HTC	8483.90.1050
Country of Origin	China
