• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Material	Steel
Number of Teeth	24
Pitch Diameter (in)	3.831 in
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Min Bore (in)	0.5 in
Chain Pitch (in)	0.5 in
Bushing Used	Split Taper
Max Bore (in)	1.75 in

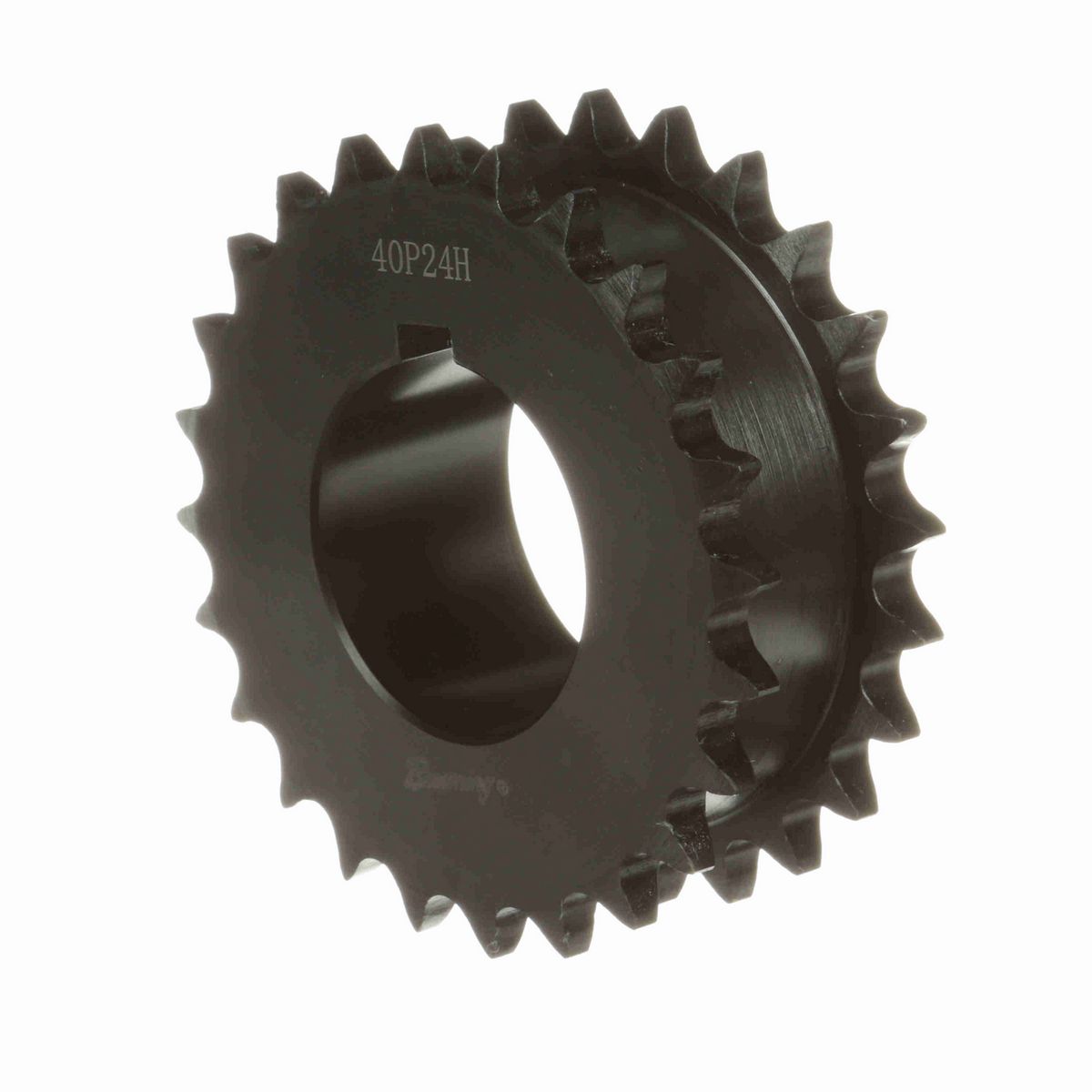

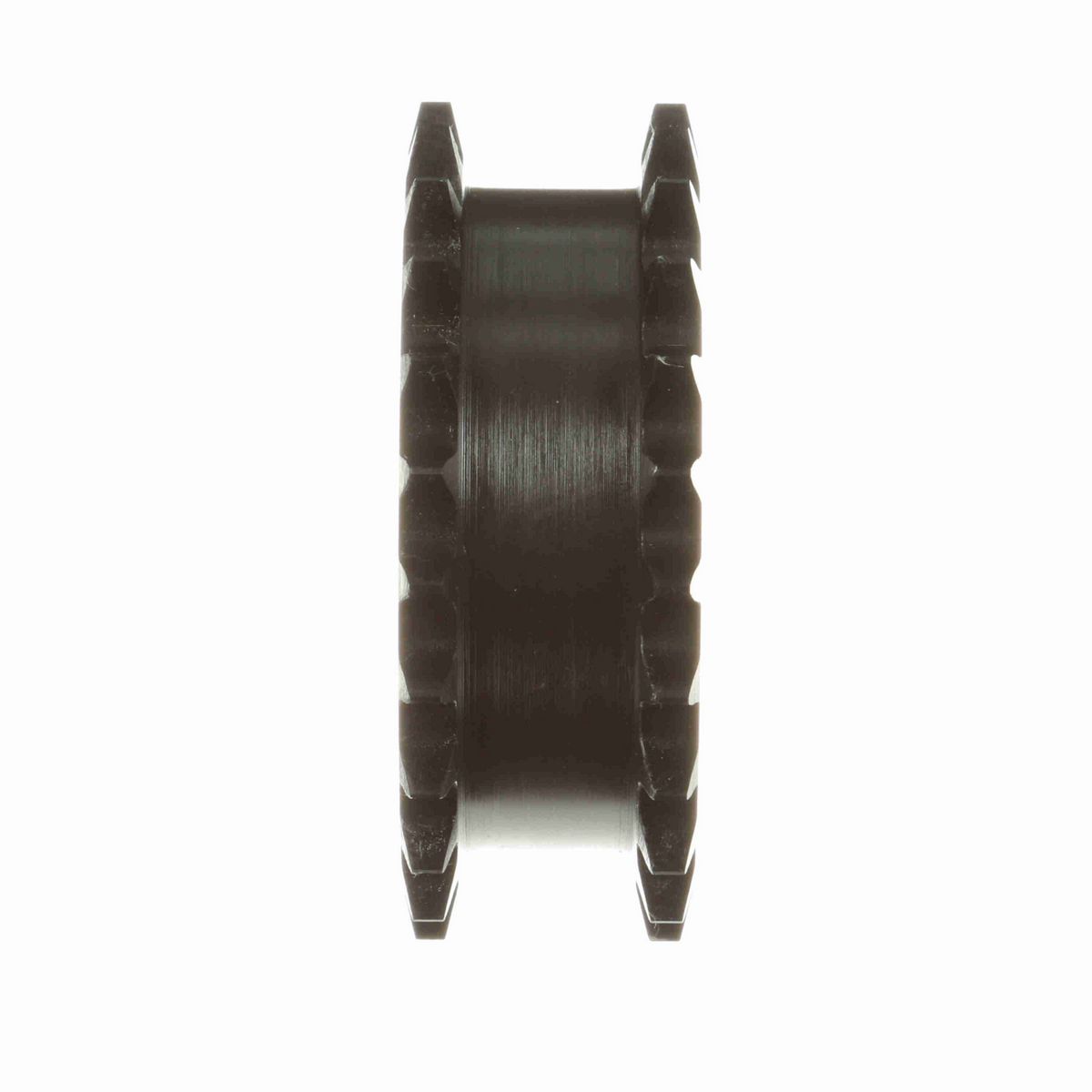

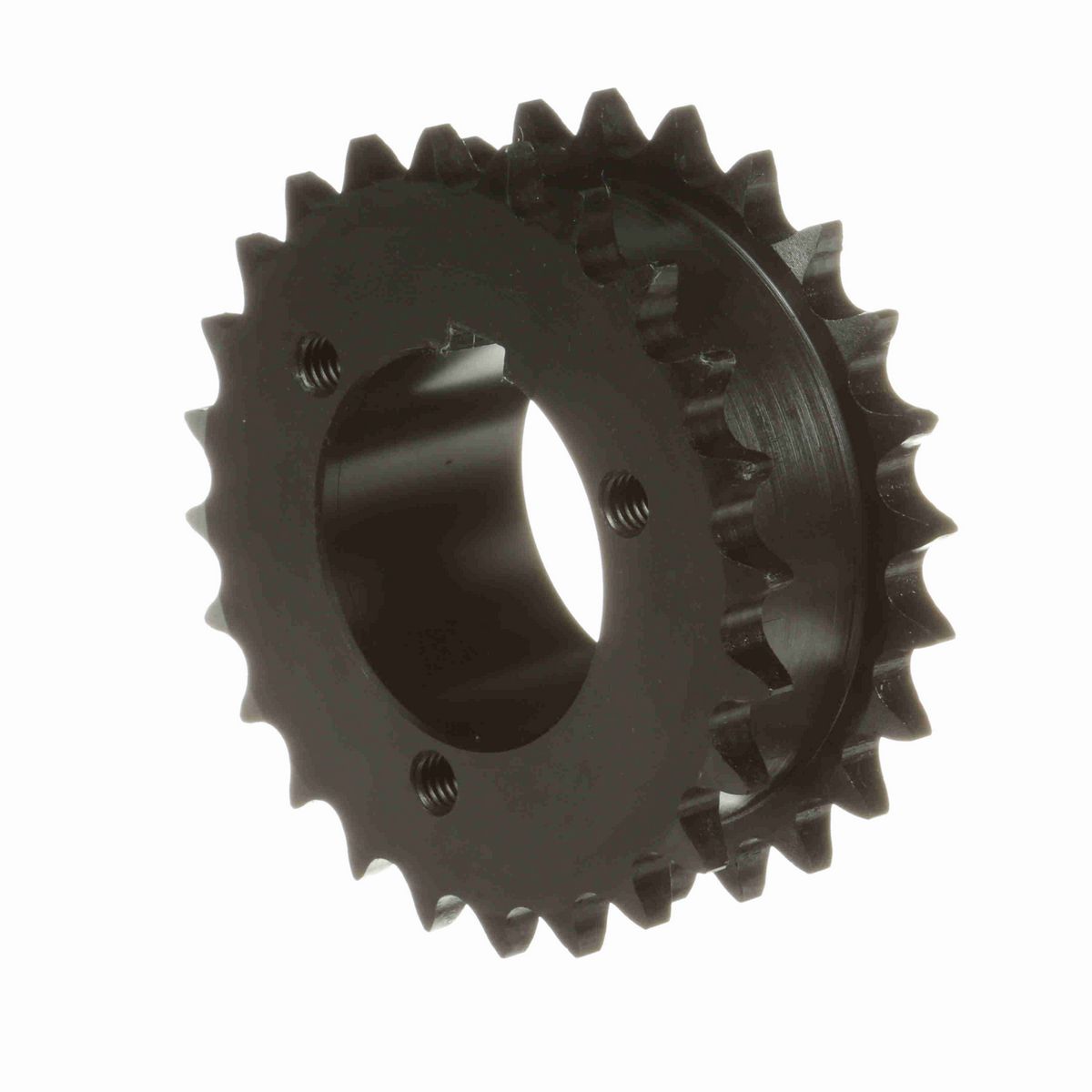

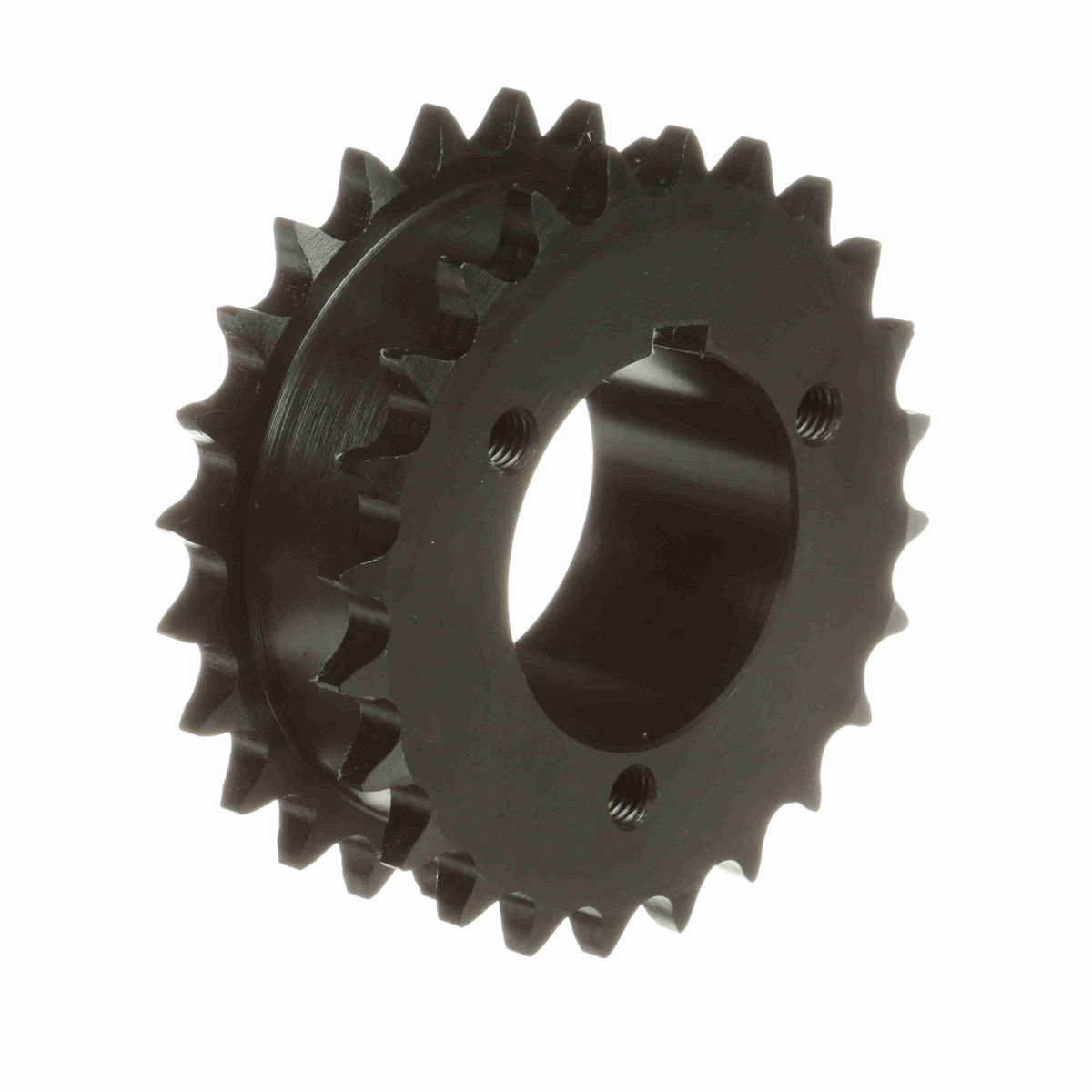

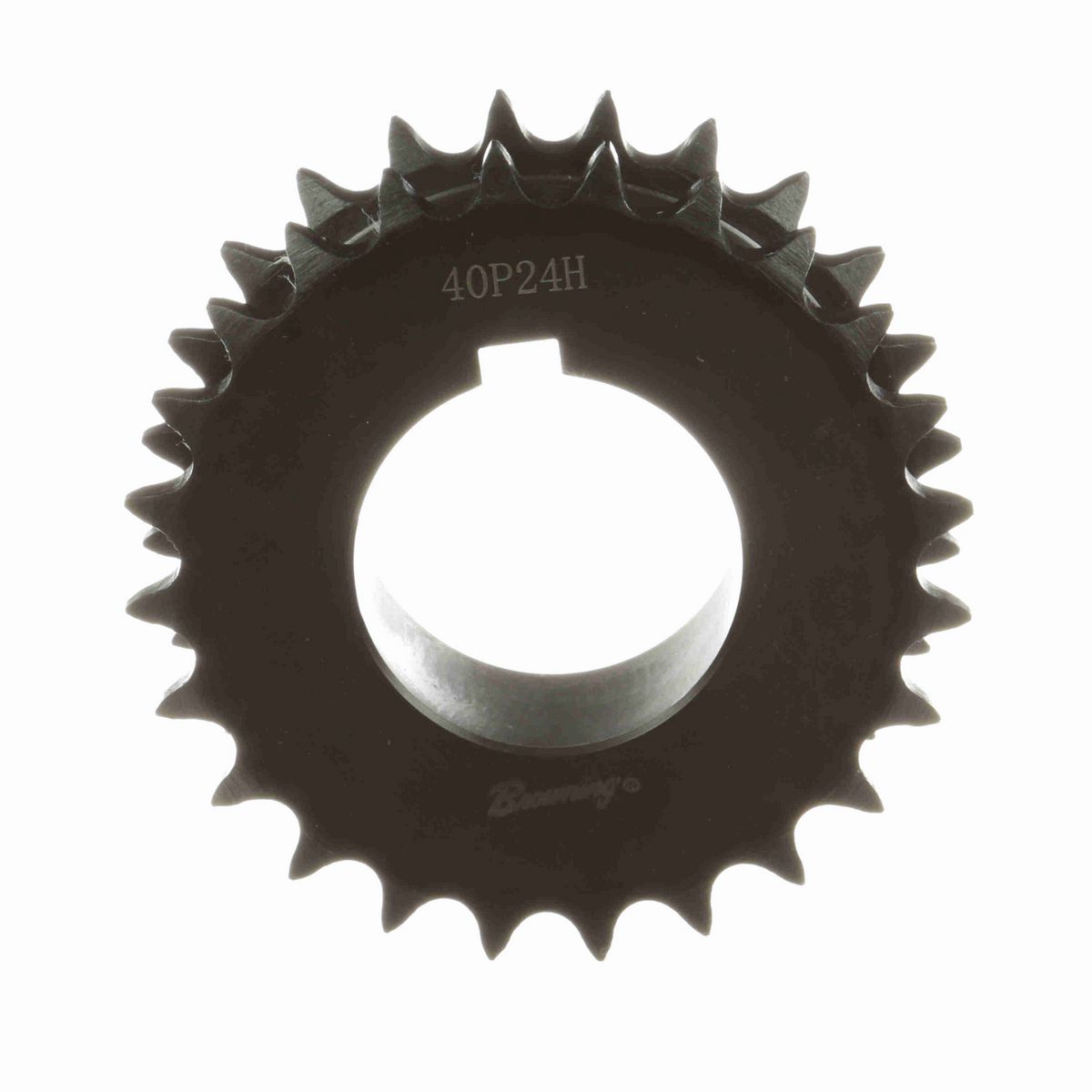

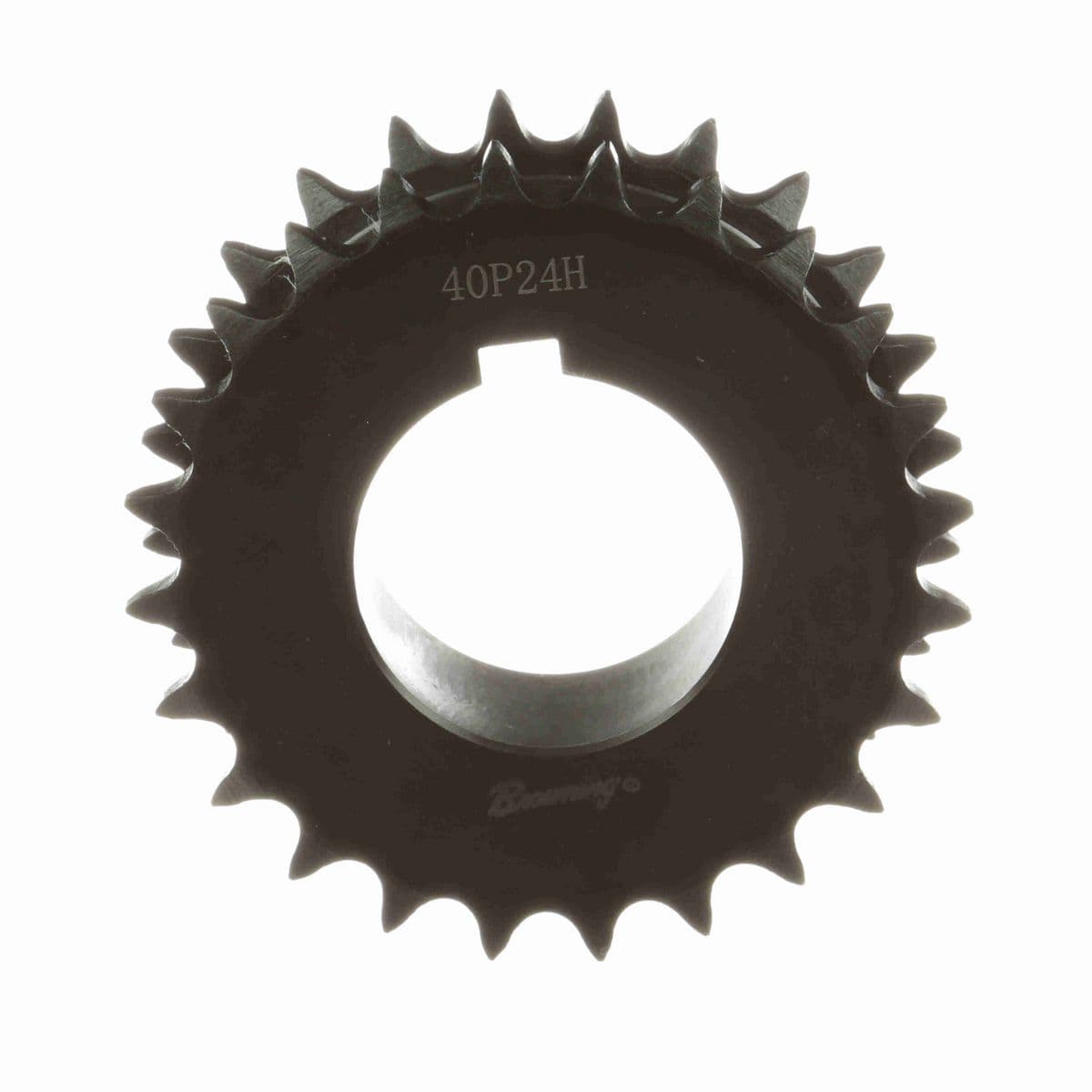

Product Type	Bushed Roller Chain Sprocket
Outside Diameter (in)	4.098 in
Length Through Bore (in)	1.9375 in
Hub Diameter (in)	3 in
Bore Type	Bushed Bore
Sprocket Material	Steel
Hub Type	Bushed
Overall Length (in)	2.21875 in
Tooth Width (in)	0.284 in
Number of Strands/Width	2
Hardened Teeth	Yes
Hub Projection (in)	0.625 in
Pitch Type	Single
Overall Width (in)	2.219 in
Max Bushing Bore (in)	1.75 in
Min Bushing Bore (in)	0.5 in

General Specifications

UPC	662289118366
Weight	2.58 LB
Packaged Length	4.56 IN
Packaged Width	4.56 IN
Packaged Height	1.56 IN
HTC	8483.90.1050
Country of Origin	United States of America
