• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Max Bore (in)	3.75 in
Material	Steel, Hardened Teeth
Bushing Used	Split Taper
Chain Used	No. 80, 1 in. Pitch ANSI Chain

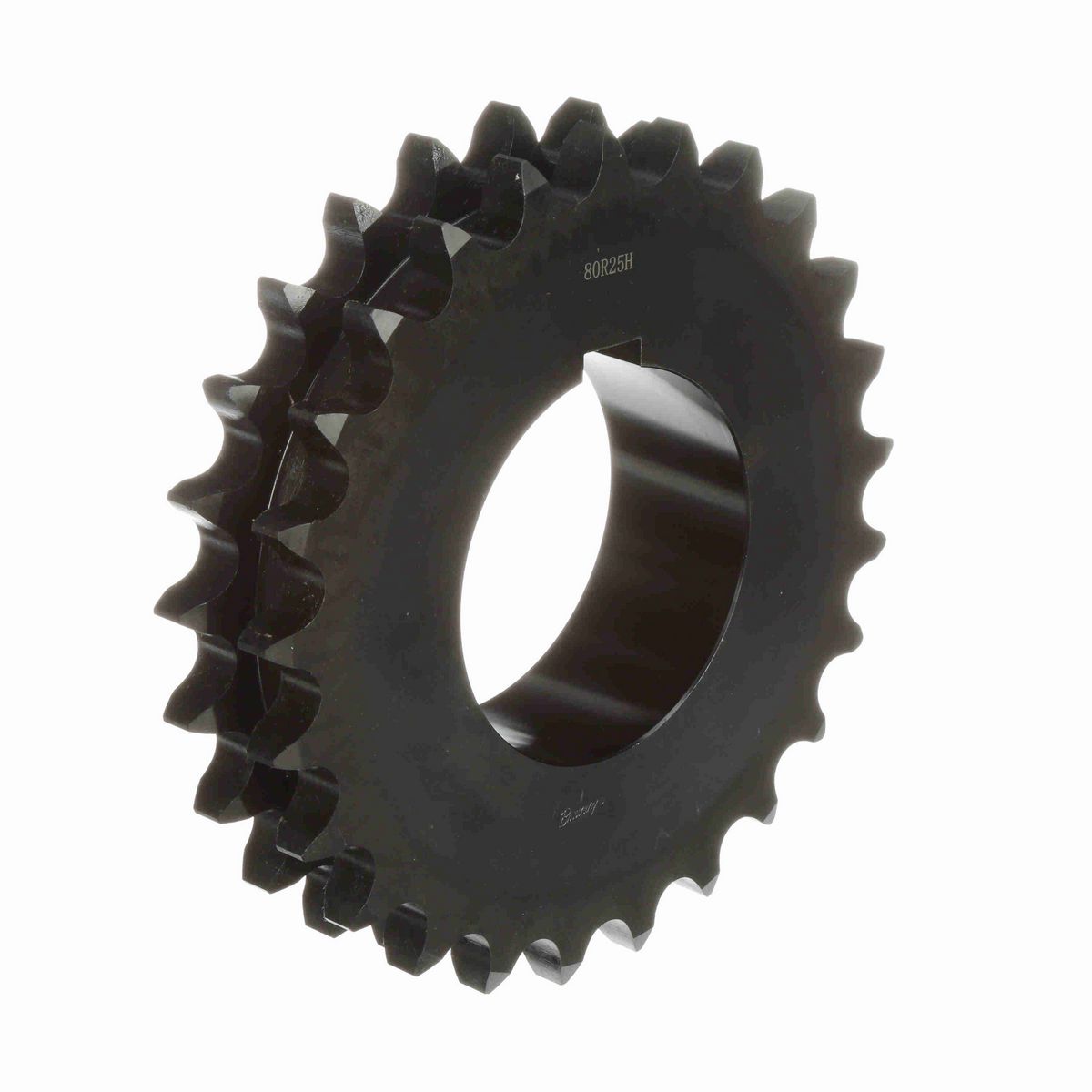

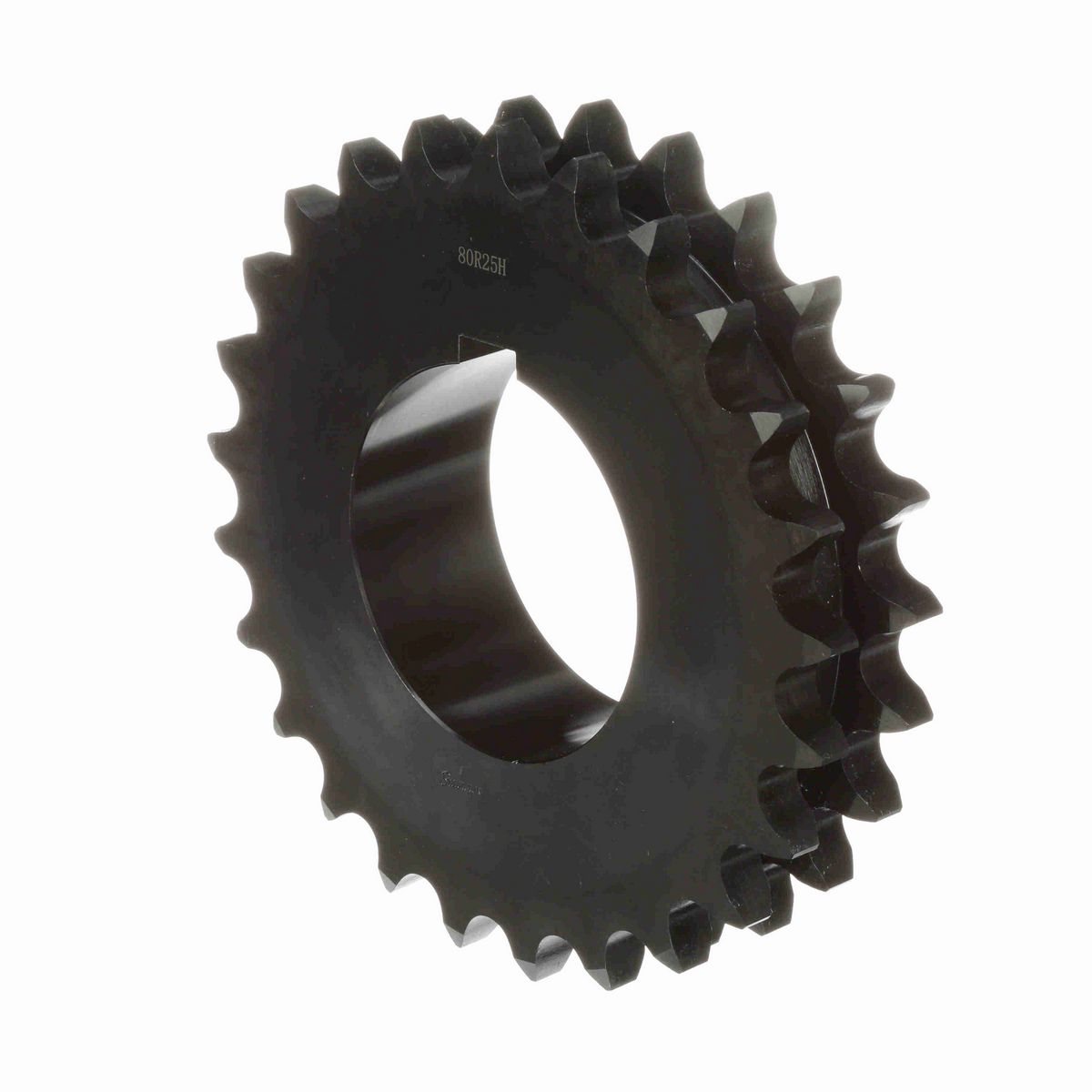

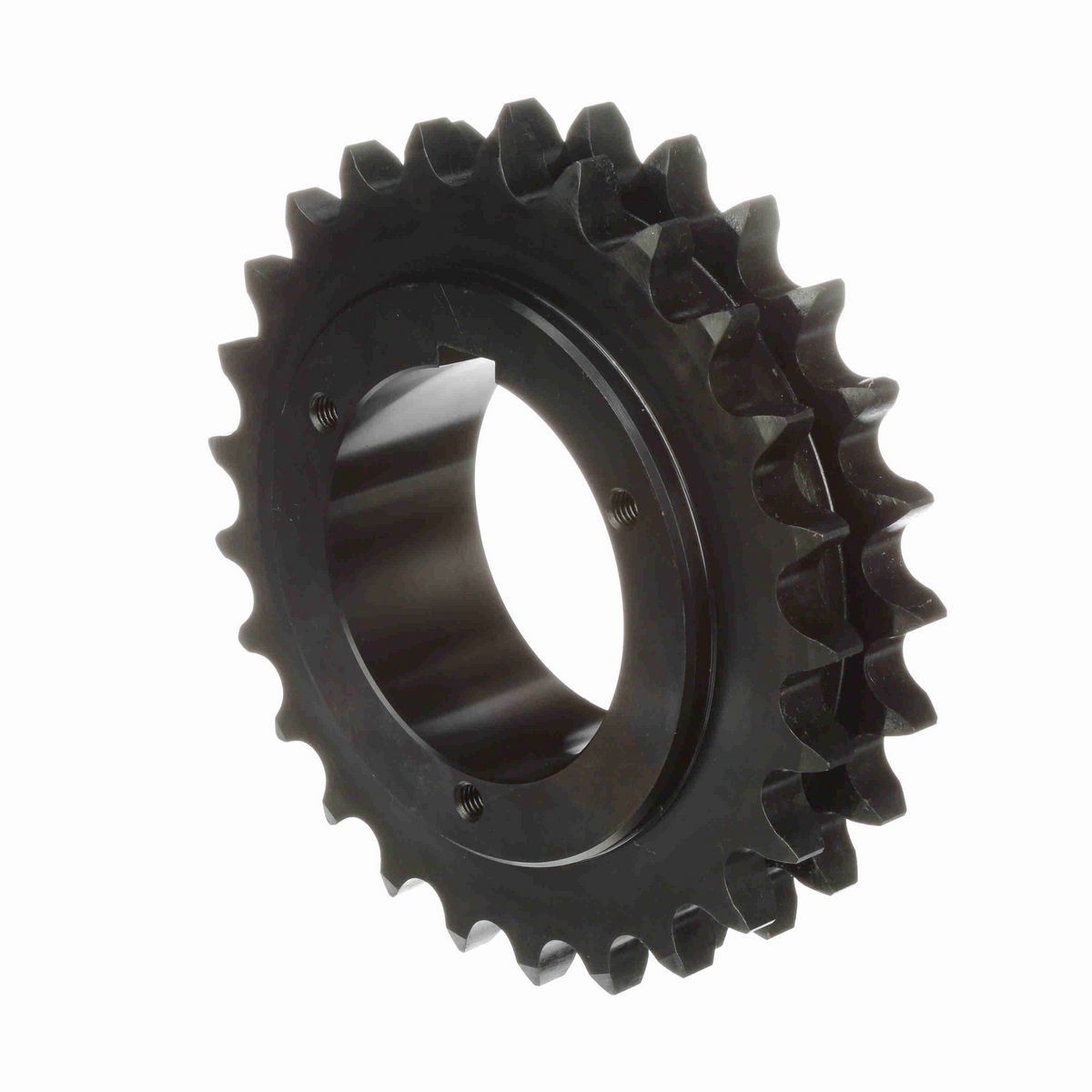

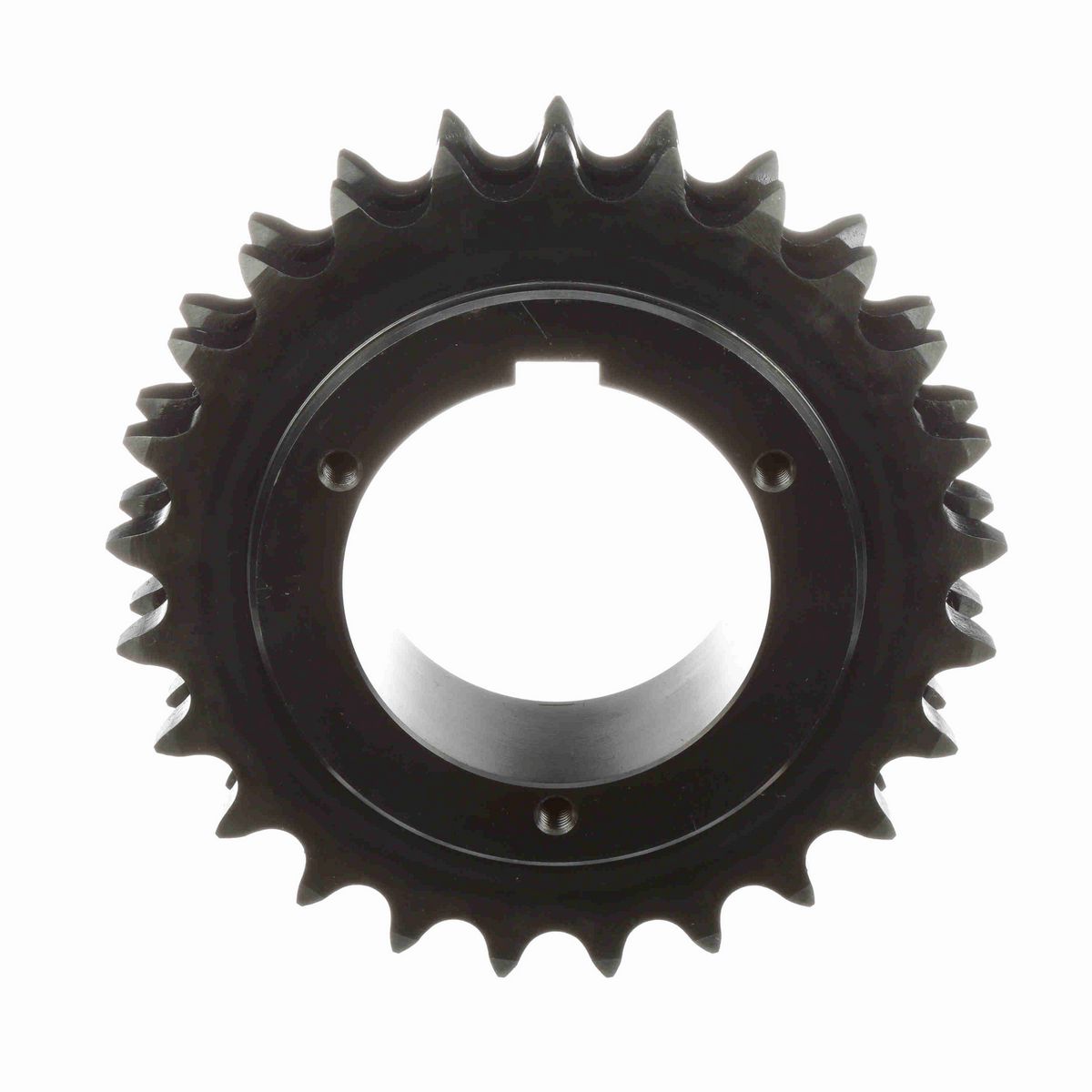

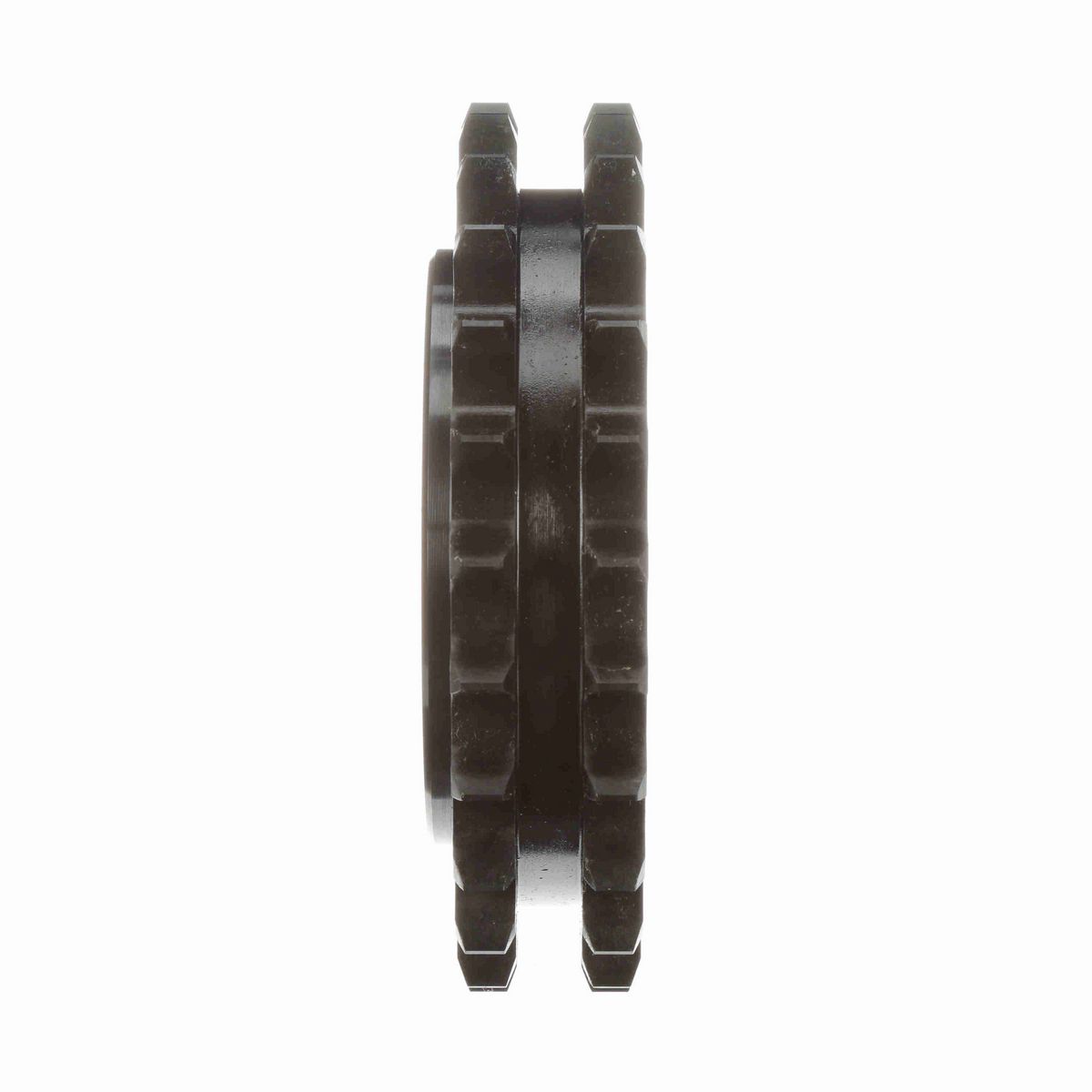

Product Type	Bushed Roller Chain Sprocket
Number of Teeth	25
Chain Pitch (in)	1 in
Pitch Diameter (in)	7.9787 in
Min Bore (in)	1.125 in
Bore Type	Bushed Bore
Overall Length (in)	3.141375 in
Outside Diameter (in)	8.516 in
Number of Strands/Width	2
Hub Diameter (in)	5.375 in
Maximum Bore (in)	3.75 in
Maximum Bore (mm)	95 mm
Minimum Bore (mm)	28 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289169771
Weight	16.53 LB
Packaged Length	10.60 IN
Packaged Width	10.30 IN
Packaged Height	2.40 IN
HTC	8483.90.1050
Country of Origin	China
