• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Material	Steel

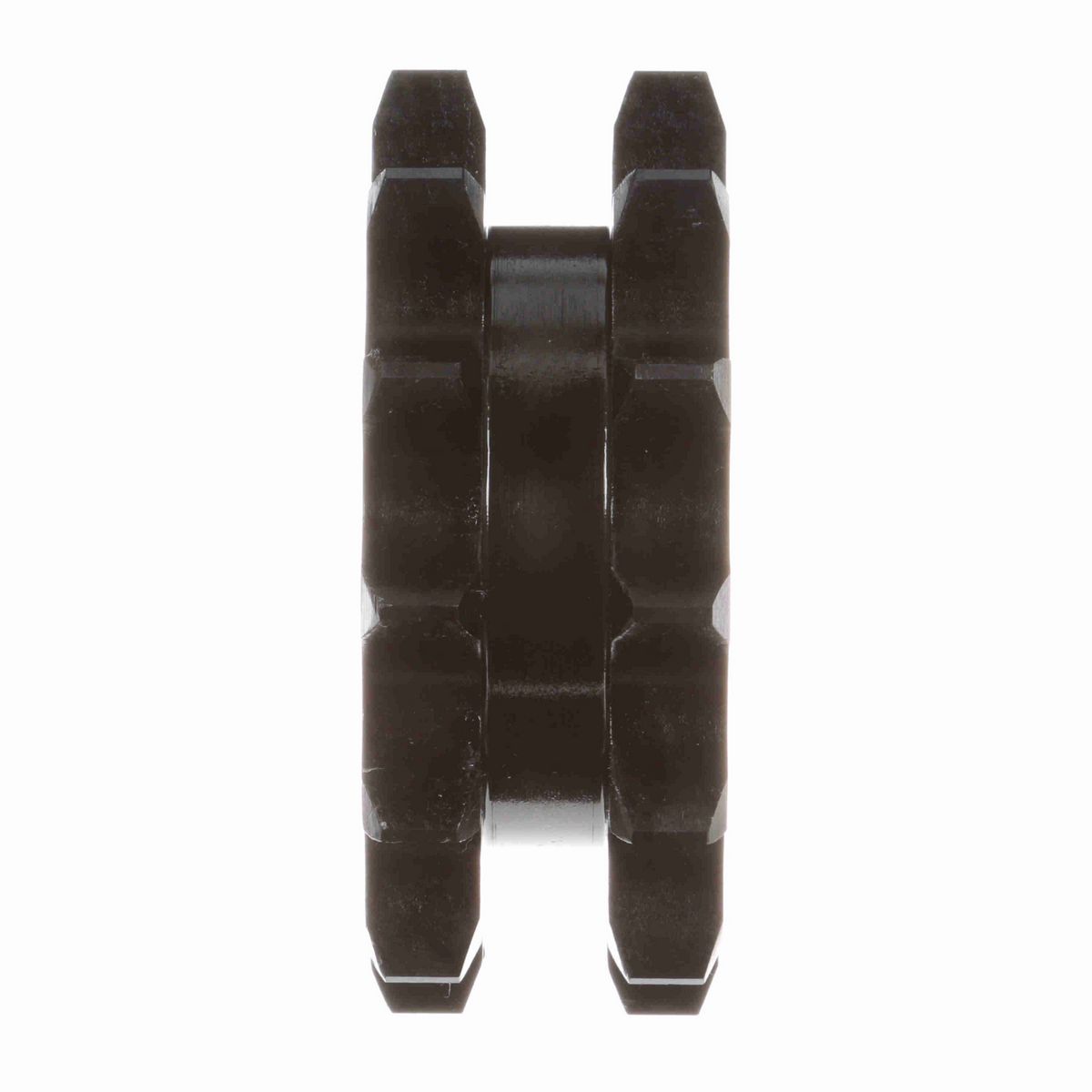

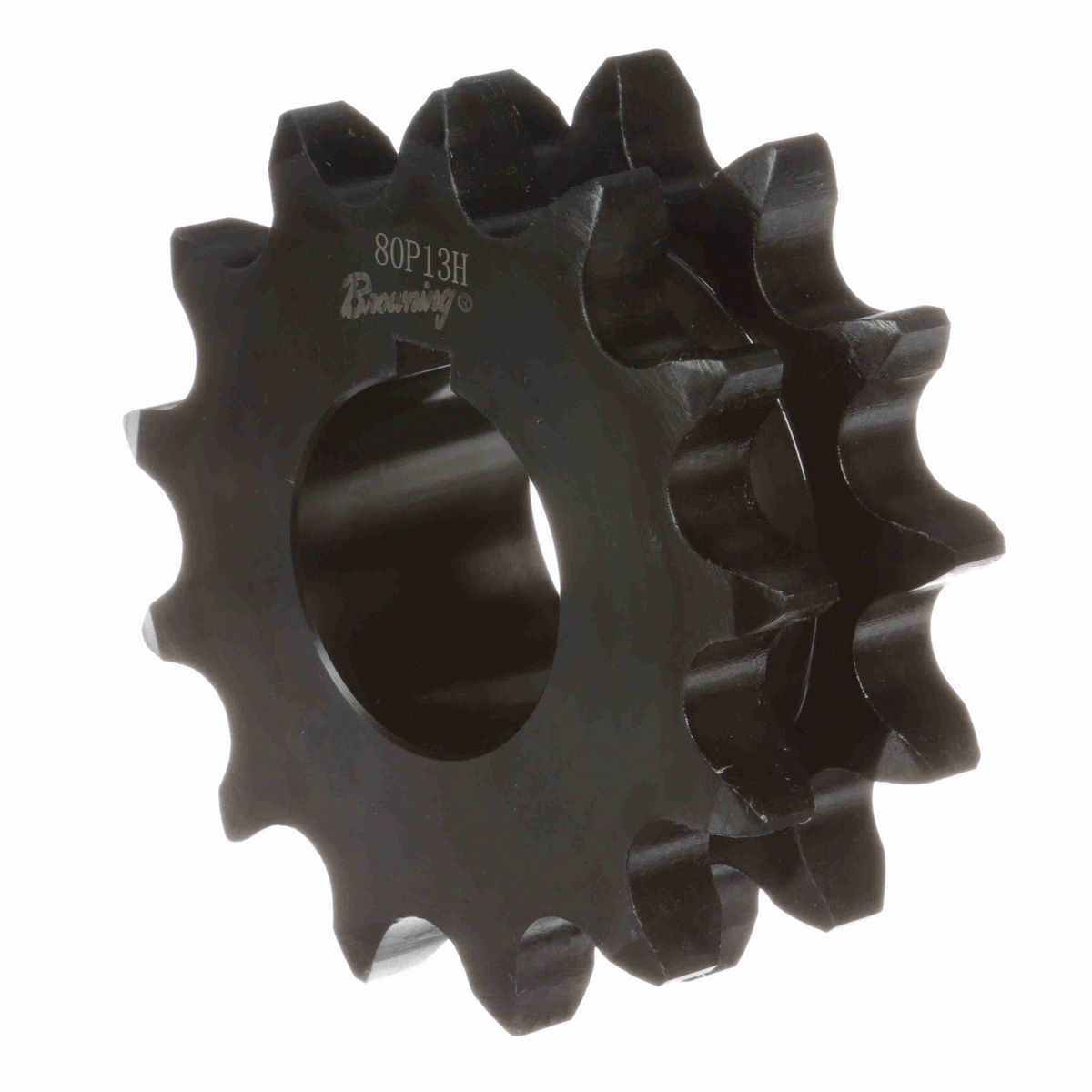

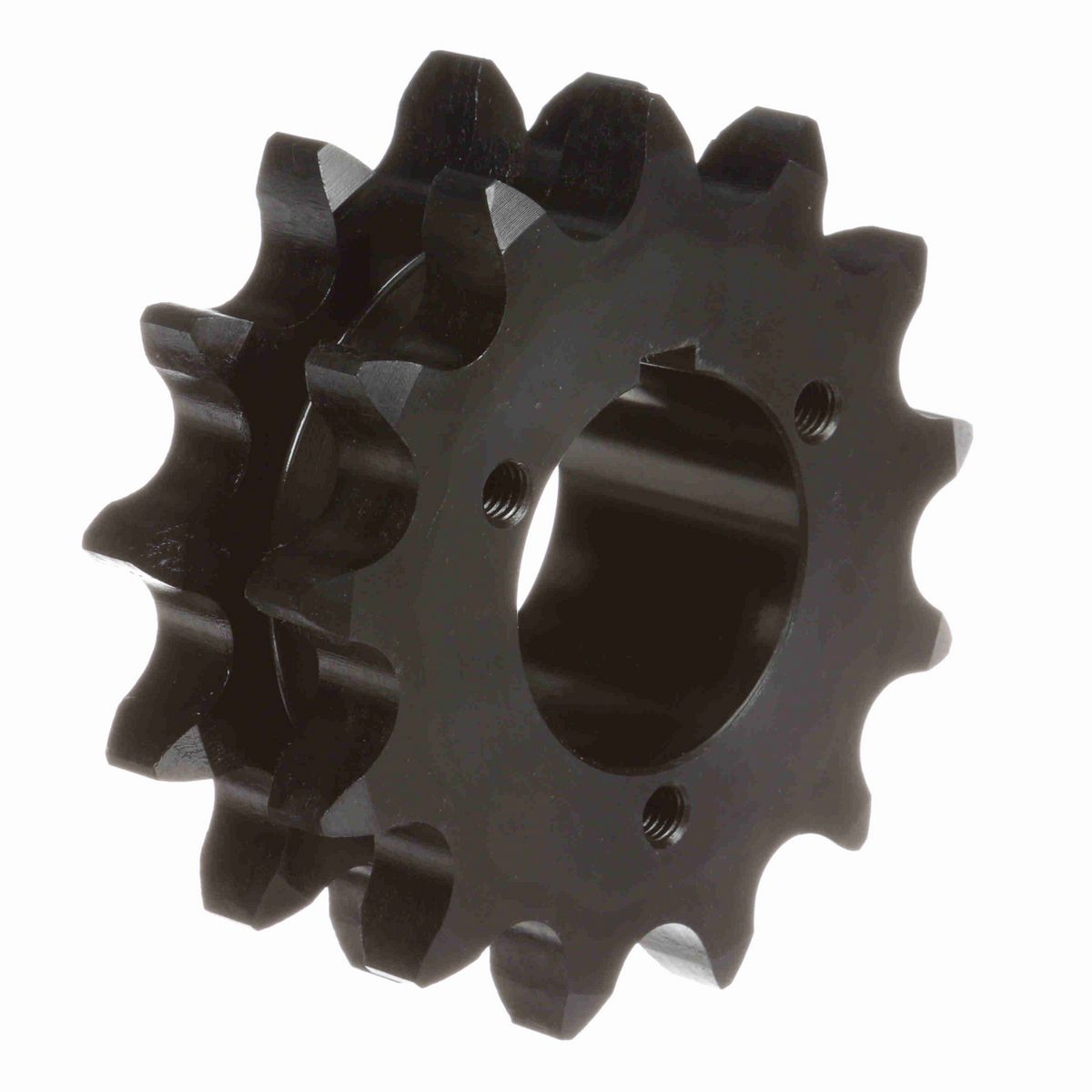

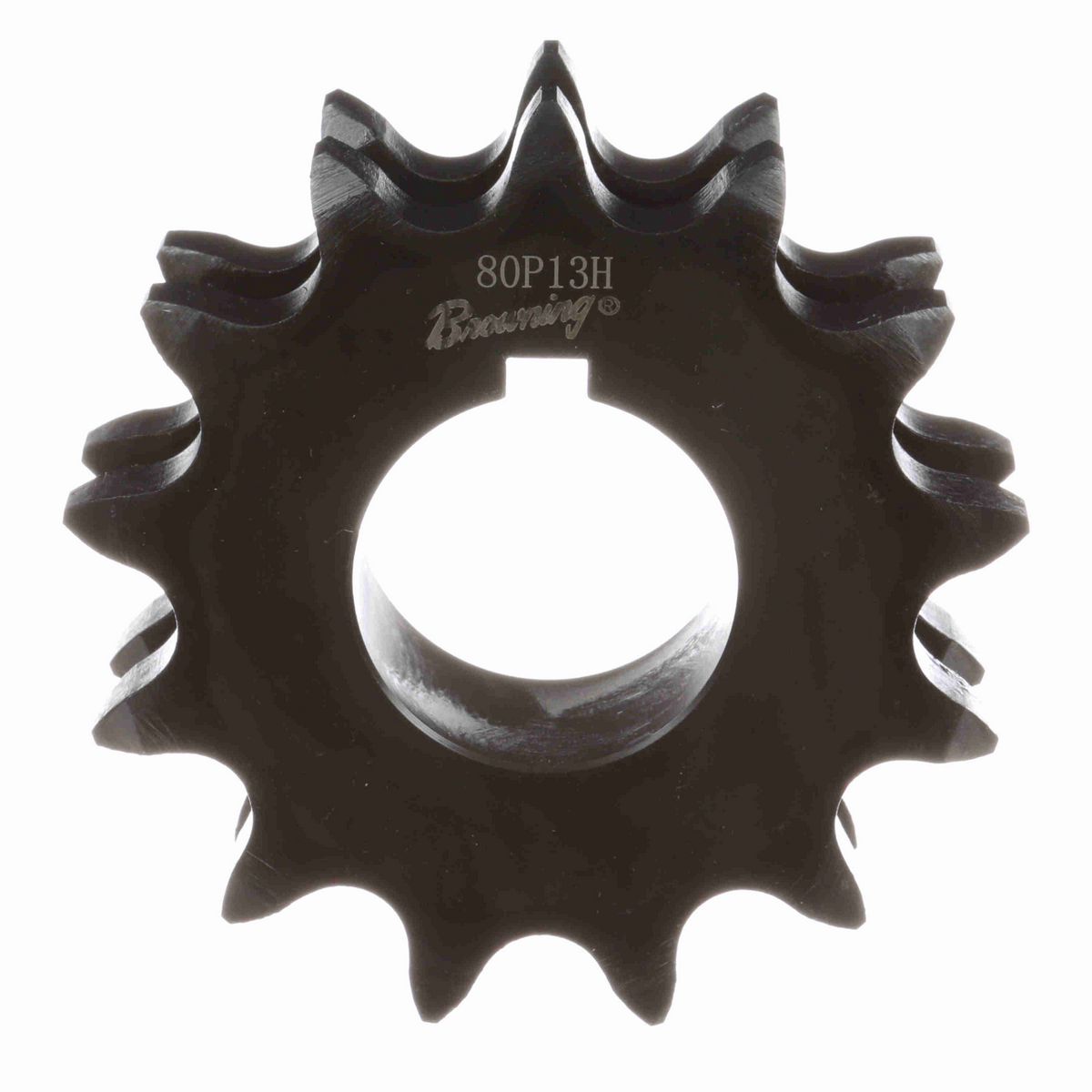

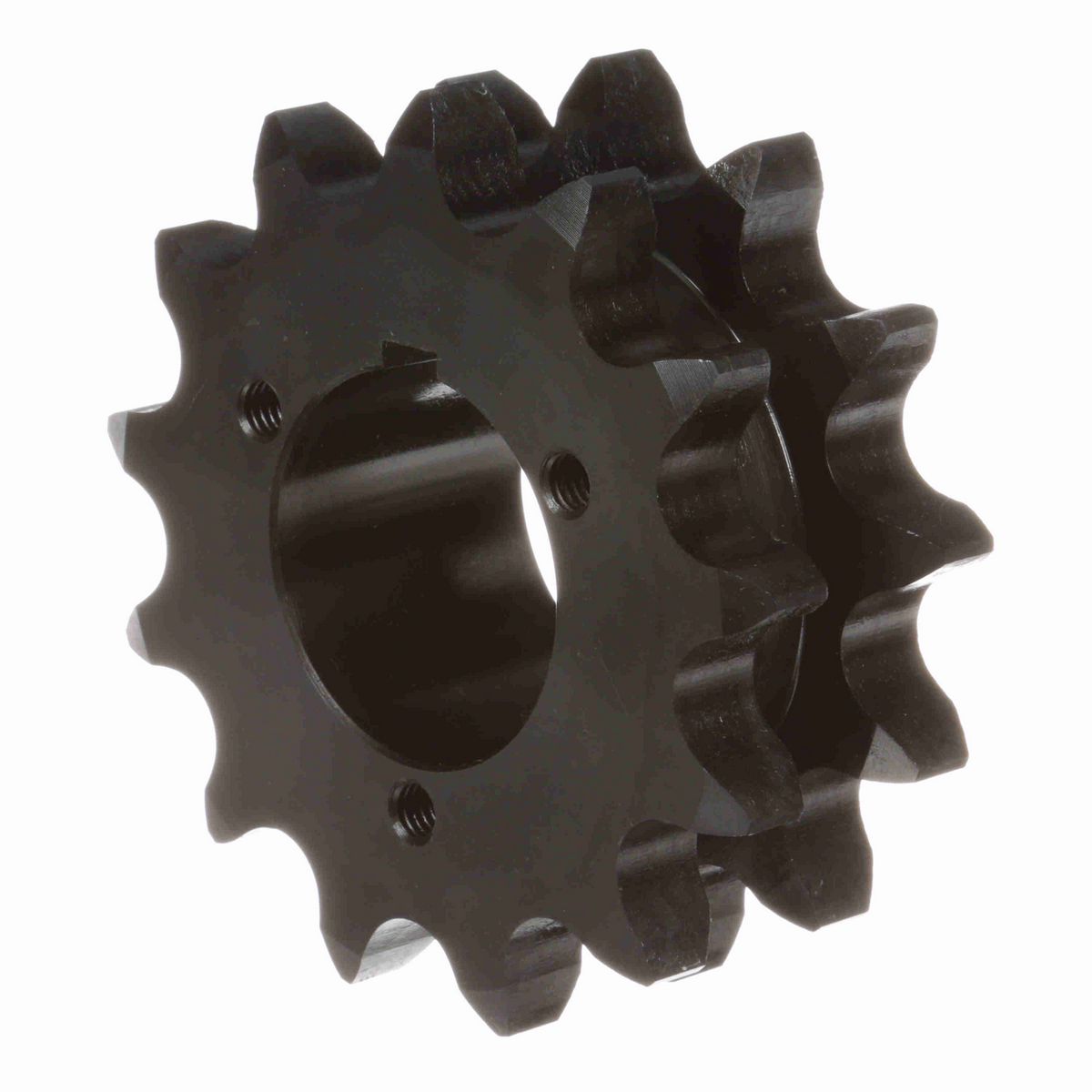

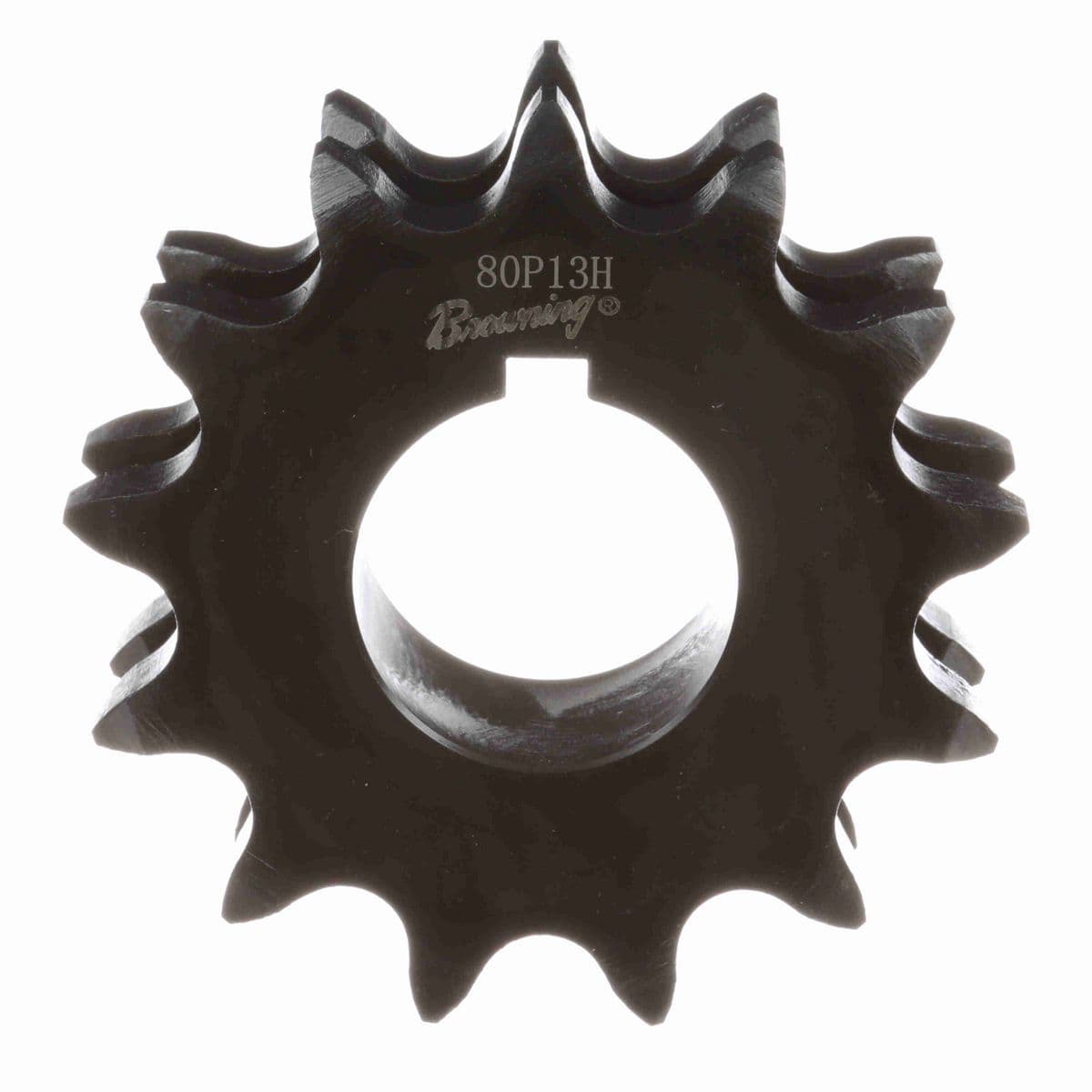

Product Type	Bushed Roller Chain Sprocket
Number of Teeth	13
Pitch Diameter (in)	4.179 in
Chain Used	No. 80, 1 in. Pitch ANSI Chain
Max Bore (in)	1.75 in
Bushing Used	Split Taper
Min Bore (in)	0.5 in
Chain Pitch (in)	1 in
Bore Type	Bushed Bore
Length Through Bore (in)	1.938 in
Outside Diameter (in)	4.657 in
Tooth Width (in)	0.557 in
Overall Length (in)	2.5625 in
Sprocket Material	Steel, Hardened Teeth
Hub Diameter (in)	3 in
Hub Type	Bushed
Number of Strands/Width	2
Maximum Bore (in)	1.75 in
Minimum Bore (mm)	14 mm
Maximum Bore (mm)	42 mm
Pitch Type	Single
Hub Projection (in)	0.625 in
Hardened Teeth	Yes
Overall Width (in)	2.5625 in
Min Bushing Bore (in)	0.5 in
Max Bushing Bore (in)	1.75 in

General Specifications

UPC	662289269617
Weight	3.79 LB
Packaged Length	6.40 IN
Packaged Width	6.30 IN
Packaged Height	1.80 IN
HTC	8483.90.1050
Country of Origin	China
