• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

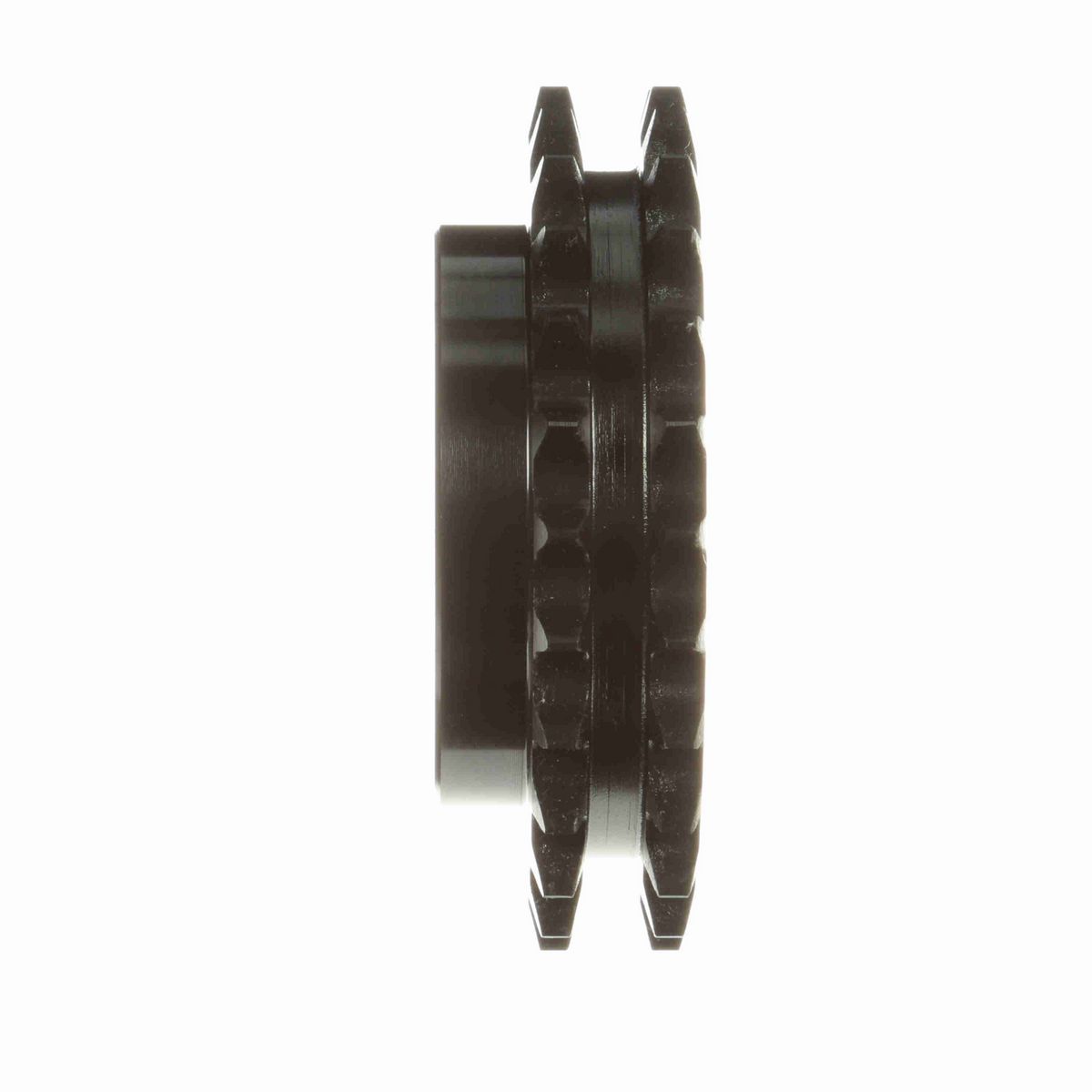

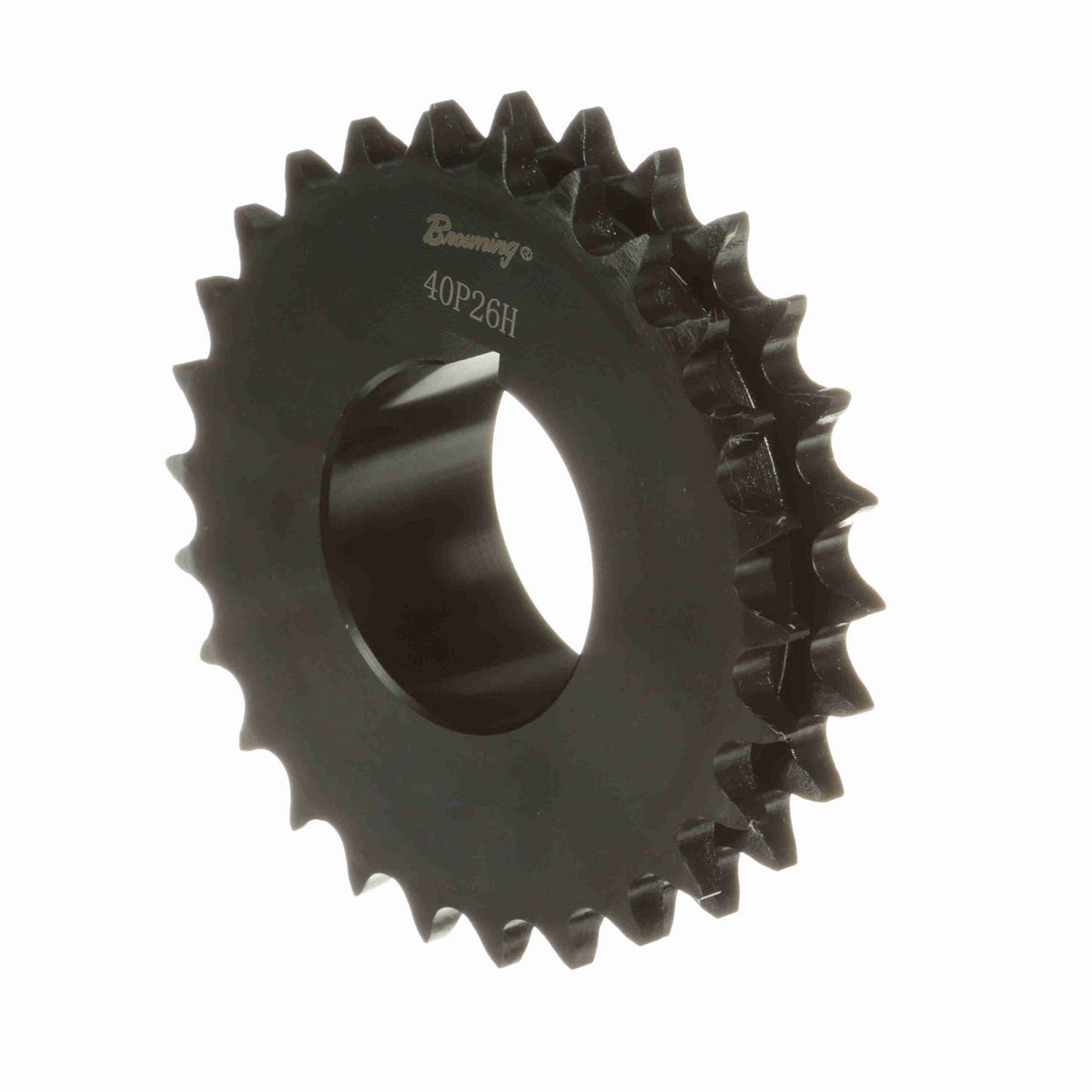

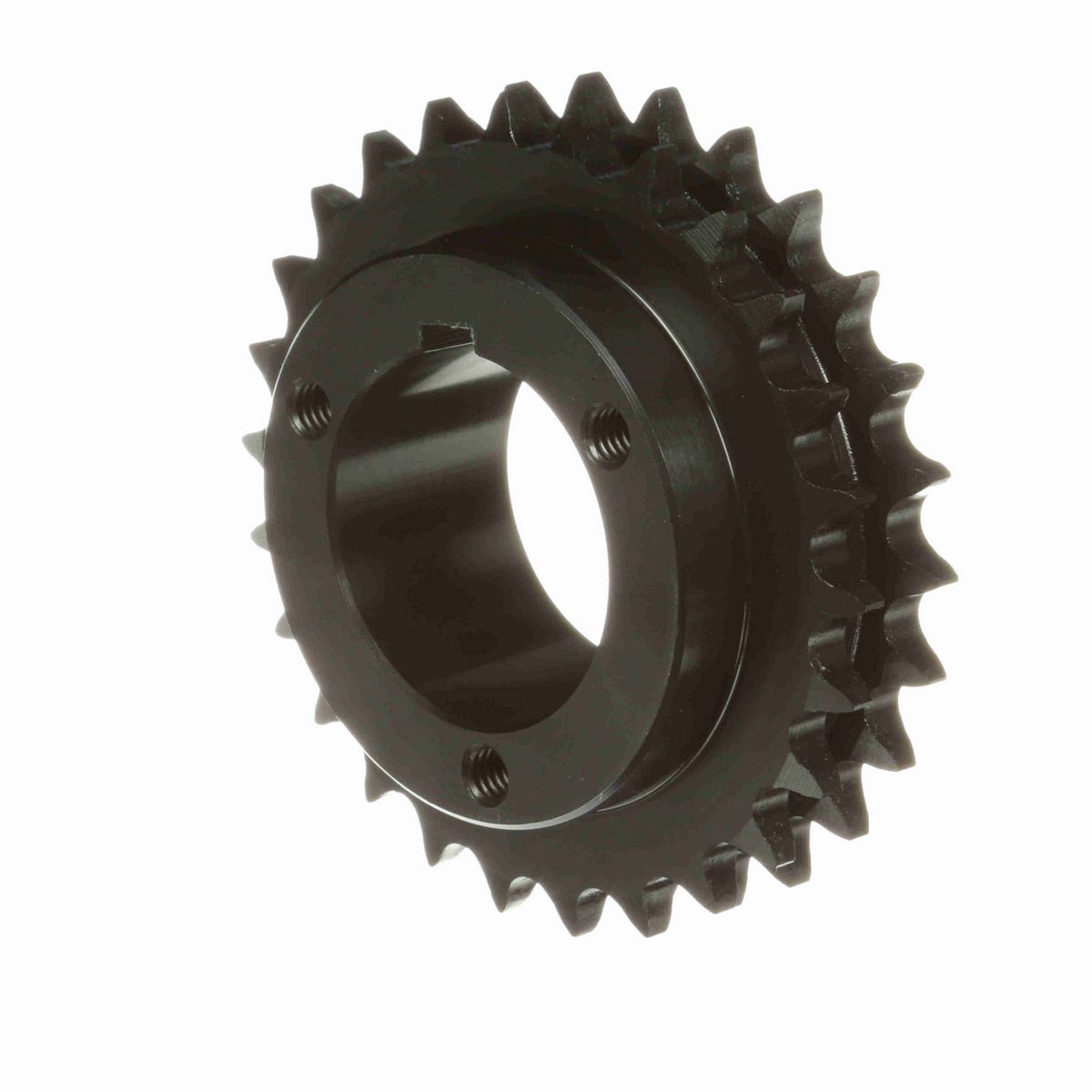

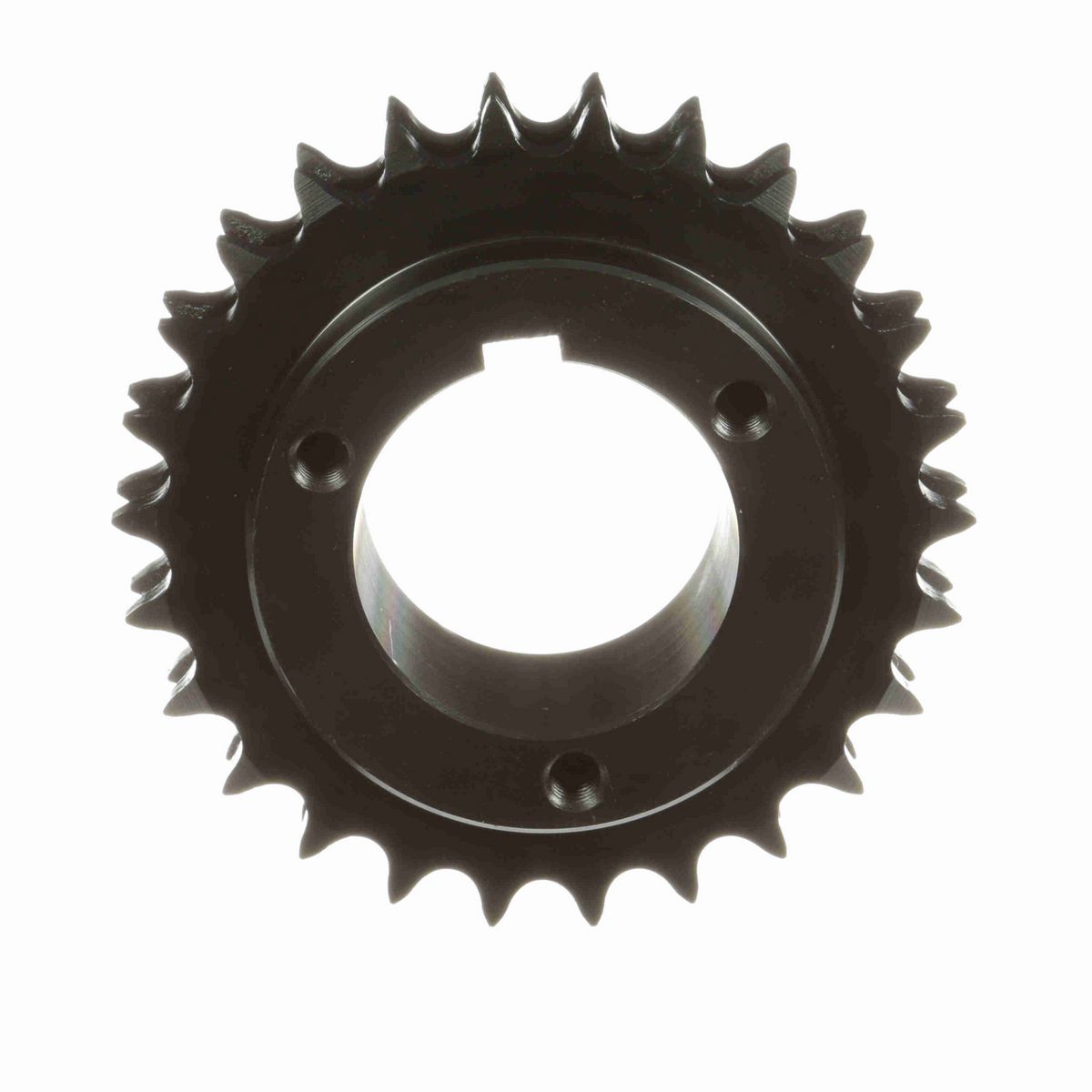

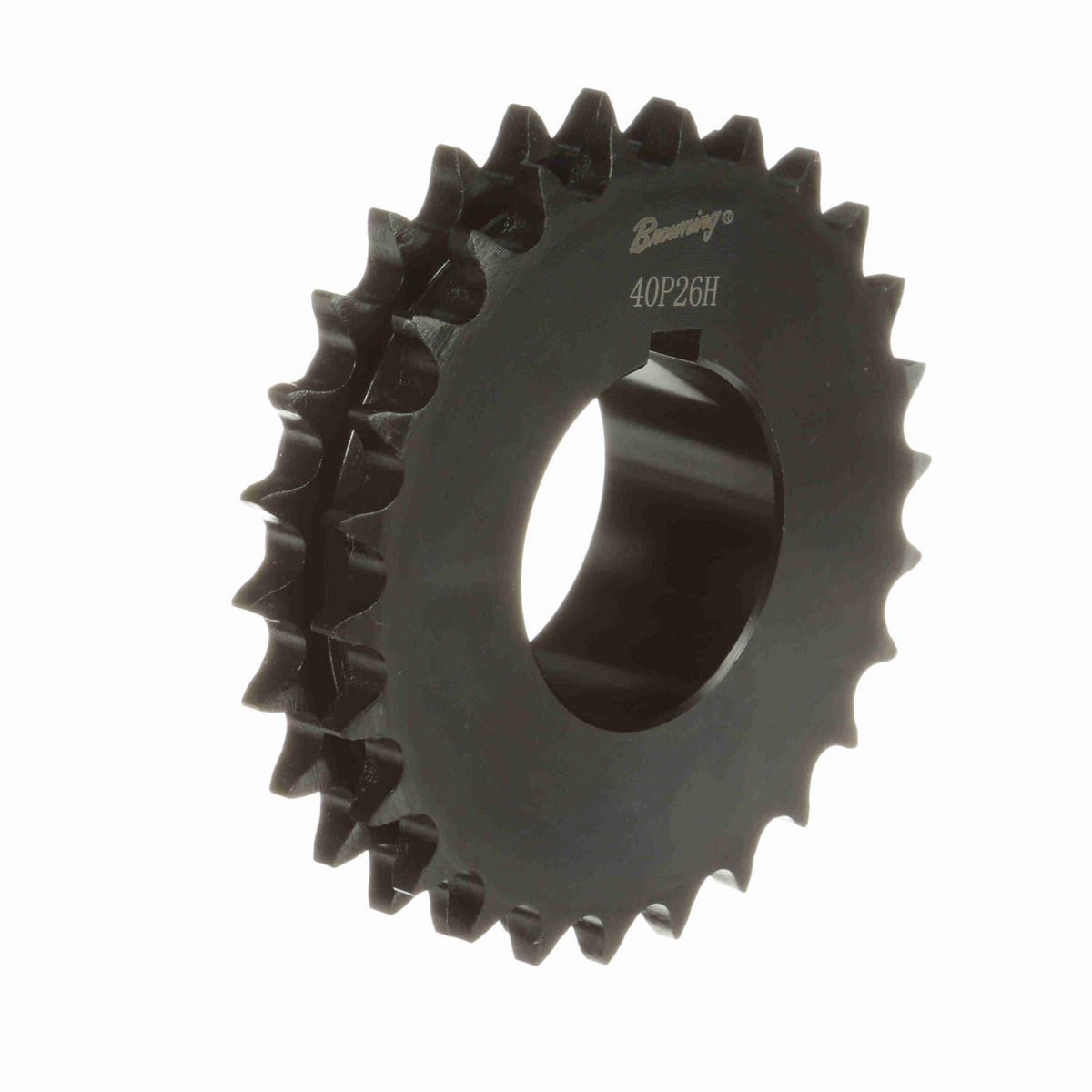

Product Type	Bushed Roller Chain Sprocket
Max Bore (in)	1.75 in
Number of Teeth	26
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Bushing Used	Split Taper
Min Bore (in)	0.5 in
Material	Steel, Hardened Teeth
Pitch Diameter (in)	4.148 in
Chain Pitch (in)	0.5 in
Bore Type	Bushed Bore
Overall Length (in)	2.142725 in
Outside Diameter (in)	4.418 in
Number of Strands/Width	2
Hub Diameter (in)	3 in
Maximum Bore (in)	1.75 in
Minimum Bore (mm)	14 mm
Maximum Bore (mm)	42 mm
Number of Hubs	1
Pitch Type	Single

General Specifications

UPC	662289298891
Weight	2.74 LB
Packaged Length	5.56 IN
Packaged Width	5.56 IN
Packaged Height	1.31 IN
HTC	8483.90.1050
Country of Origin	China
