• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• QD Bushings are available in popular inch and metric bore sizes
• Hardened Teeth at No Extra Cost - Drives sizes up to 30 teeth on 40 through 160 Chain

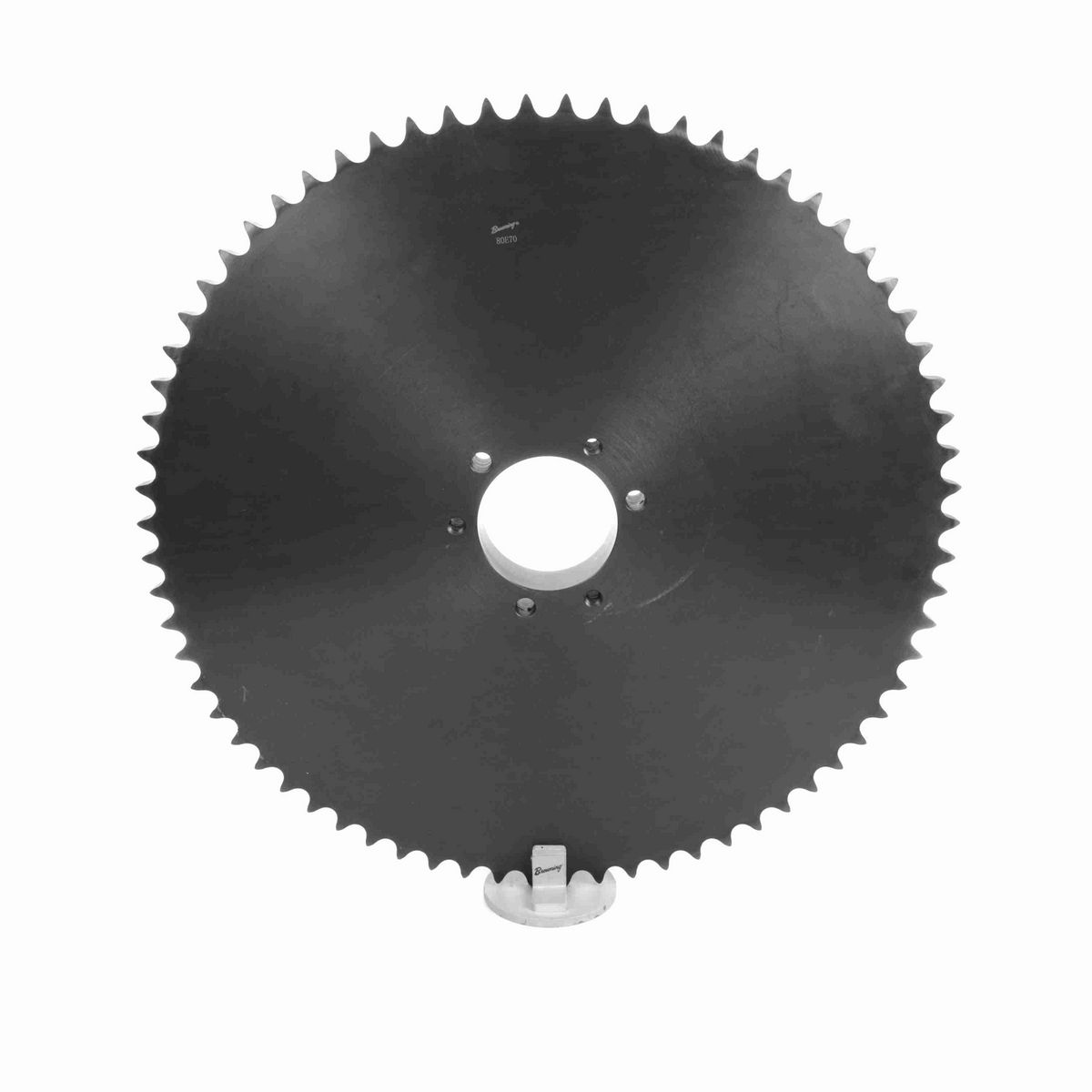

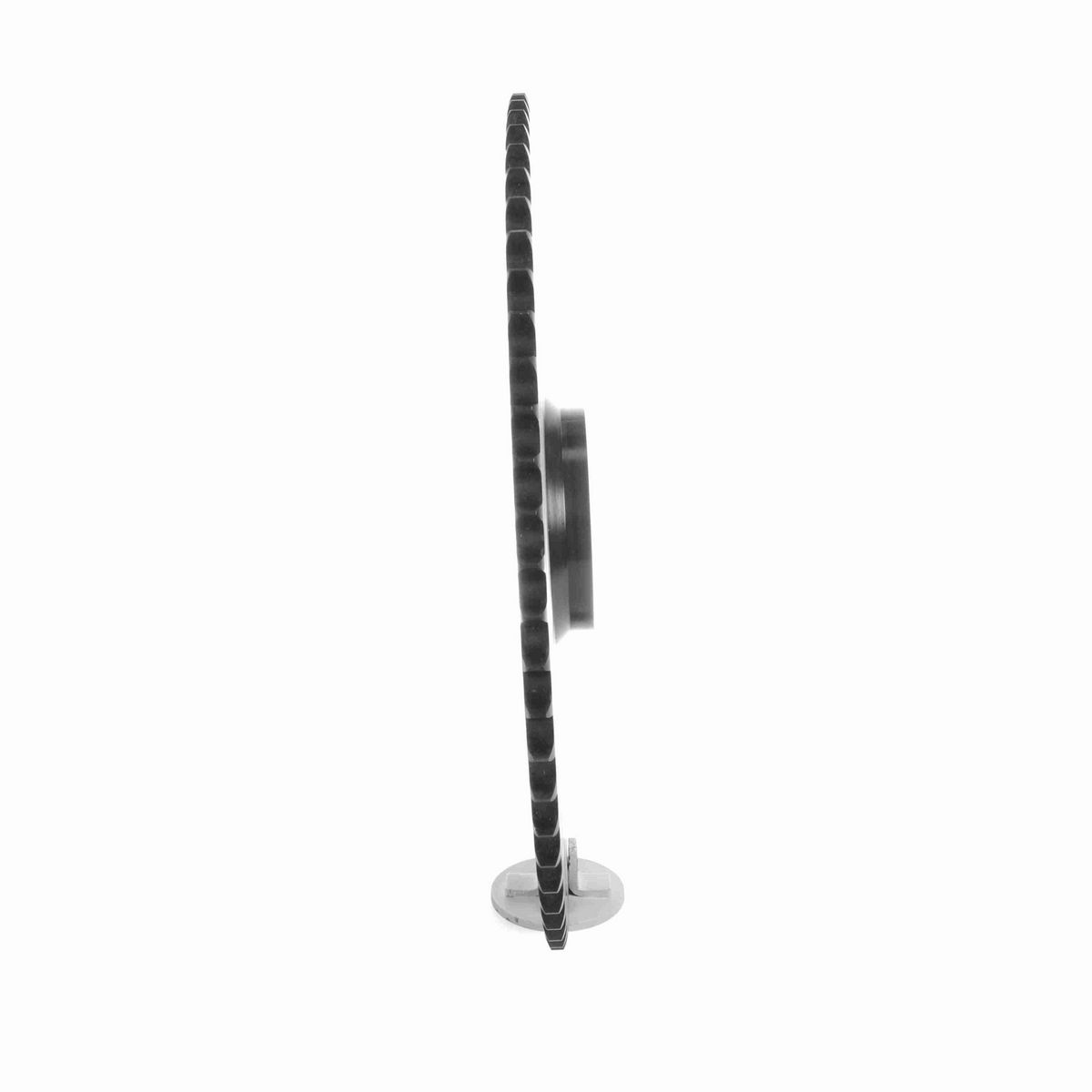

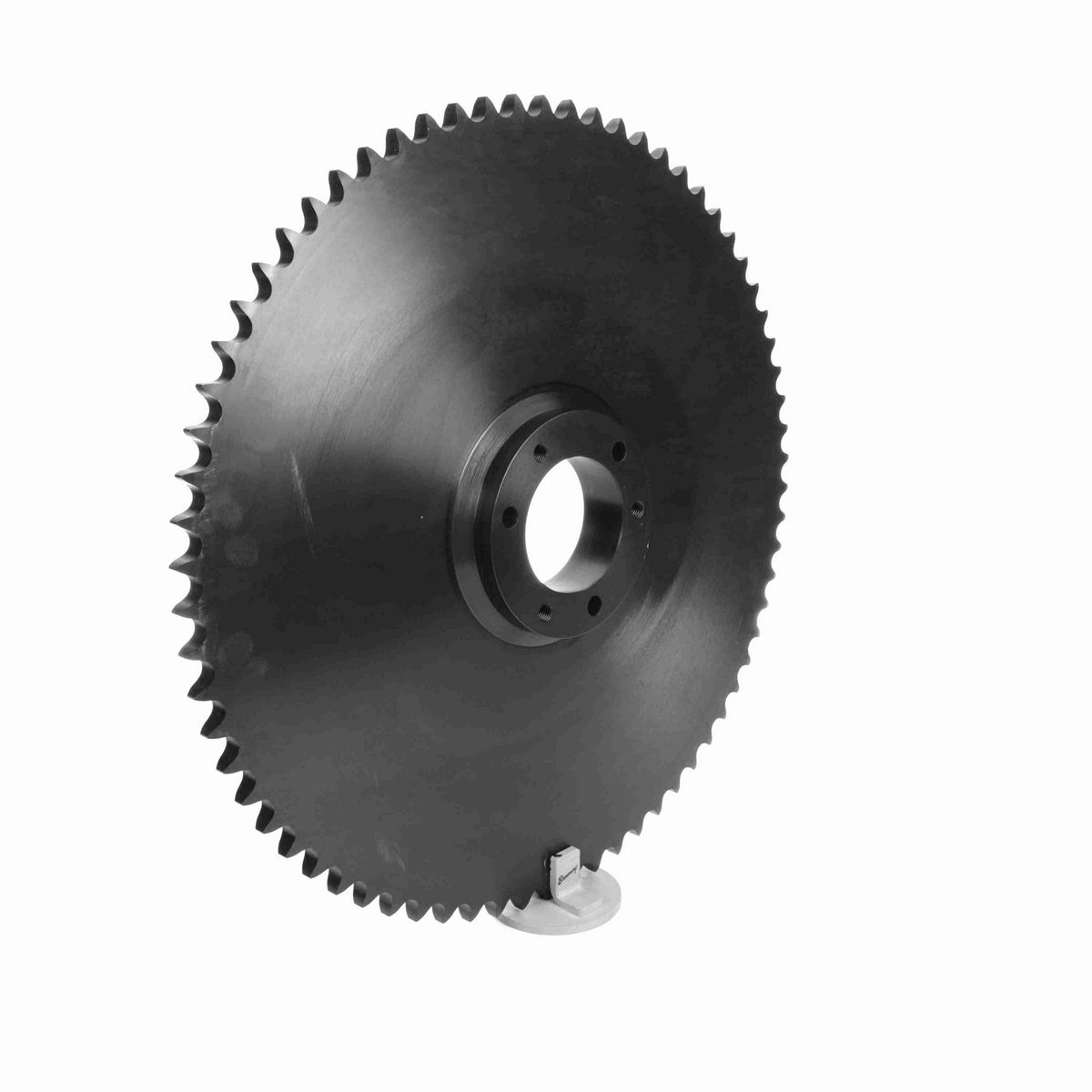

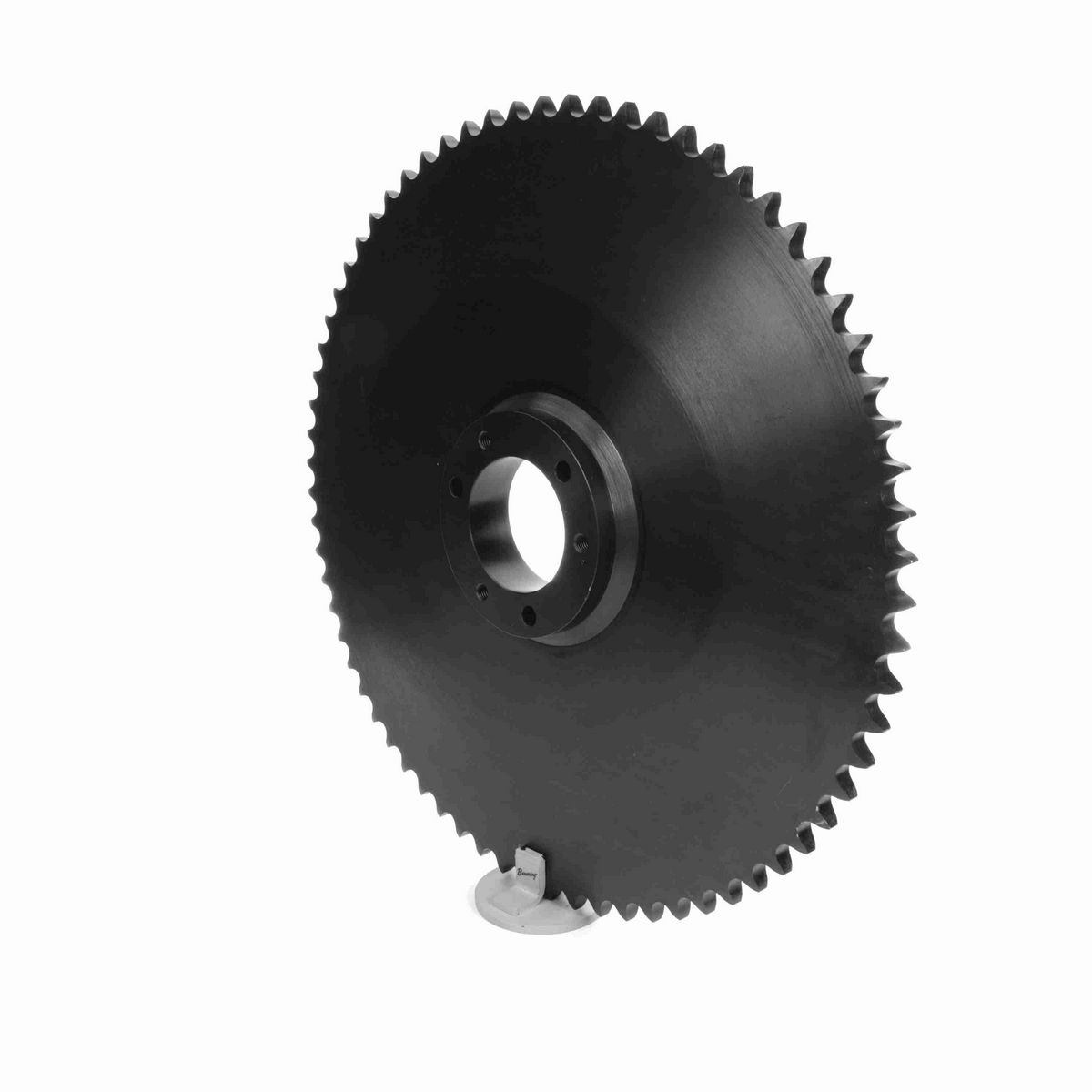

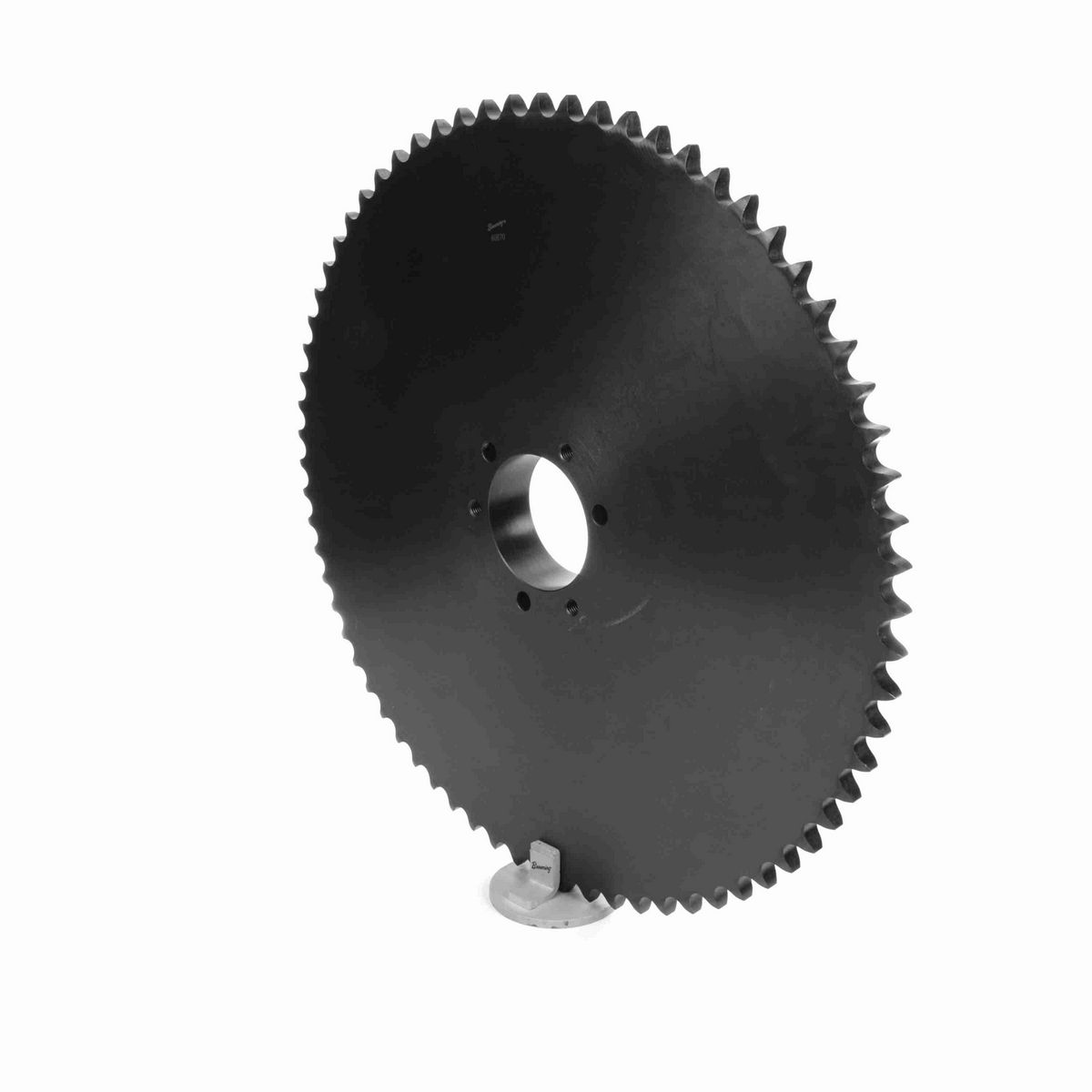

Technical Specifications

Product Type	Bushed Roller Chain Sprocket
Max Bore (in)	3.5 in
Chain Pitch (in)	1 in
Bushing Used	Q-D
Min Bore (in)	0.875 in
Pitch Diameter (in)	22.289 in
Material	Steel
Number of Teeth	70
Chain Used	No. 80, 1 in. Pitch ANSI Chain
Overall Length (in)	3.0625 in
Hub Type	Bushed
Outside Diameter (in)	22.885 in
Sprocket Material	Steel
Length Through Bore (in)	2.64 in
Bore Type	Bushed Bore
Tooth Width (in)	0.575 in
Hub Diameter (in)	6 in
Number of Strands/Width	1
Maximum Bore (in)	3.5 in
Minimum Bore (mm)	35 mm
Maximum Bore (mm)	75 mm
Number of Hubs	1
Pitch Type	Single
Min Bushing Bore (in)	0.875 in
Max Bushing Bore (in)	3.5 in

General Specifications

UPC	662289255726
Weight	62.90 LB
Packaged Length	22.87 IN
Packaged Width	22.87 IN
Packaged Height	1.62 IN
HTC	8483.90.1050
Country of Origin	China
