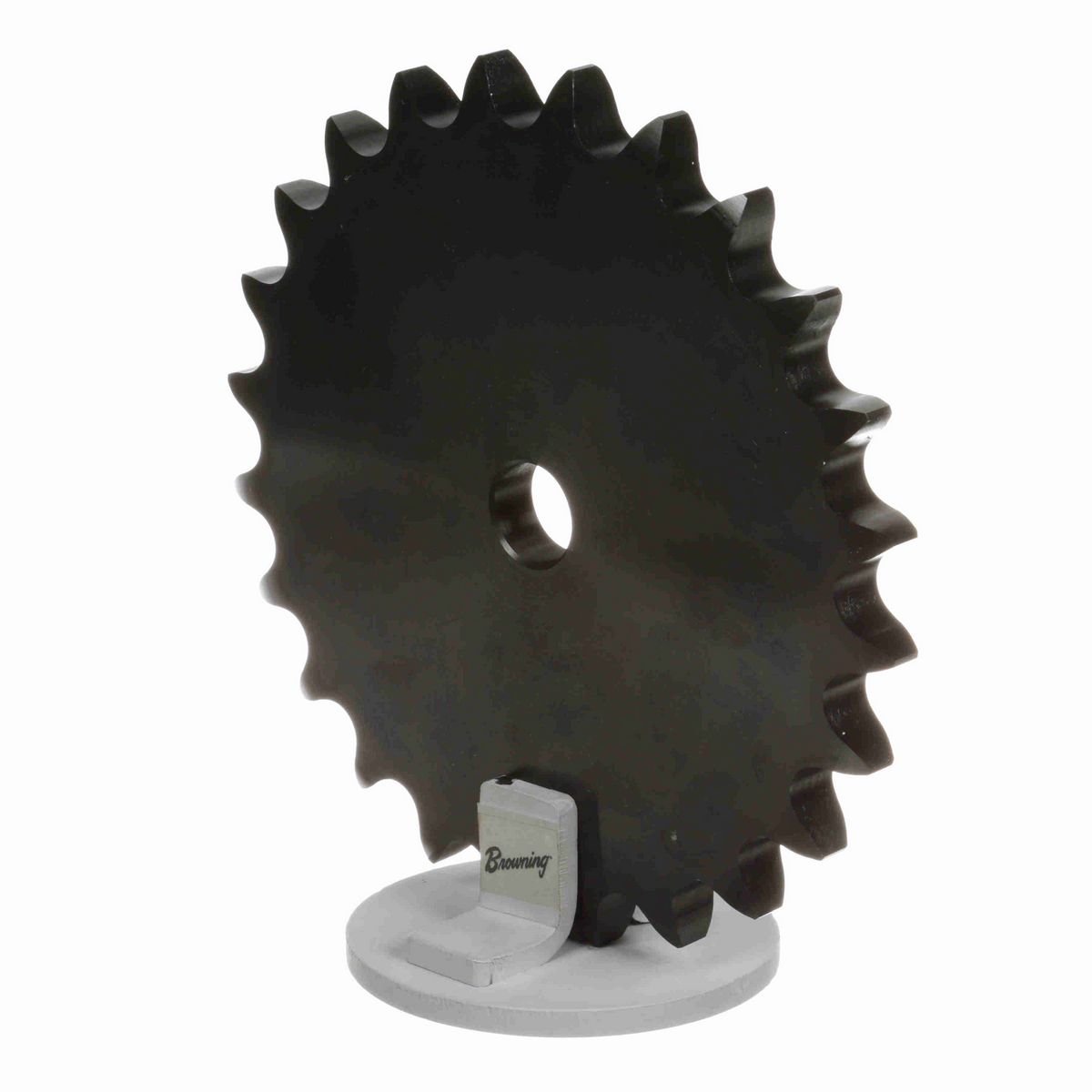

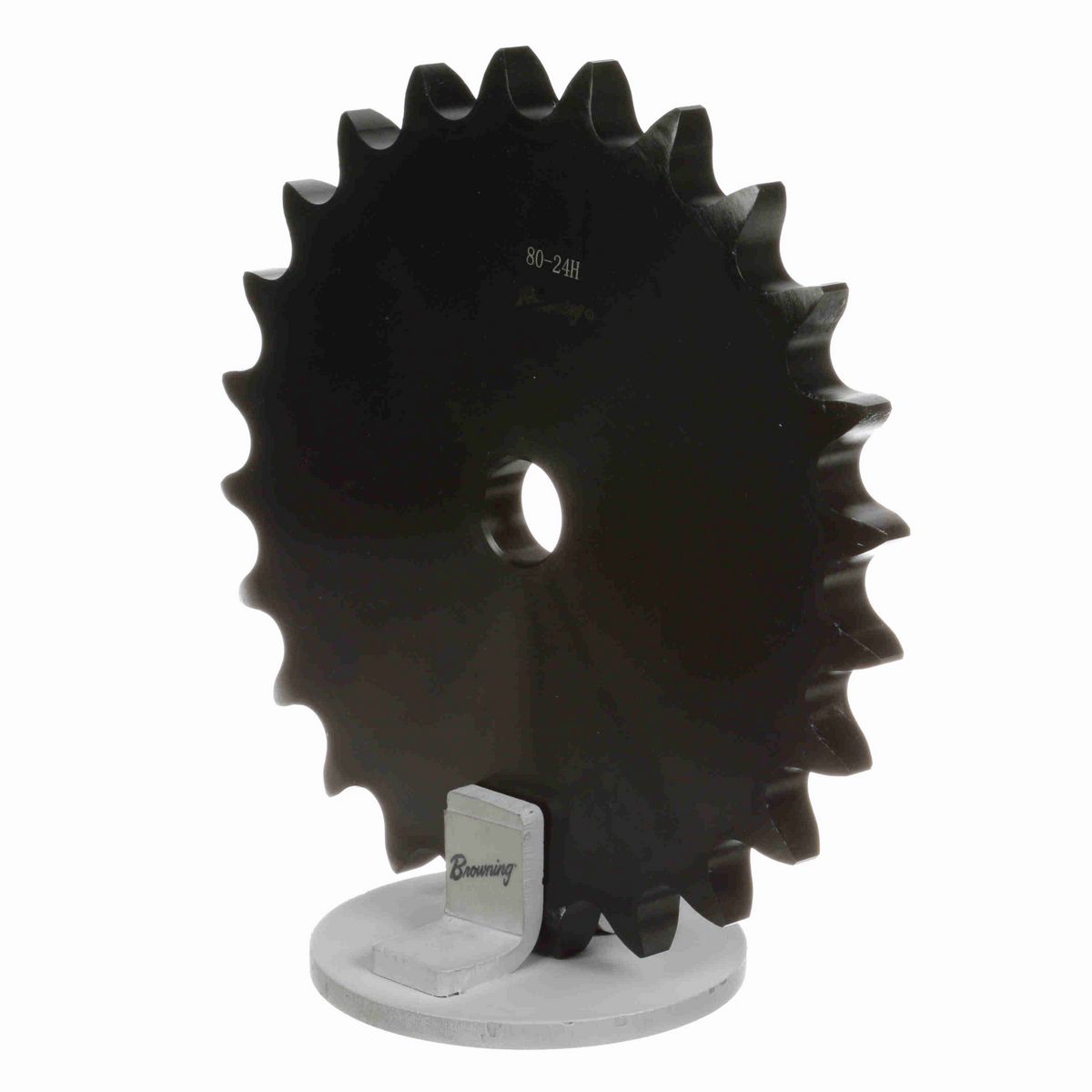

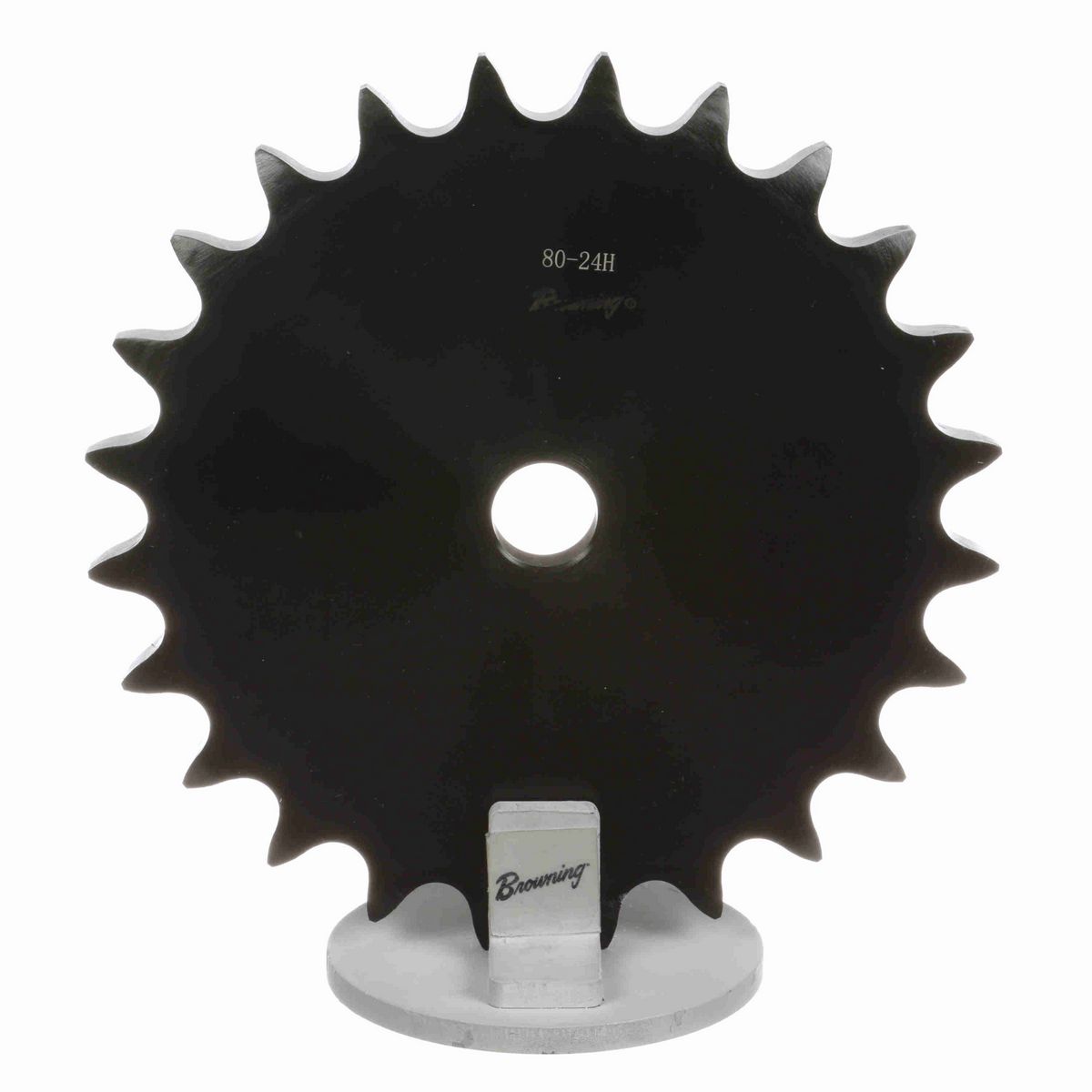

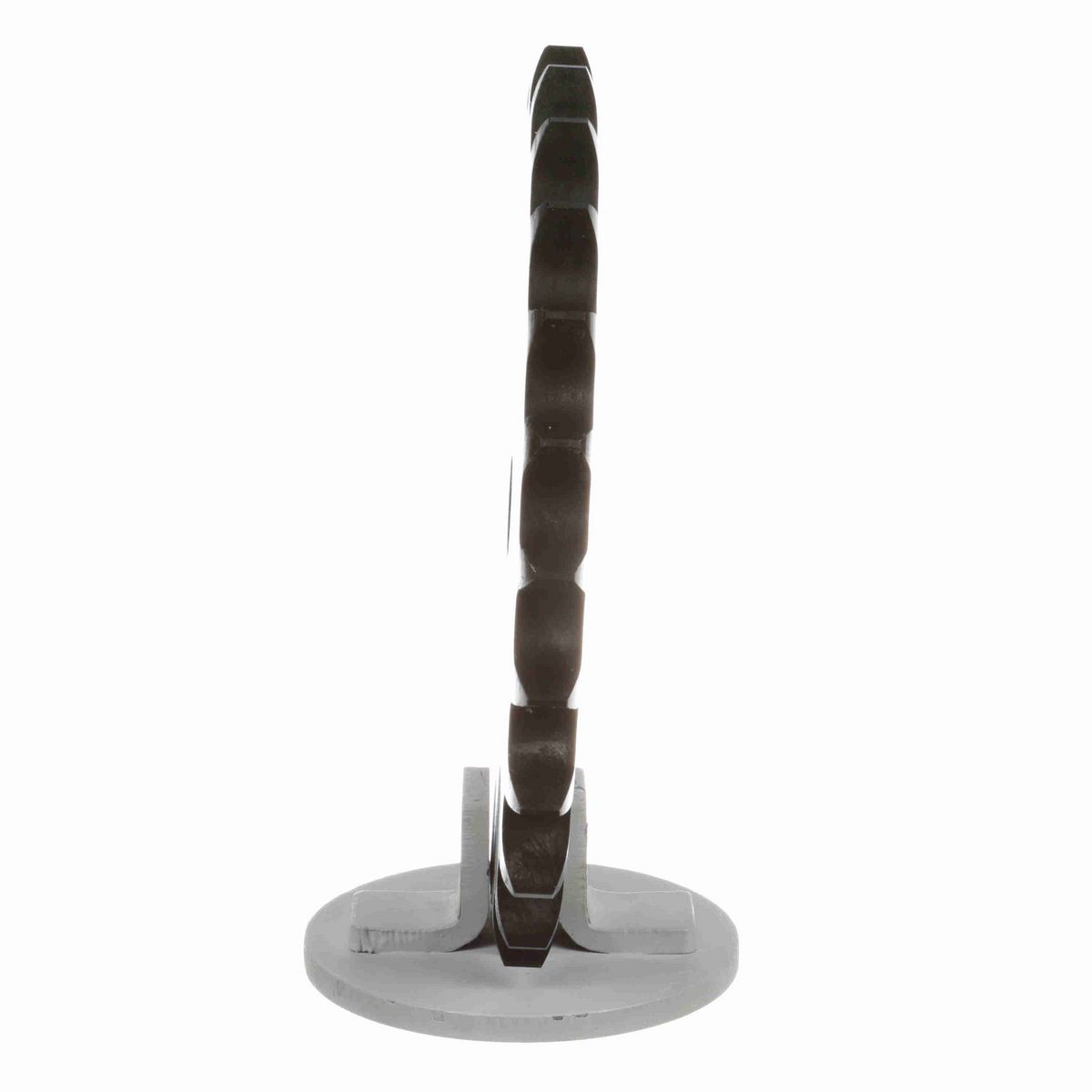

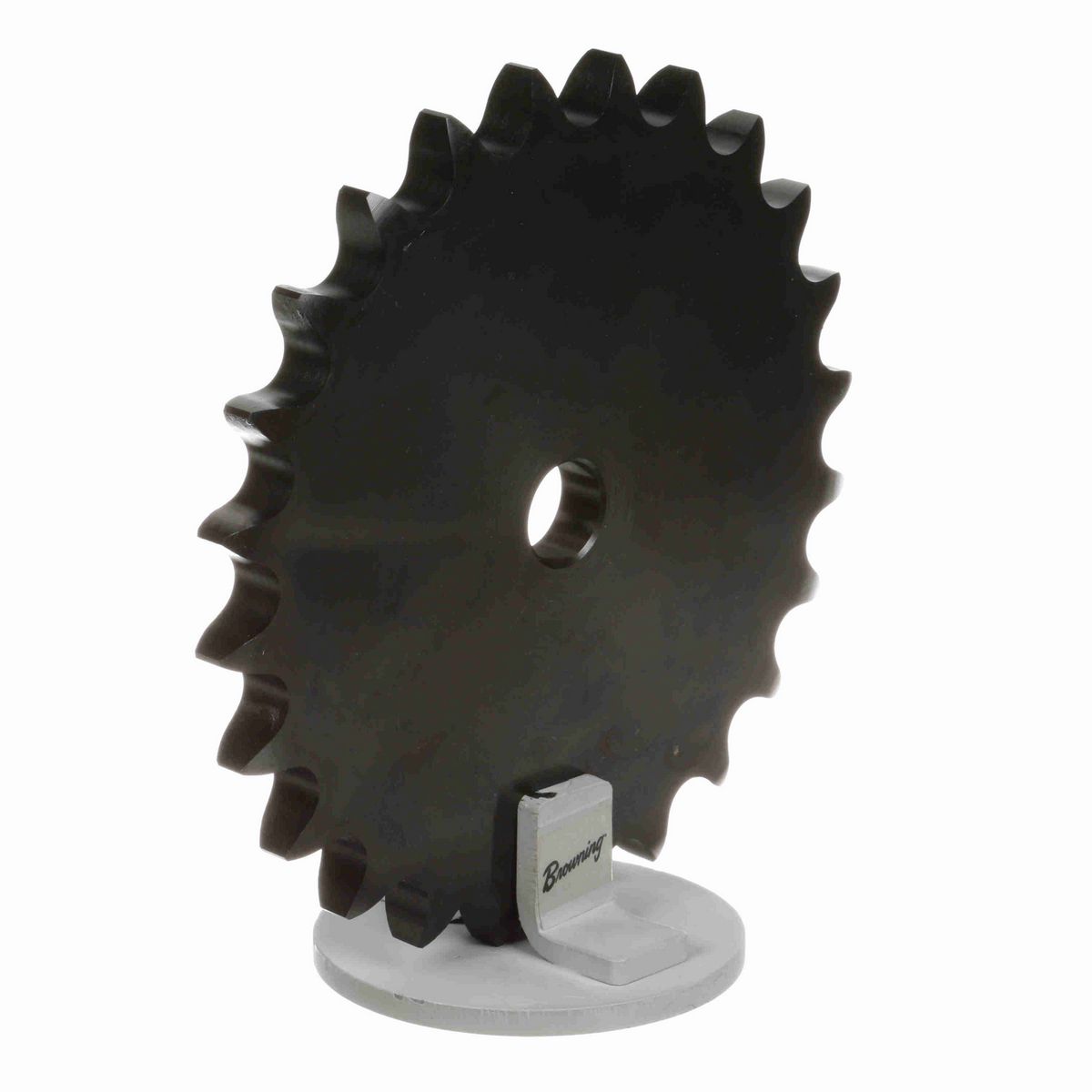

• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Number of Teeth	24
Product Type	Type "A" Plate Sprocket
Material	Steel
Chain Pitch (in)	1 in
Chain Used	No. 80, 1 in. Pitch ANSI Chain
Overall Length (in)	0.575 in
Length Through Bore (in)	0.575 in
Bore Type	Minimum Plain Bore
Hub Type	Type A
Sprocket Material	Steel, Hardened Teeth
Tooth Width (in)	0.575 in
Outside Diameter (in)	8.196 in
Chain Number	No. 80, 1 in. Pitch ANSI Chain
Pitch Diameter (in)	7.661298 in
Number of Strands/Width	1
Bore Diameter (in)	0.9375 in
Maximum Bore (in)	0.75 in
Minimum Bore (mm)	0 mm
Maximum Bore (mm)	0 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289132331
Weight	7.07 LB
Packaged Length	8.40 IN
Packaged Width	8.50 IN
Packaged Height	1.30 IN
HTC	8483.90.1050
Country of Origin	China
