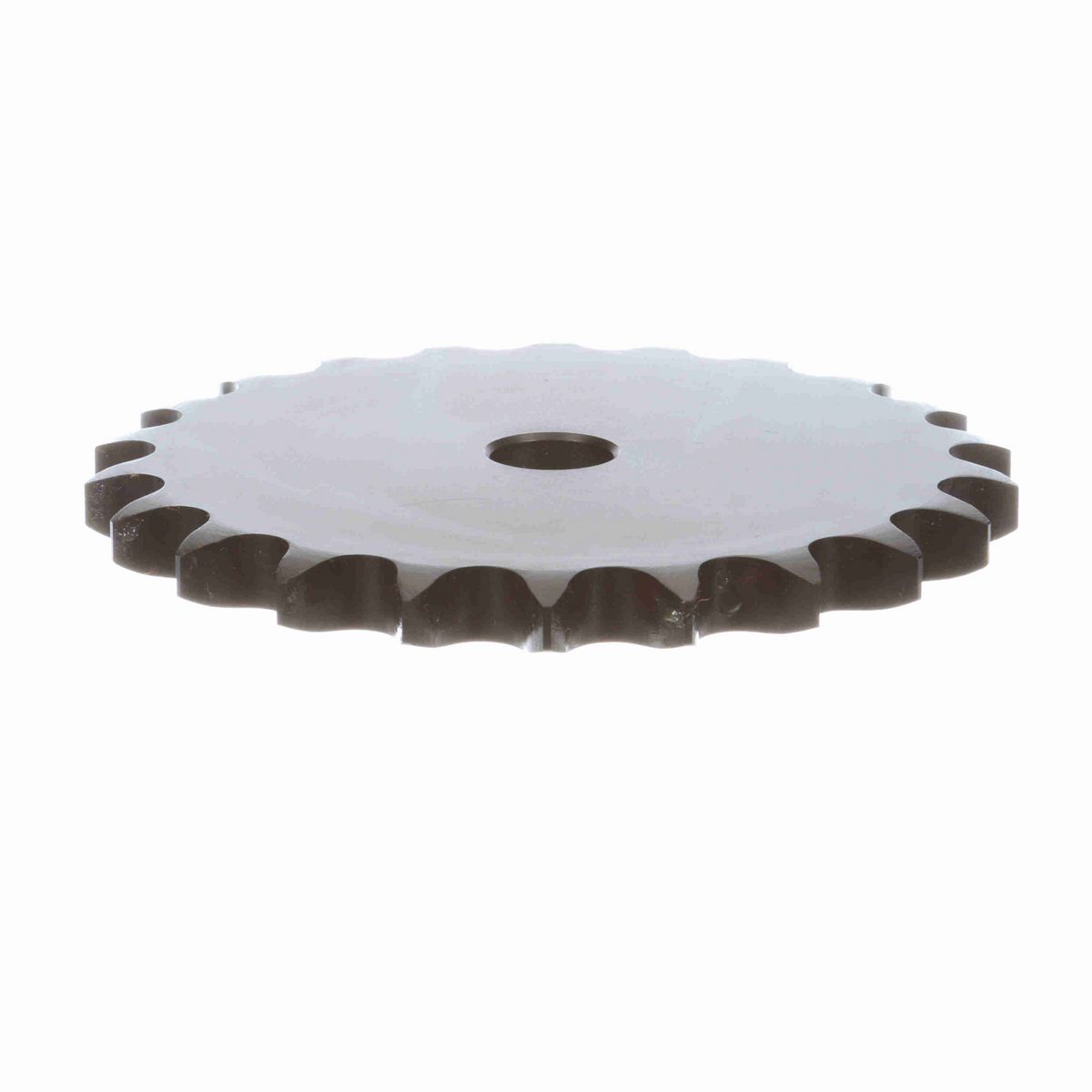

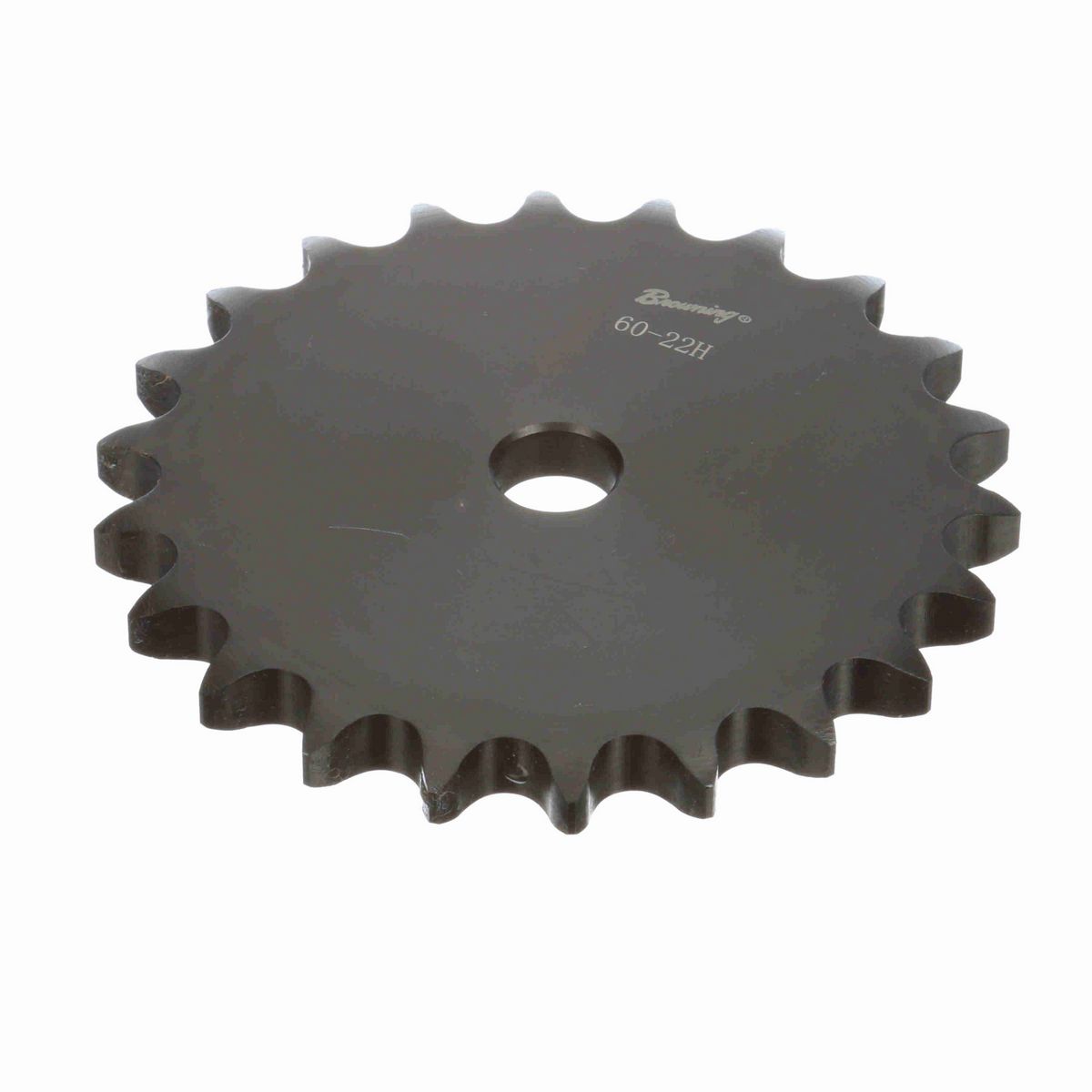

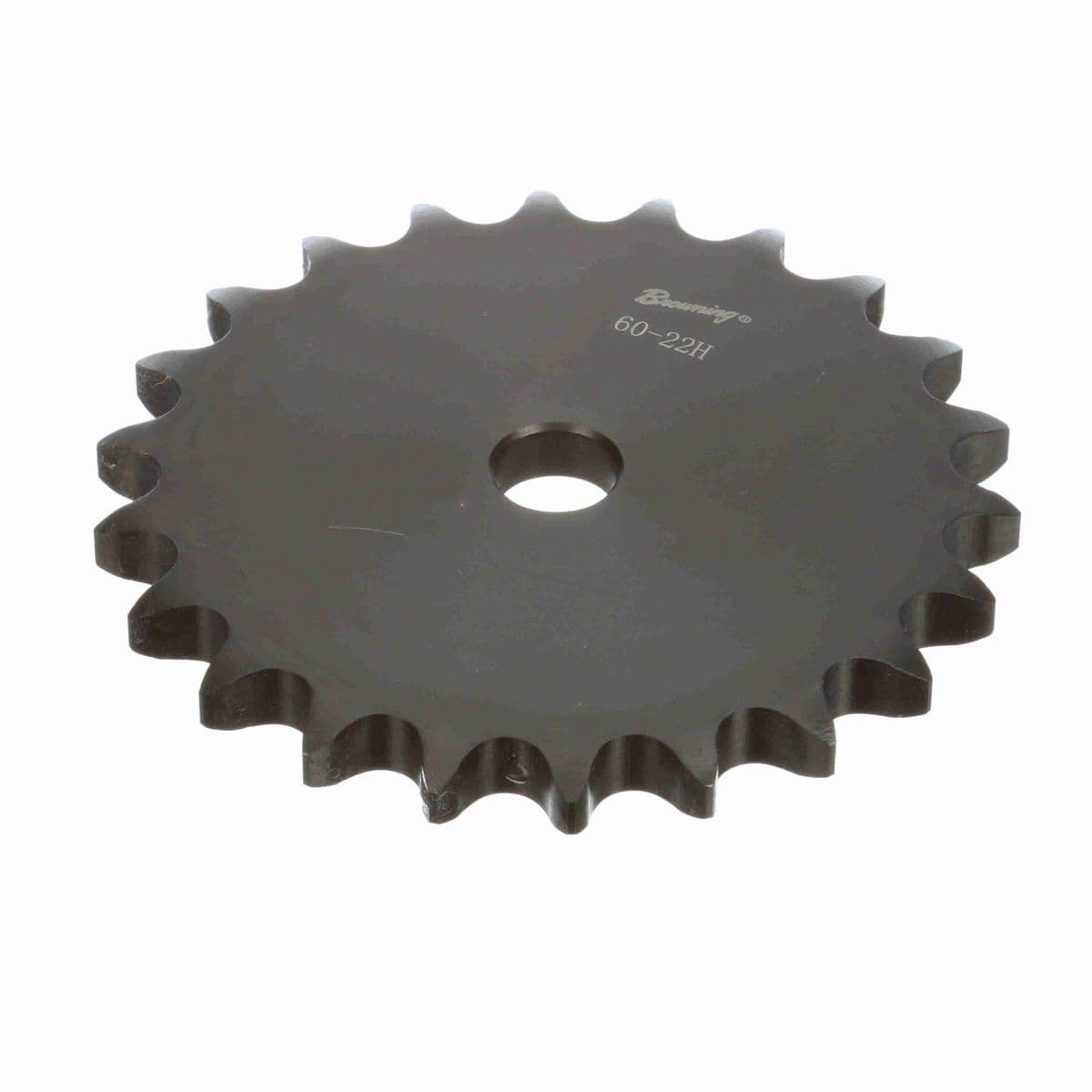

• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Product Type	Type "A" Plate Sprocket
Number of Teeth	22
Chain Pitch (in)	0.75 in
Chain Used	No. 60, 3/4 in. Pitch ANSI Chain
Material	Steel
Outside Diameter (in)	5.666 in
Bore Type	Minimum Plain Bore
Pitch Diameter (in)	5.270006 in
Bore Diameter (in)	0.75 in
Number of Strands/Width	1
Hub Type	Type A
Length Through Bore (in)	0.459 in
Maximum Bore (in)	2.625 in
Minimum Bore (mm)	20 mm
Maximum Bore (mm)	66 mm
Number of Hubs	0
Hardened Teeth	With Hardened Teeth

General Specifications

UPC	662289291861
Weight	2.50 LB
Packaged Length	9.25 IN
Packaged Width	9.25 IN
Packaged Height	3.75 IN
HTC	8483.90.1050
Country of Origin	China
