• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Bushing Used	Split Taper
Max Bore (in)	2.6875 in
Chain Pitch (in)	0.625 in
Min Bore (in)	0.75 in
Pitch Diameter (in)	8.165 in
Material	Steel
Chain Used	No. 50, 5/8 in. Pitch ANSI Chain

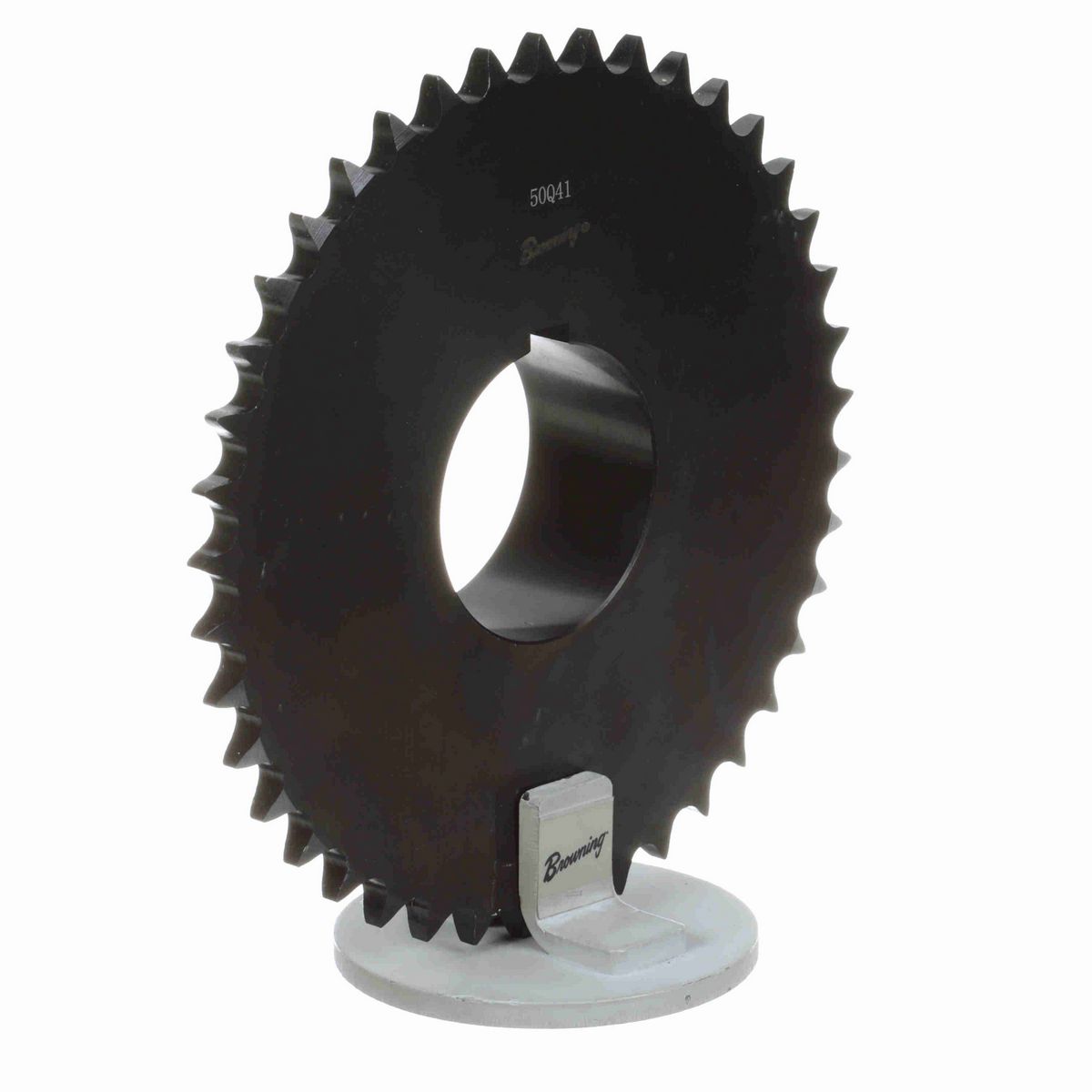

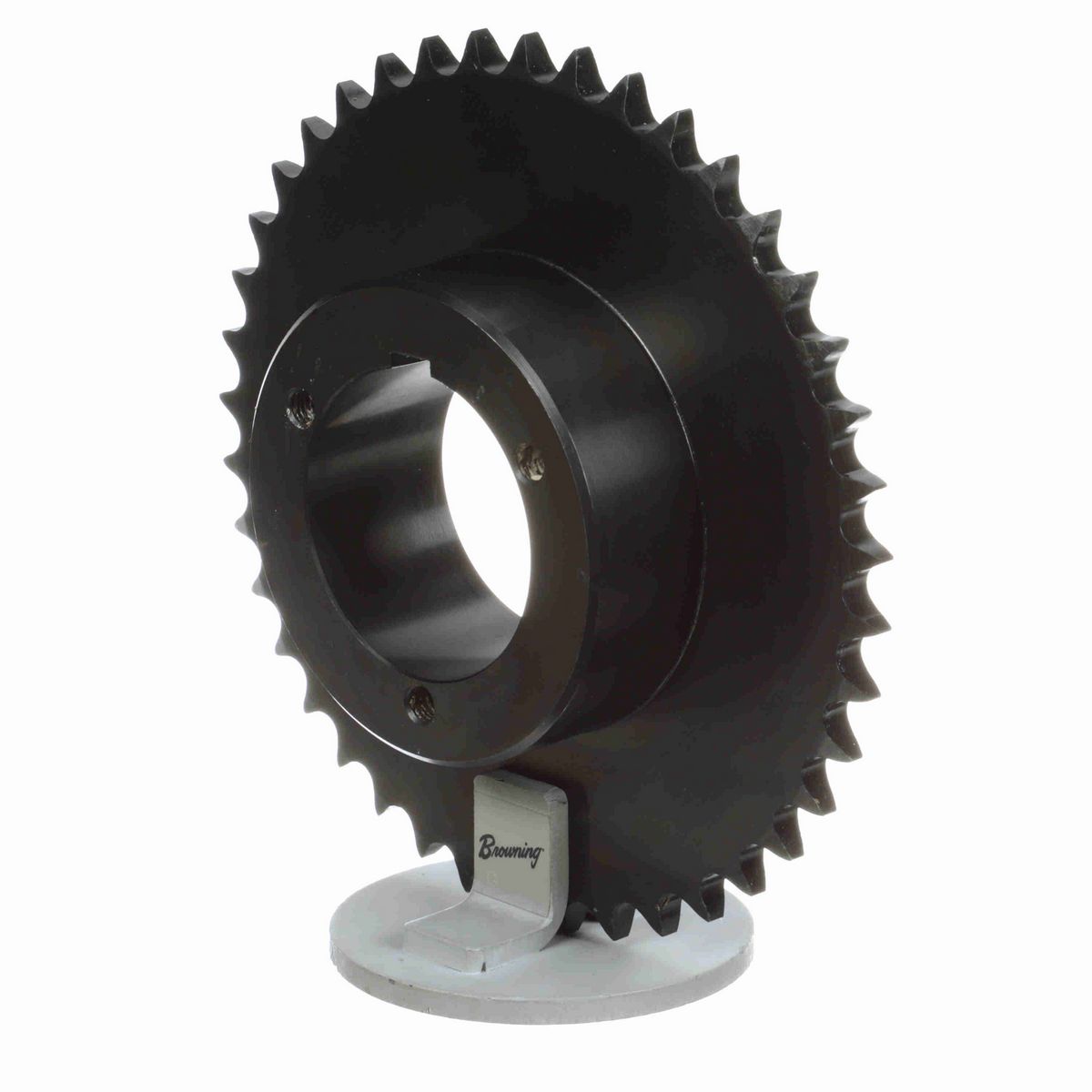

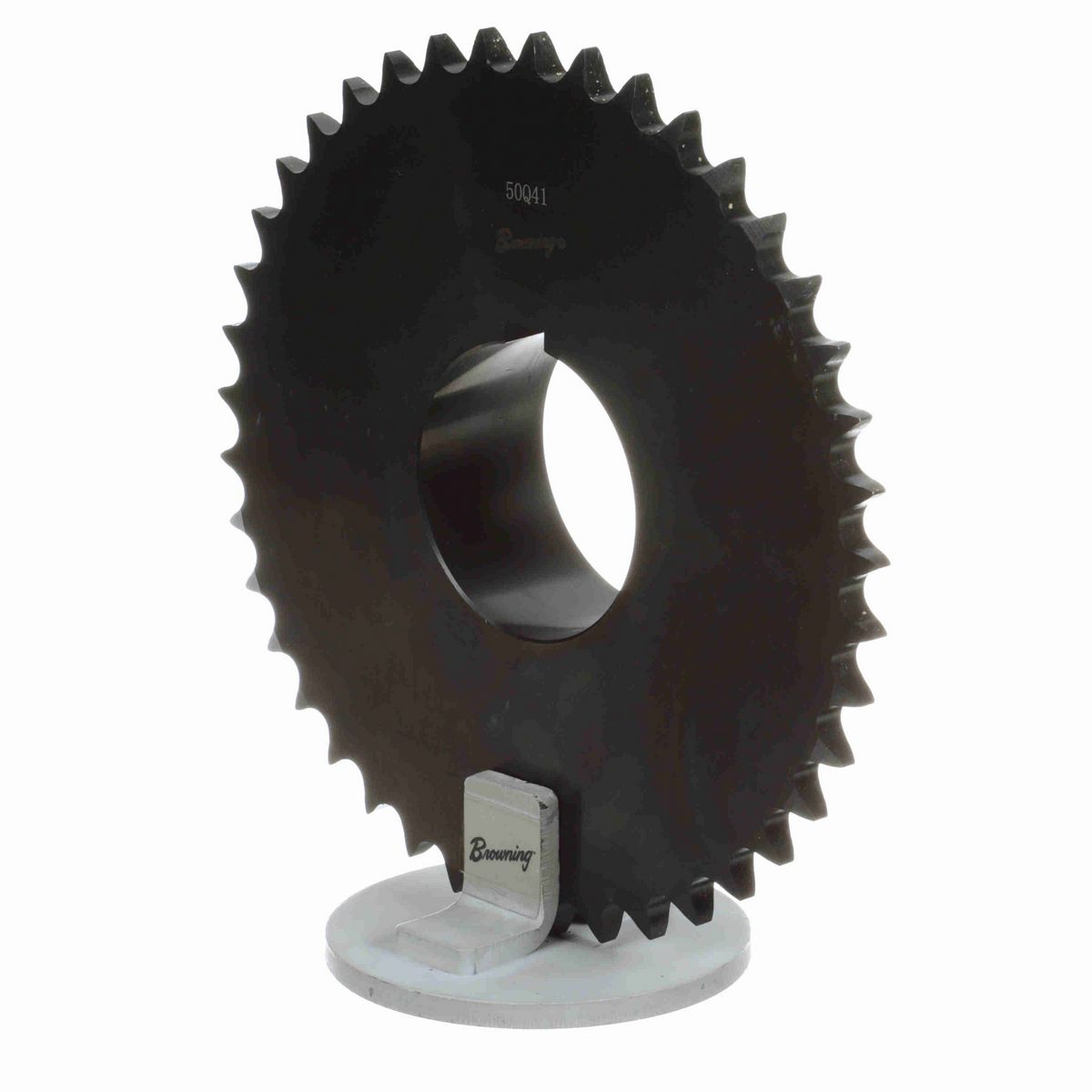

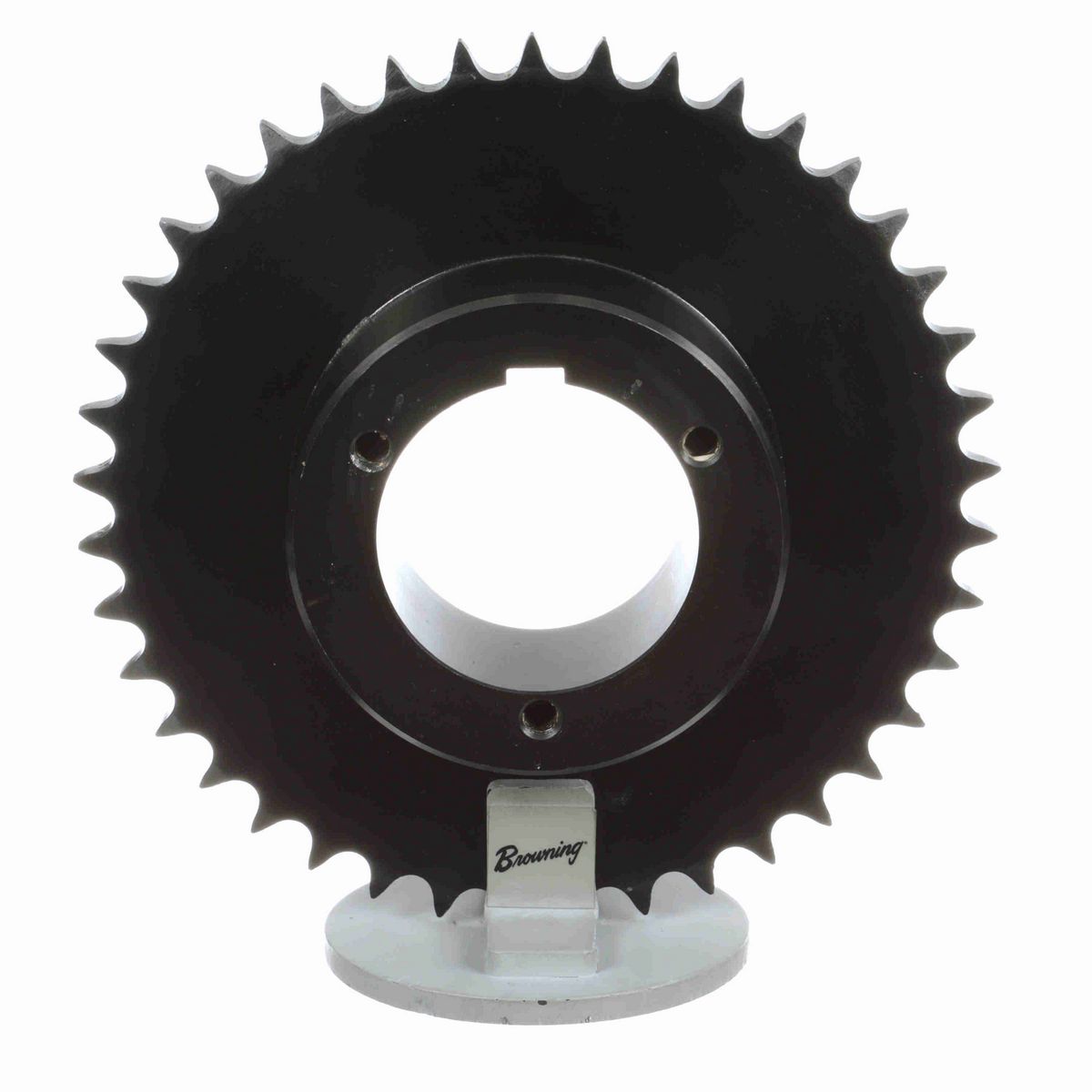

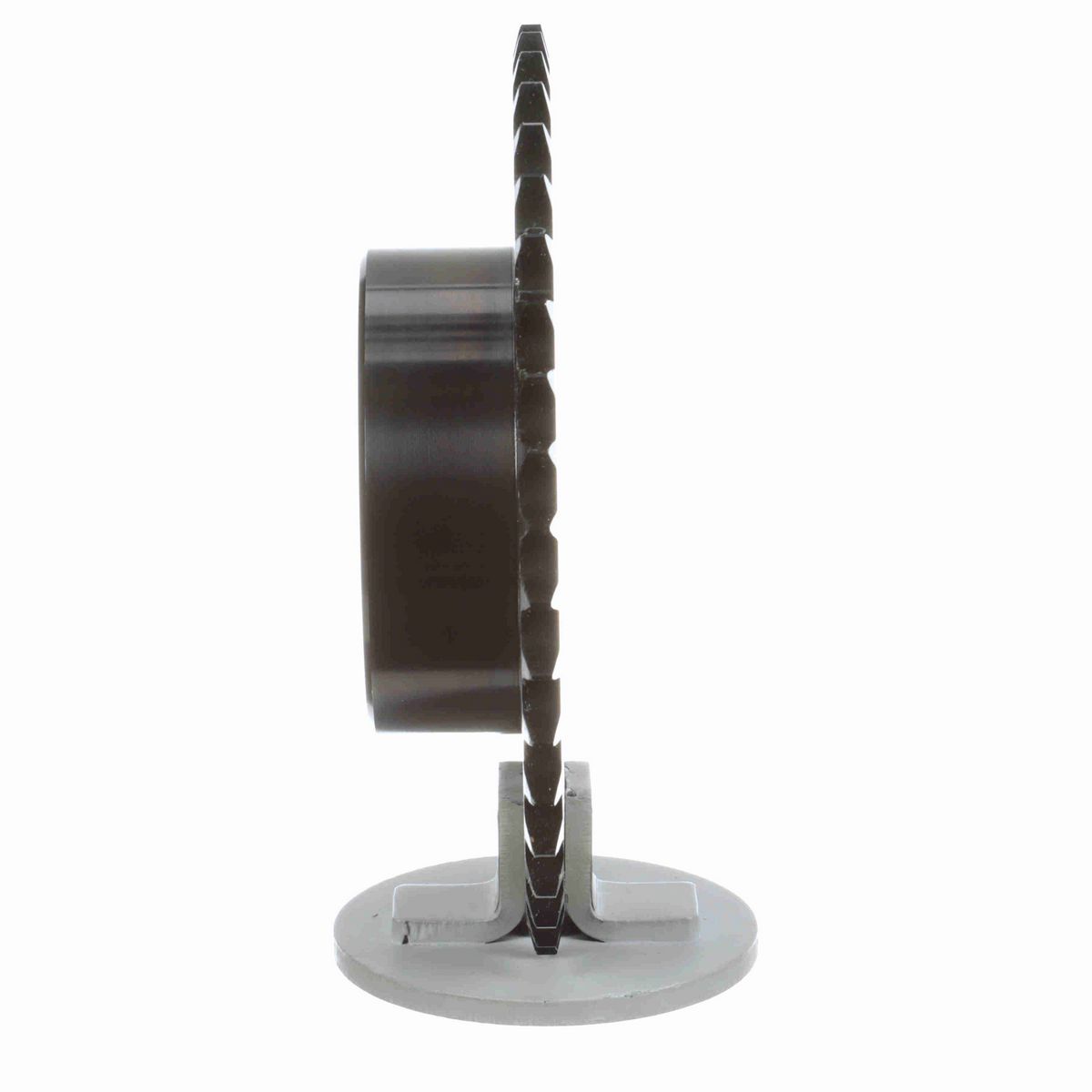

Product Type	Bushed Roller Chain Sprocket
Number of Teeth	41
Bore Type	Bushed Bore
Outside Diameter (in)	8.516 in
Overall Length (in)	2.828125 in
Number of Strands/Width	1
Hub Diameter (in)	4.125 in
Maximum Bore (in)	2.6875 in
Maximum Bore (mm)	65 mm
Minimum Bore (mm)	18 mm
Pitch Type	Single
Number of Hubs	1

General Specifications

UPC	662289185740
Weight	6.90 LB
Packaged Length	8.75 IN
Packaged Width	8.75 IN
Packaged Height	2.13 IN
HTC	8483.90.1050
Country of Origin	China
