• Browning offers one of the largest selection of application shaft ready sprockets in the industry
• Easy Installation and removal
• Split Taper Bushing are available in popular Inch, Metric and Spline bore
• Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain

Technical Specifications

Max Bore (in)	1.75 in
Chain Pitch (in)	0.5 in

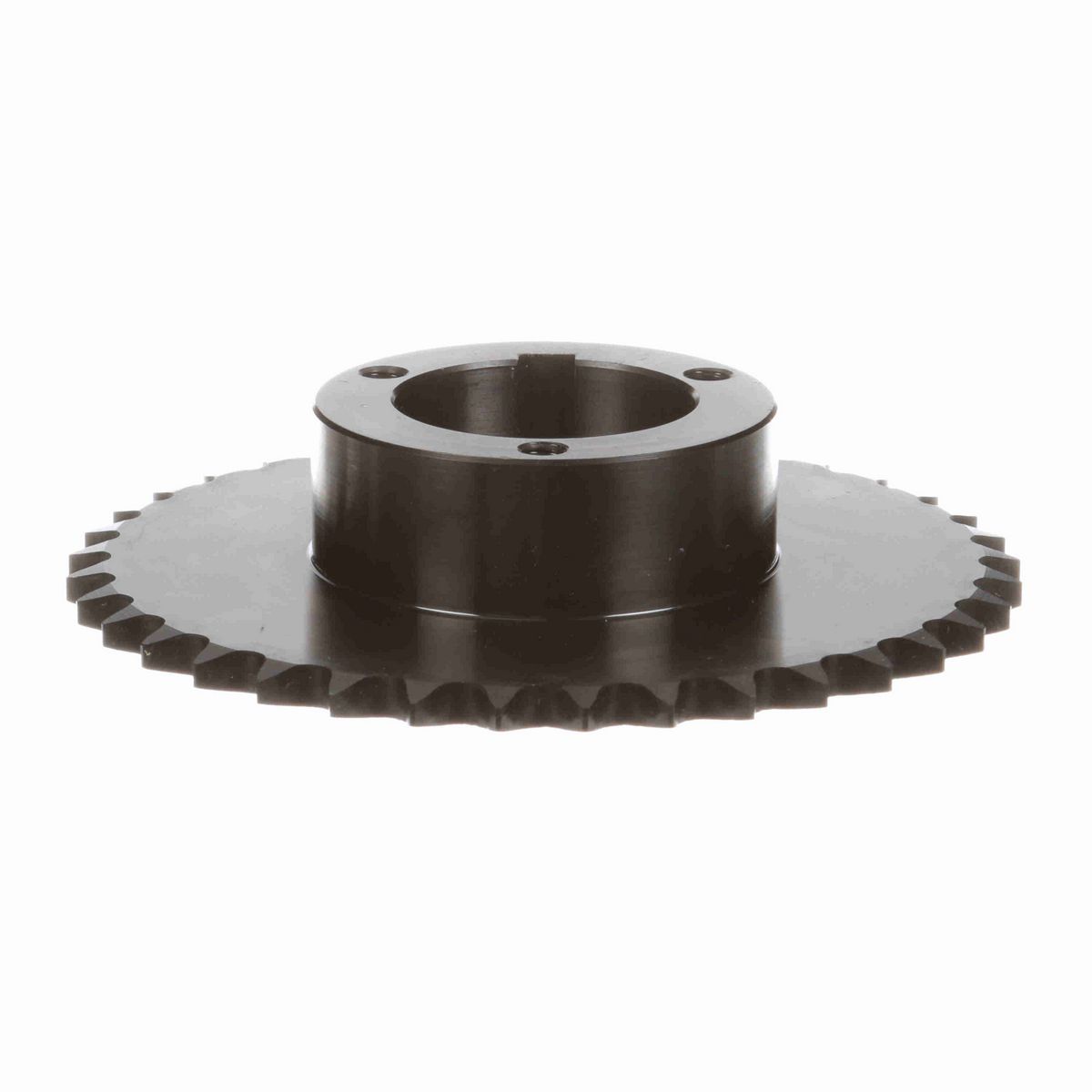

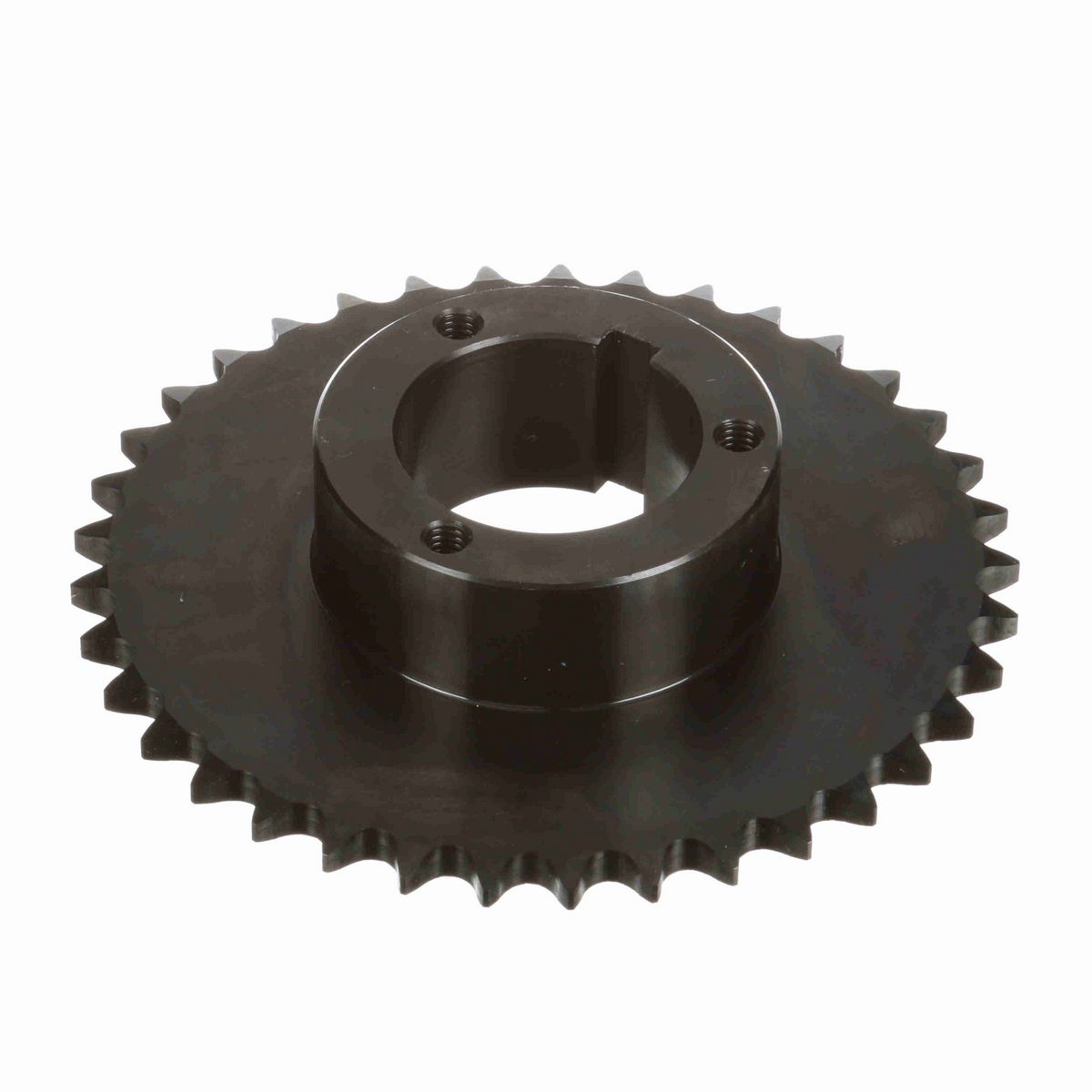

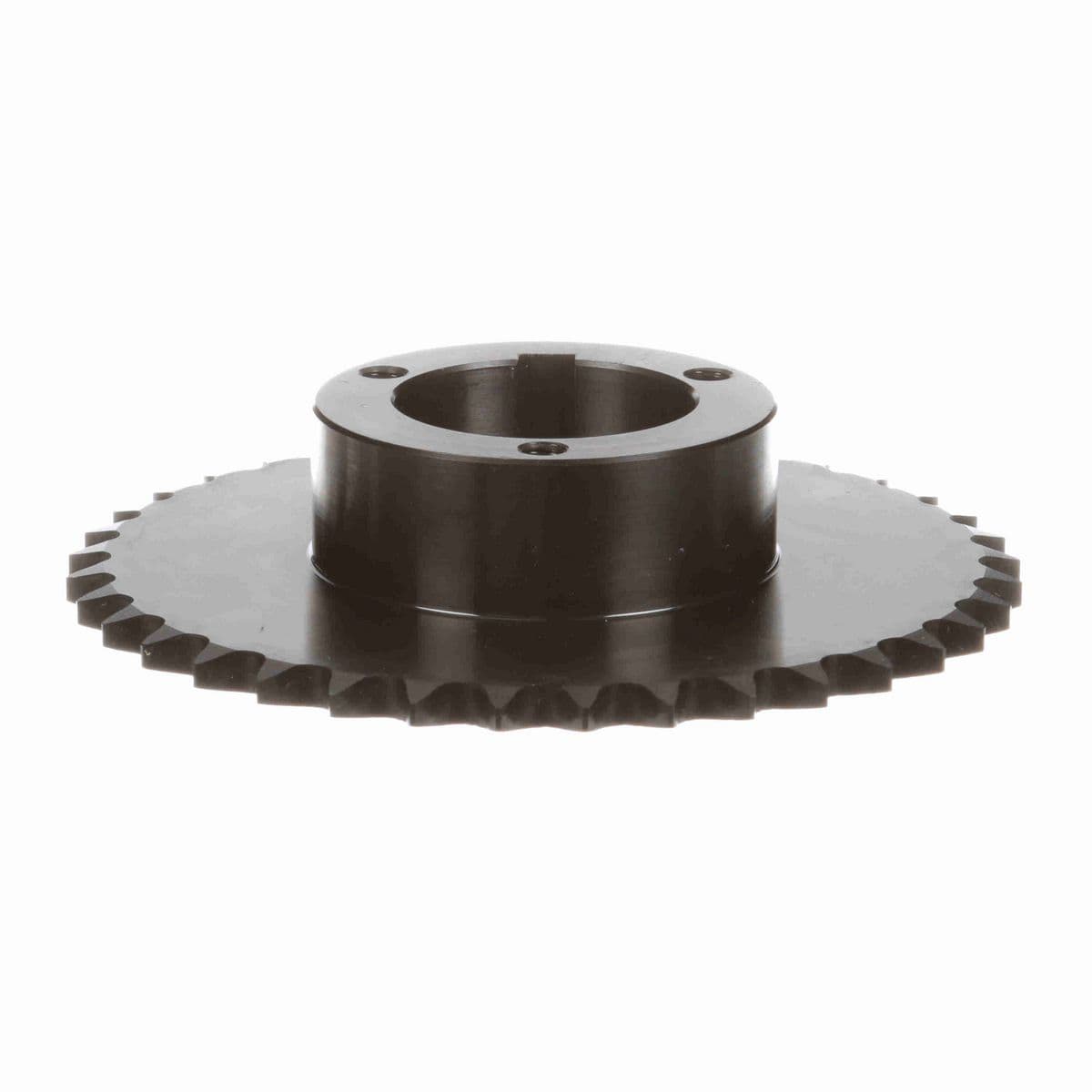

Product Type	Bushed Roller Chain Sprocket
Bushing Used	Split Taper
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Number of Teeth	37
Pitch Diameter (in)	5.896 in
Material	Steel
Min Bore (in)	0.5 in
Length Through Bore (in)	1.9375 in
Bore Type	Bushed Bore
Hub Diameter (in)	3 in
Tooth Width (in)	0.284 in
Hub Type	Bushed
Sprocket Material	Steel
Outside Diameter (in)	6.175 in
Overall Length (in)	2.221225 in
Number of Strands/Width	1
Maximum Bore (in)	1.75 in
Maximum Bore (mm)	42 mm
Minimum Bore (mm)	14 mm
Hub Projection (in)	1.656 in
Pitch Type	Single
Number of Hubs	1
Hardened Teeth	Yes
Overall Width (in)	1.9375 in
Max Bushing Bore (in)	1.75 in
Min Bushing Bore (in)	0.5 in

General Specifications

UPC	662289115075
Weight	3.10 LB
Packaged Length	6.56 IN
Packaged Width	6.56 IN
Packaged Height	1.31 IN
HTC	8483.90.1050
Country of Origin	China
