• When you think Sprockets - Think Browning
• Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
• Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.

Technical Specifications

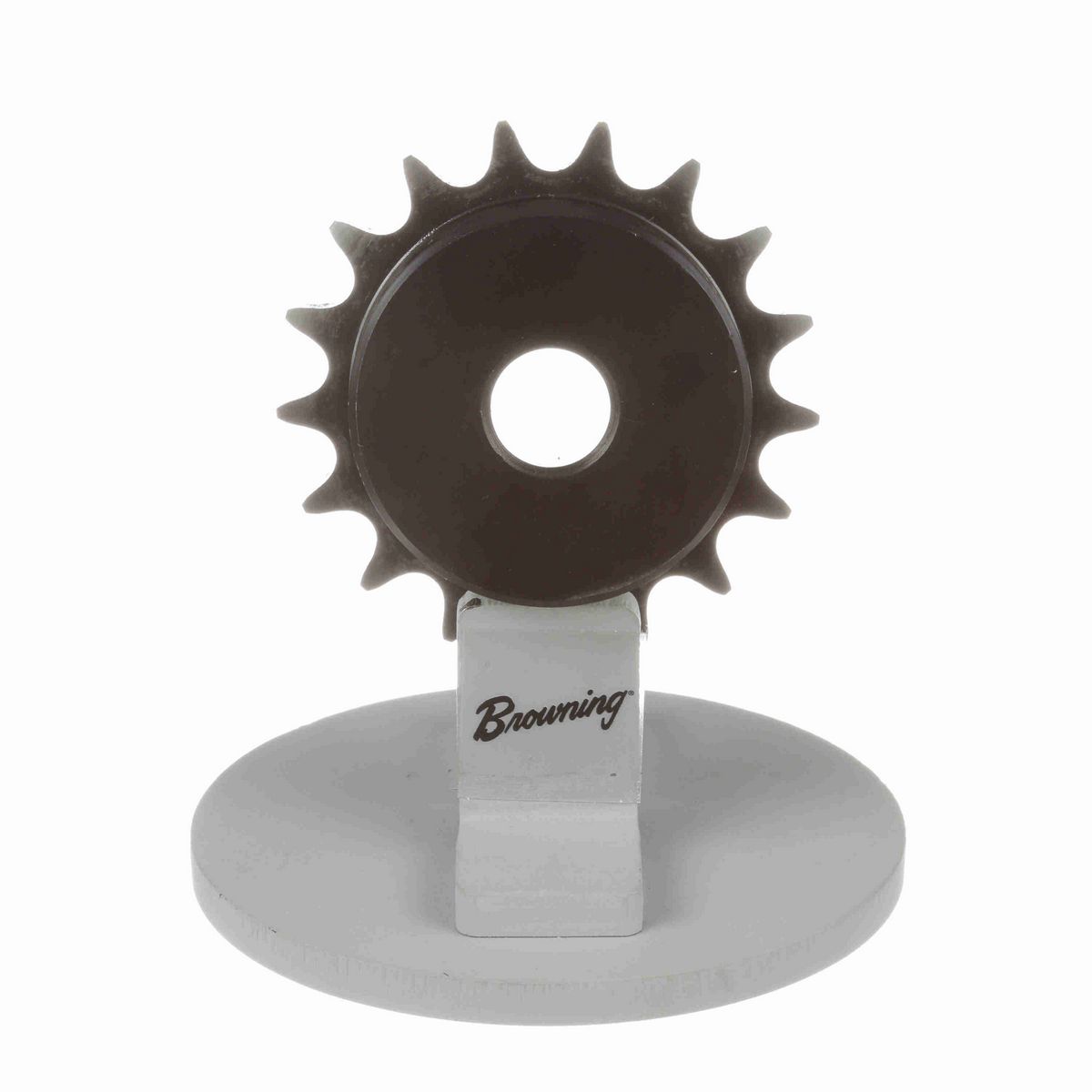

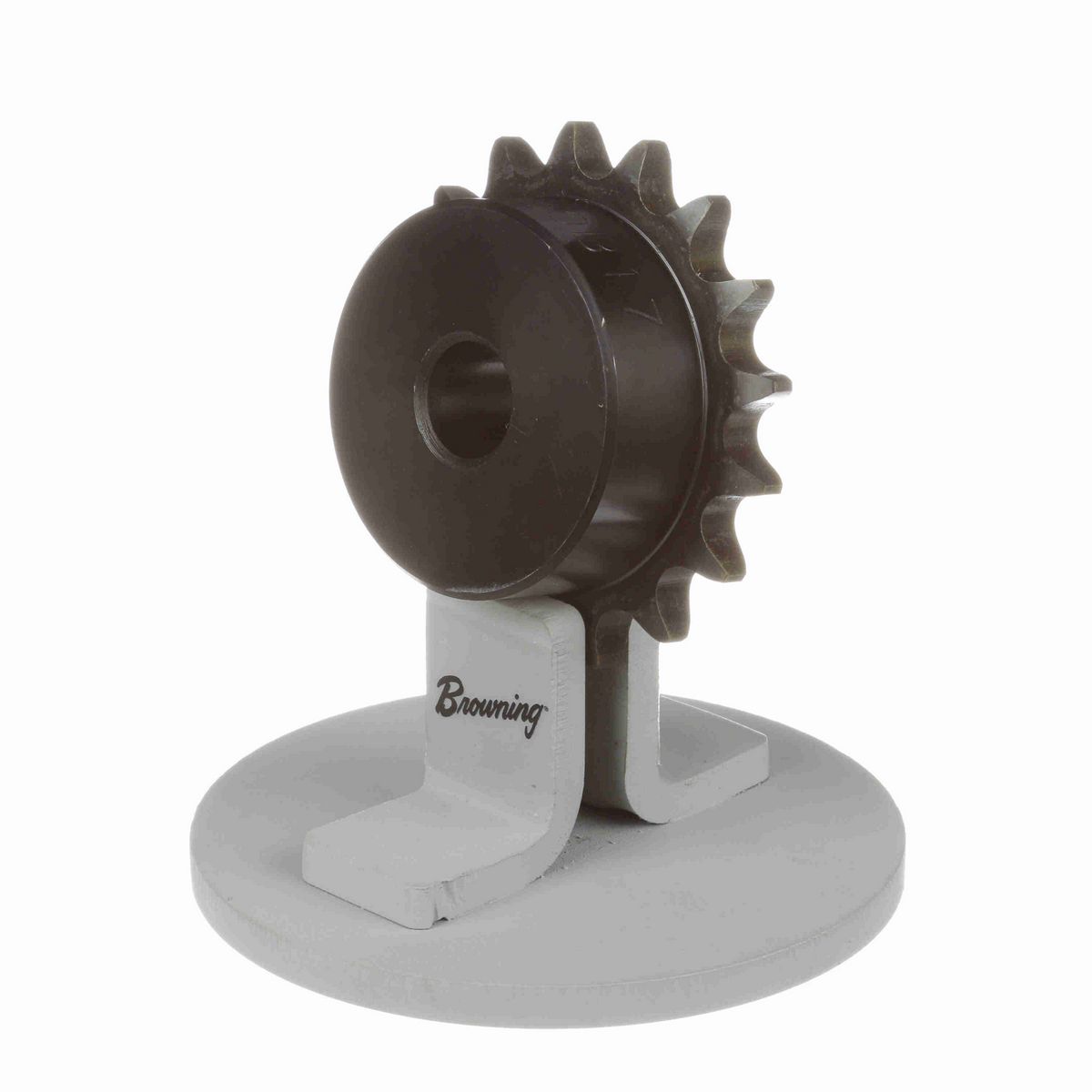

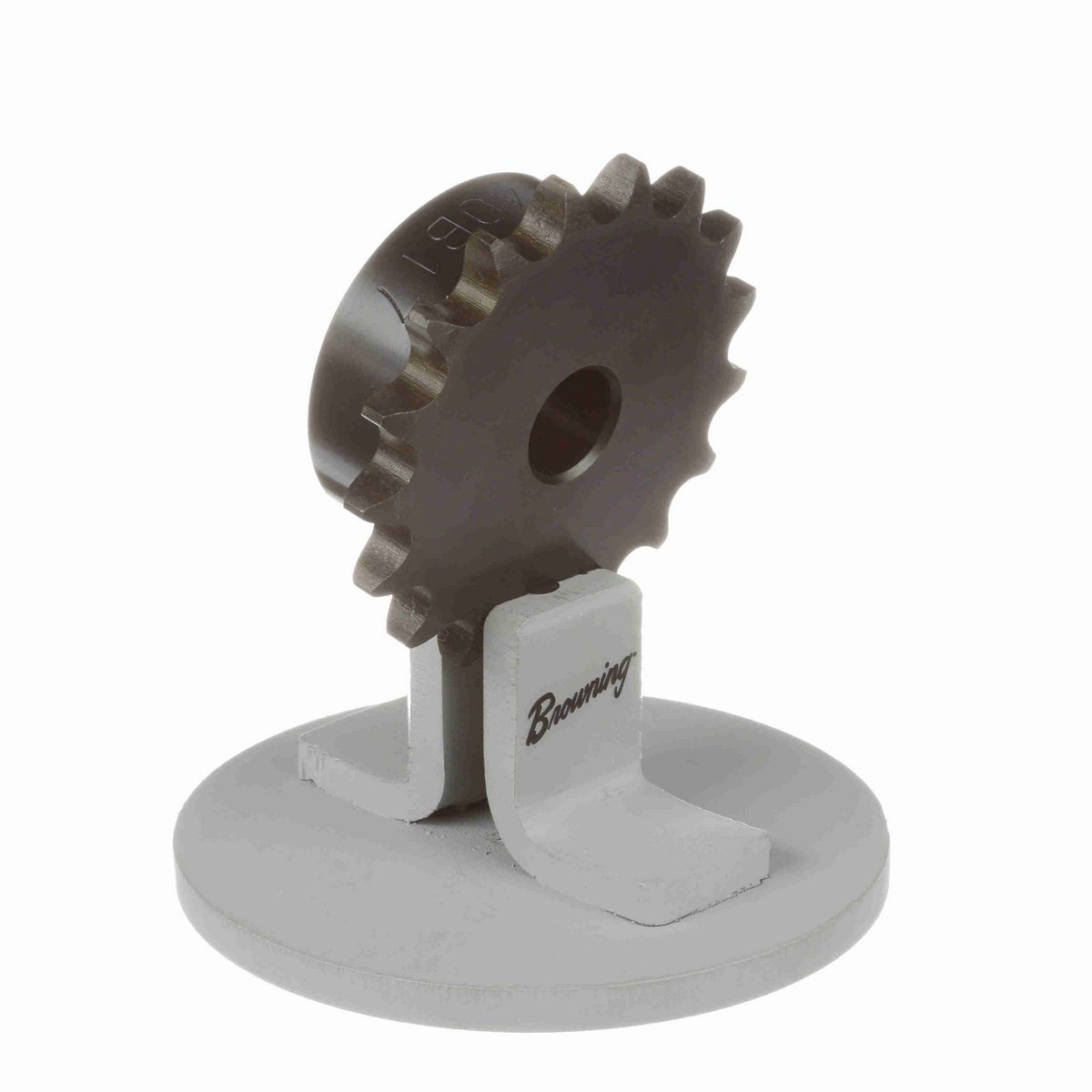

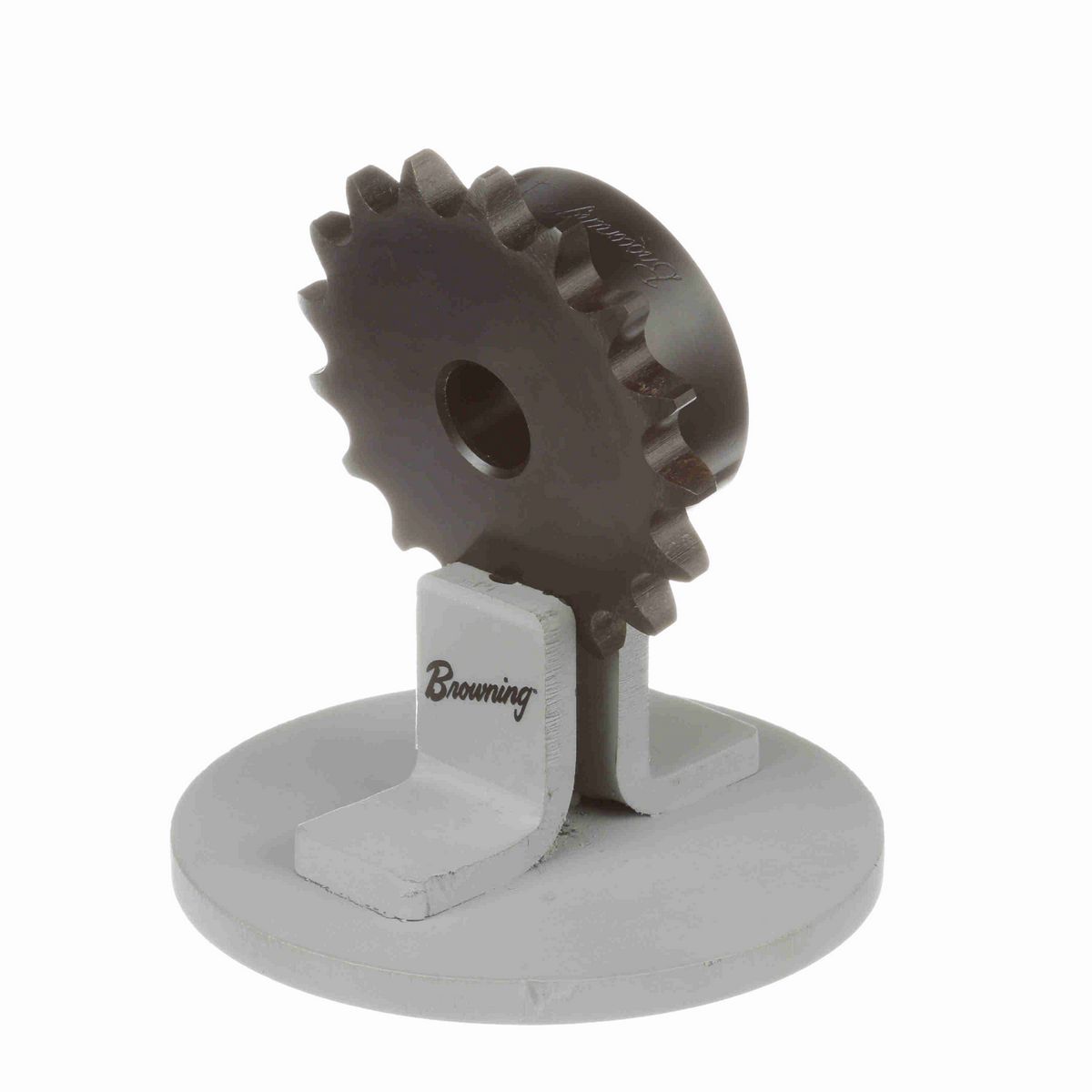

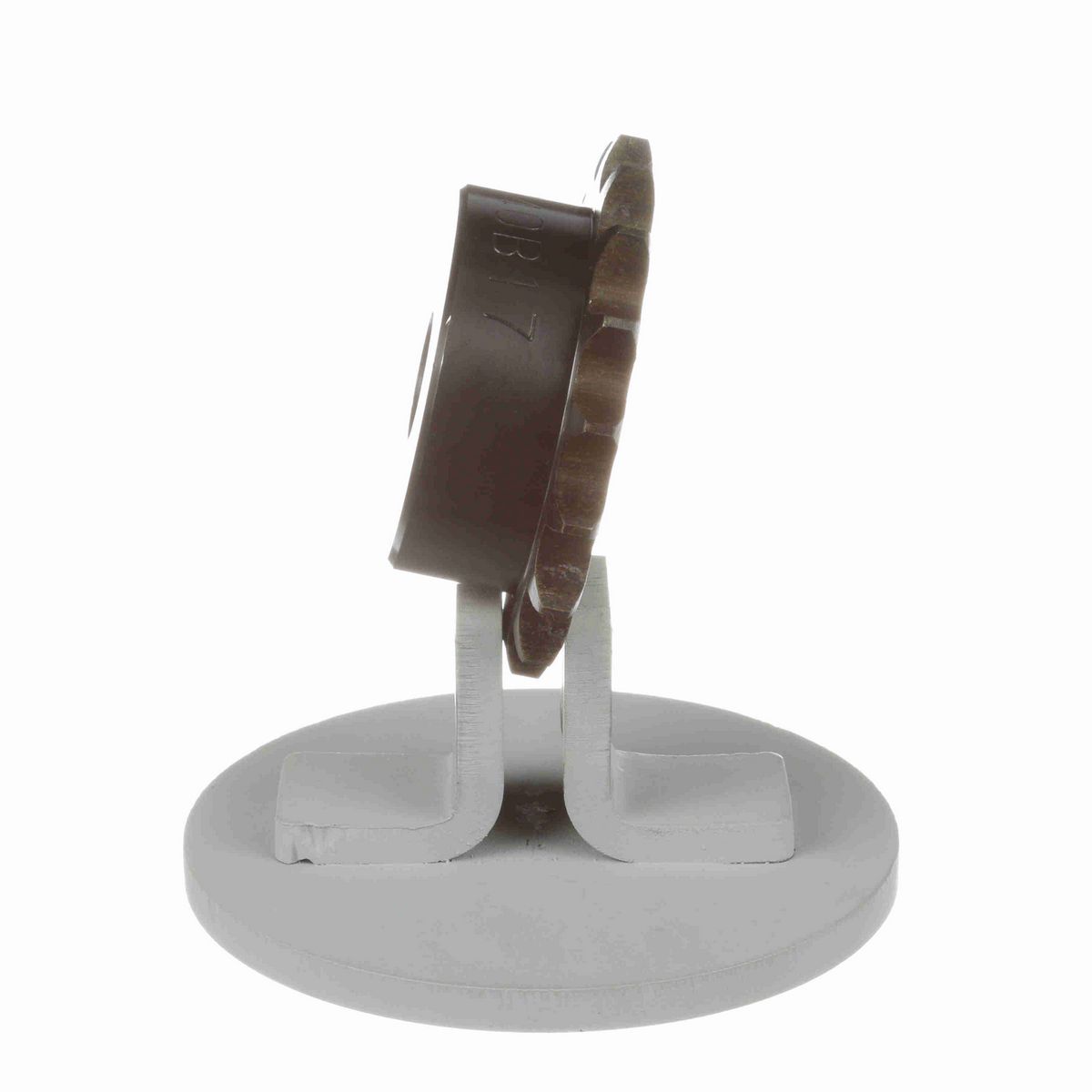

Product Type	Type "B" Minimum Bore Sprocket
Number of Teeth	17
Chain Pitch (in)	0.5 in
Material	Steel
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Bore Type	Minimum Plain Bore
Max Bore (in)	1.4375 in
Outside Diameter (in)	2.96 in
Pitch Diameter (in)	2.721 in
Bore Diameter (in)	0.625 in
Number of Strands/Width	1
Hub Diameter (in)	2.125 in
Hub Type	Type B
Length Through Bore (in)	1 in
Maximum Bore (in)	1.4375 in
Minimum Bore (mm)	16 mm
Maximum Bore (mm)	36 mm
Number of Hubs	1
Hub Projection (in)	0.71875 in

General Specifications

UPC	662289209132
Weight	1.05 LB
Packaged Length	4.19 IN
Packaged Width	4.19 IN
Packaged Height	1.06 IN
HTC	8483.90.1050
Country of Origin	China
