• When you think Sprockets - Think Browning

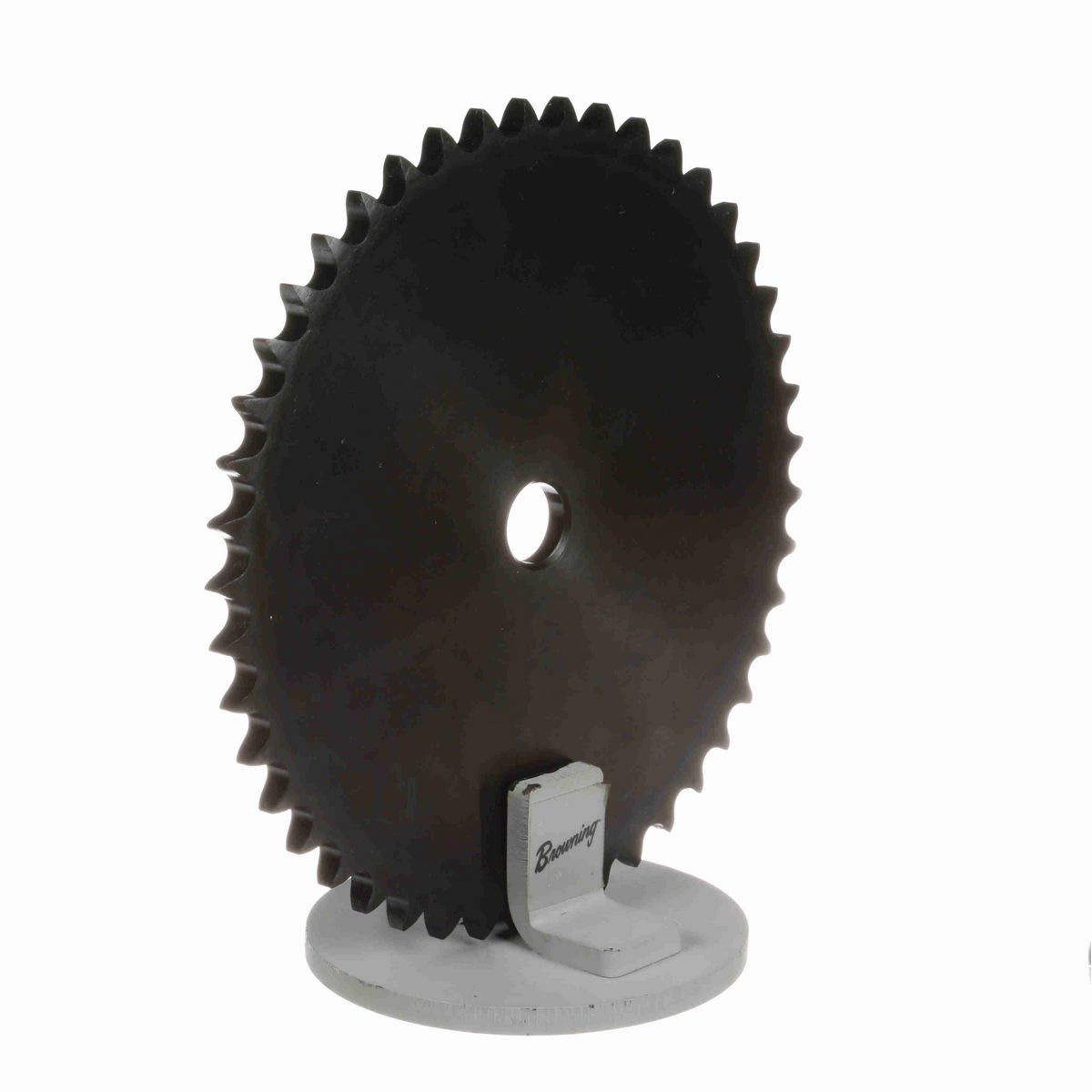

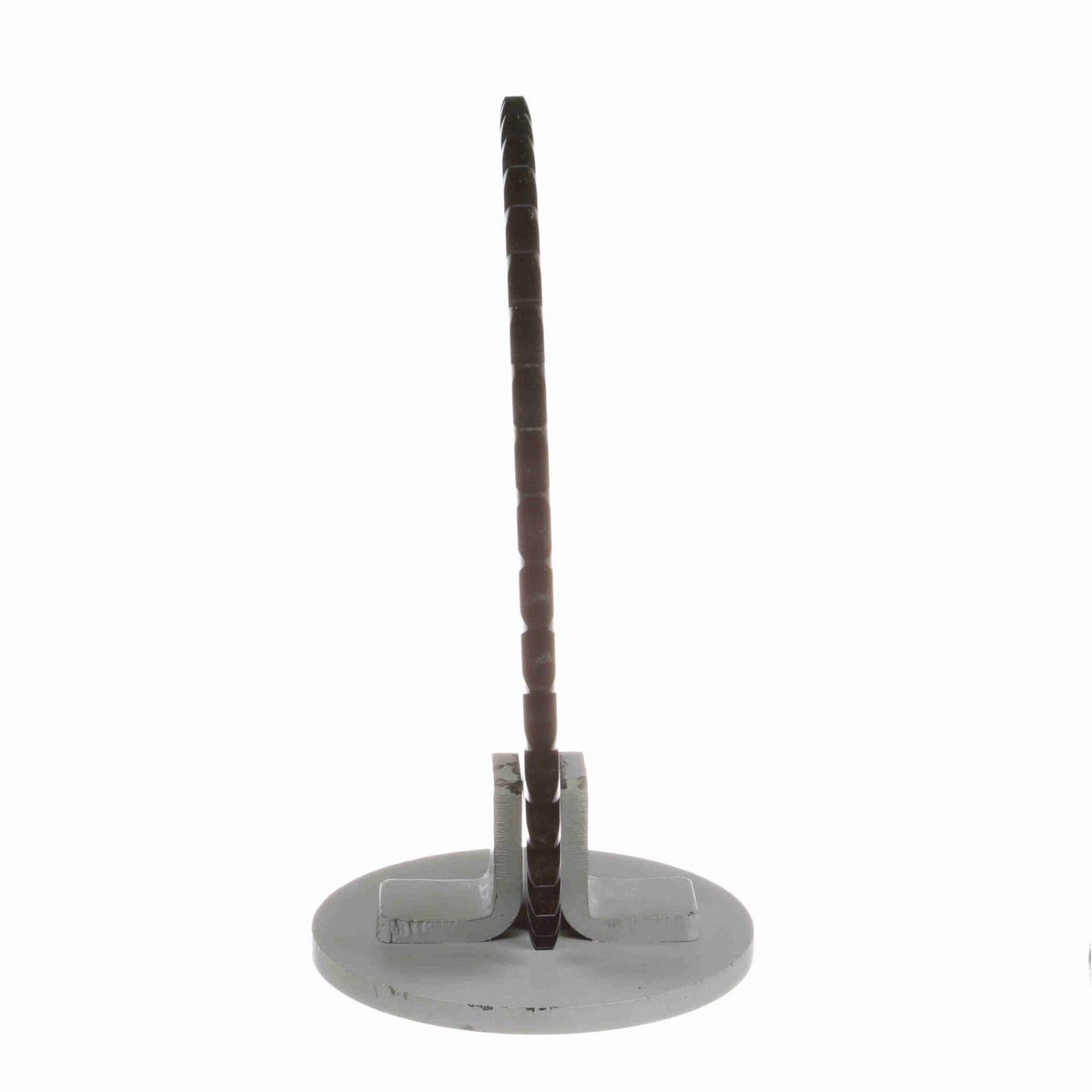

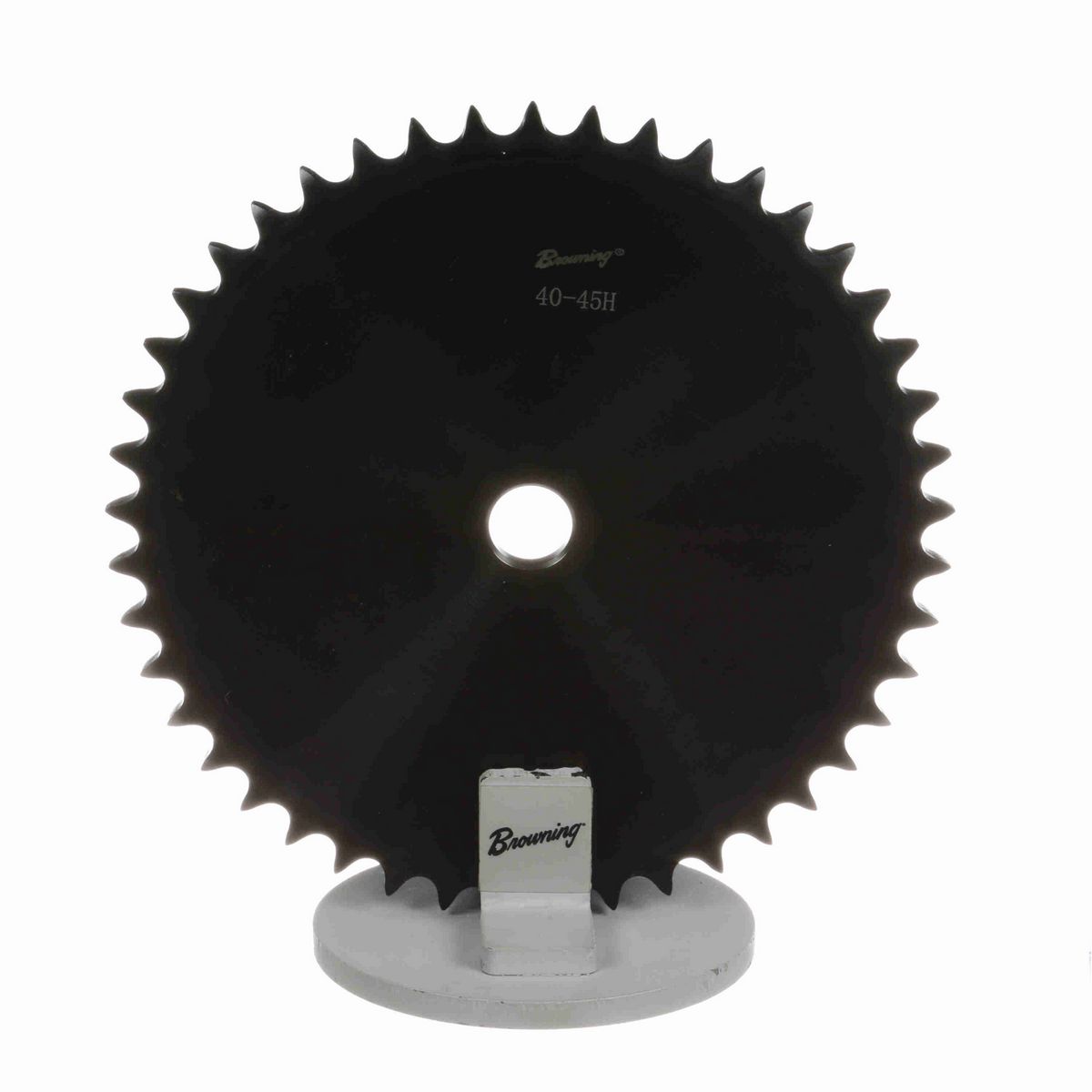

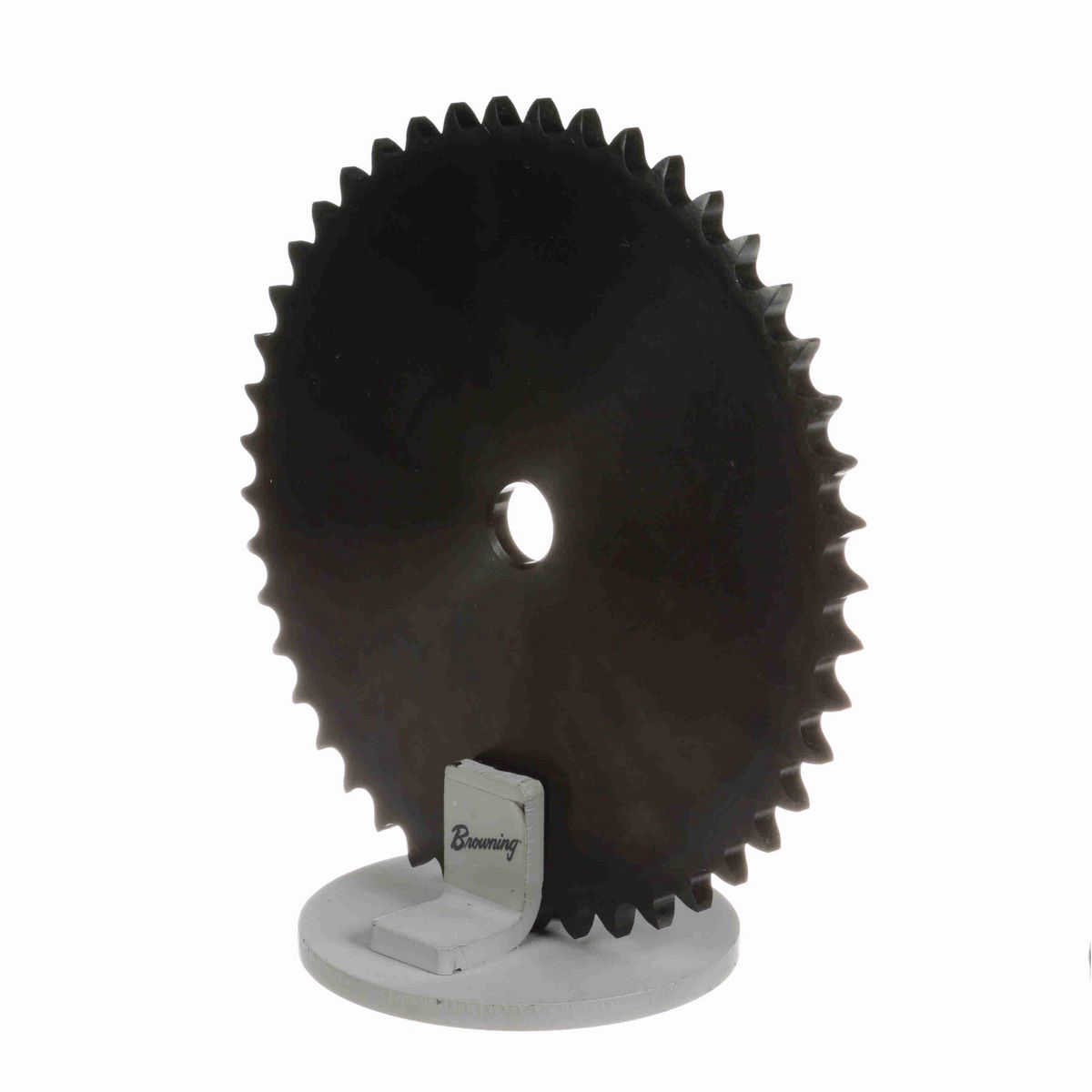

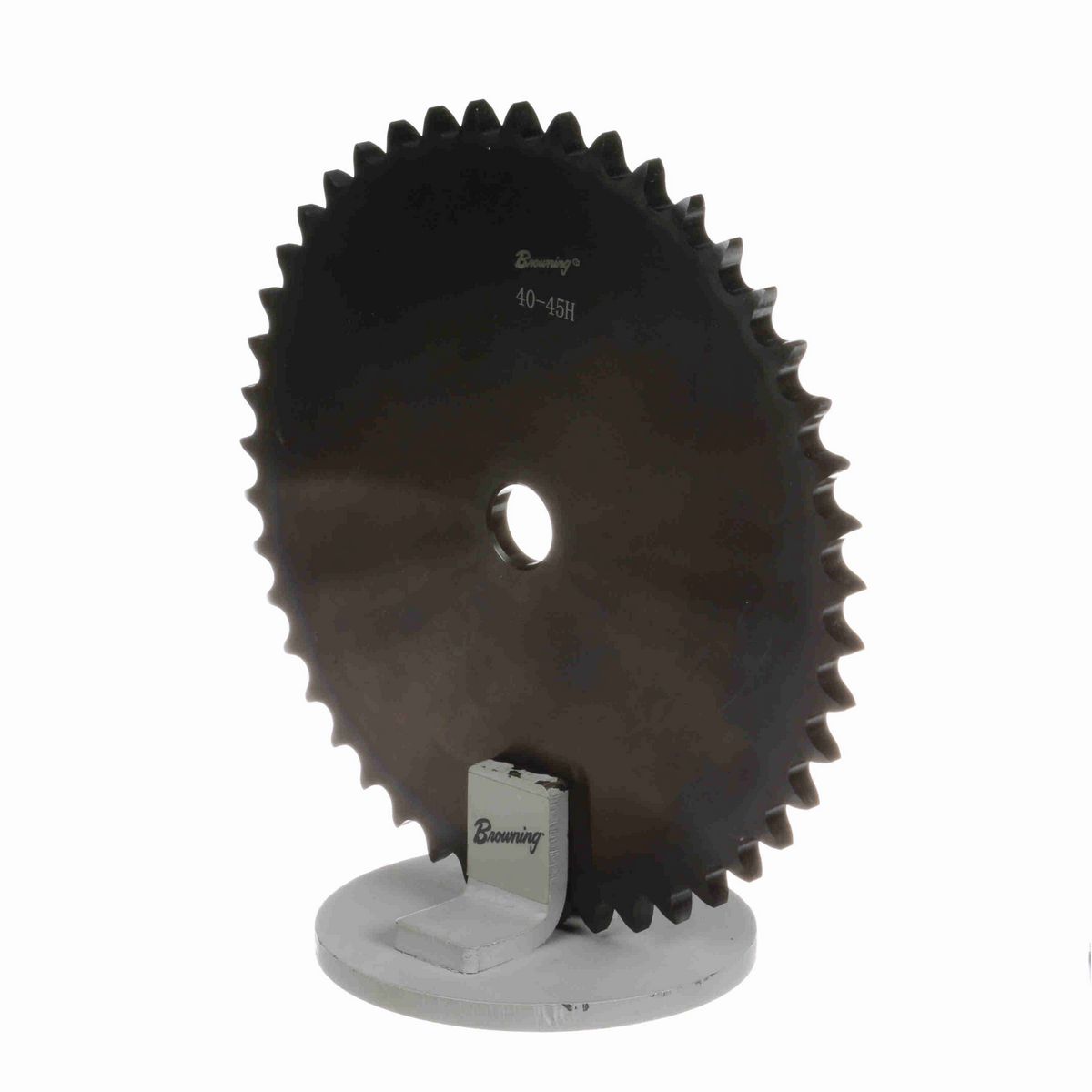

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Product Type	Type "A" Plate Sprocket
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Number of Teeth	45
Material	Steel
Chain Pitch (in)	0.5 in
Outside Diameter (in)	7.45 in
Bore Type	Minimum Plain Bore
Pitch Diameter (in)	7.167794 in
Bore Diameter (in)	0.71875 in
Number of Strands/Width	1
Hub Type	Type A
Length Through Bore (in)	0.284 in
Maximum Bore (in)	2.375 in
Minimum Bore (mm)	16 mm
Maximum Bore (mm)	60 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289191109
Weight	3.23 LB
Packaged Length	7.60 IN
Packaged Width	7.50 IN
Packaged Height	2.00 IN
HTC	8483.90.1050
Country of Origin	China
