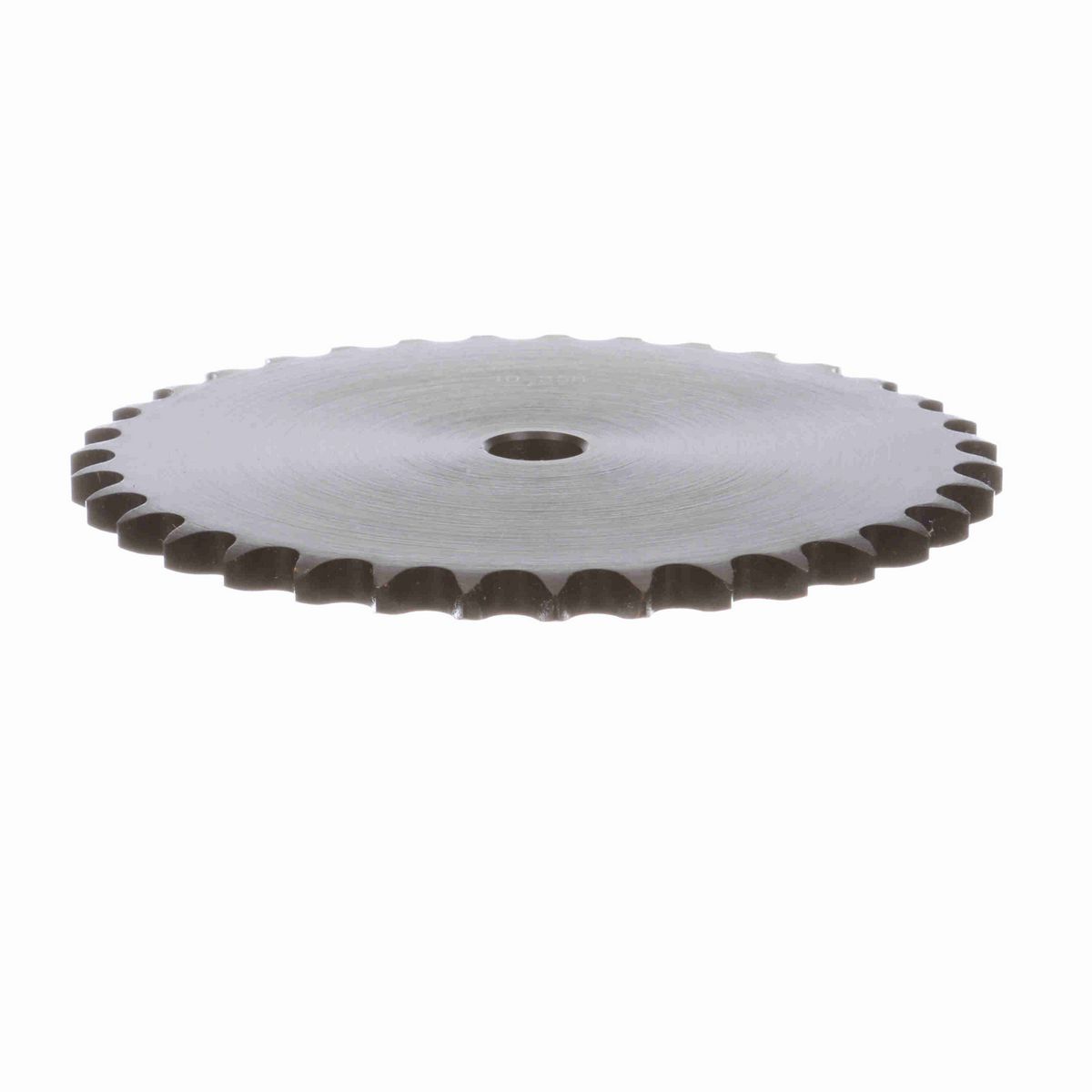

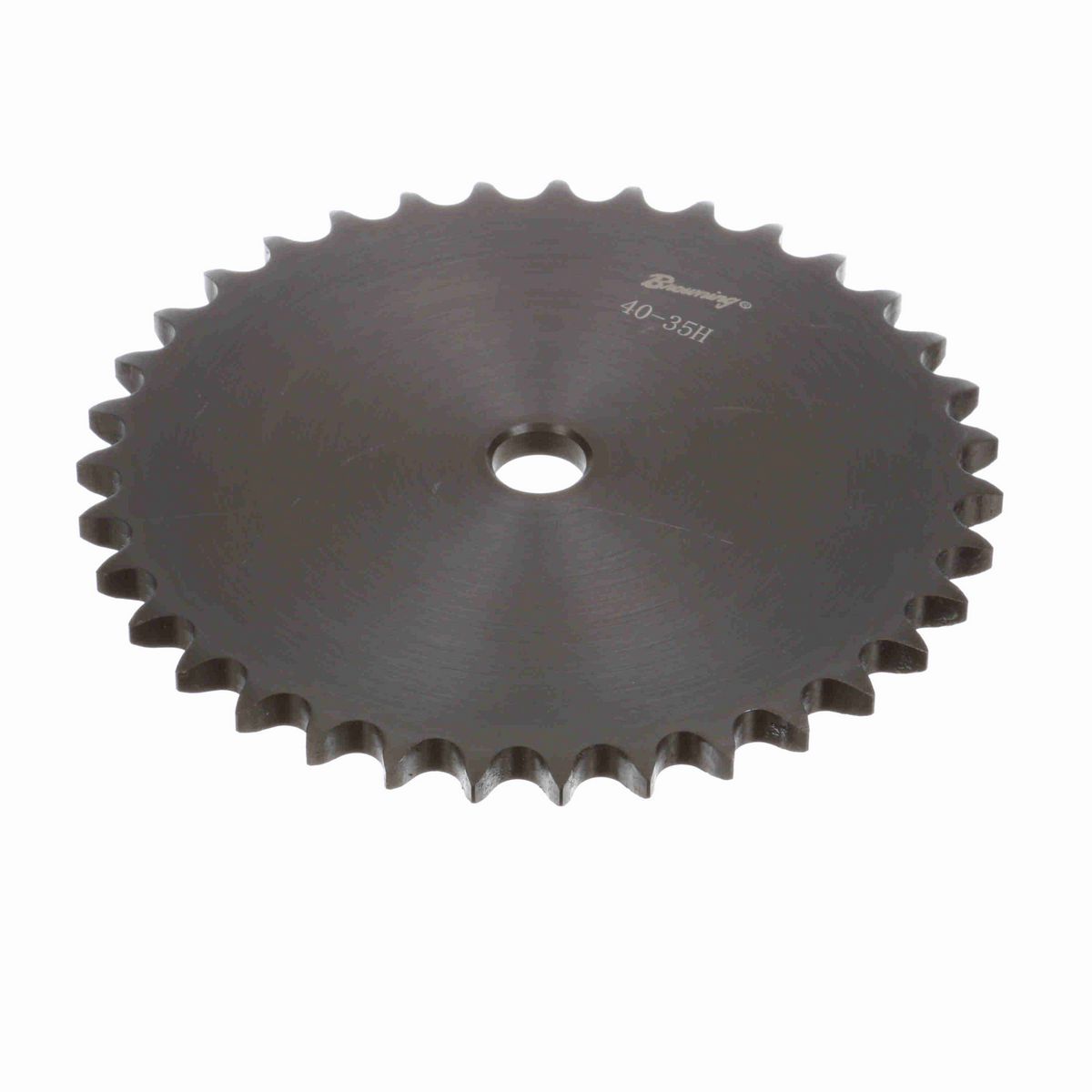

• When you think Sprockets - Think Browning
• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Number of Teeth	35
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Material	Steel
Chain Pitch (in)	0.5 in
Product Type	Type "A" Plate Sprocket
Bore Type	Minimum Plain Bore
Outside Diameter (in)	5.855 in
Pitch Diameter (in)	5.57791 in
Number of Strands/Width	1
Bore Diameter (in)	0.59375 in
Length Through Bore (in)	0.284 in
Hub Type	Type A
Maximum Bore (in)	2.25 in
Maximum Bore (mm)	57 mm
Minimum Bore (mm)	16 mm
Number of Hubs	0
Hardened Teeth	With Hardened Teeth

General Specifications

UPC	662289141050
Weight	1.66 LB
Packaged Length	9.25 IN
Packaged Width	9.25 IN
Packaged Height	3.75 IN
HTC	8483.90.1050
Country of Origin	China
