• When you think Sprockets - Think Browning

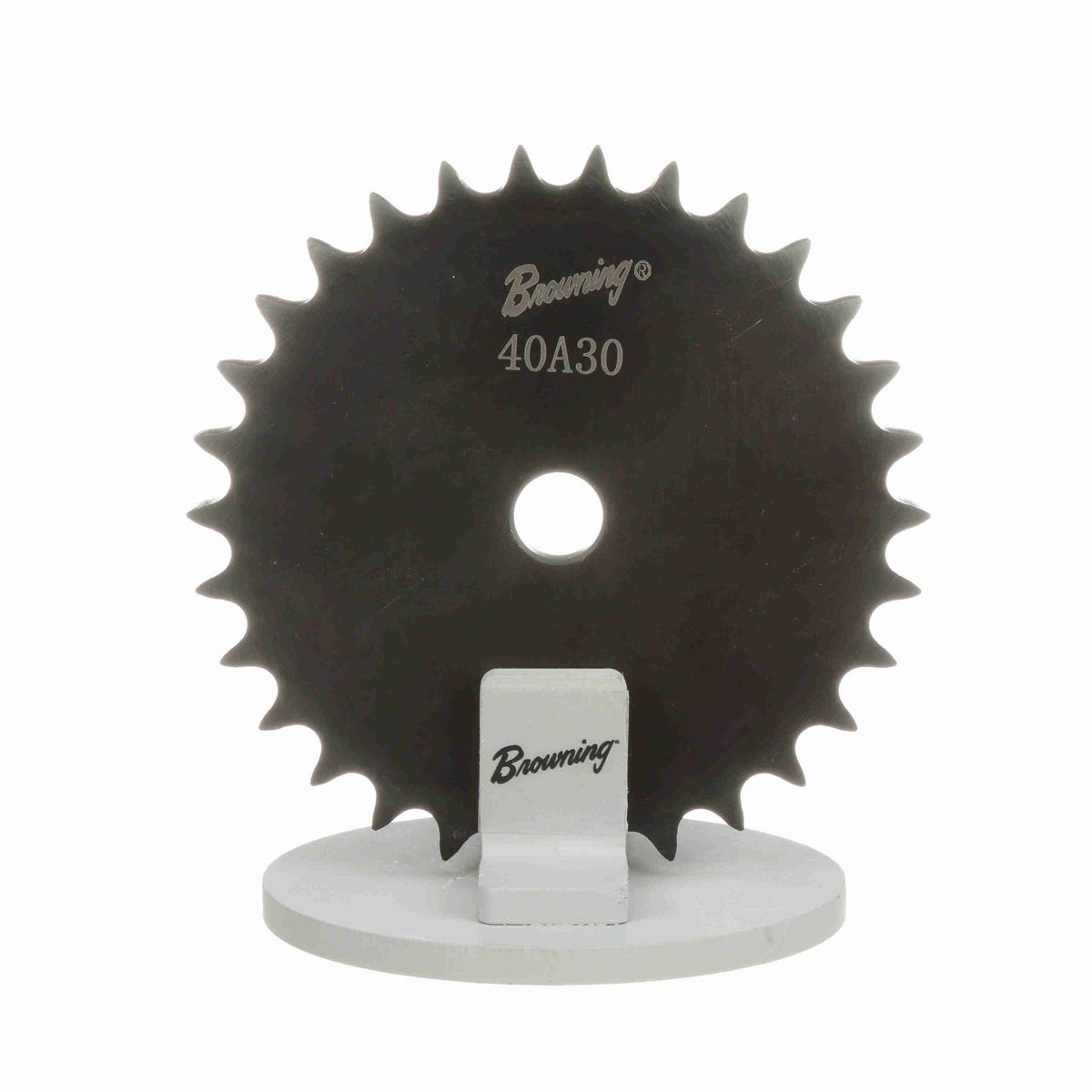

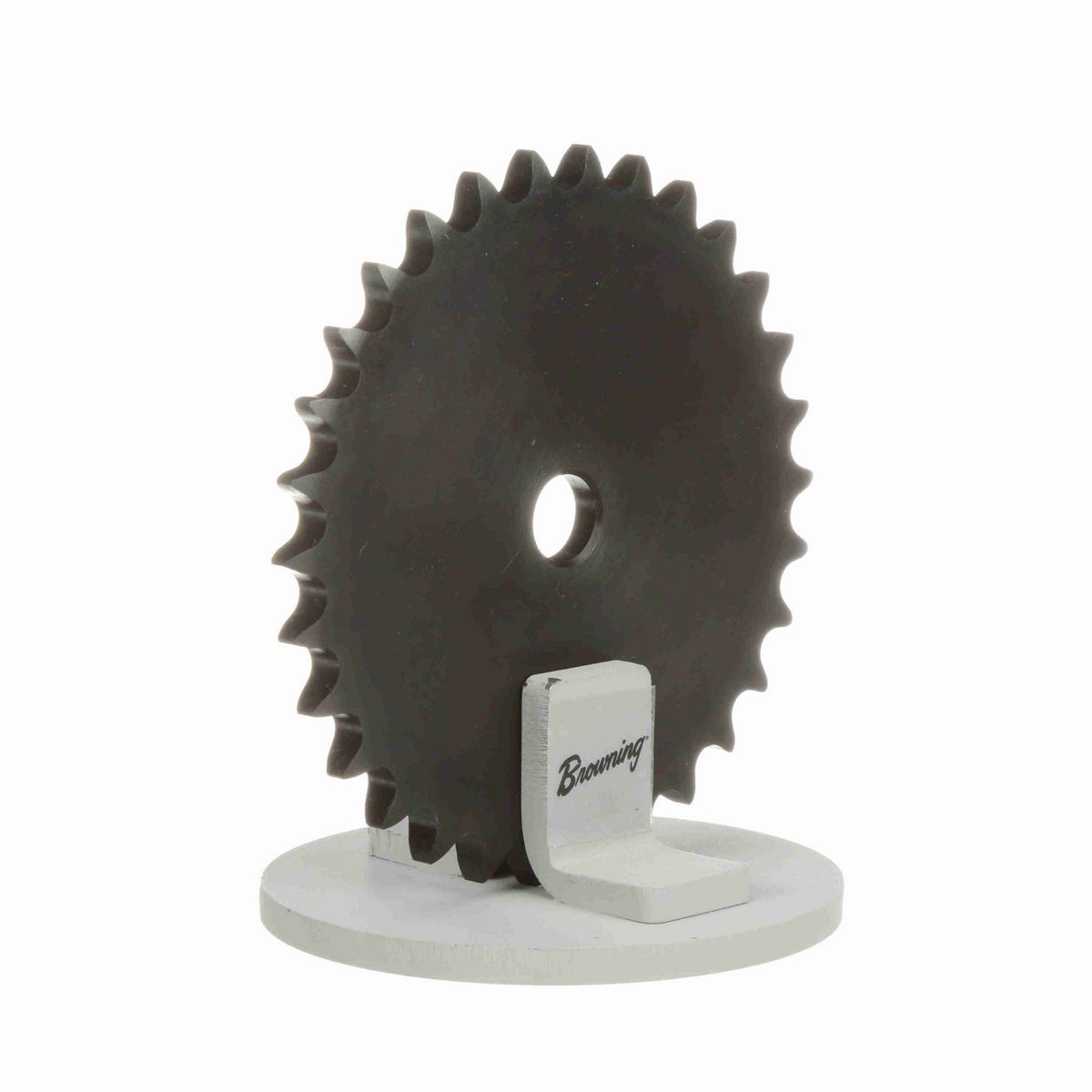

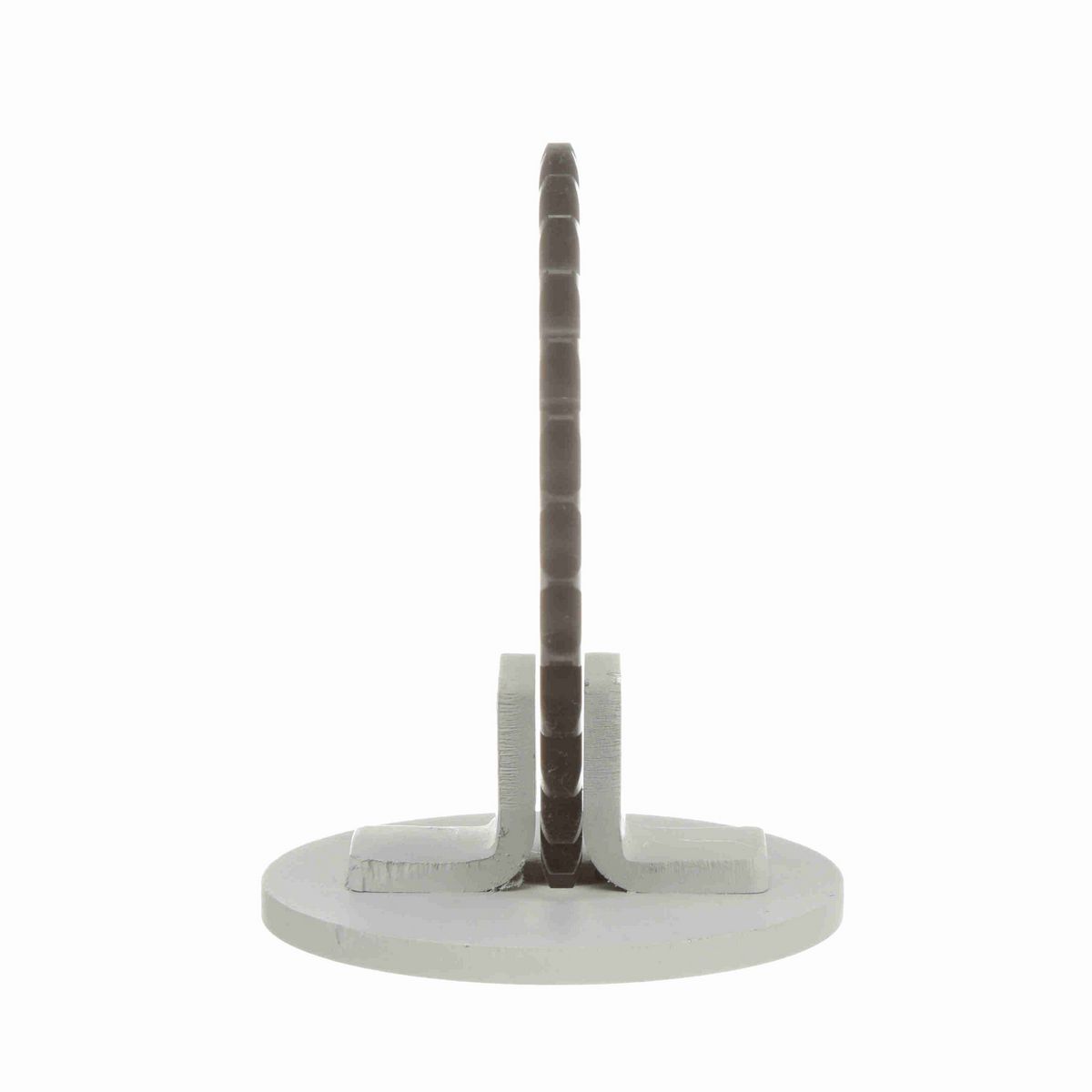

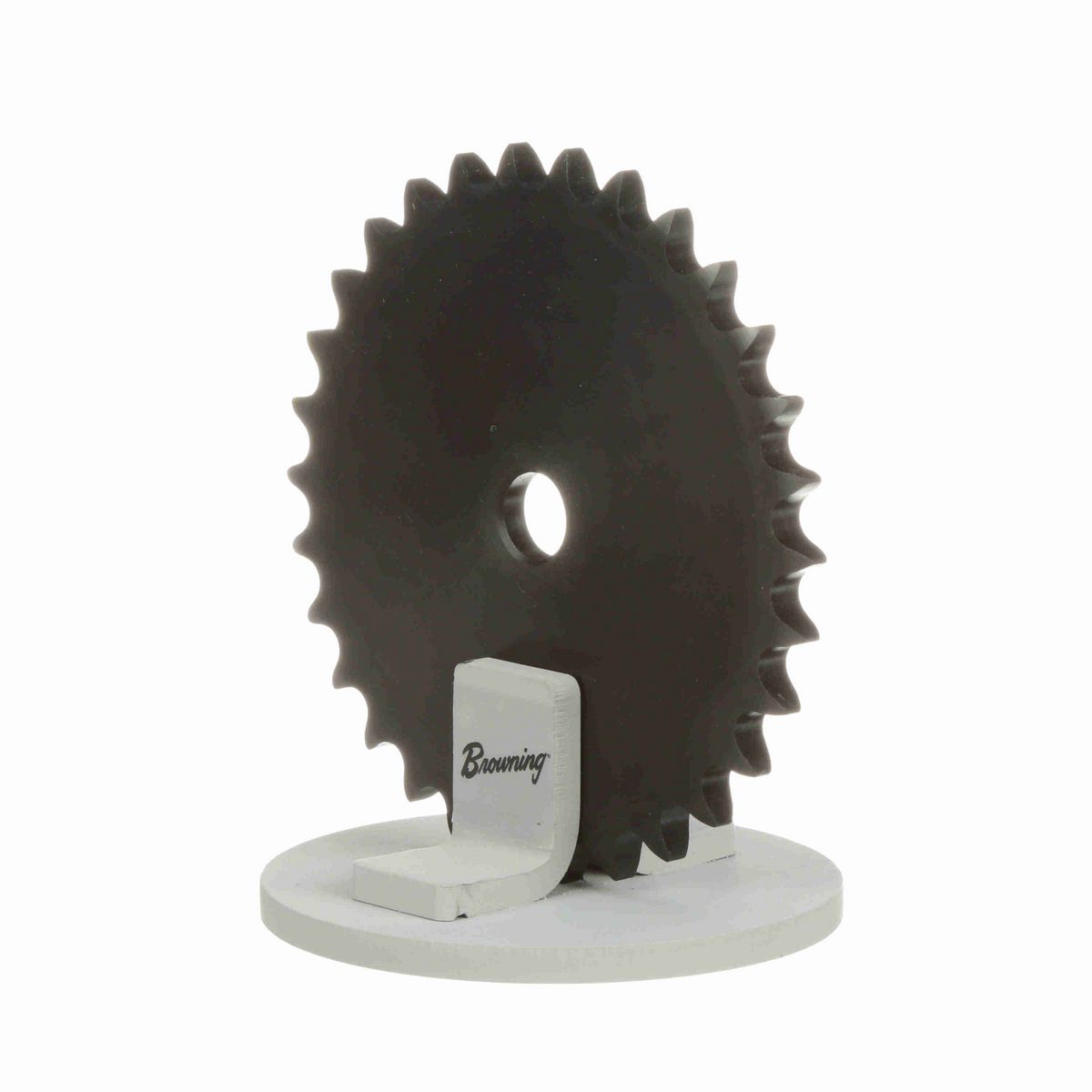

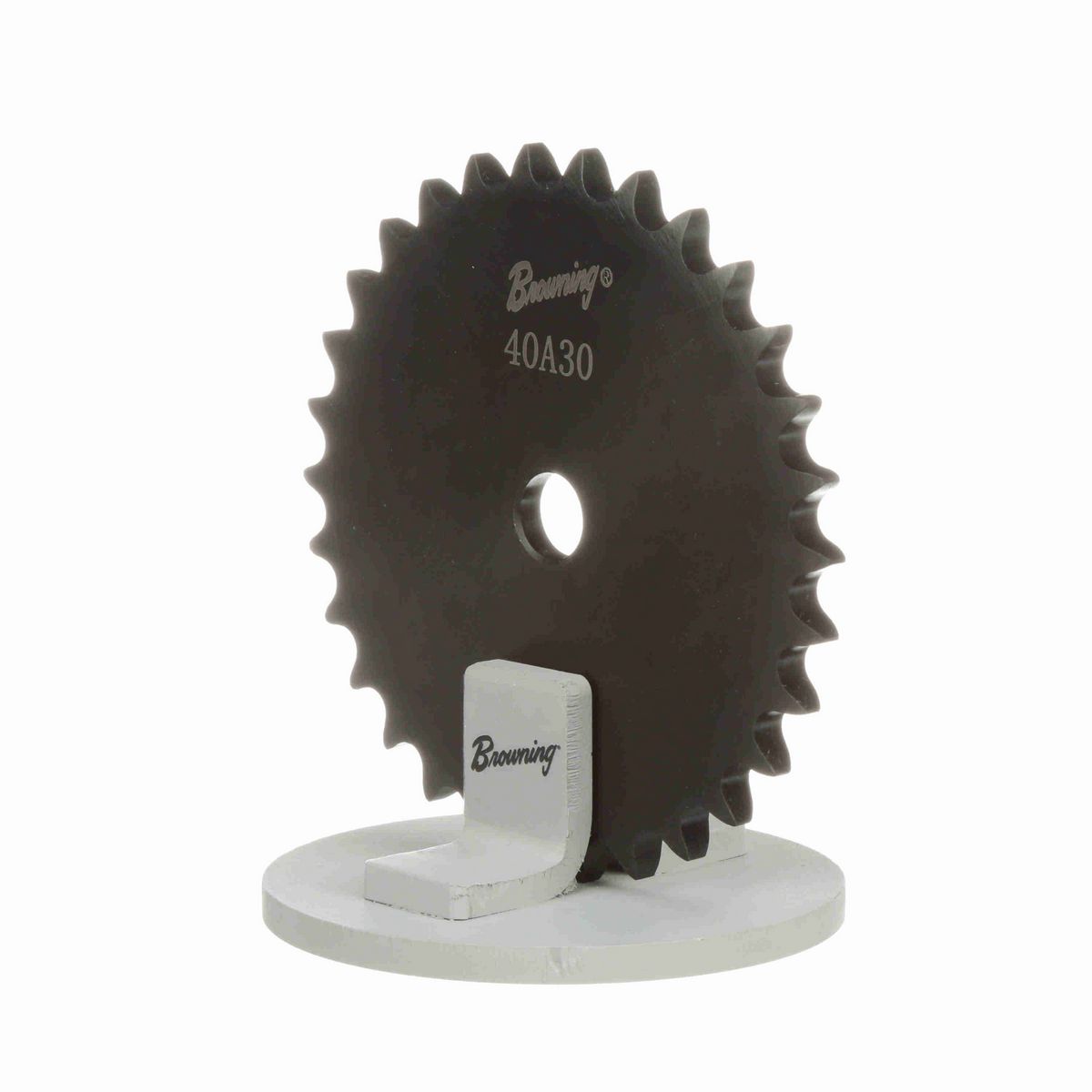

• Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200

Technical Specifications

Material	Steel
Chain Pitch (in)	0.5 in
Number of Teeth	30
Product Type	Type "A" Plate Sprocket
Chain Used	No. 40, 1/2 in. Pitch ANSI Chain
Bore Type	Minimum Plain Bore
Outside Diameter (in)	5.057 in
Pitch Diameter (in)	4.783386 in
Bore Diameter (in)	0.59375 in
Number of Strands/Width	1
Length Through Bore (in)	0.284 in
Hub Type	Type A
Maximum Bore (in)	2.25 in
Minimum Bore (mm)	16 mm
Maximum Bore (mm)	57 mm
Hardened Teeth	With Hardened Teeth
Number of Hubs	0

General Specifications

UPC	662289181049
Weight	1.40 LB
Packaged Length	5.70 IN
Packaged Width	5.50 IN
Packaged Height	0.80 IN
HTC	8483.90.1050
Country of Origin	China
